Philips CM153
Logs
typeType
CD-ROM interface
interfaceInterface
signalSignaling
8-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
FVR6CMCM153A
dimDimensions
139 mm (width) x 98mm (length)
chip Chips and specs
-> Chipset part
(multiple brand) Discrete Logic
-> UART ctrl.
(multiple brand) 8251 (Sync/Async RX/TX (USART))
portintI/O ports
1x
  • DA-15, LMSI (Philips) differential CD-ROM
1x
  • 2x8 2.54mm pin header, LMSI (Philips) single-ended CD-ROM
powerPower connectors
Empty
notes Notes

Controller for the first CD-ROM drive the Philips CM100

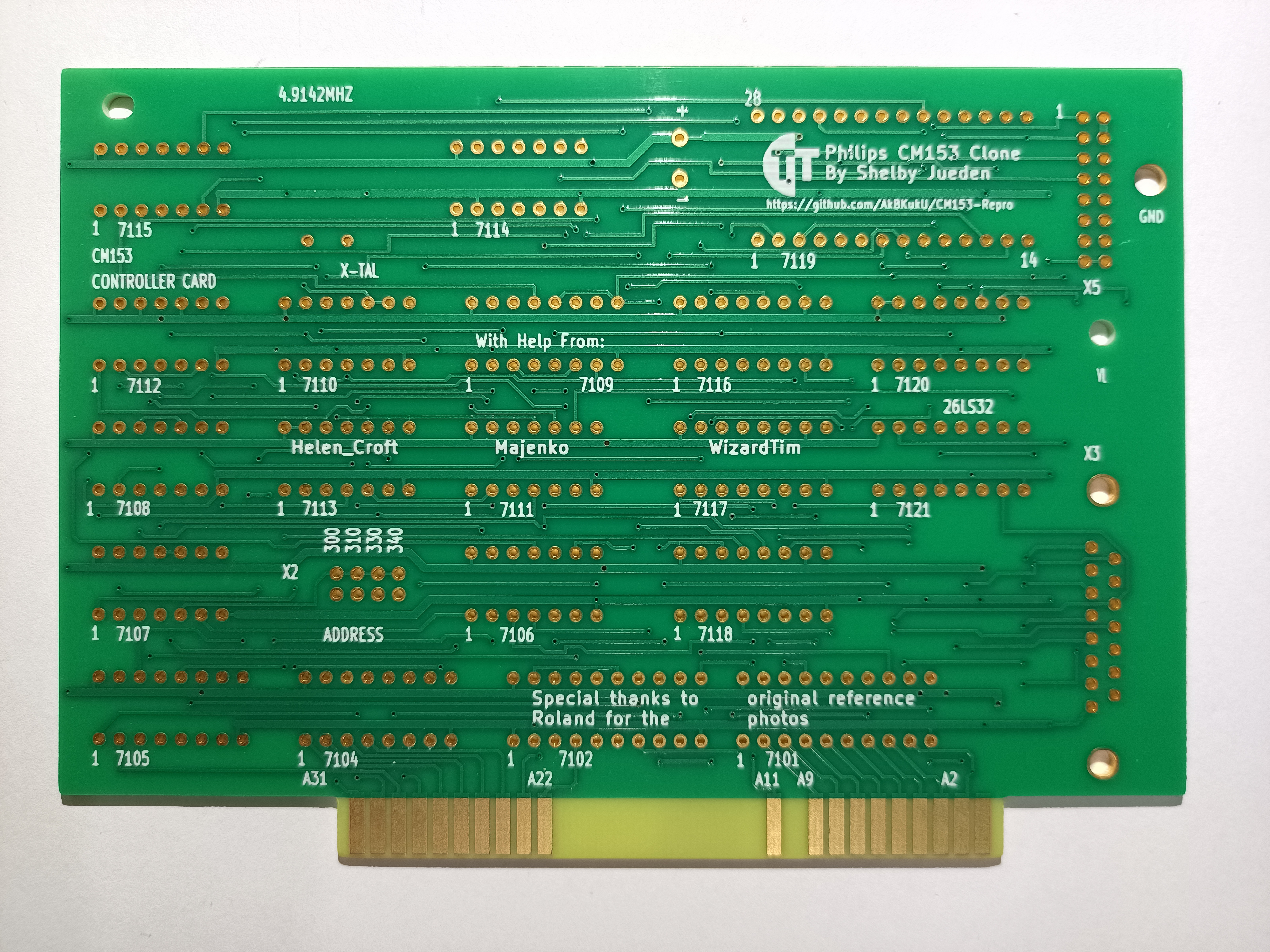

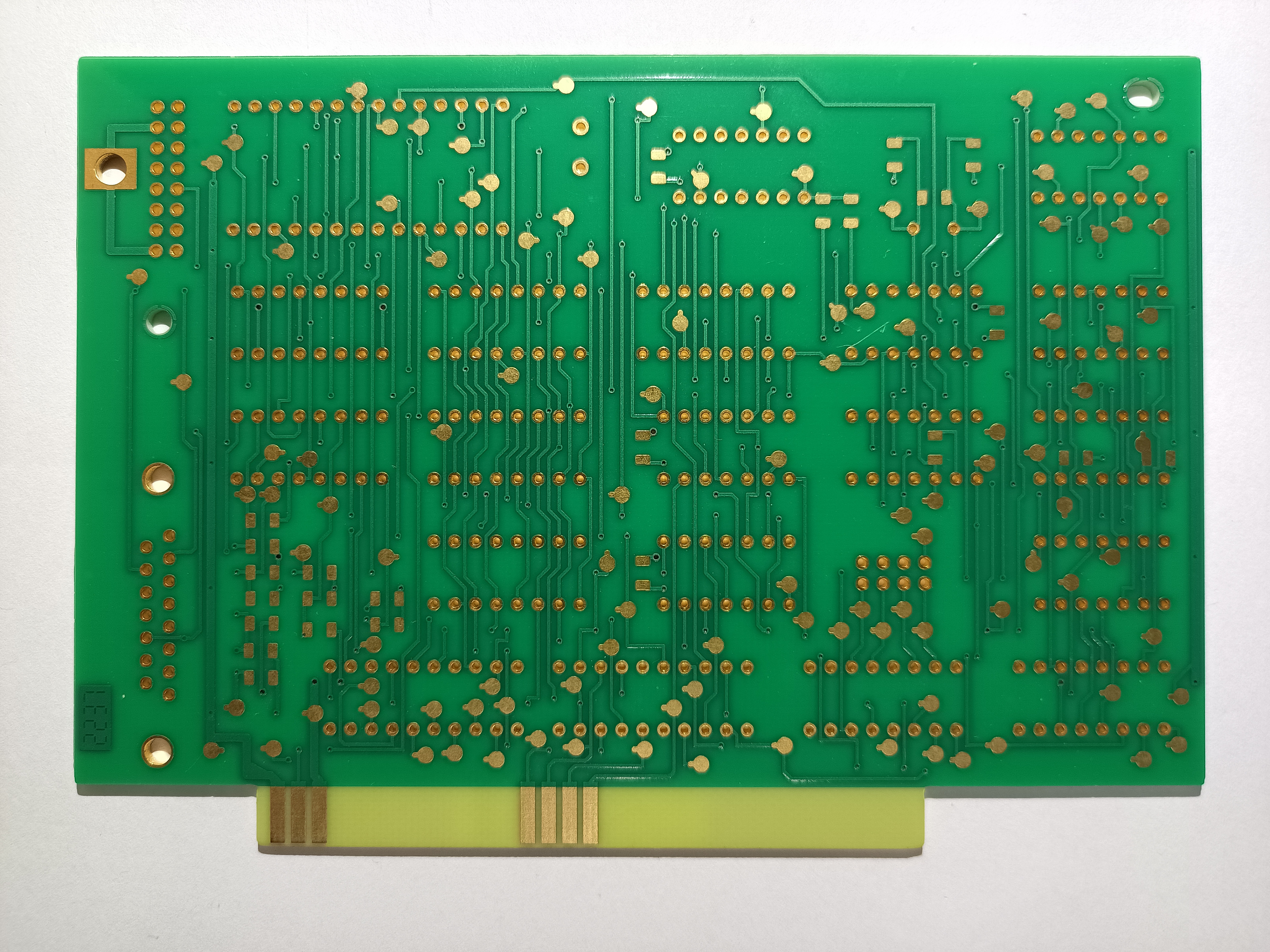

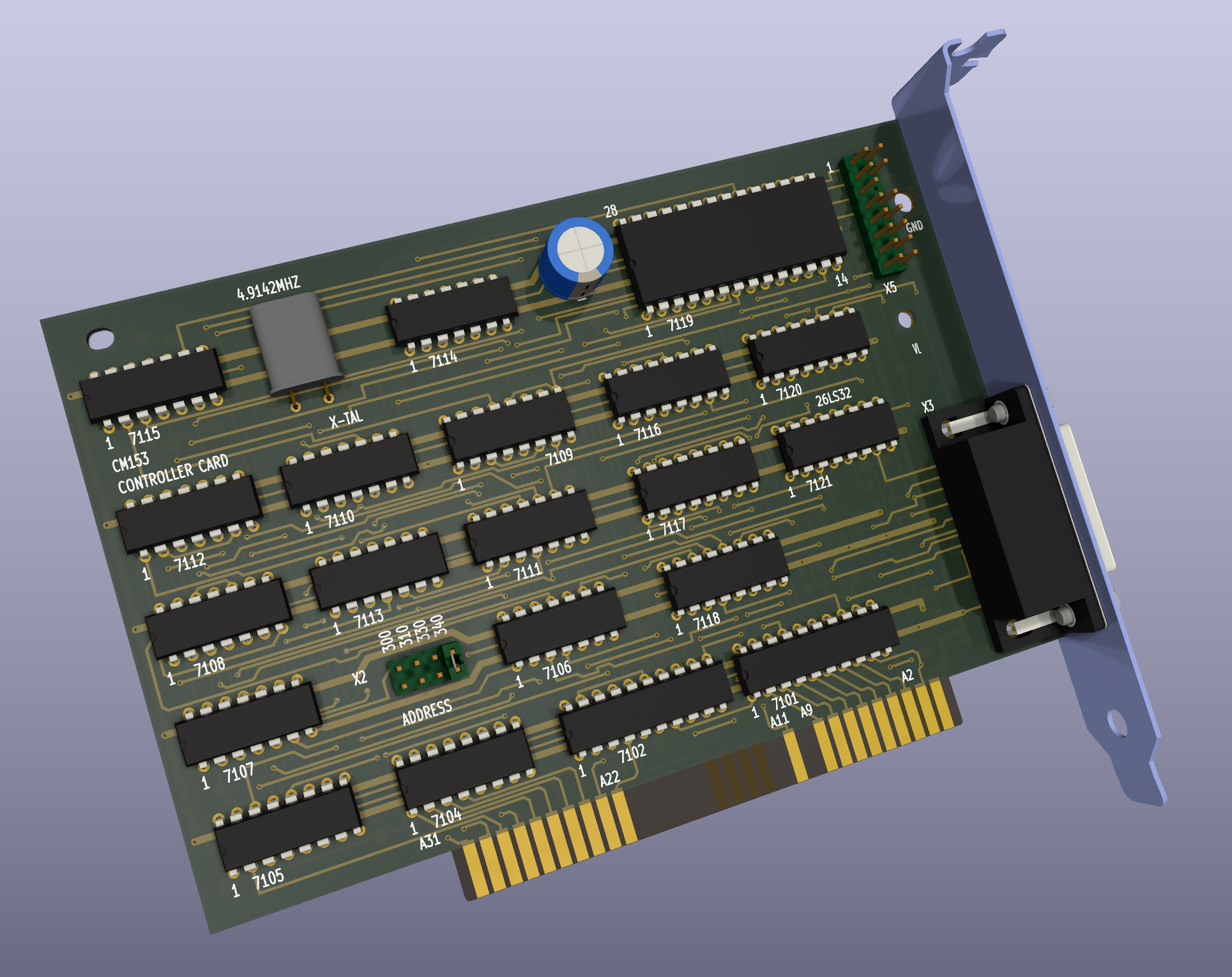

An open source version of this card can be found here: https://github.com/AkBKukU/CM153-Repro/

Last updated 2025-11-23T13:51:41Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

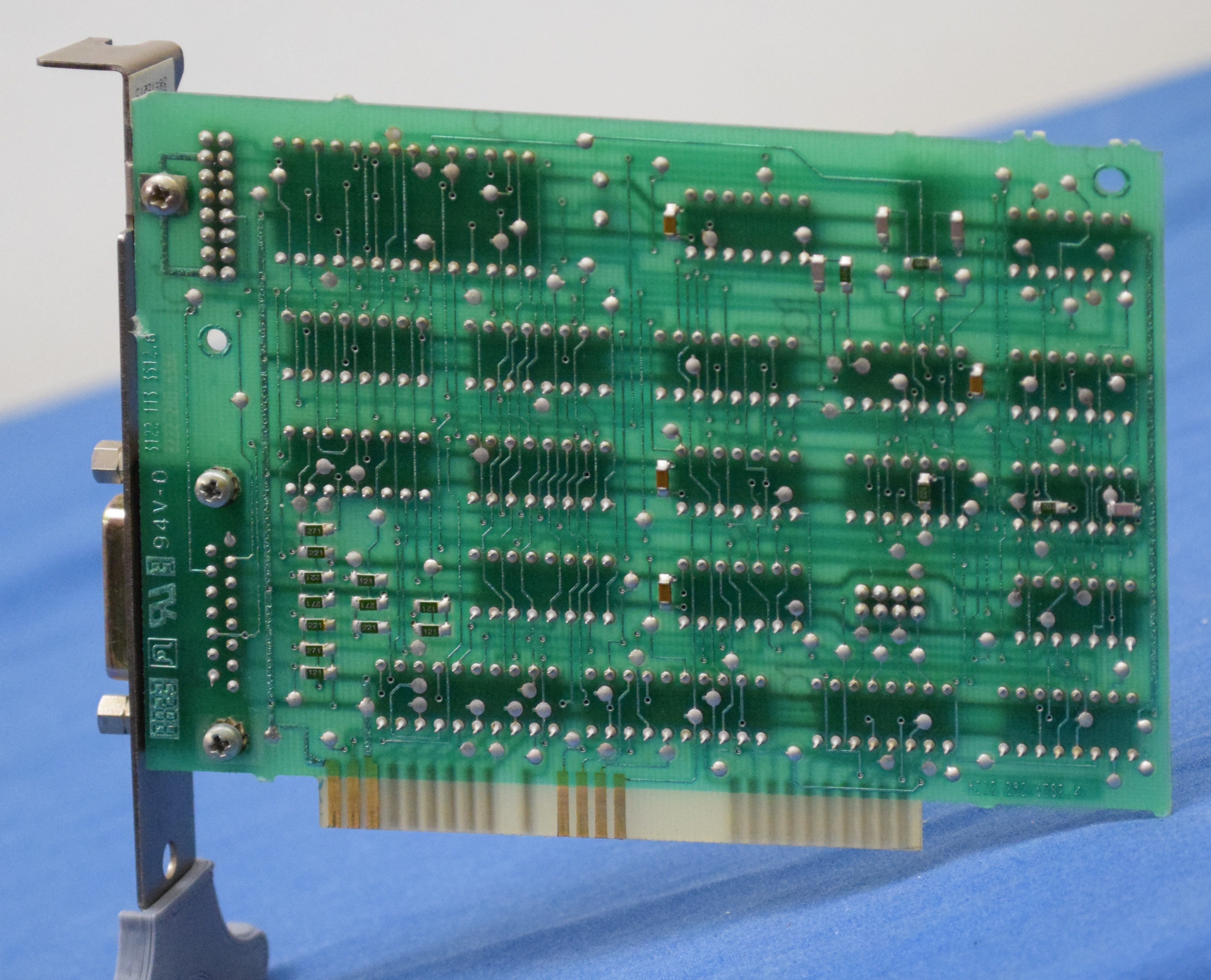

image1 Image 1 of 5 (TechTangents)
