Type
Real-Time Clock
Floppy controller
Multi I/O
Interface
Signaling
8-bit ISA
Slot height1
PCI IDEmpty
Chips and specs
-> Floppy ctrl.
-> Peripheral I/O
-> Real-Time Clock
-> Signal transmitter/receiver
-> UART ctrl.
| MTL | |
|---|---|
| Chipset | Unidentified |
| Data Bus | 8-bit ISA |
| Card Size | Full height, half length |
| Card Type | Multi-I/O card |
| I/O Options | Floppy drive interface, game port, parallel port, serial ports (2) |
| Maximum Onboard Memory | Unidentified |
I/O ports
1x
- 2x17 2.54mm pin header, FDD
1x
- DA-15, Game port
1x
- DB-25, ECP/EPP
2x
- 2x5 2.54mm pin header, RS-232
Power connectorsEmpty
Last updated 2025-12-19T13:34:00Z
No BIOS files available
1 driver available
Name
Version
OS support
Arch
Size
Filename
2 card documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990
File
Logs
Image 1 of 3 (Microhouse)

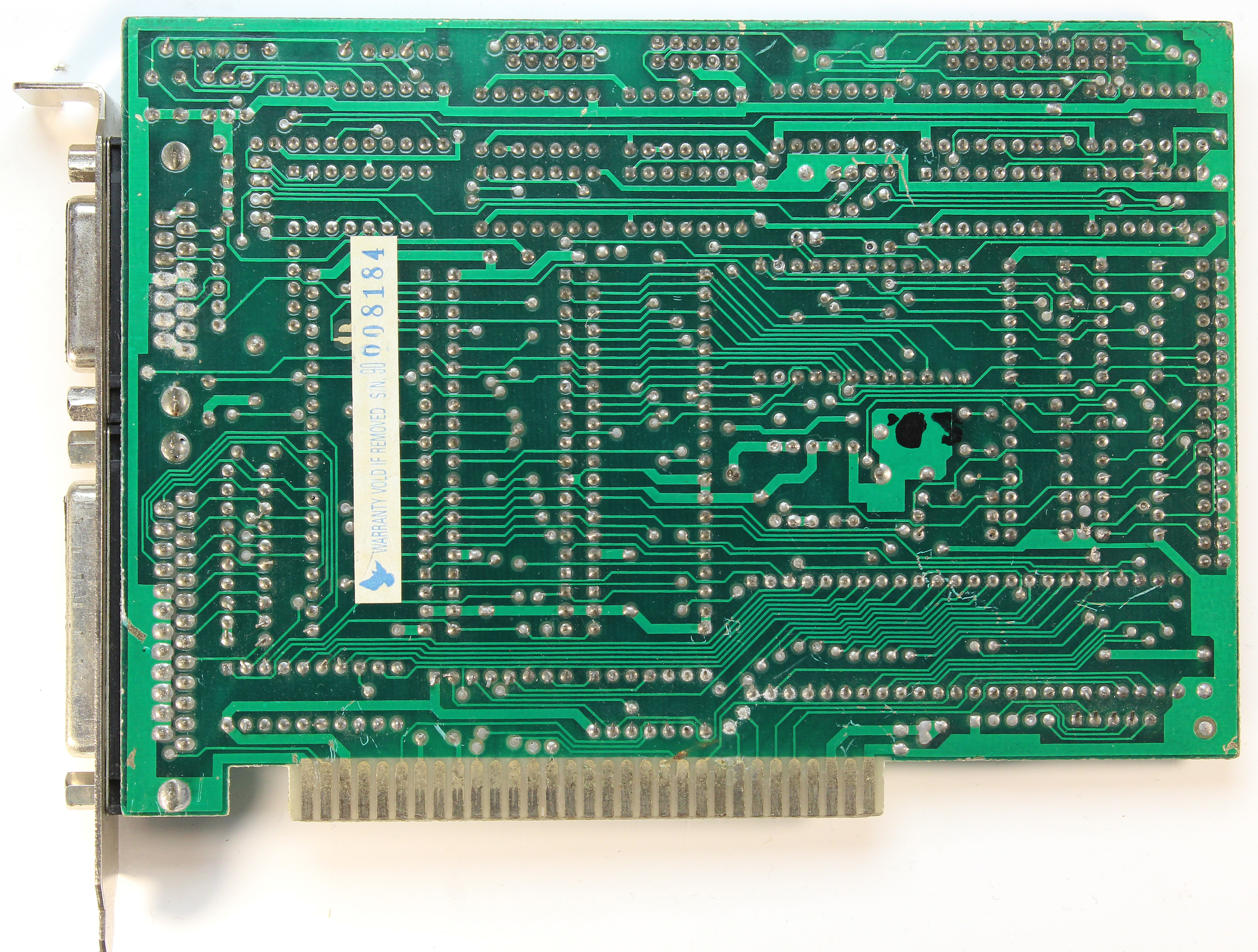

Image 2 of 3 (computerguy096)

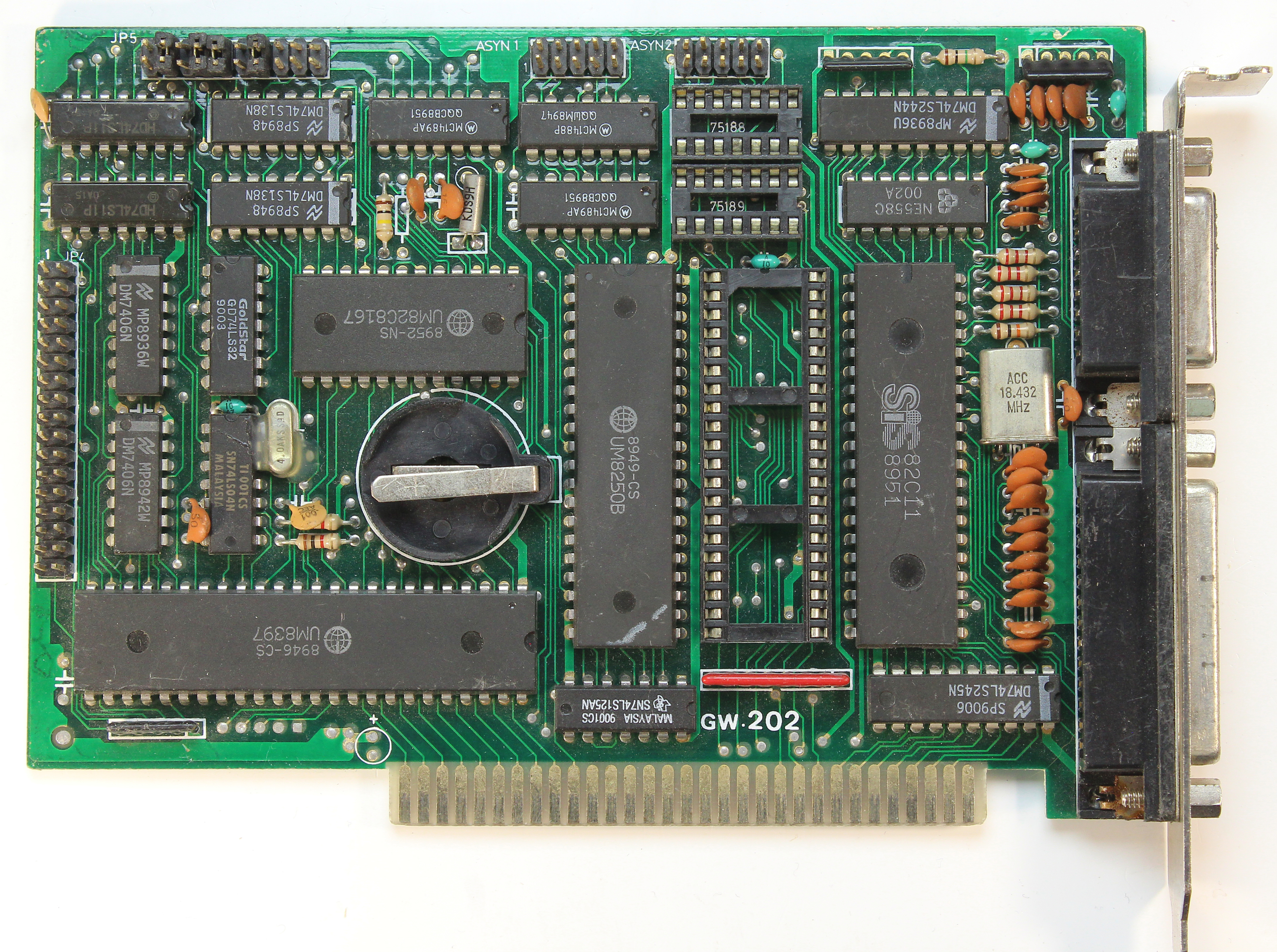

Image 3 of 3 (computerguy096)
