PCPartner 35-8237-21 (Trio64V2/DX)
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
Empty
fccFCC ID
BNX 9111-16-10
ramRAM size
2MB
chip Chips and specs
-> Video
Sigma Designs SD 6425 (REALmagic 64/GX)
tag Also known as
portintI/O ports
1x
  • 2x17 2.54mm pin header, VESA Feature Connector, VESA Local Peripheral Bus (LPB) 8-bit Extension
1x
  • DE-15, VGA
powerPower connectors
Empty
wrench Known issues
  • Fake video chip

This card is equipped with a falsely labeled ("fake") video chip/GPU. This may cause drivers to not load properly, or result in lower performance than expected.

notes Notes

This card may appear to have an S3 86C765 (Trio64V+), but may actually have Sigma Designs REALmagic chip onboard. under investigation as of 2025/06/21

Last updated 2025-11-28T09:16:26Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
1.01.04
Note
S3 86C775/86C785 Video BIOS
File
Logs
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
2.01E (12/27/96)
Note
String says S3 Trio64V+ (765) but not the PCI ID
File
Logs
Version
2.01E (04/03/97)
Note
REALmagic
File
Logs
drv No drivers available
doc No card documents available

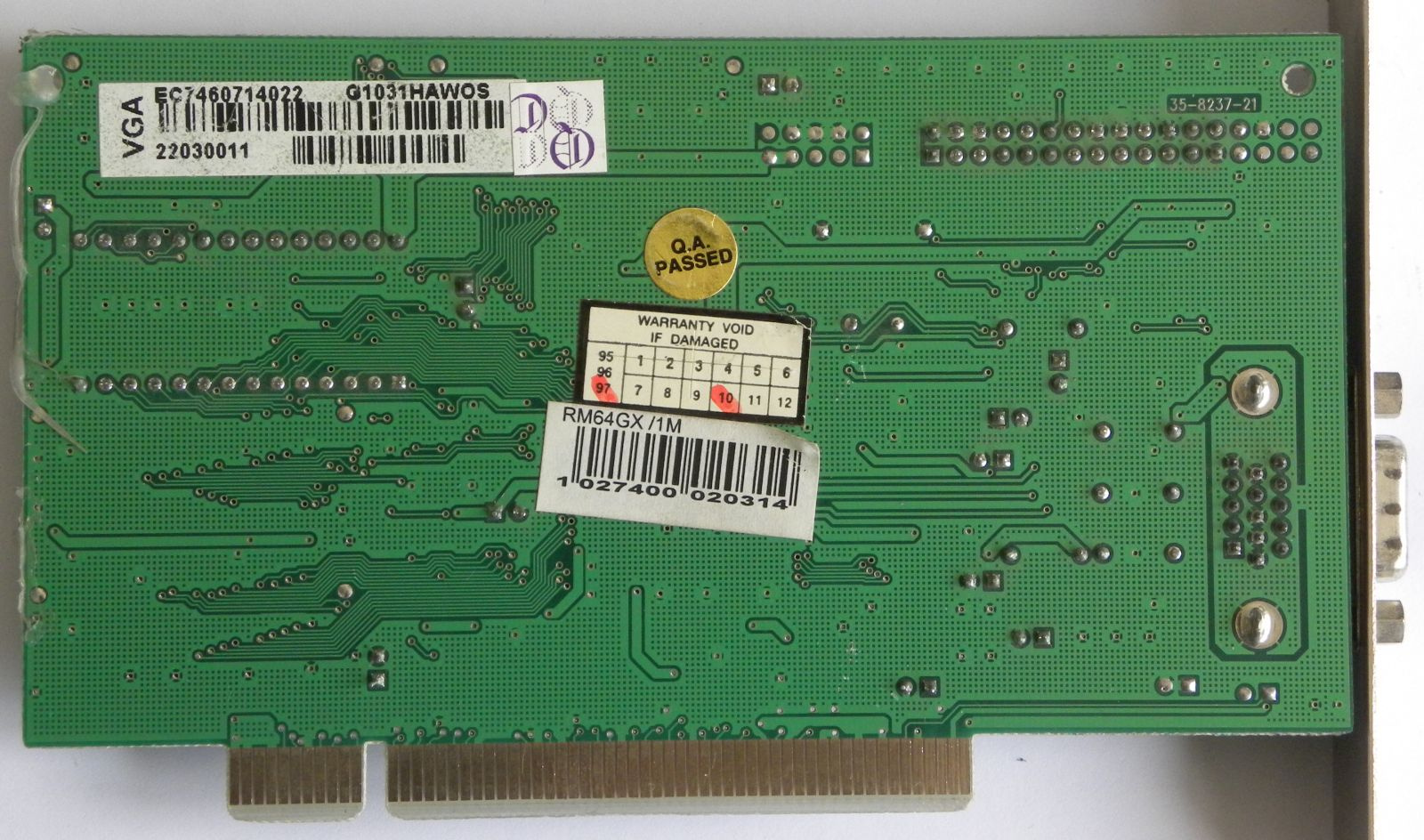

image1 Image 1 of 8 (VanoRu)

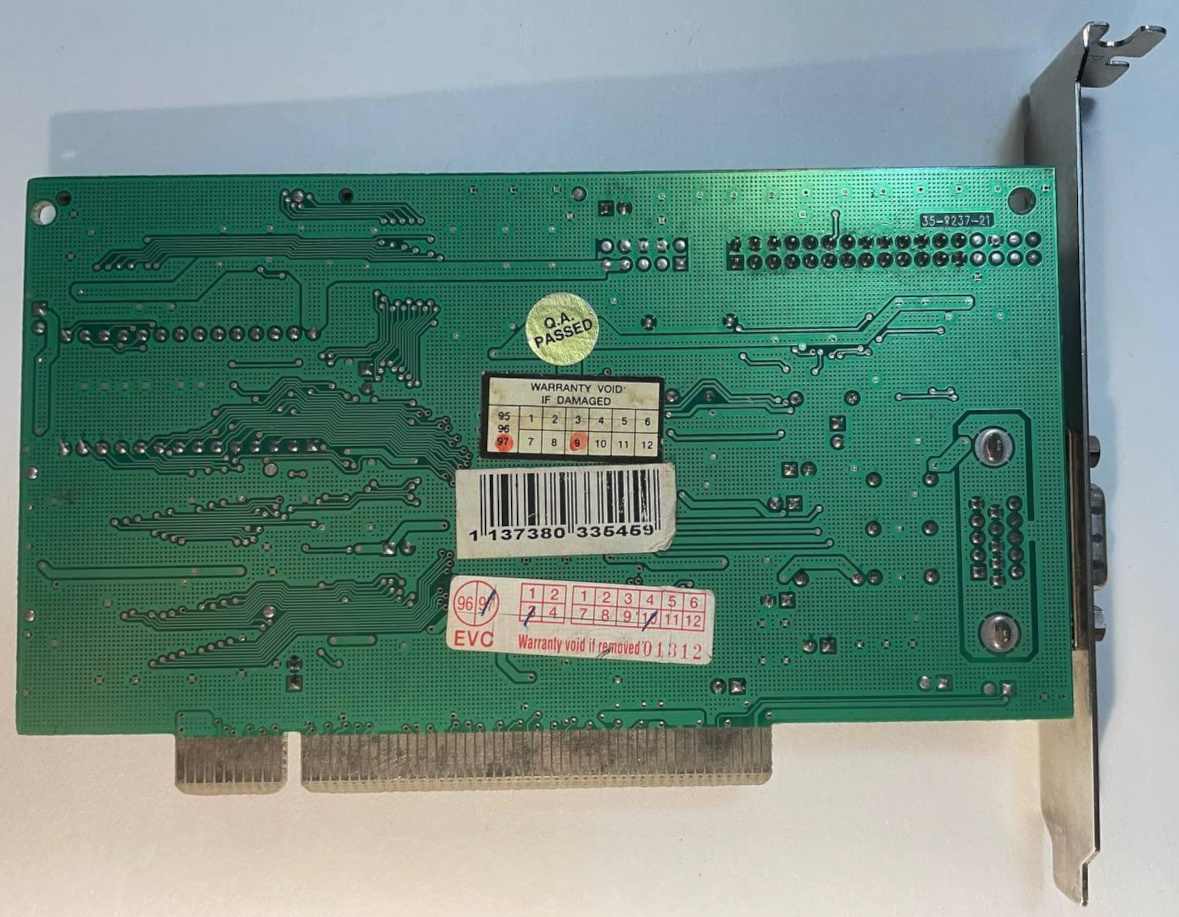

image2 Image 2 of 8 (anp-hsw)

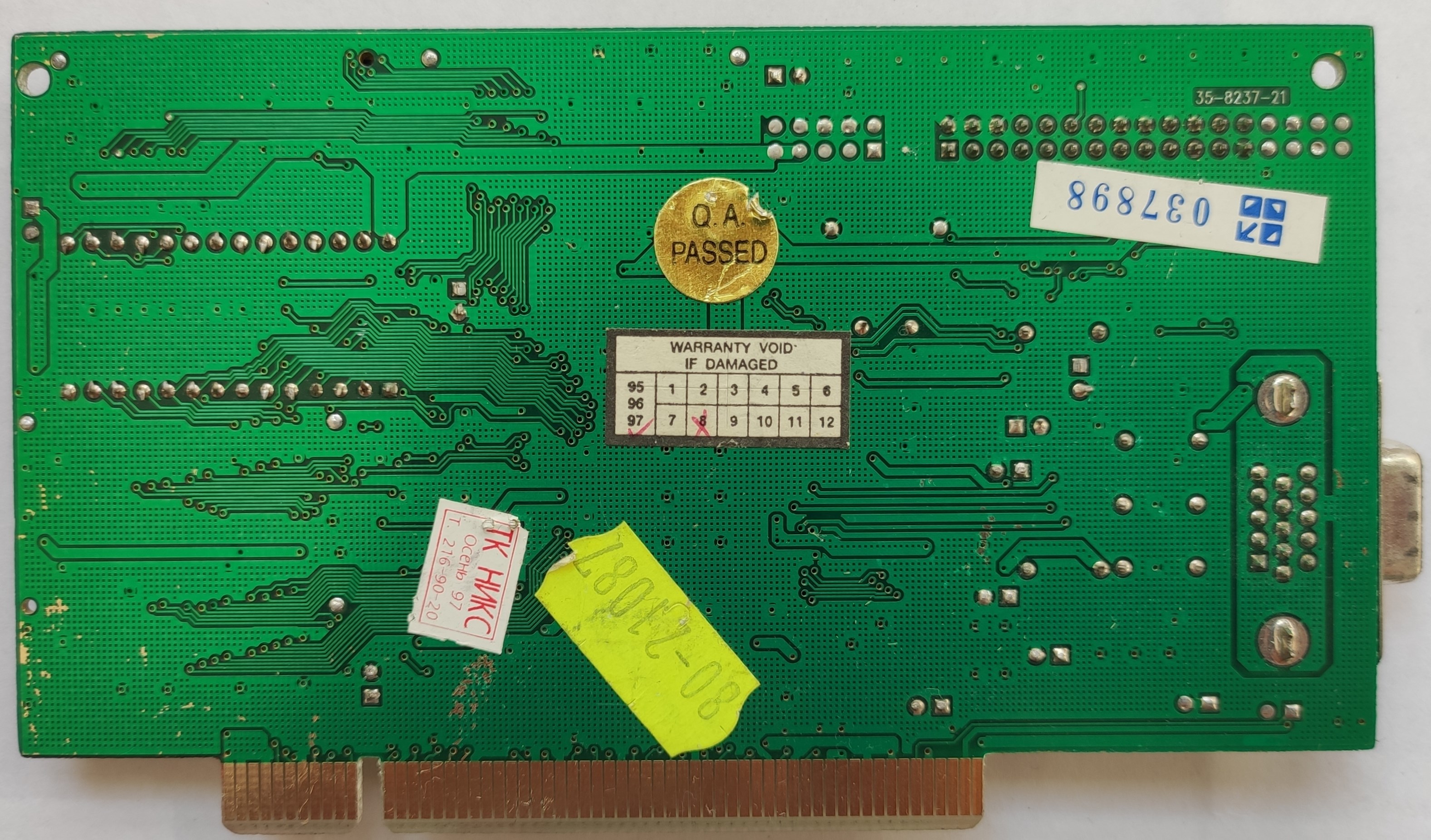

image3 Image 3 of 8 (Necroware)

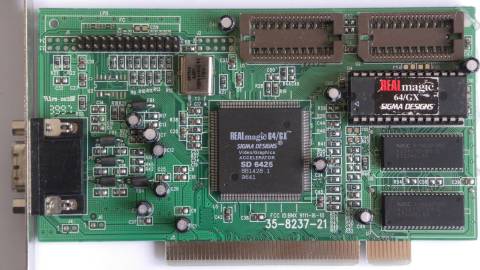

image4 Image 4 of 8 (Zaatharen)

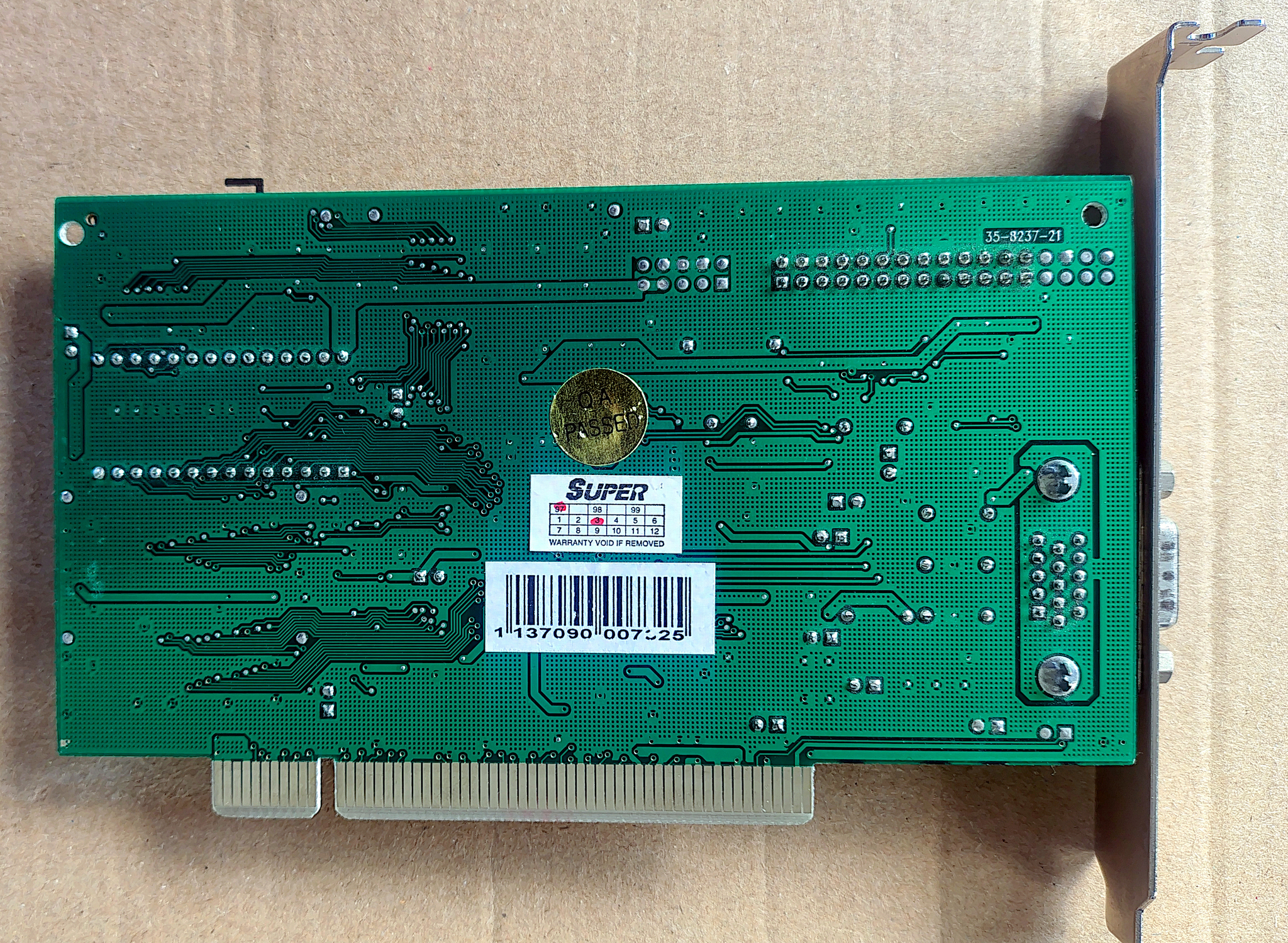

image5 Image 5 of 8 (VanoRu)

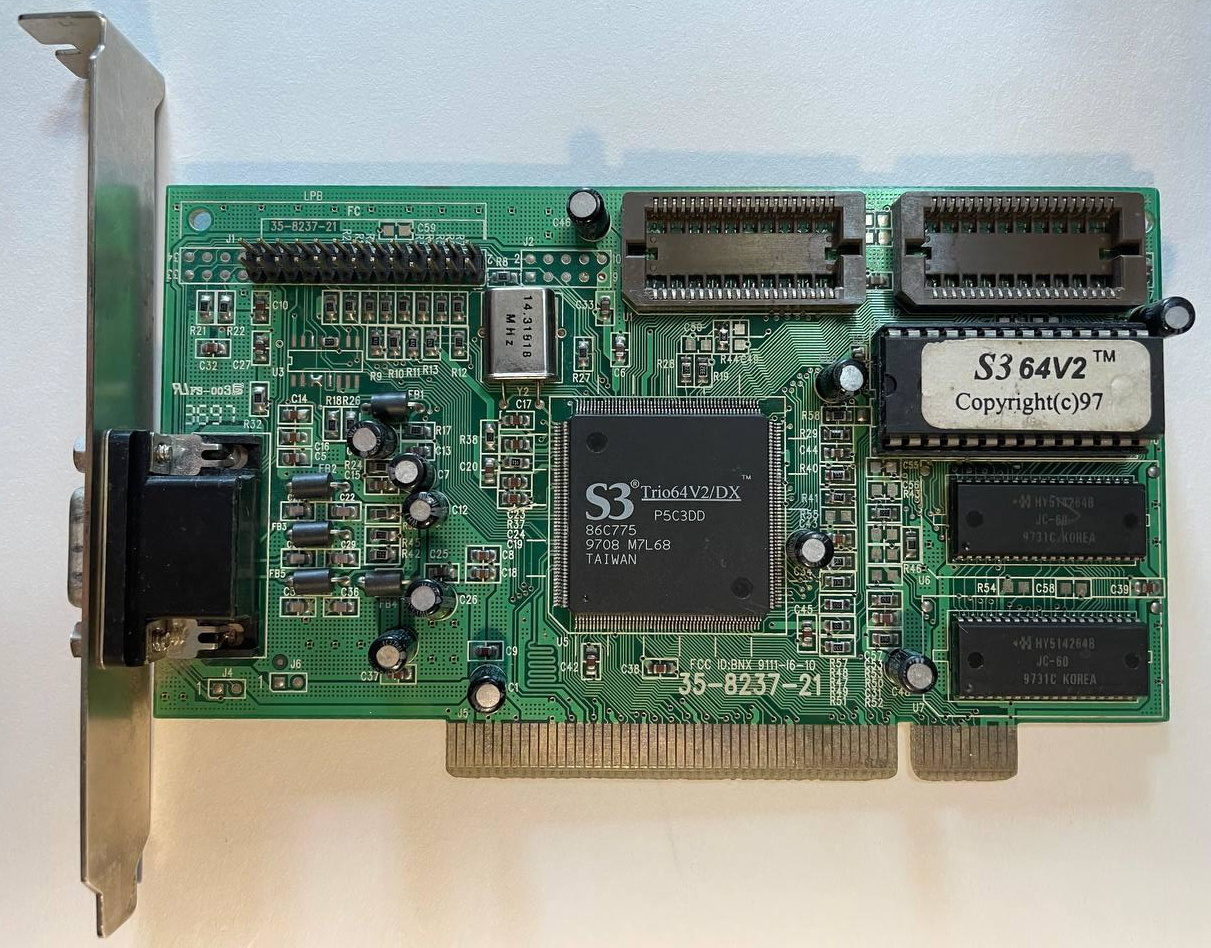

image6 Image 6 of 8 (anp-hsw)

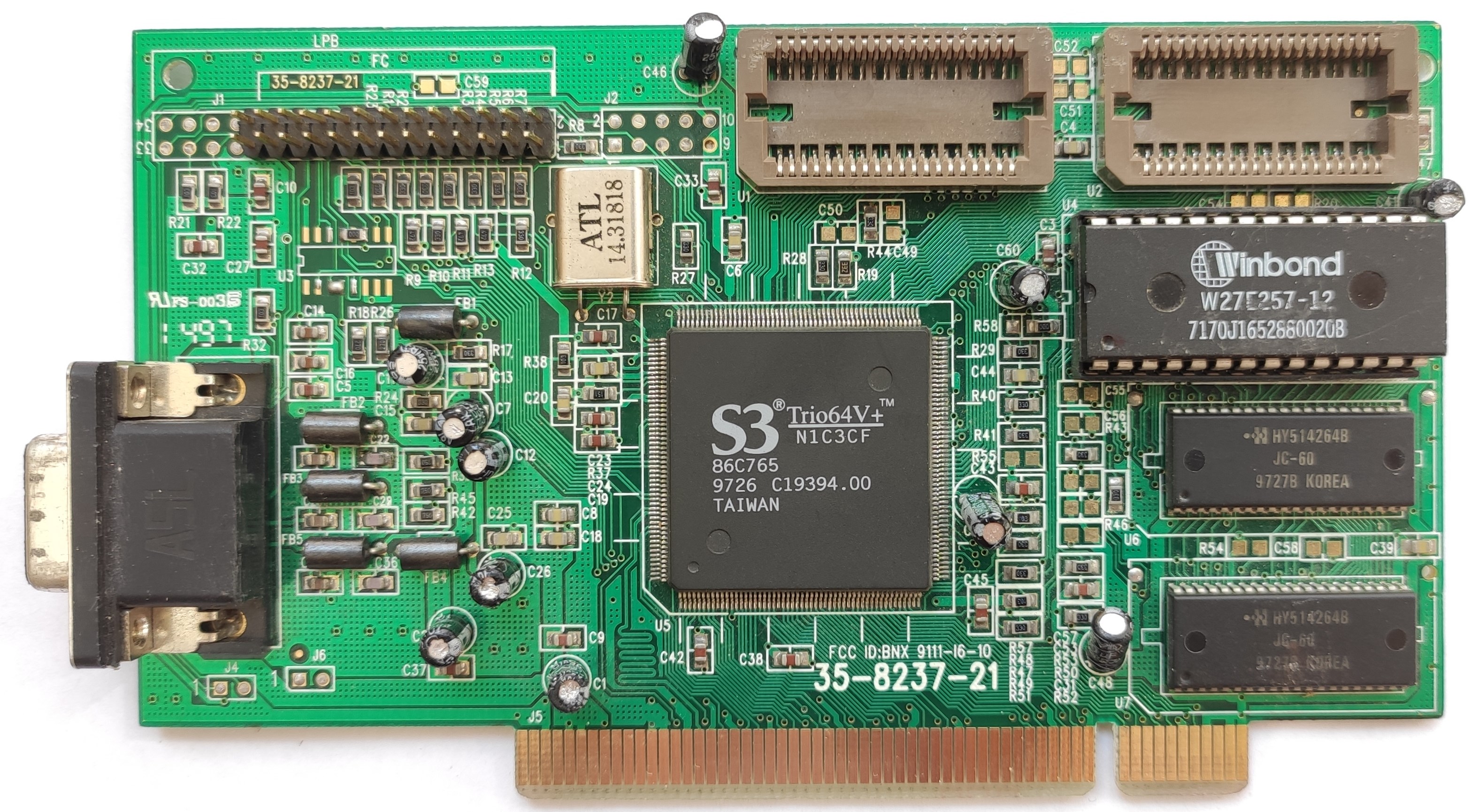

image7 Image 7 of 8 (Necroware)

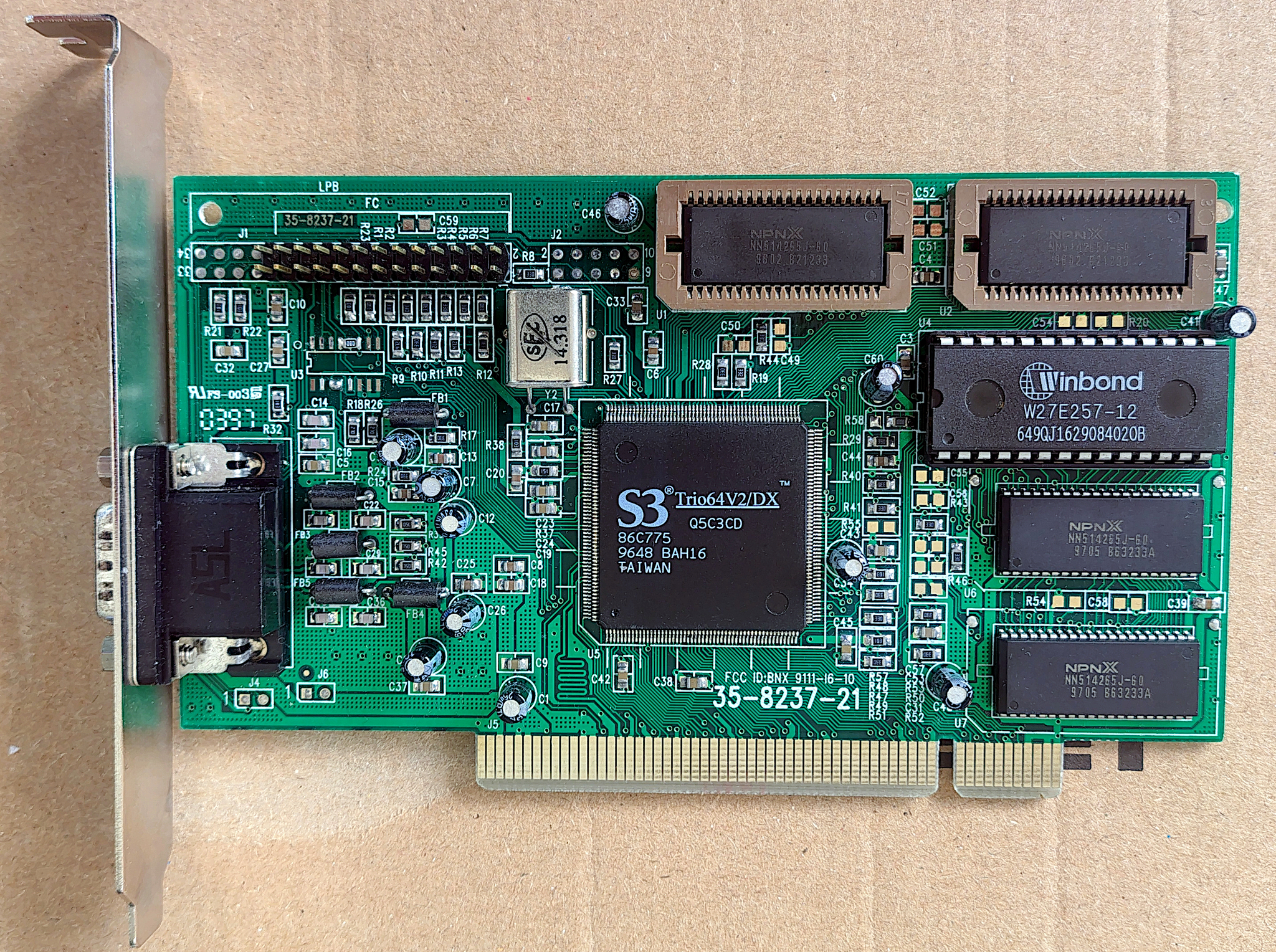

image8 Image 8 of 8 (Zaatharen)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
