OVISLINK LE-8029AS REV:3.0
Logs
typeType
Network
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
8029
chip Chips and specs
-> Network
Realtek RTL8029AS (PCI Classic Ethernet)
MTL
Boot ROM Available
Data Bus 32-bit PCI
NIC Type Ethernet
Topology Linear Bus/Star
Card Size Half height, half length
Wire Type Unshielded twisted pairRG-58A/U 50ohm coaxial
Network Transfer Rate 10Mbps
Network speed
10Mb/s
portintI/O ports
1x
  • BNC 50-ohms
1x
  • RJ45
1x
  • 28-pin DIP socket
powerPower connectors
Empty
Last updated 2025-09-10T18:30:51Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.0
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
645.1KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997-01-16
File
Logs

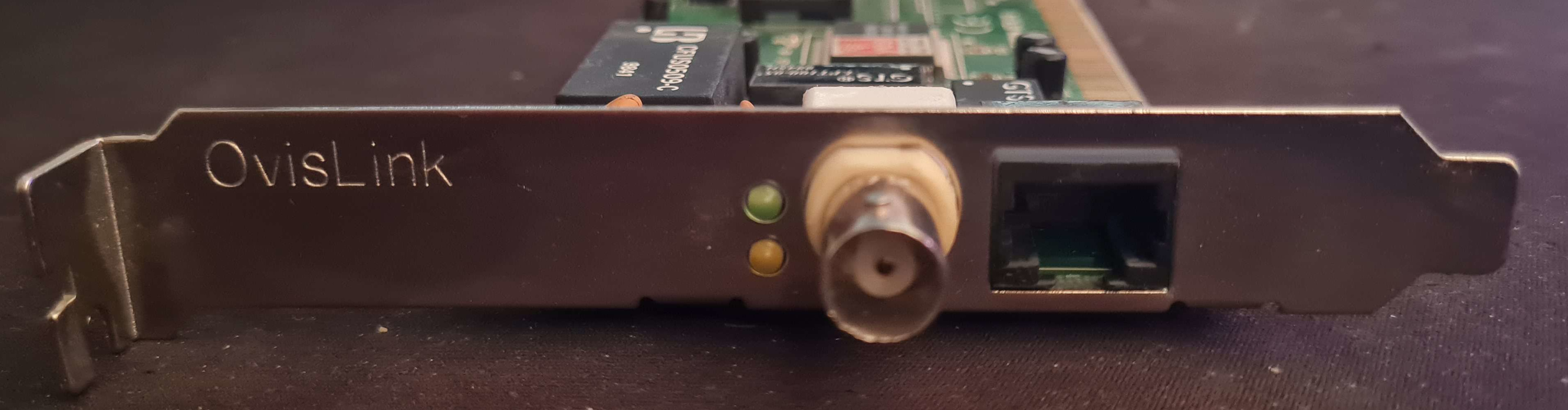

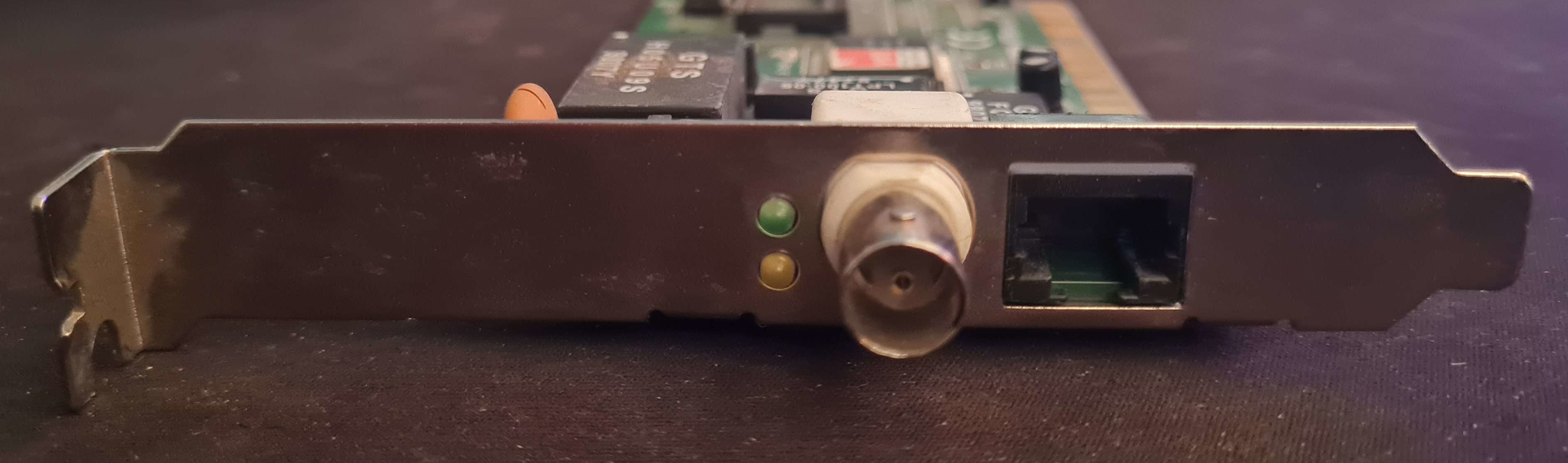

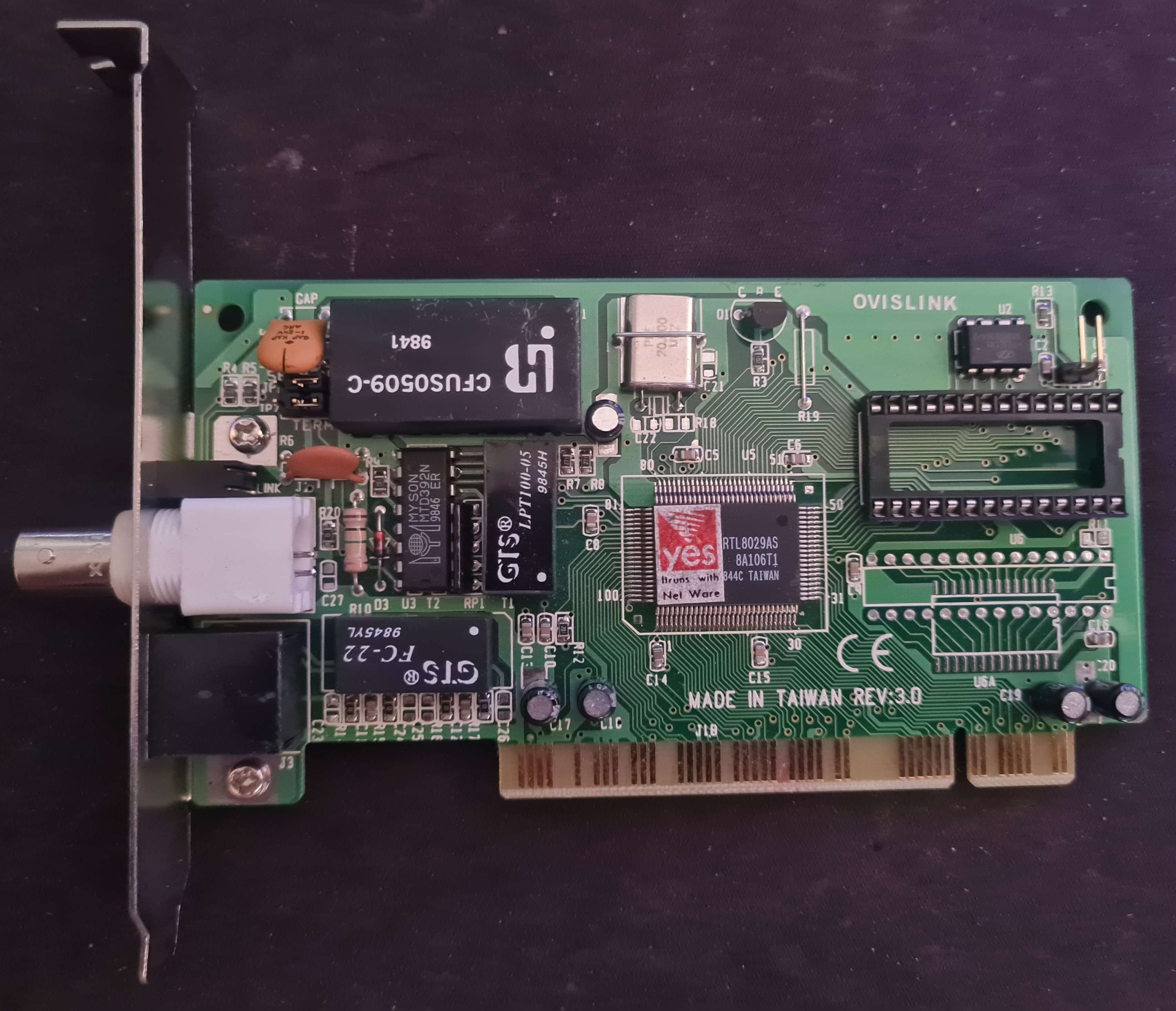

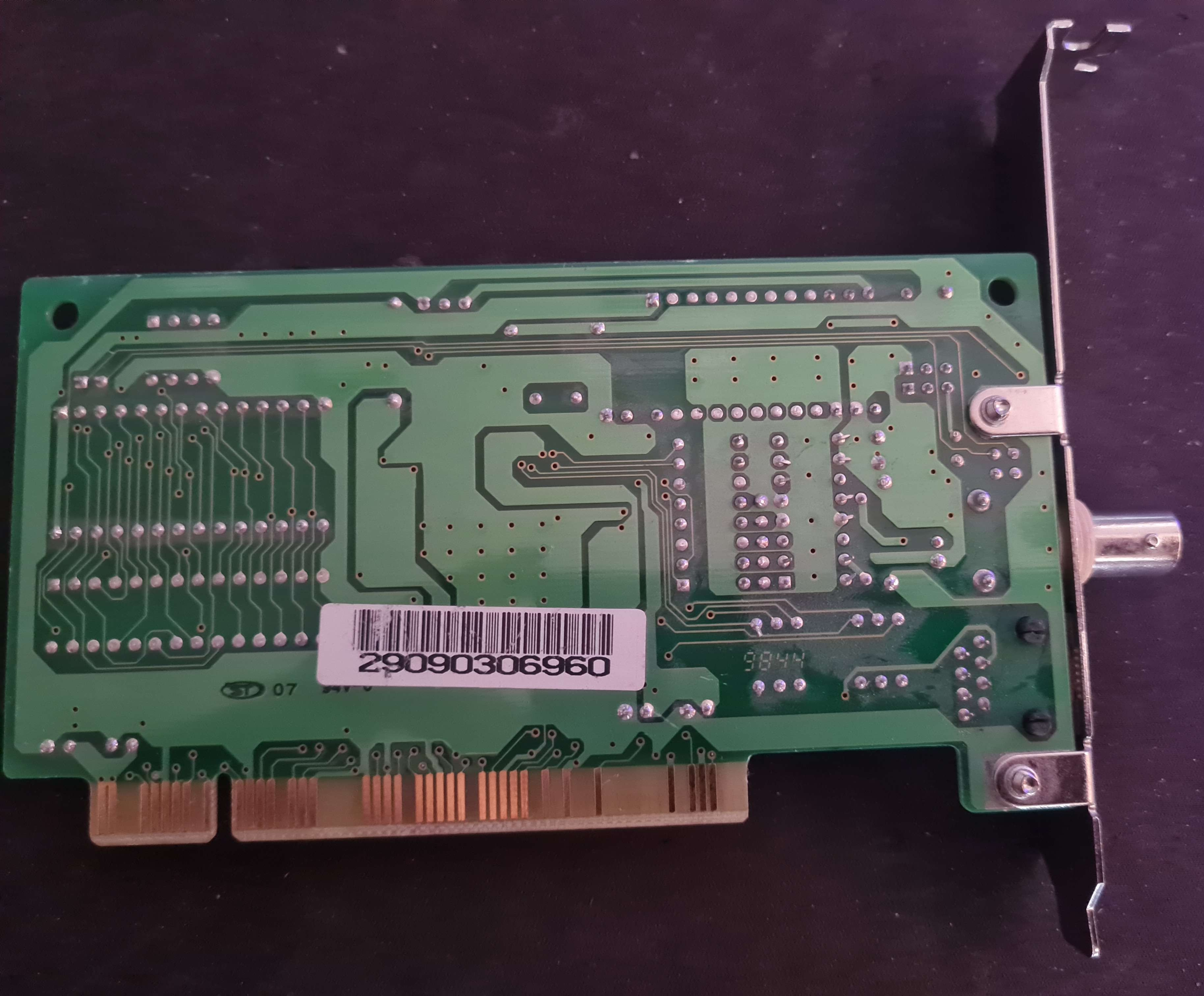

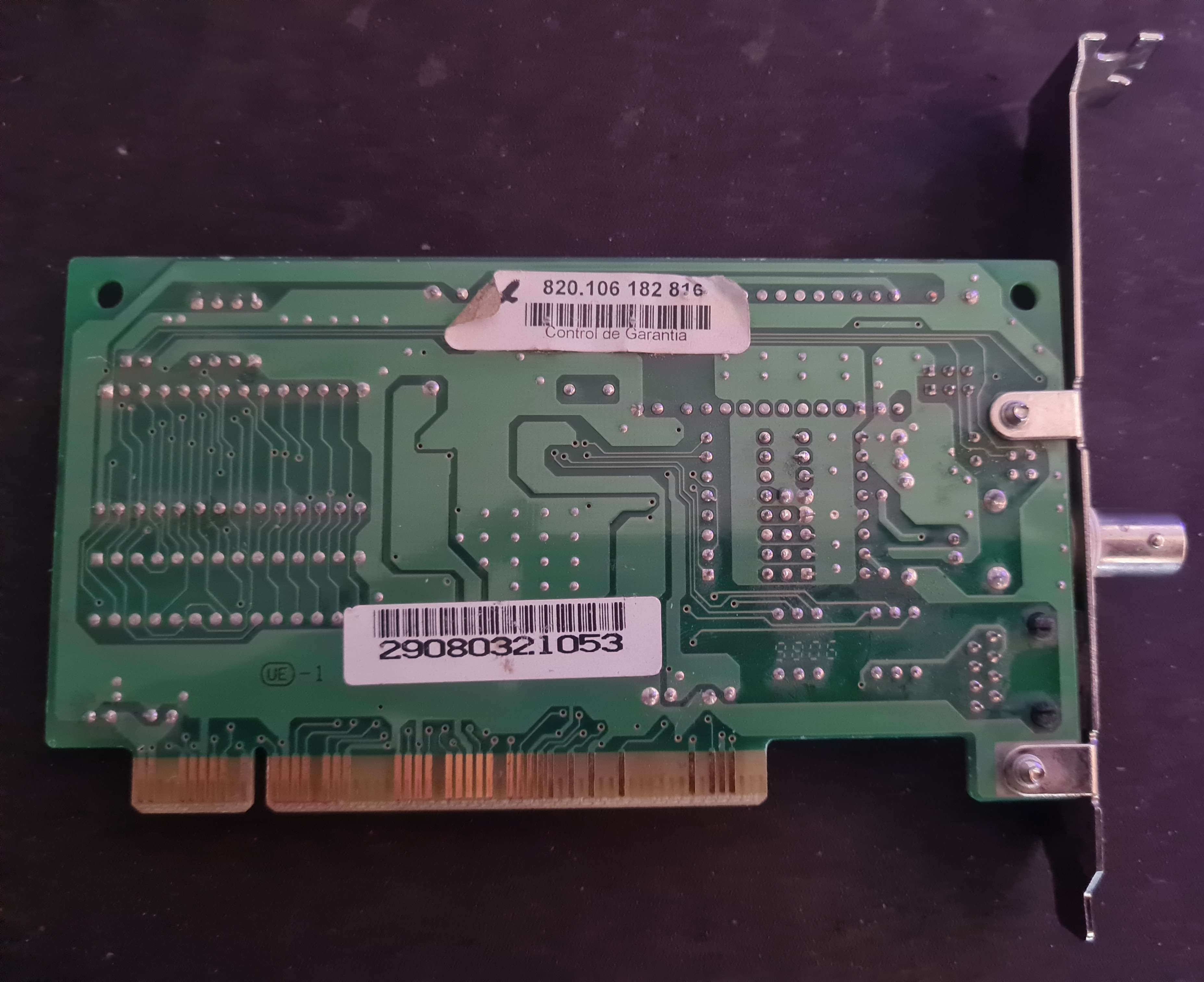

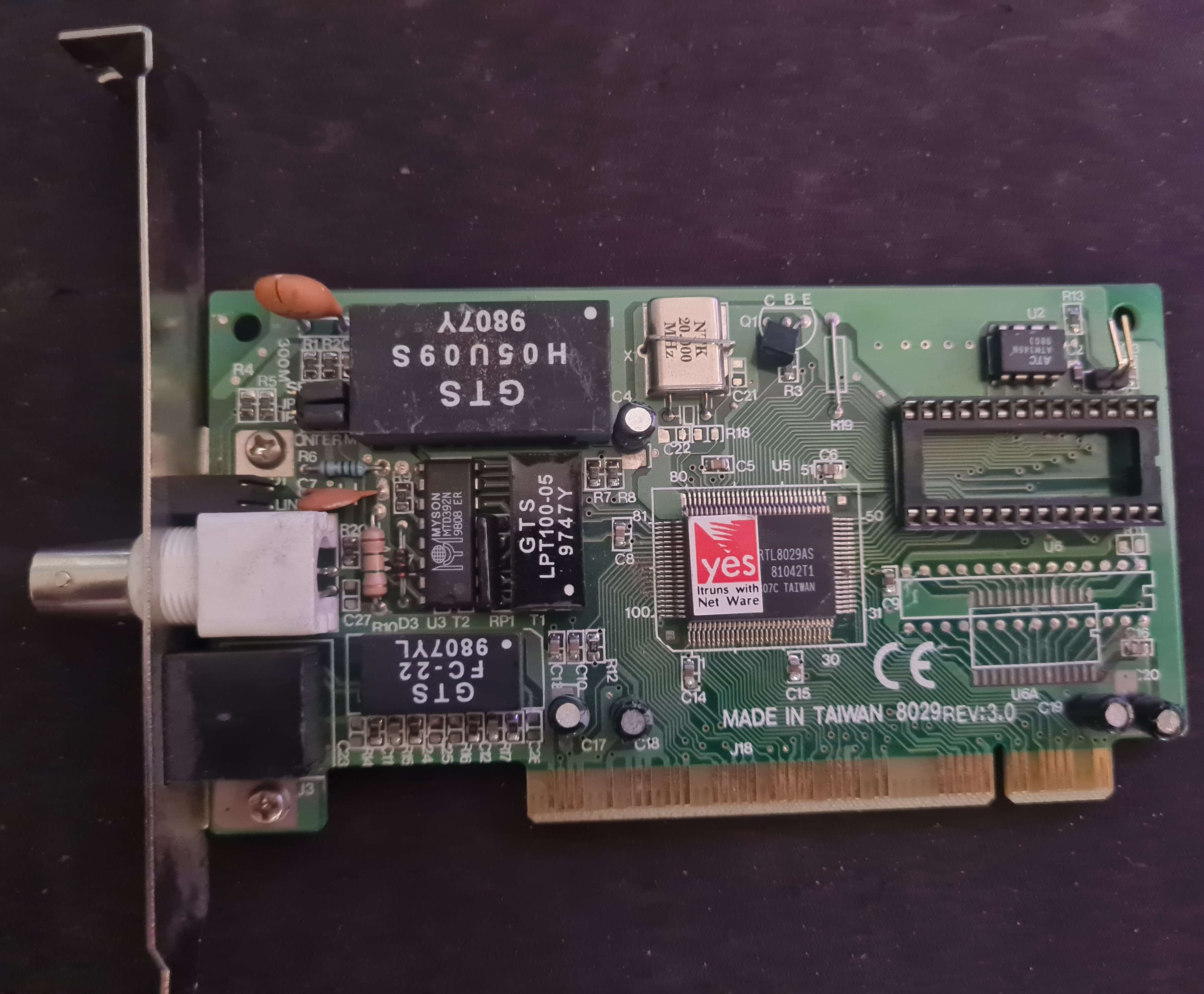

image1 Image 1 of 7 (evasive)
image2 Image 2 of 7 (Xeon3D)
image3 Image 3 of 7 (Xeon3D)
image4 Image 4 of 7 (Xeon3D)
image5 Image 5 of 7 (Xeon3D)
image6 Image 6 of 7 (Xeon3D)

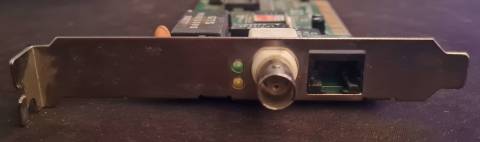

image7 Image 7 of 7 (Xeon3D)
