Oak VGA-800
Logs
typeType
Video
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
IEW-OAK-VGA-16
ramRAM type
DRAM
ramRAM size
256KB
chip Chips and specs
-> RAMDAC
UMC UM70C171
-> Video
Oak OTI-037C (OTI037C)
MTL
Category Video
Memory Type DRAM
Data Bus Type 16-bit ISA
Video Processor OTI037
Video Types Supported CGA/EGA/Monochrome/VGA/XVGA
Maximum Onboard Memory 256KB
Highest Resolution Supported 800 x 600
tag Also known as
  • Oak 900717674-800 / OAK01-02V
portintI/O ports
1x
  • DE-9
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-12-02T18:17:50Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
2.14-36
Note
OAK VGA-800
File
Logs
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
2.15
Note
File
Logs
Version
2.14
Note
File
Logs
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1988-10
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

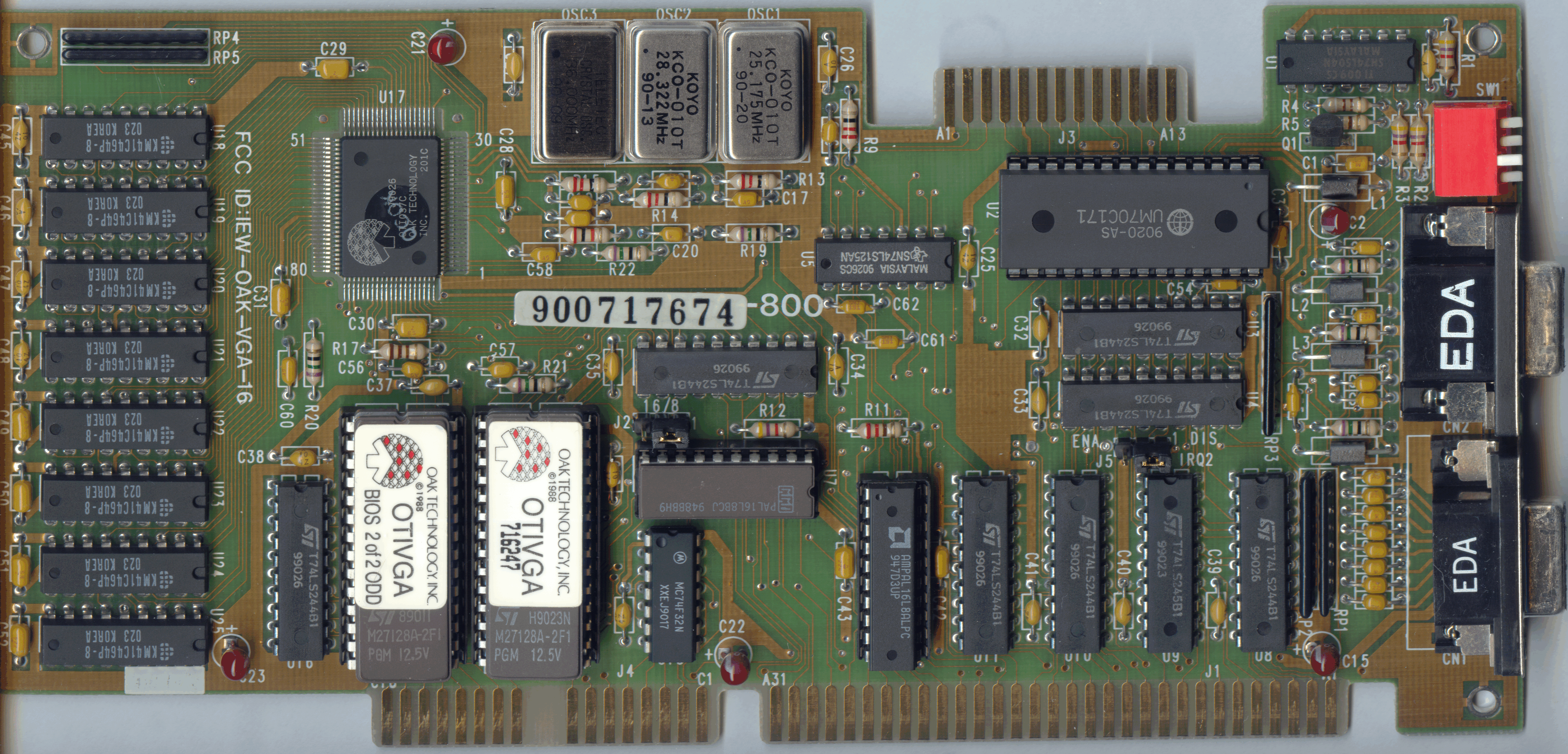

image1 Image 1 of 5 (evasive)

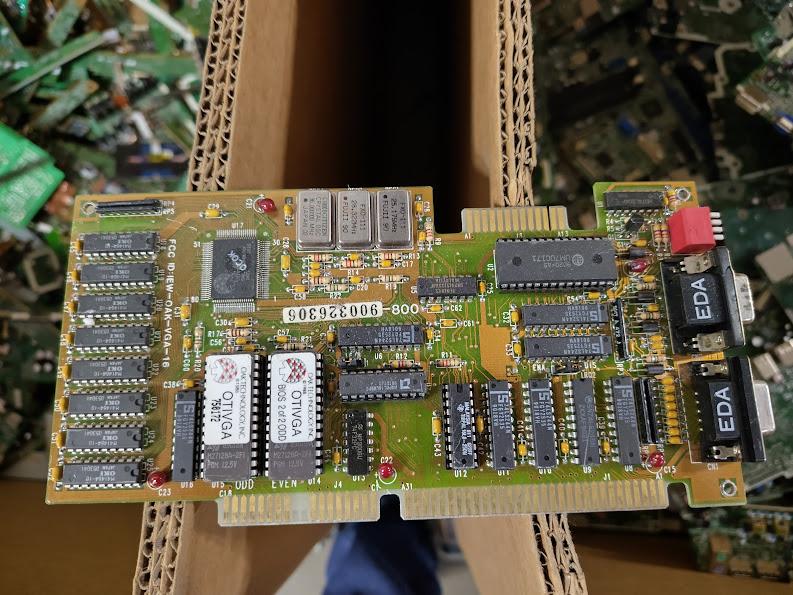

image2 Image 2 of 5 (Rafal Rzeczkowski)
image3 Image 3 of 5 (Ed Lies)

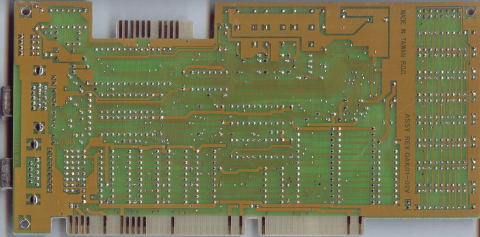

image4 Image 4 of 5 (Rafal Rzeczkowski)

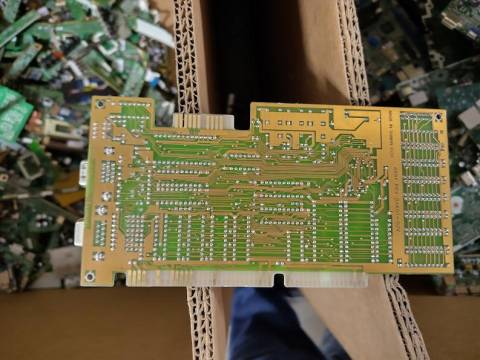

image5 Image 5 of 5 (Ed Lies)
