Oak OTIVGA 7708
Logs
typeType
Video
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
ramRAM size
1MB
chip Chips and specs
-> RAMDAC
MUSIC Semiconductors TR9C1710 (Graphics Color Palette DAC)
-> Video
Oak OTI-077 (OTI077)
MTL
Category Video
Memory Type DRAM
Data Bus Type 16-bit ISA
Video Processor OTI077
Video Types Supported Monochrome/XVGA
Maximum Onboard Memory 1024KB
Highest Resolution Supported 1280 X 1024
tag Also known as
  • Oak 1077082008 Rev:C
portintI/O ports
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-10-05T19:49:50Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS Windows 2.x Windows 3.0 Windows 3.1x
Arch
x86
Size
1MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1991-08
File
Logs
Chip
Release date
File
Logs

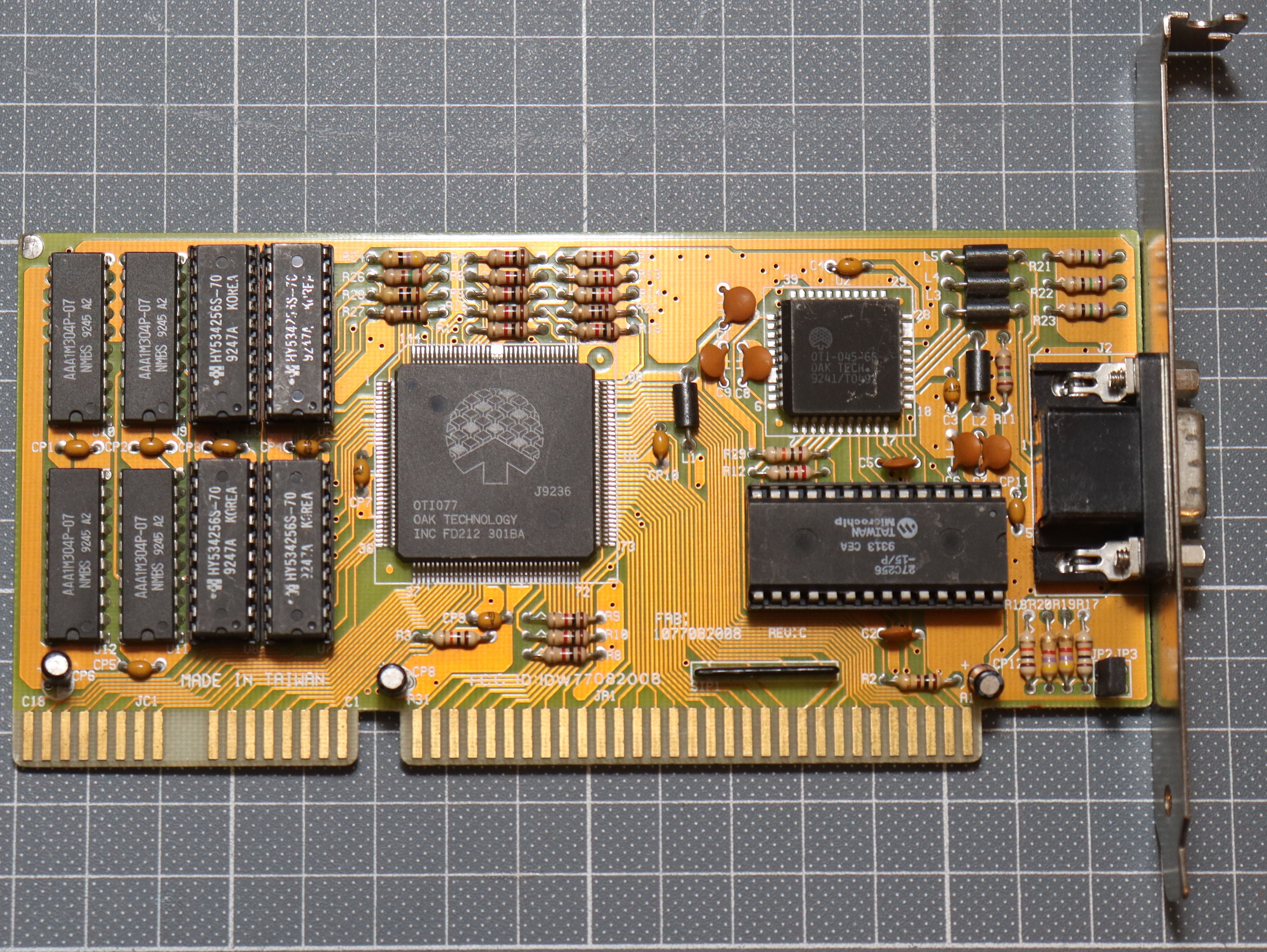

image1 Image 1 of 3 (Speedycat)

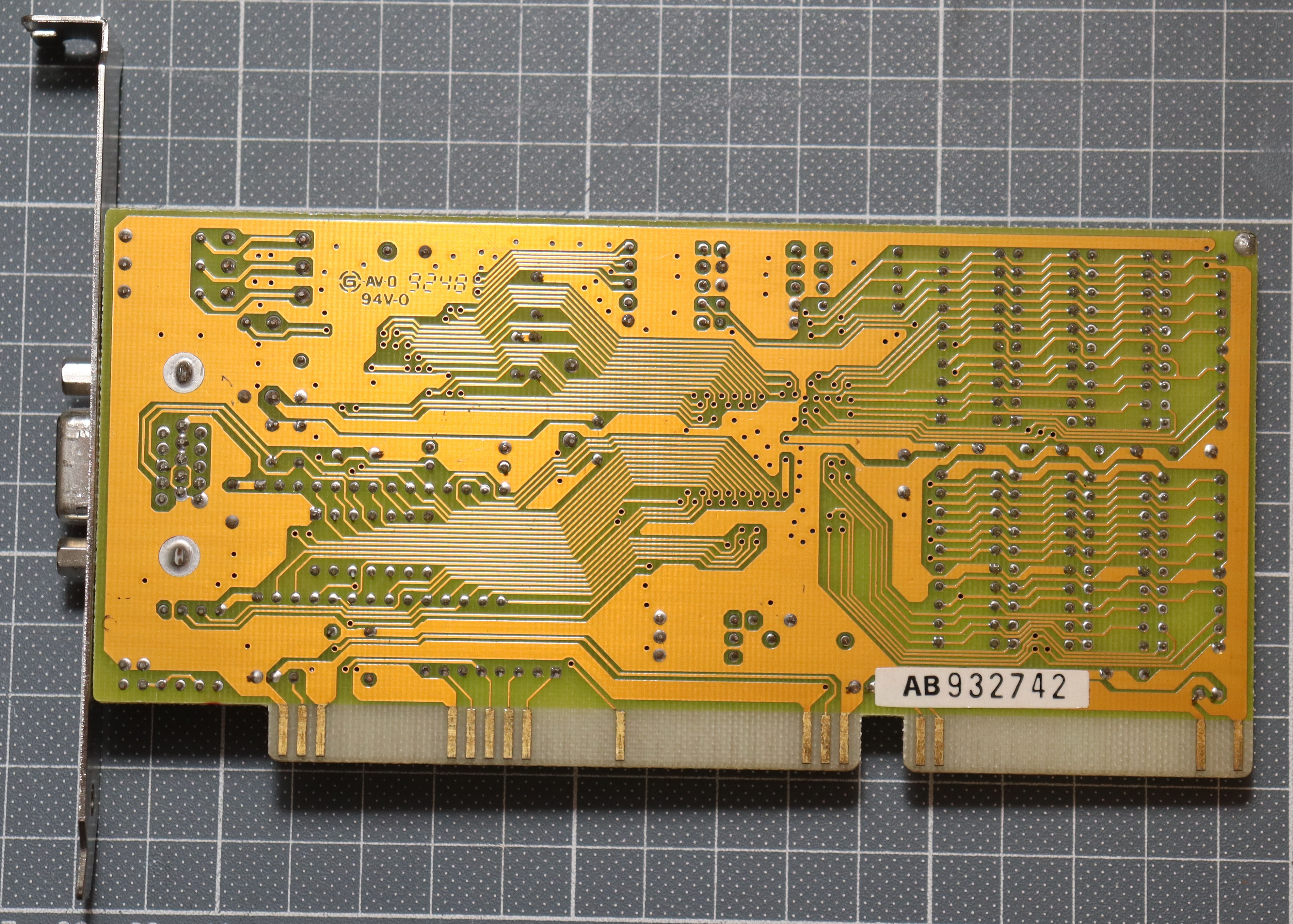

image2 Image 2 of 3 (Speedycat)

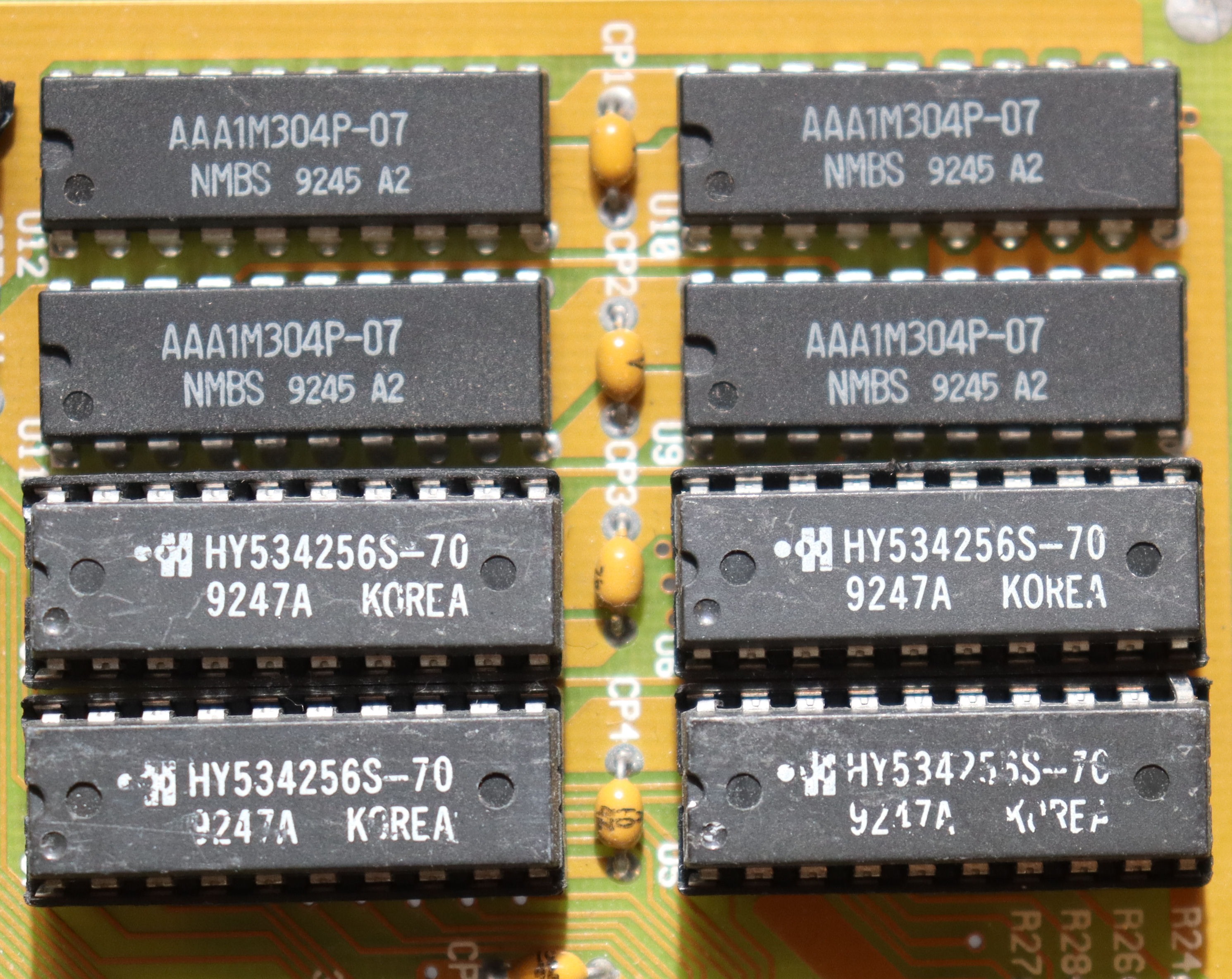

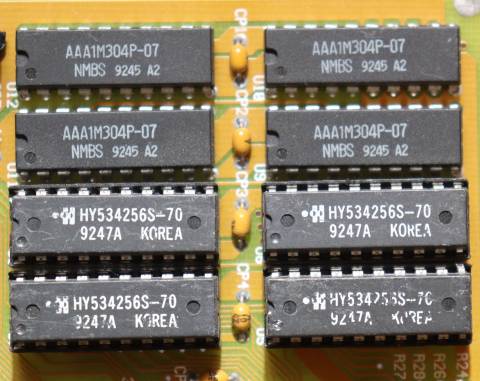

image3 Image 3 of 3 (Speedycat)
