Nvidia Quadro NVS 450
Logs
typeType
Video
interfaceInterface
signalSignaling
PCIe 1.0 PCIe 2.0
datePCI ID
06FA
ramRAM type
GDDR3
ramRAM size
512MB
chip Chips and specs
-> Video
Nvidia Quadro NVS 450 (G98)
tag Also known as
portintI/O ports
4x
  • DisplayPort
powerPower connectors
Empty
wrench No card specific known issues
  • Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

notes Notes

Has 2 physical GPU chips

Last updated 2025-10-16T17:44:57Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

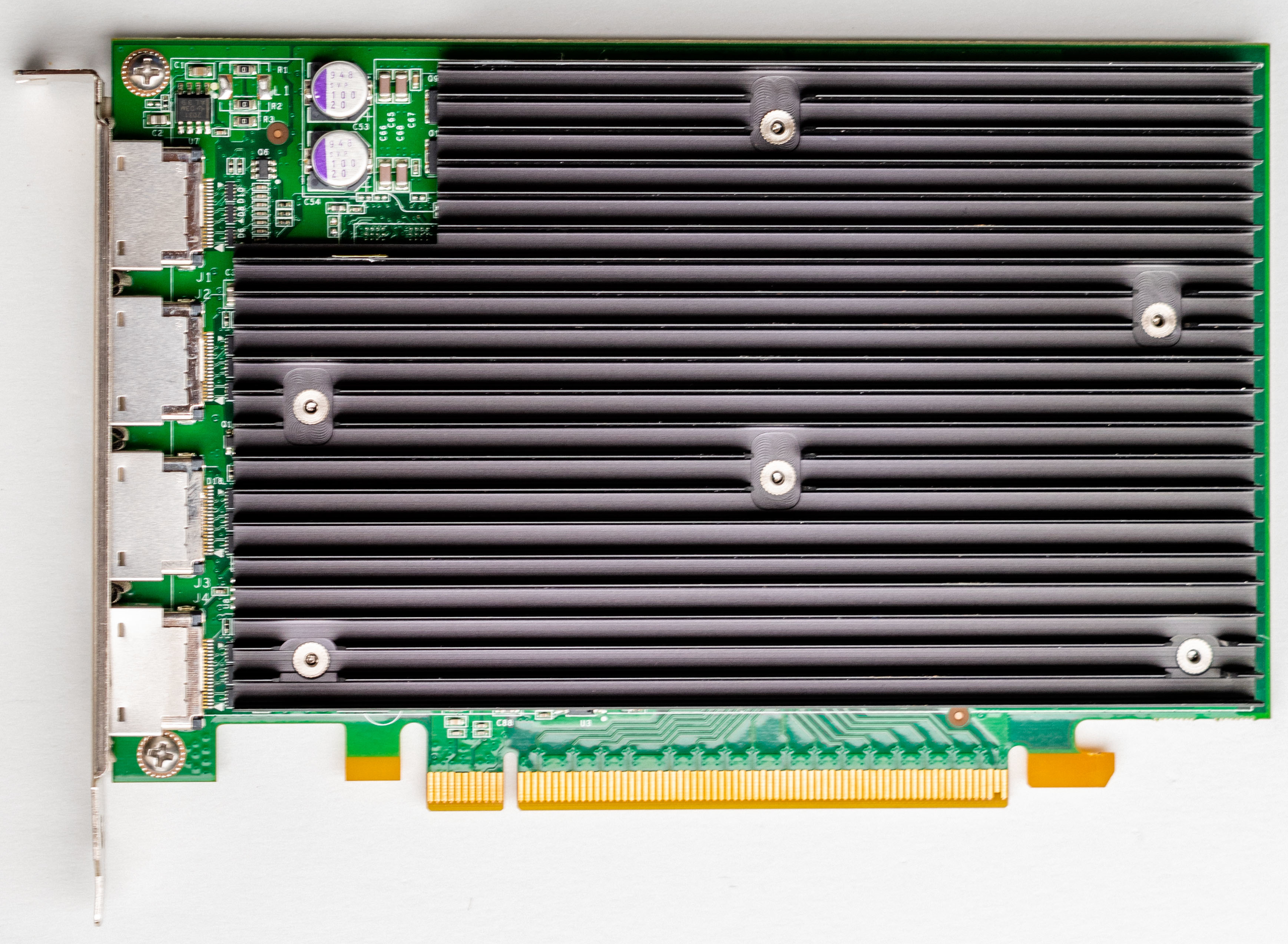

image1 Image 1 of 3 (Motherboard Continuum)

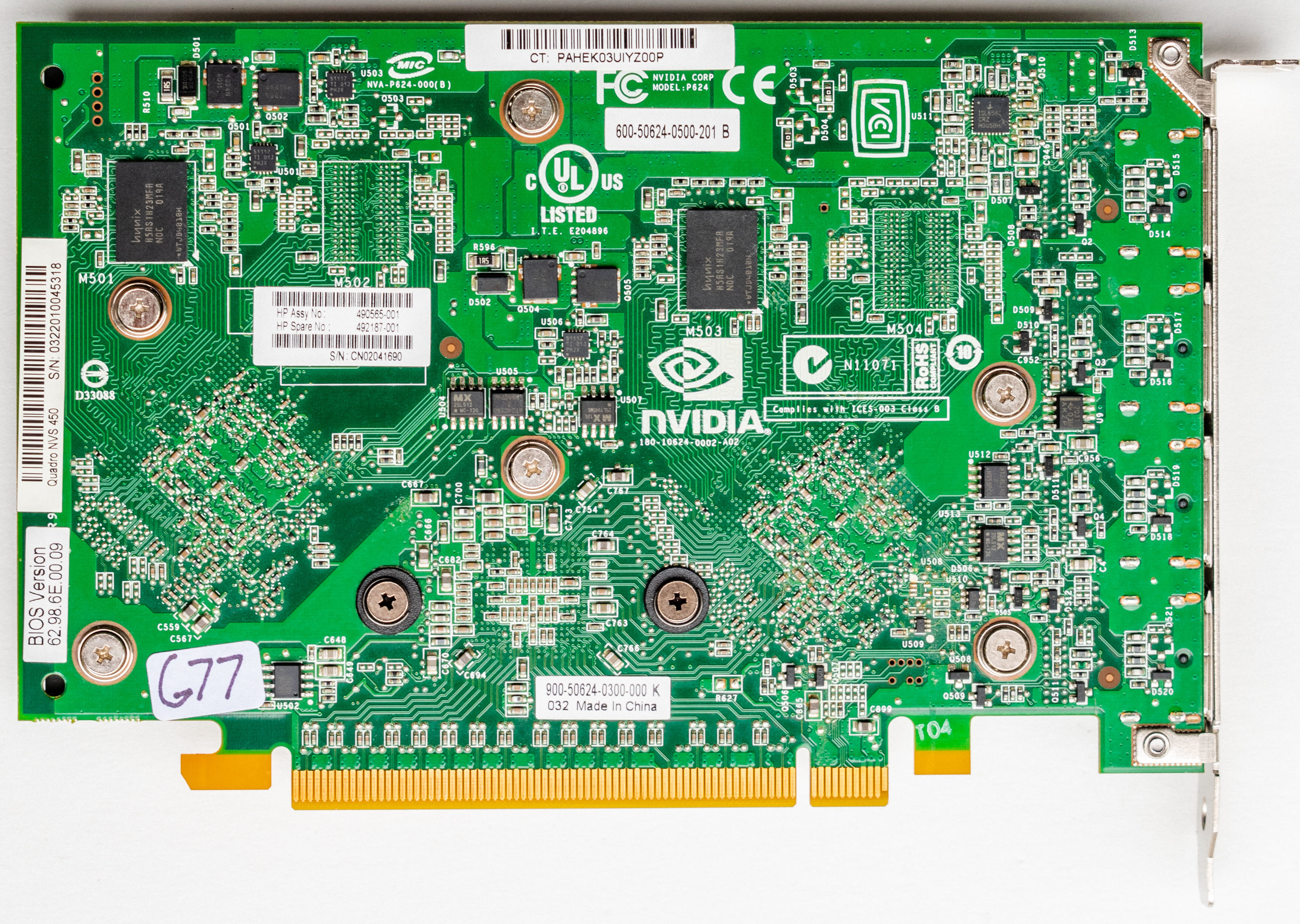

image2 Image 2 of 3 (Motherboard Continuum)

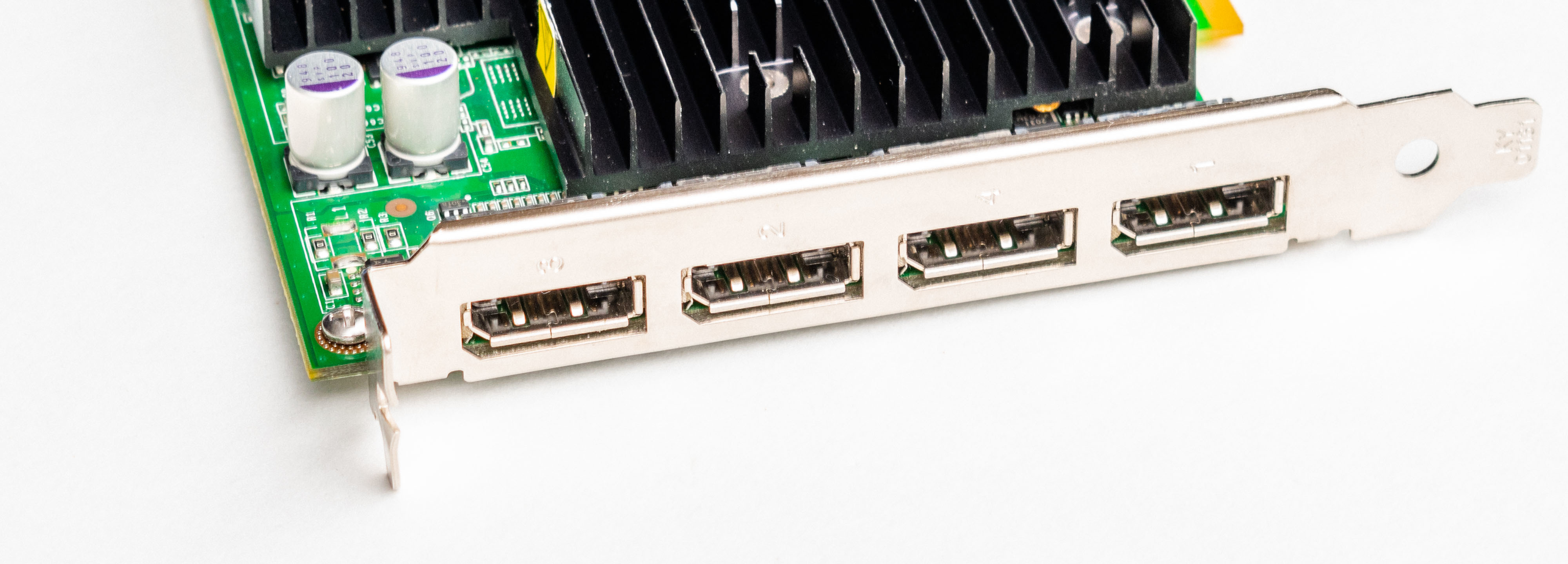

image3 Image 3 of 3 (Motherboard Continuum)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
