Nvidia Quadro FX 1800
Logs
typeType
Video
interfaceInterface
signalSignaling
PCIe 1.0 PCIe 2.0
datePCI ID
0638
ramRAM type
GDDR3
ramRAM size
768MB
chip Chips and specs
-> Video
Nvidia Quadro FX 1800 (G94GL)
tag Also known as
portintI/O ports
1x
  • DVI-I
2x
  • DisplayPort
powerPower connectors
Empty
wrench No card specific known issues
  • Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

Last updated 2025-10-16T17:32:53Z
biosc No BIOS files available
drv No drivers available
doc No card documents available

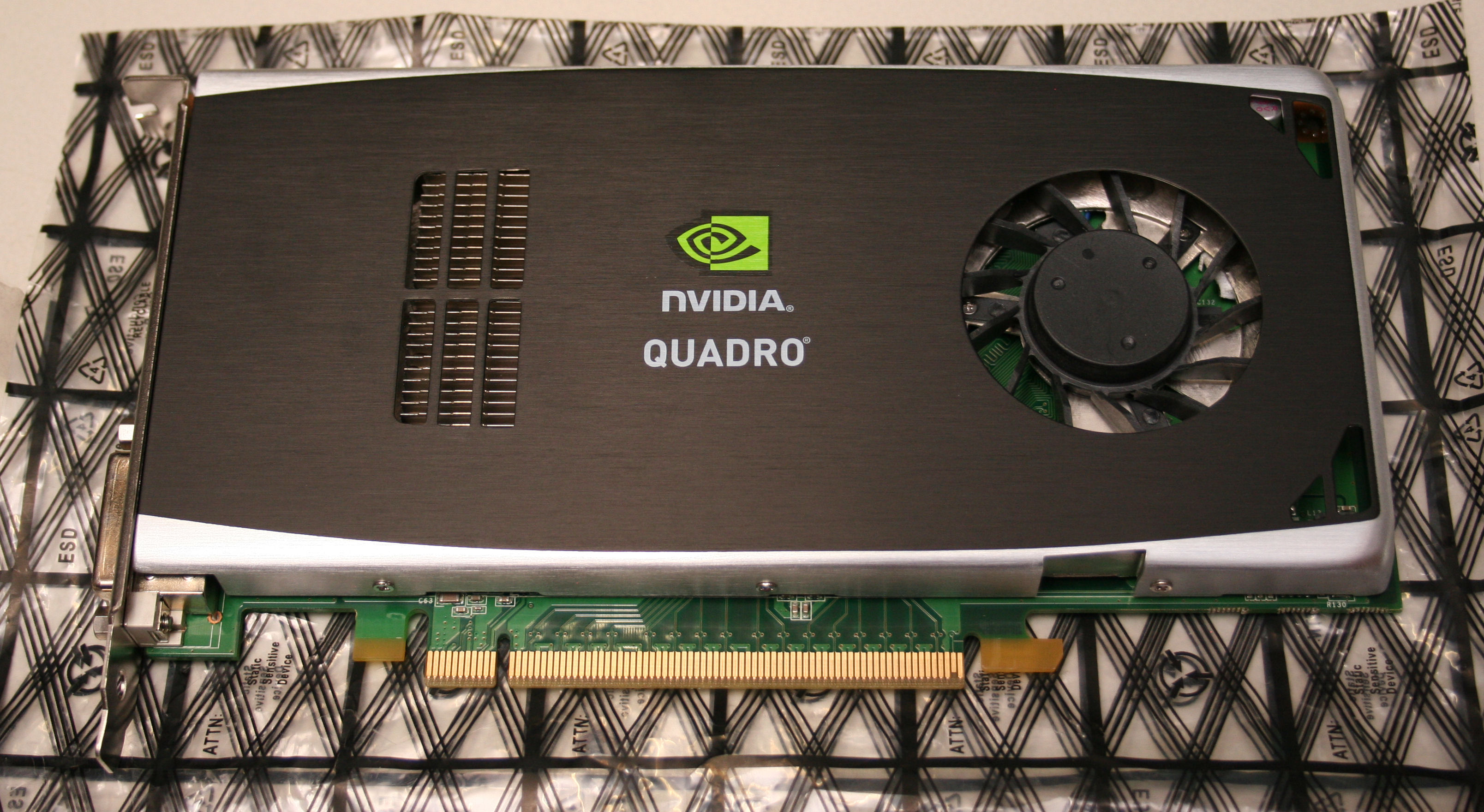

image1 Image 1 of 2 (Speedycat)

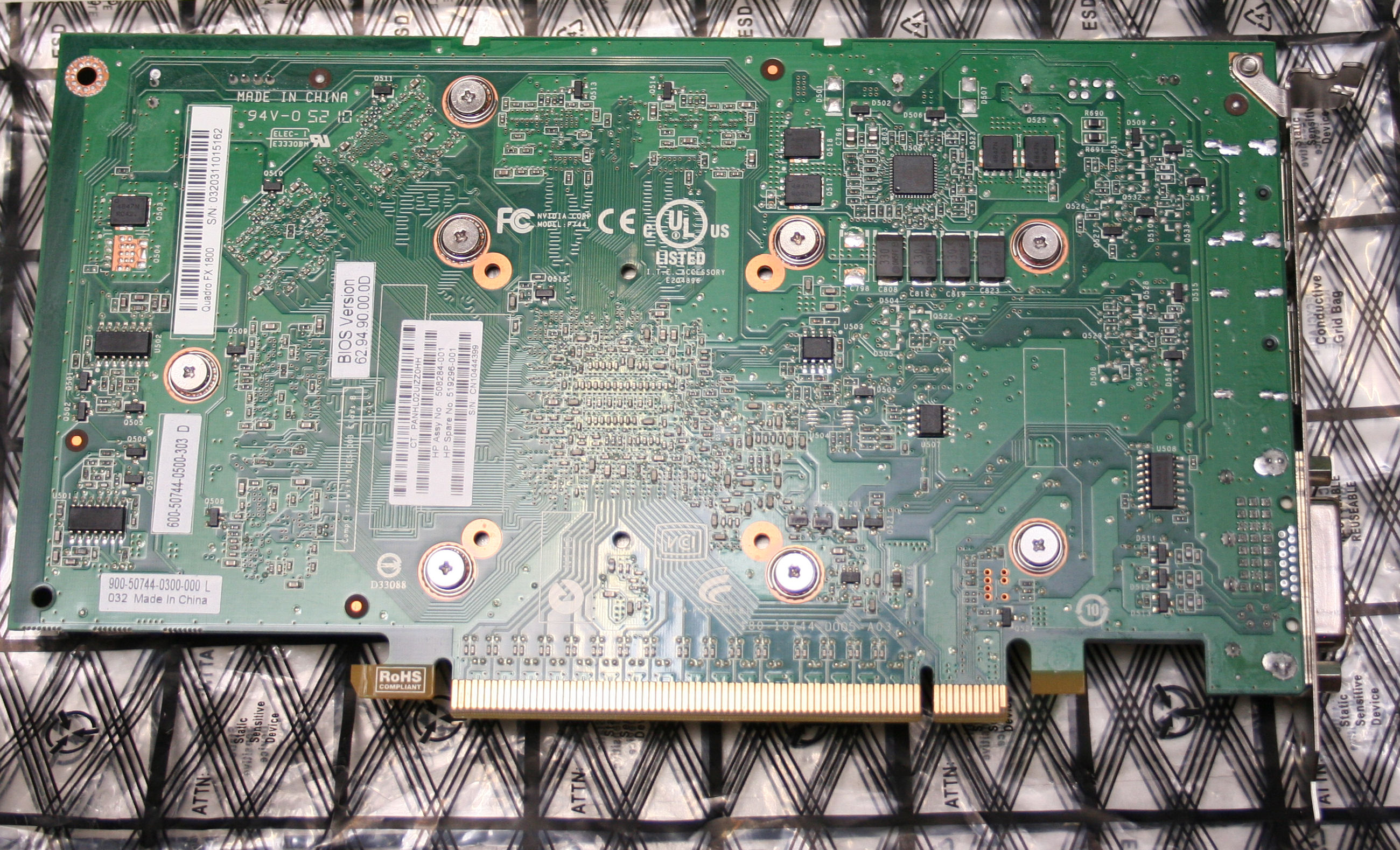

image2 Image 2 of 2 (Speedycat)
