NCR SELF SERVICE PERSONALITY ADAPTOR
Logs
typeType
Parallel controller Serial controller Video
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
ramRAM type
DRAM
ramRAM size
512KB
chip Chips and specs
-> Miscellaneous
Symbios 009-0010939 A (NCR DISCO)
-> Super I/O
(multiple brand) 16C552 (Dual high-speed UART w/LPT) Zilog Z0803008VSC (Z-SCC)
-> Video
NEC 009-0009907 B (NCR DUNDEE PEARL)
tag Also known as
portintI/O ports
1x
  • DB-25
1x
  • 2x20 2.54mm pin header
1x
  • DE-15, VGA
powerPower connectors
Empty
Last updated 2025-05-18T10:45:42Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

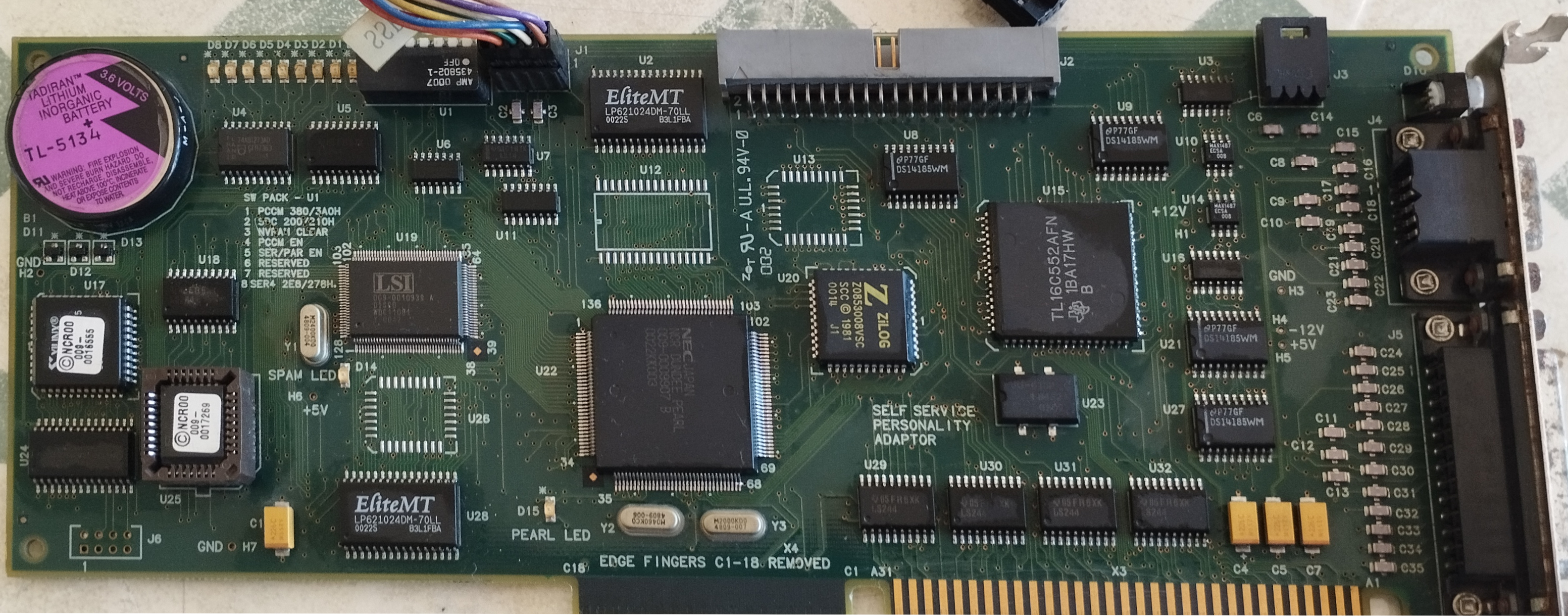

image1 Image 1 of 3 (gitanopayo)

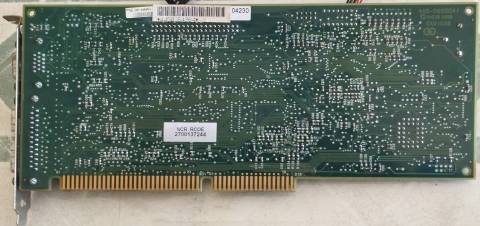

image2 Image 2 of 3 (gitanopayo)

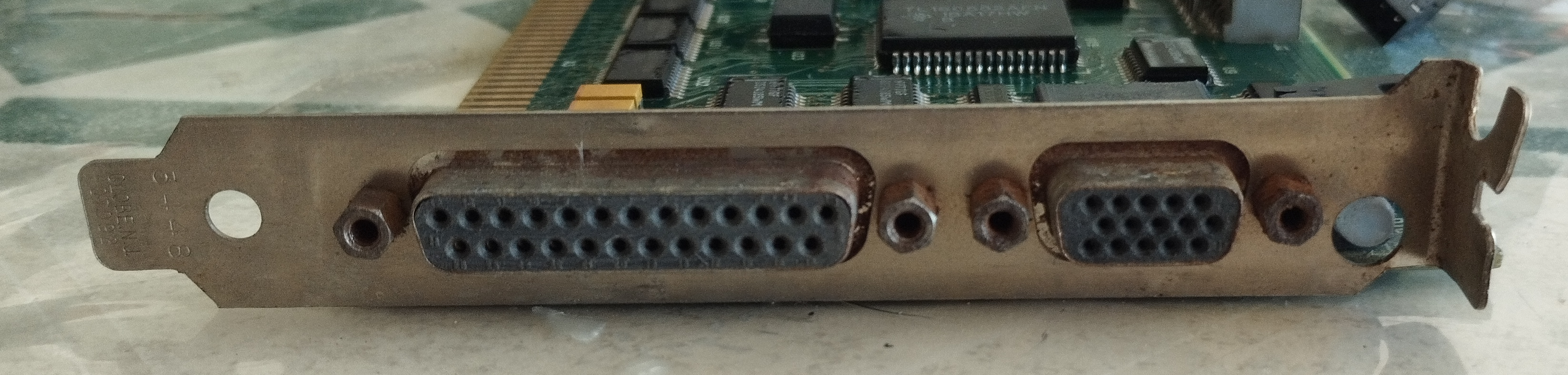

image3 Image 3 of 3 (gitanopayo)
