National Instruments MC-GPIB (488.1)
Logs
typeType
GPIB controller
interfaceInterface
signalSignaling
16-bit MCA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
EXN5RRMC-GPIB
chip Chips and specs
-> GPIB ctrl.
National Instruments Turbo488 NEC uPD7210
-> Signal transmitter/receiver
Texas Instruments SN75160 (GPIB Data Bus Buffer) Texas Instruments SN75162 (GPIB Control Bus Buffer)
tag Also known as
portintI/O ports
1x
  • 24-pin Micro Ribbon female, IEEE-488
powerPower connectors
Empty
notes Notes

More information here https://www.ardent-tool.com/comms/Natl-Instr_MC-GPIB.html

Last updated 2025-05-25T05:51:49Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1995-05
File
Logs
Chip
Release date
1995-05
File
Logs
Chip
Release date
File
Logs

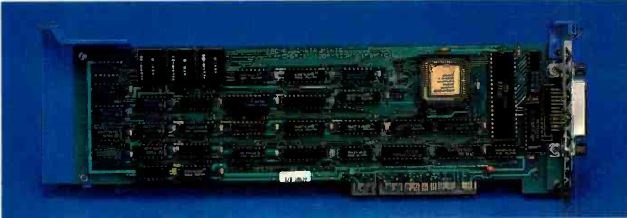

image1 Image 1 of 1 (Tomas Slavotinek)
