MULTIWAVE INNOVATION, INC. AUDIOWAVE 16 AISP (SCSI)
Logs
typeType
Sound SCSI controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Audio
Crystal CS4231A (Multimedia Audio Codec) Philips TDA1517 (2x6W Audio Power Amplifier) Media Vision MVD1216B (Jazz16) Media Vision MVD201A (Thunder) Yamaha YAC512 (2-Channel Floating DAC) Yamaha YMF262 (OPL3)
-> SCSI ctrl.
NCR 5380
MTL
Card Type Sound card
I/O Options CD-ROM audio, game/MIDI port, line in, line out, microphone in, SCSI interface, Speaker out
Maximum DRAM N/A
Chipset Controller Unidentified
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 2x8 2.54mm pin header
1x
  • 2x25 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-03-25T22:30:03Z
biosc No BIOS files available
drv 2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
622.3KB
Filename
Version
OS support
Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
66.8KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-09
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-02-18
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs

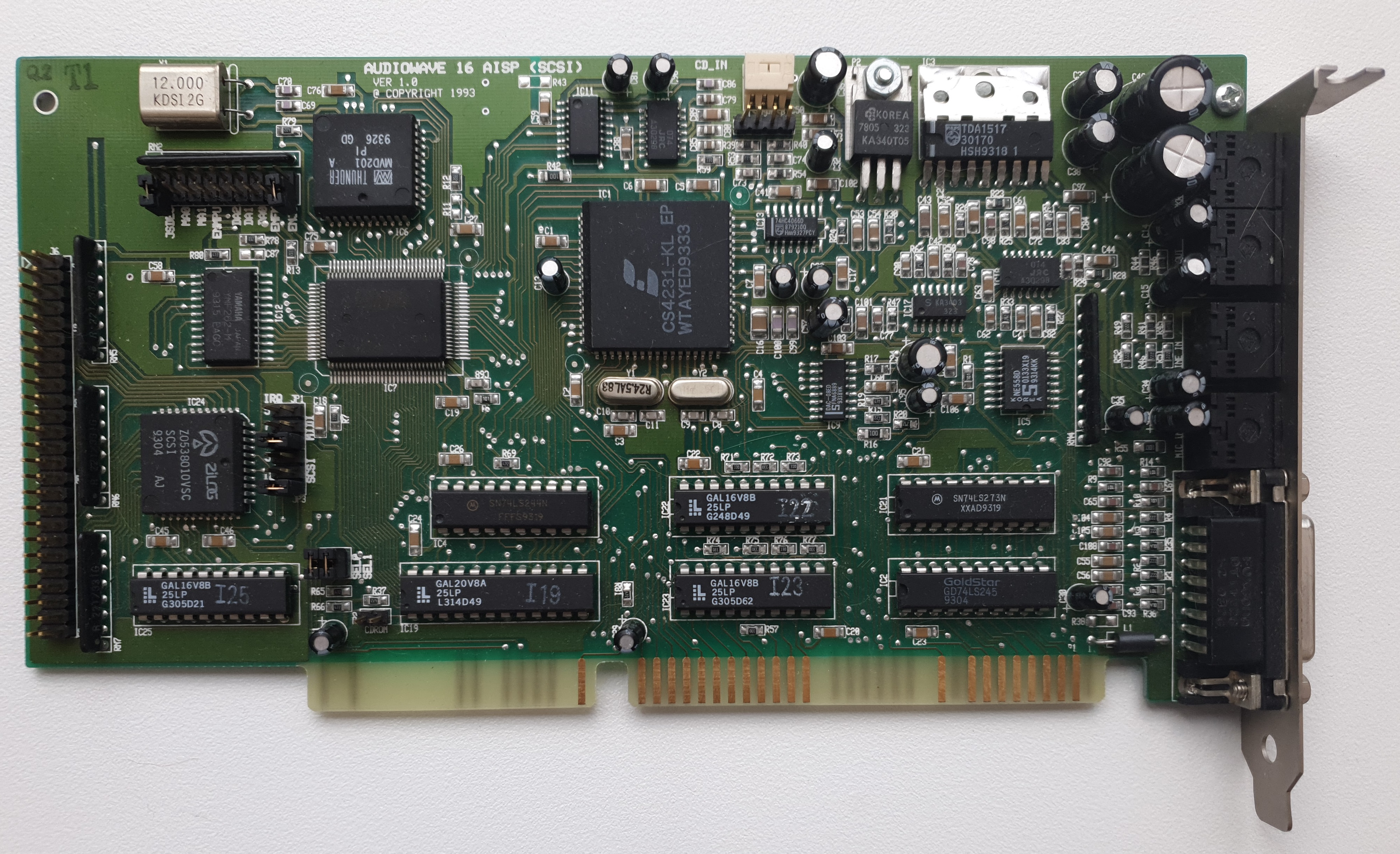

image1 Image 1 of 3 (Microhouse)

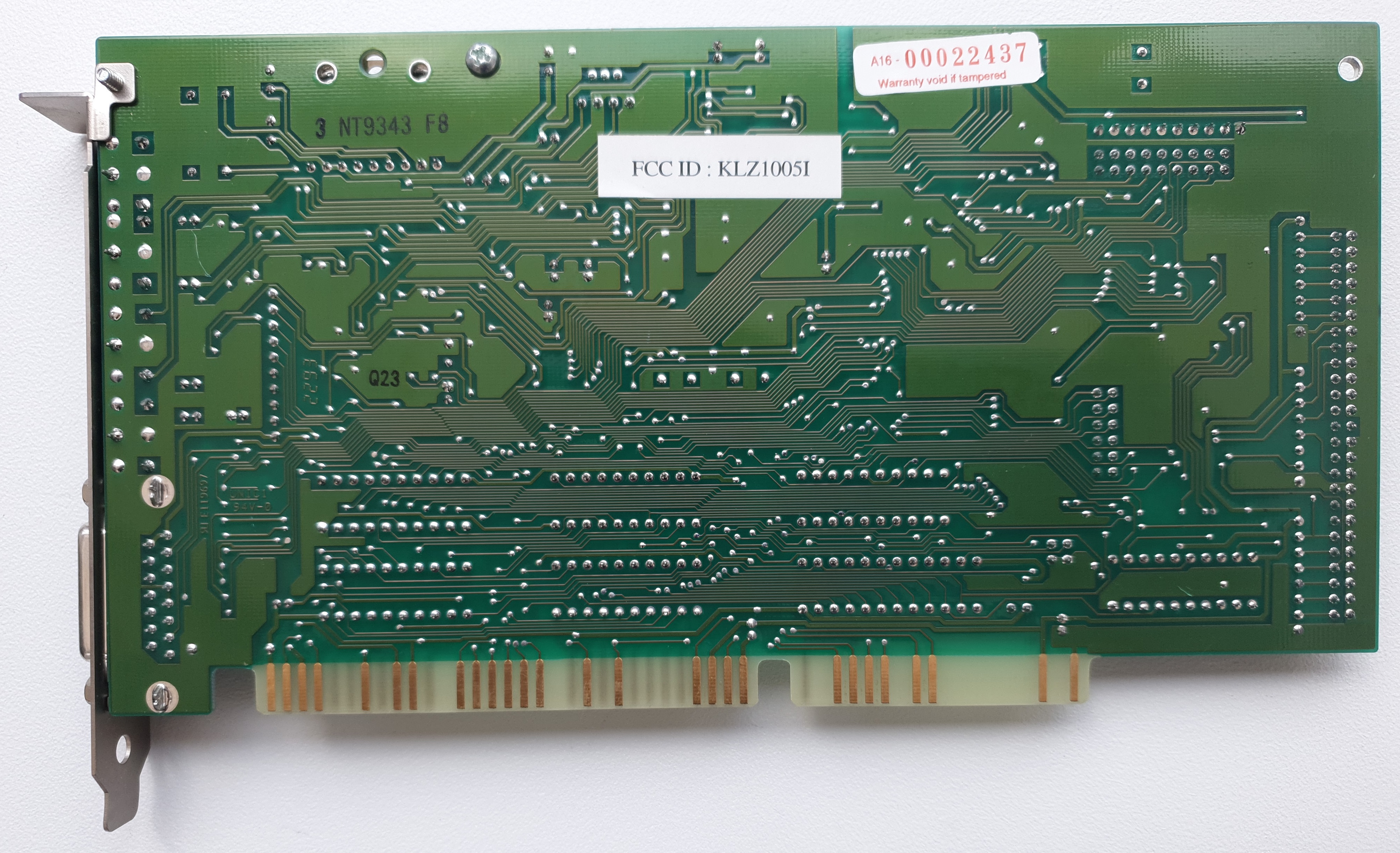

image2 Image 2 of 3 (DOS Days)
image3 Image 3 of 3 (DOS Days)
