MSI RX9800PRO-TD128
Logs
typeType
Video
interfaceInterface
signalSignaling
AGP 4x AGP 8x
dimSlot height
1
datePCI ID
4E48 4E68 4E49 4E69 4E4A 4E6A
ramRAM type
DDR
ramRAM size
128MB
chip Chips and specs
-> Video
ATi Radeon 9800/9800 Pro/9800 XT (R360) VIA VT1623M
tag Also known as
  • MSI MS-8956 Ver: 1.00
  • Medion Radeon 9800 XXL Ver 1.0

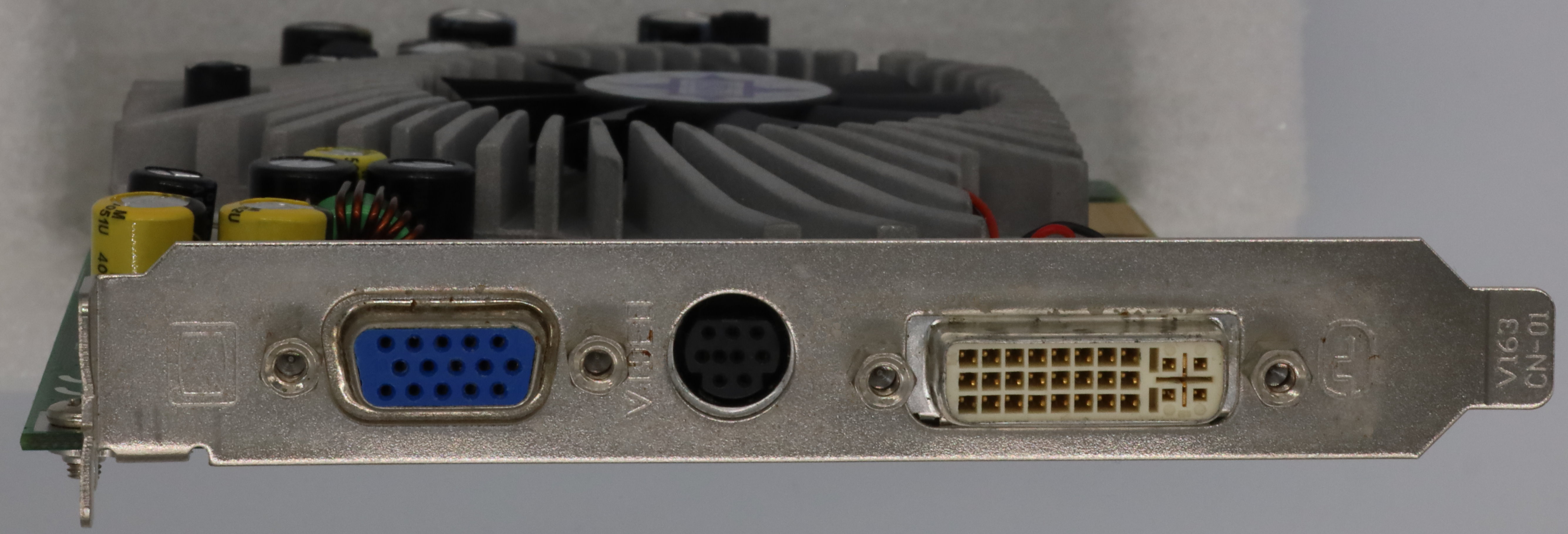

portintI/O ports
1x
  • 9-pin mini-DIN (non-standard)
1x
  • DVI-I
1x
  • DE-15
powerPower connectors
1x
notes Notes
  • Oem version sold in Medion/Lifetec-branded PCs sold in Europe
  • Full R360 core with 256-bit memory bus, clocked between 9800 Pro and XT
Last updated 2025-07-27T07:40:26Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
v611
Note
Radeon 9800
File
Logs
drv No drivers available
doc 3 card documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs

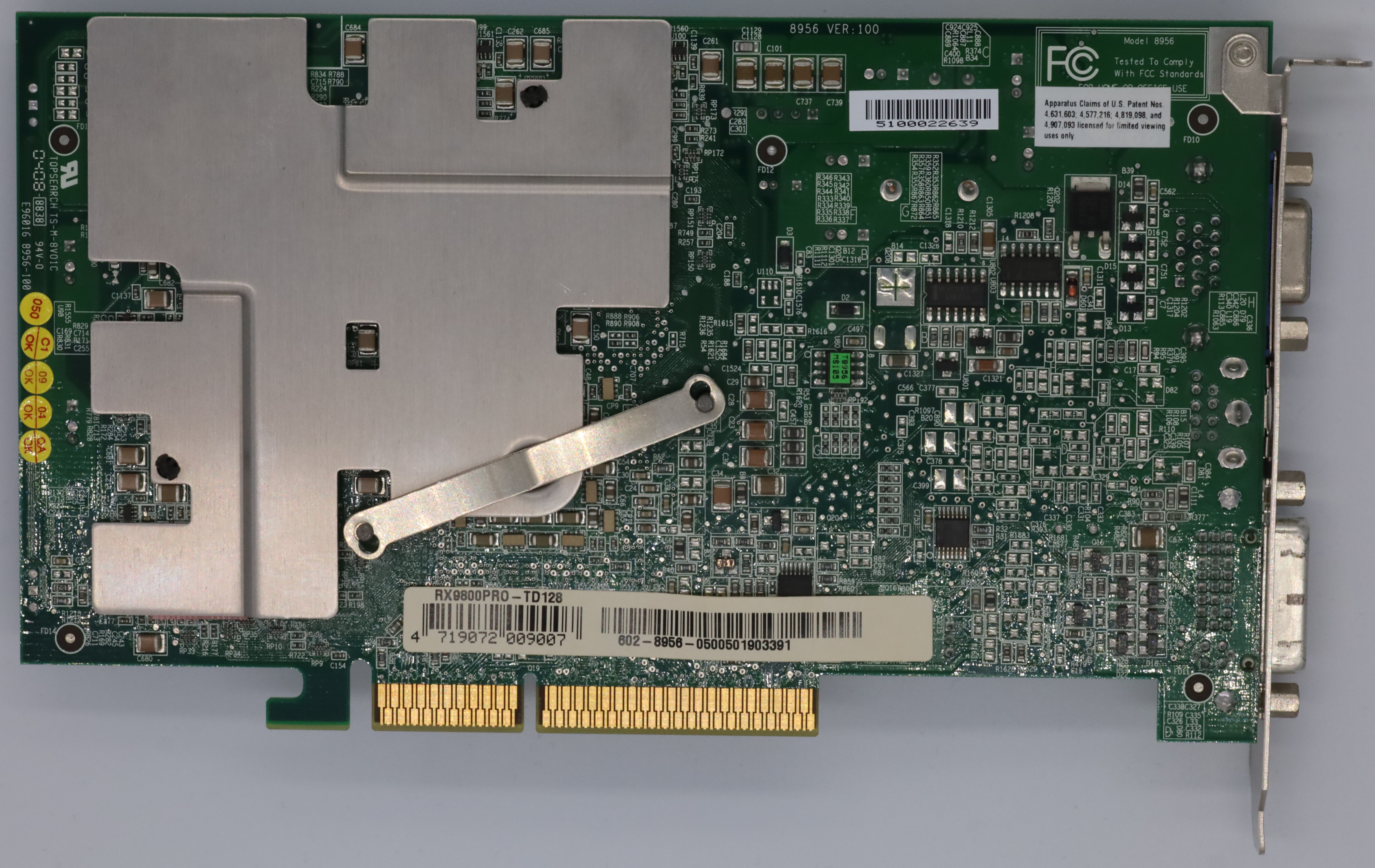

image1 Image 1 of 7 (Carsten Braeuer)

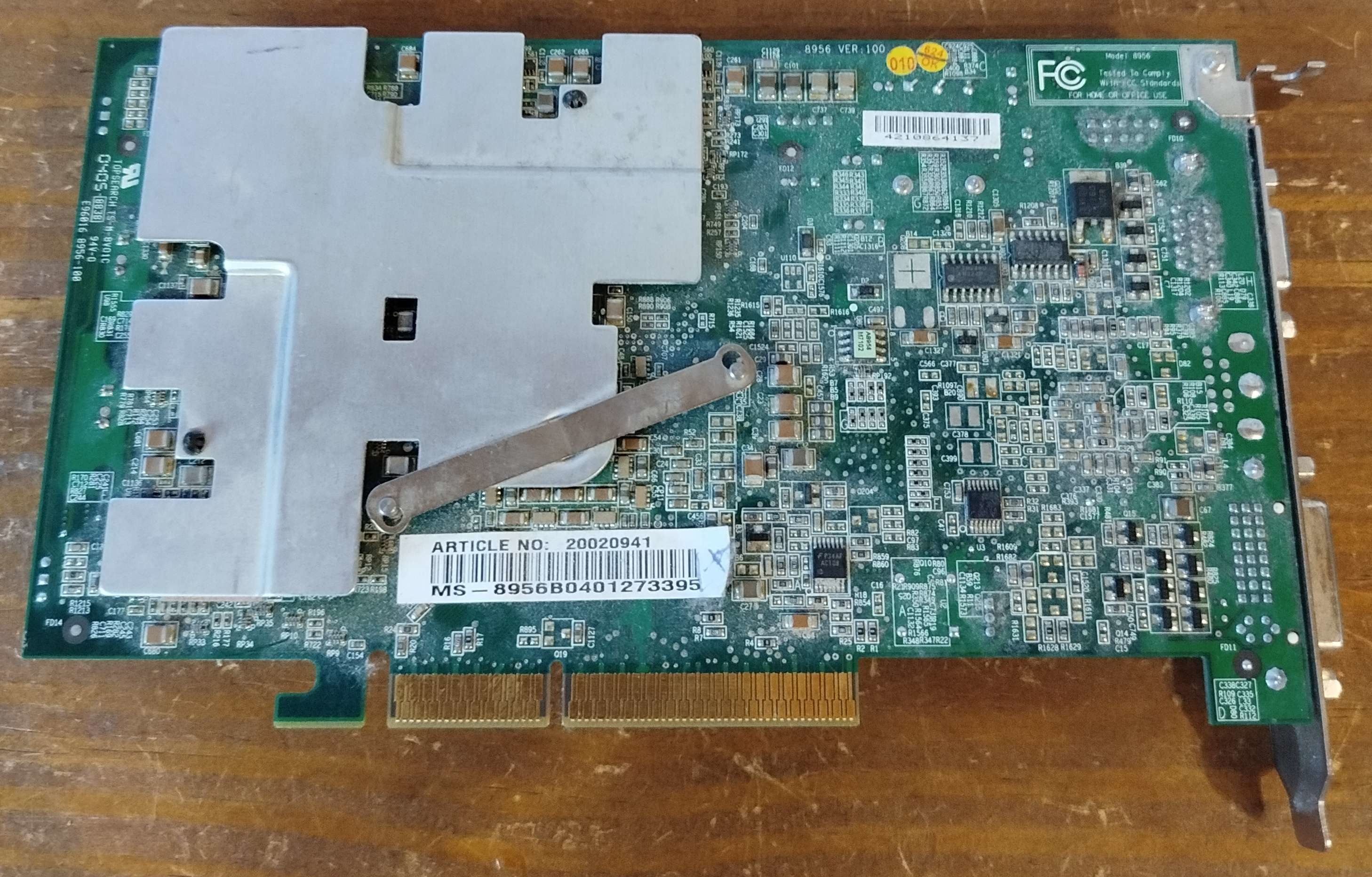

image2 Image 2 of 7 (CircusCat)

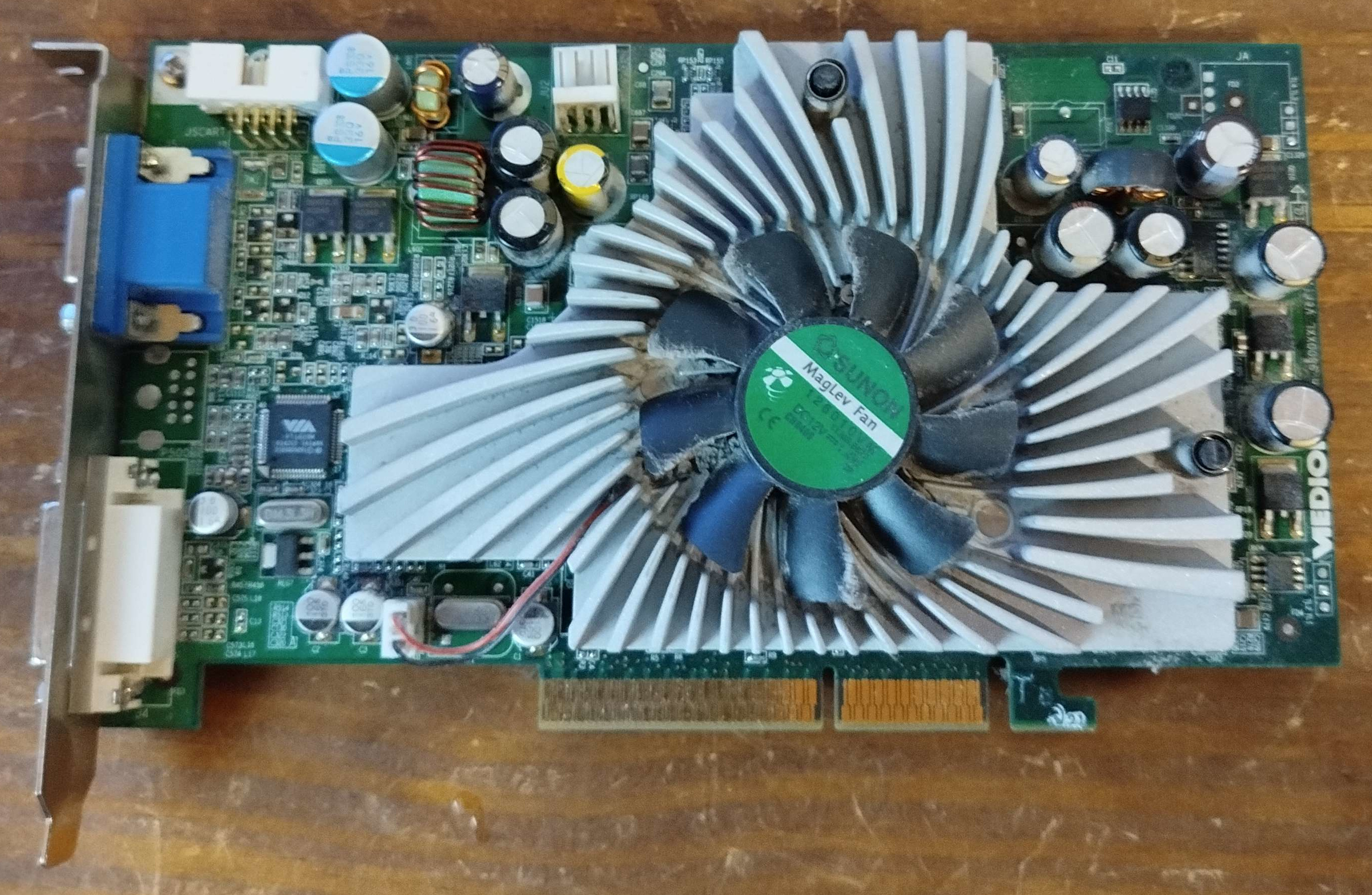

image3 Image 3 of 7 (Carsten Braeuer)

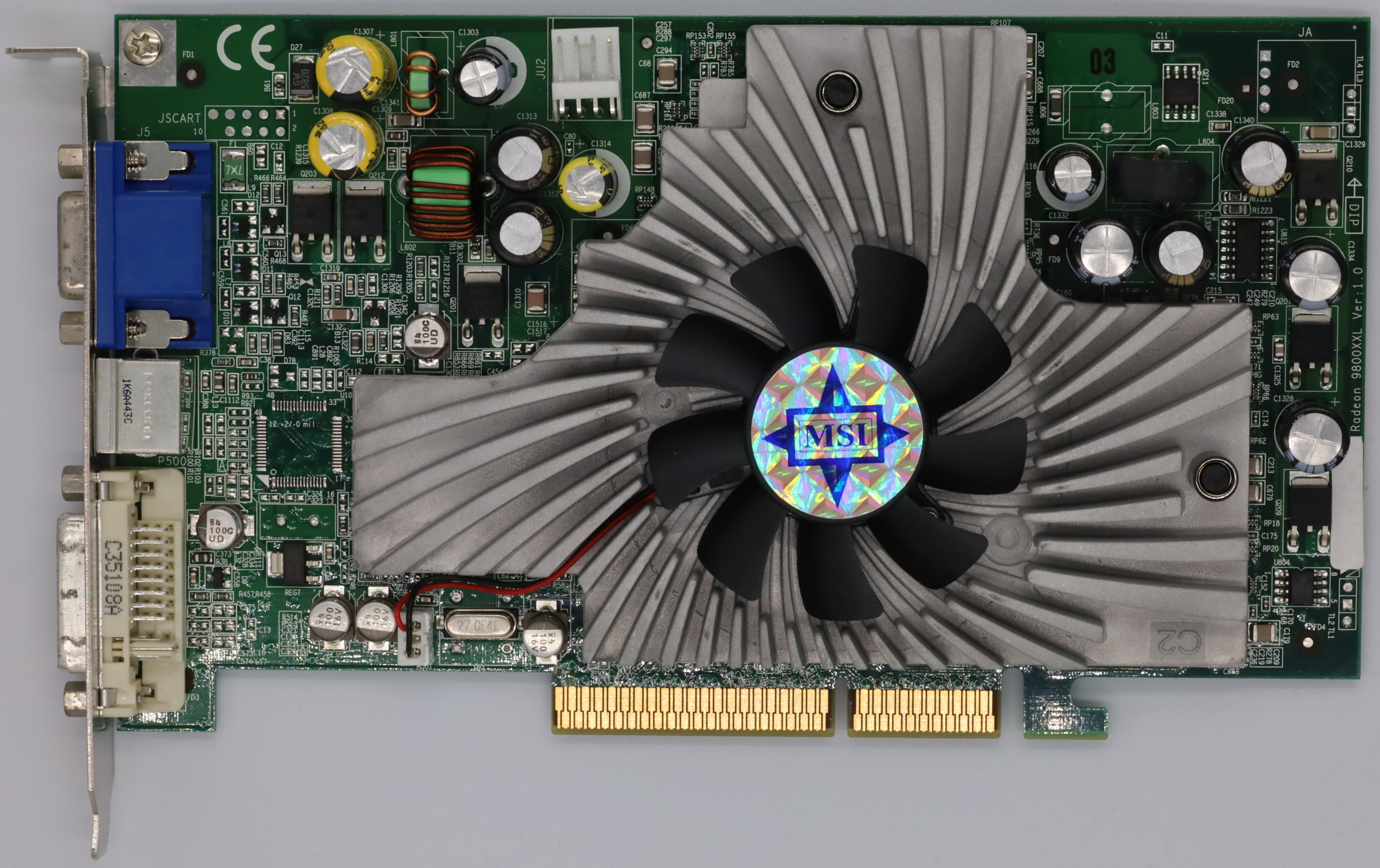

image4 Image 4 of 7 (CircusCat)
image5 Image 5 of 7 (Carsten Braeuer)
image6 Image 6 of 7 (Carsten Braeuer)
image7 Image 7 of 7 (Carsten Braeuer)
