MSI N560GTX-Ti Twin Frozr II/OC
Logs
Interface
Signaling
Slot height
PCI ID
1200
RAM type GDDR5
RAM size
1GB
Chips and specs
-> Video
Also known as
- MSI V238
I/O ports
Power connectors
2x
Notes
The GPU VRM section is located to the right of the "SFC" inductors under a heat sink. Some cards have left the factory with a protective plastic film still attached to the thermal silicon pad covering the 12 VRM MOSFETs, which inhibits cooling. Remove the plastic film from the silicon pad if that's the case to avoid a premature VRM failure.
Last updated 2026-01-09T19:04:13Z
1 card BIOS file available
Version
Note
File
Logs
No drivers available
3 card documents available
Release date
File
Logs

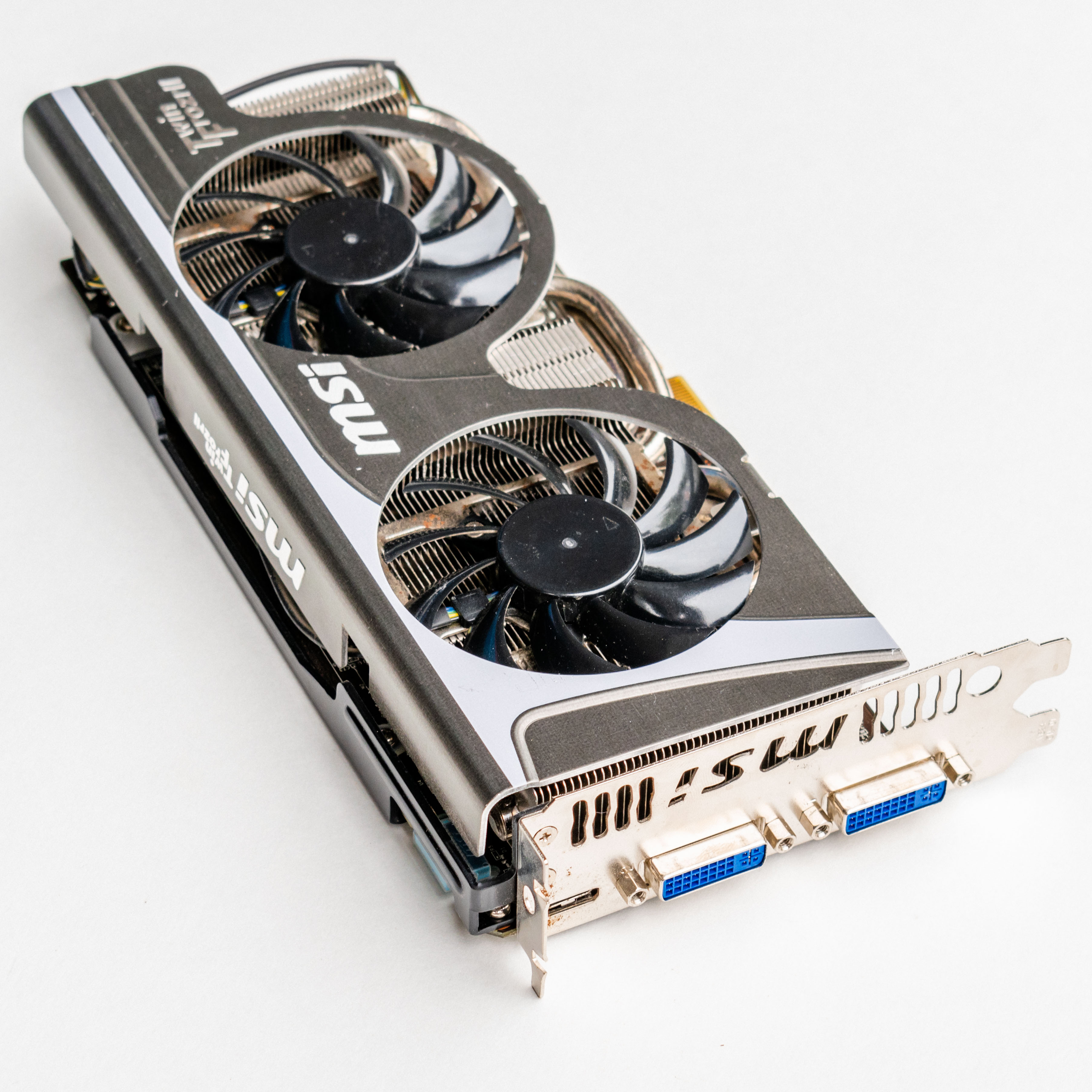

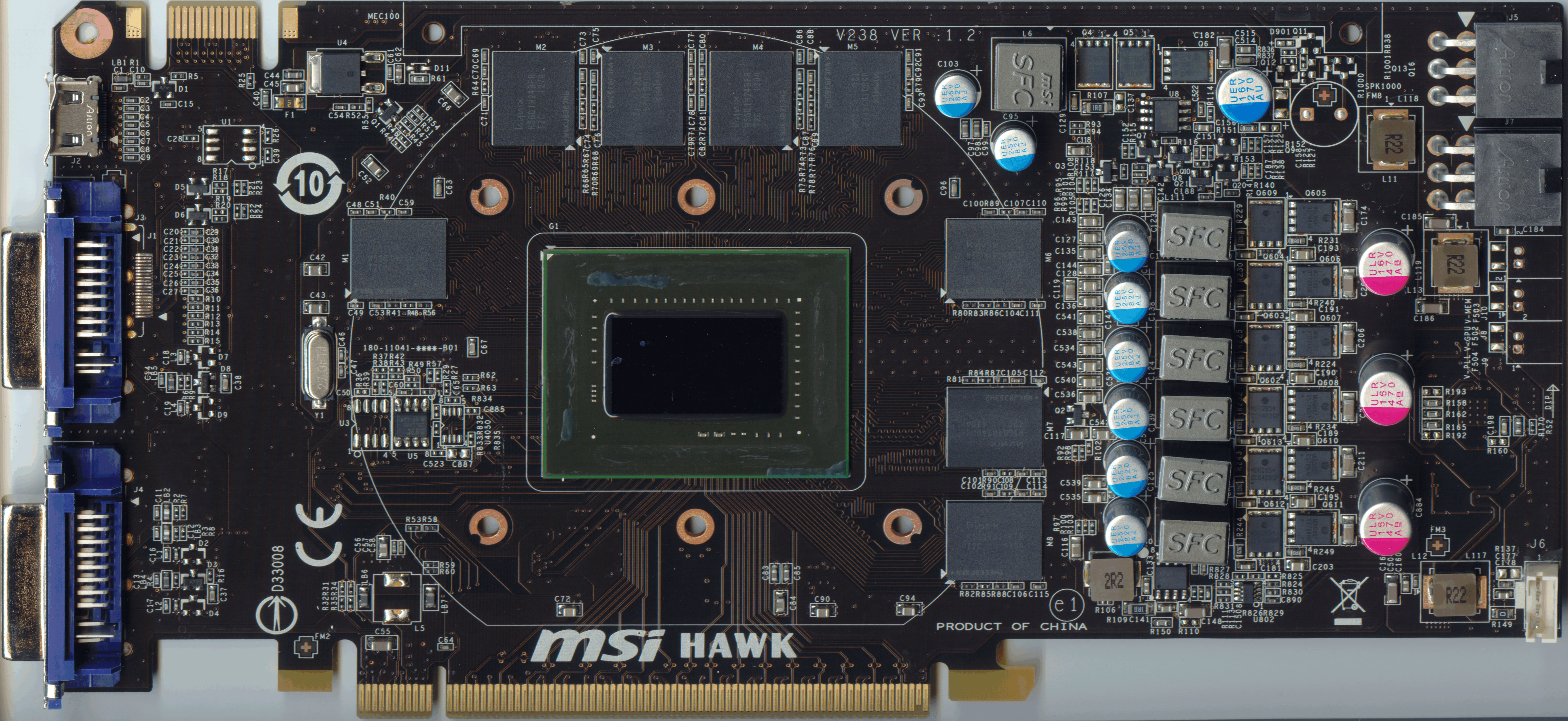

Image 1 of 11 (Motherboard Continuum)

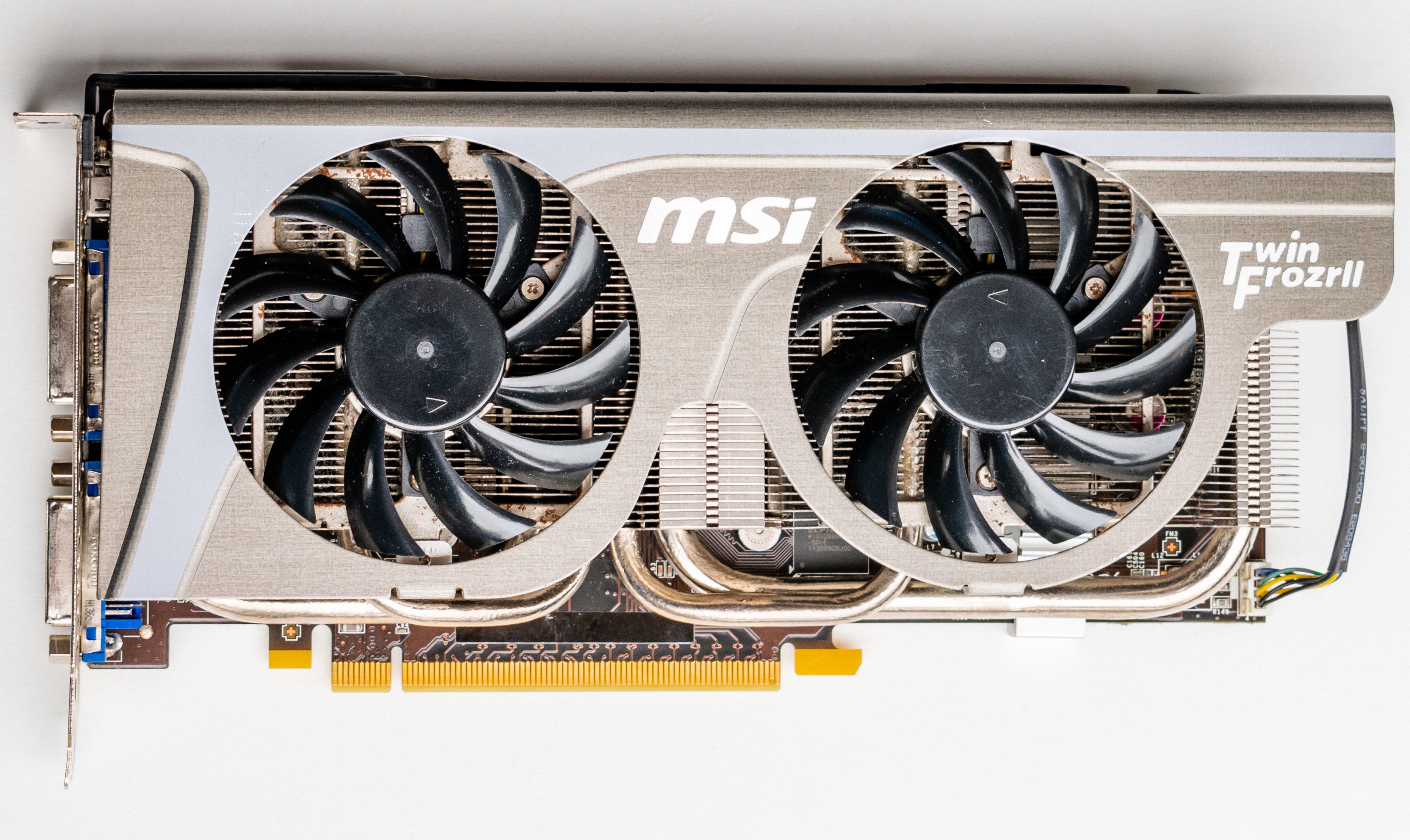

Image 2 of 11 (Rafal Rzeczkowski)

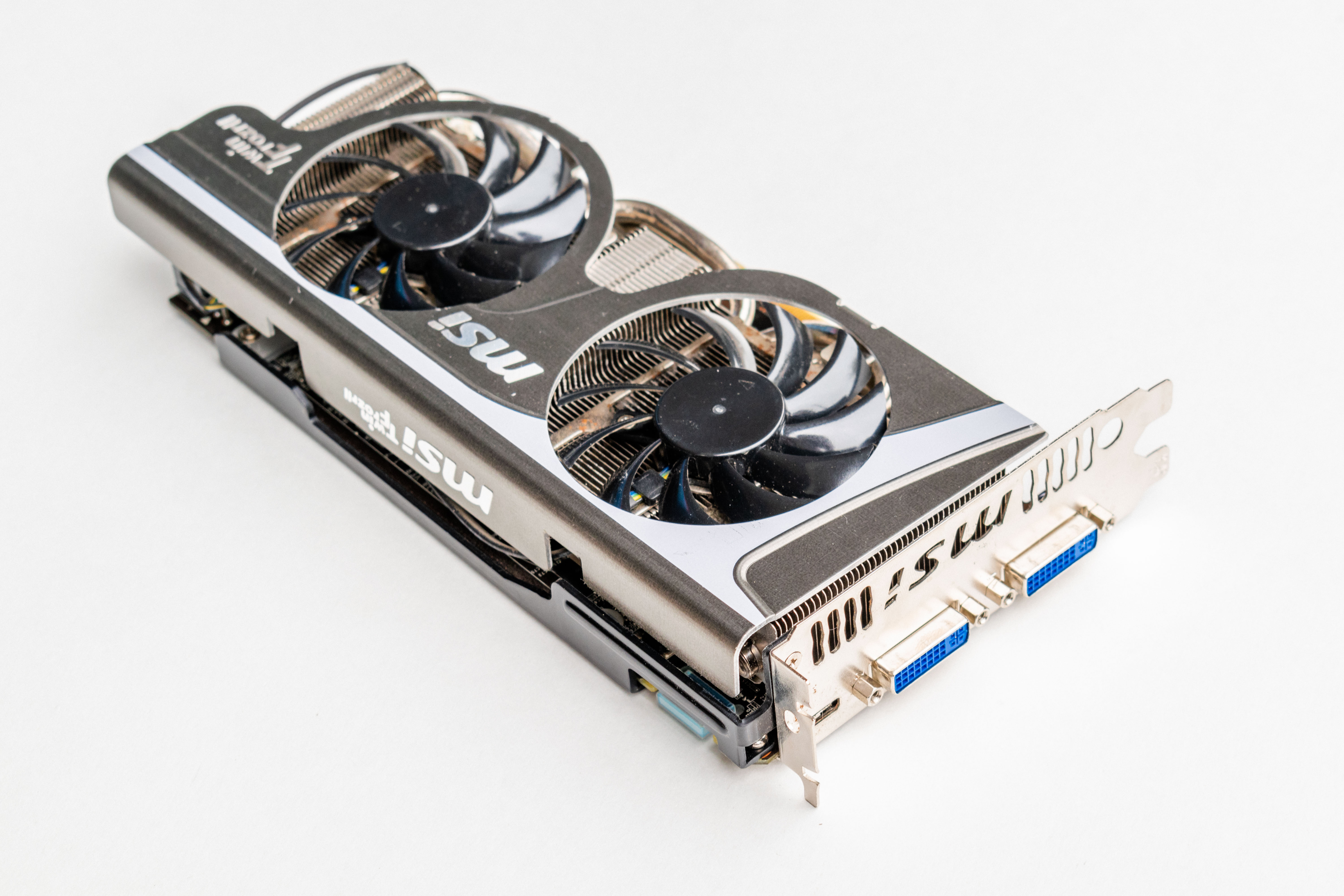

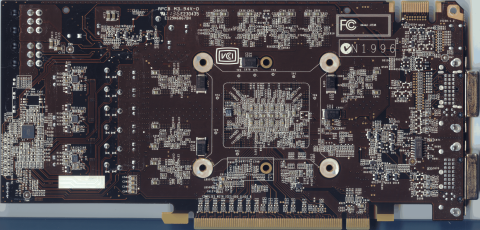

Image 3 of 11 (Motherboard Continuum)

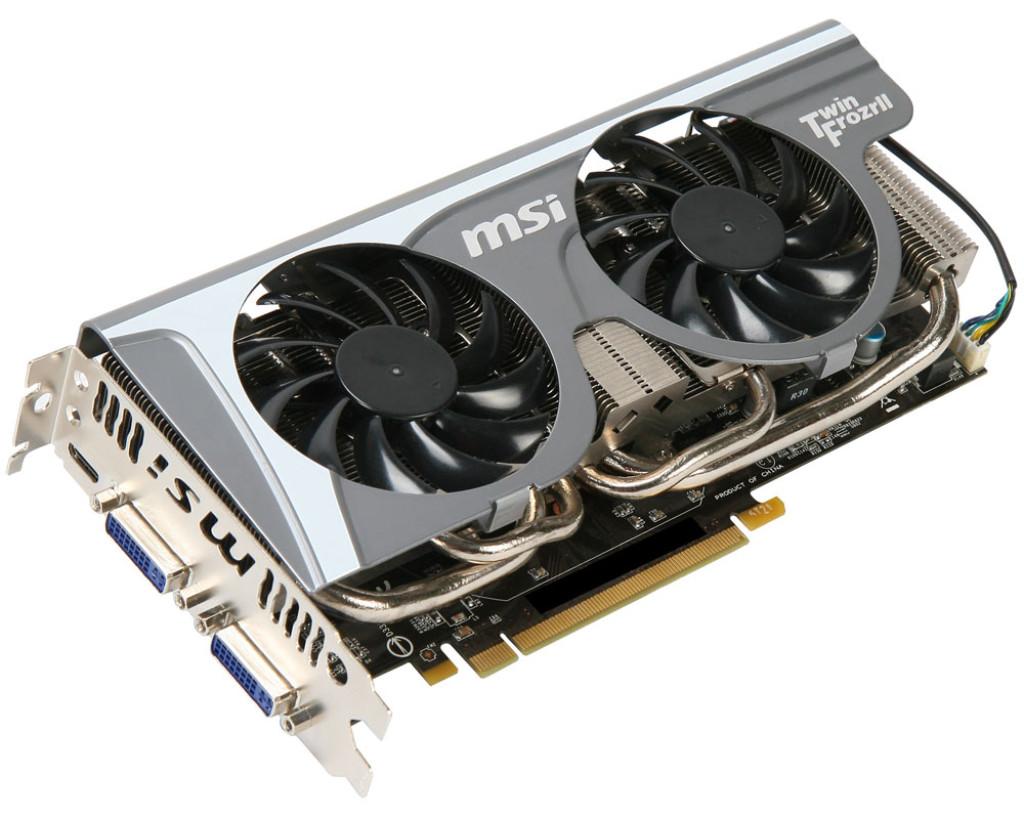

Image 4 of 11 (Rafal Rzeczkowski)
Image 5 of 11 (Motherboard Continuum)
Image 6 of 11 (MSI)
Image 7 of 11 (MSI)
Image 8 of 11 (MSI)
Image 9 of 11 (MSI)
Image 10 of 11 (MSI)
Image 11 of 11 (Motherboard Continuum)
