MSI MS-3401
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit VLB
dimSlot height
1
datePCI ID
Empty
fccFCC ID
LAHCR16-VLB-1
ramRAM type
VRAM
ramRAM size
1MB
chip Chips and specs
-> RAMDAC
Sierra SC11482 (Color palette DAC)
-> Video
S3 86C911 (Carrera)
MTL
Category Video
Memory Type DRAM
Data Bus Type 32-bit VESA Local Bus
Video Processor S3
Video Types Supported XVGA
Maximum Onboard Memory 2MB
Highest Resolution Supported 1280 x 1024
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2026-01-02T19:16:44Z
biosc No BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.01.09
OS support
Windows 9x
Arch
x86
Size
124.2KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
64.6KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
doc No card documents available

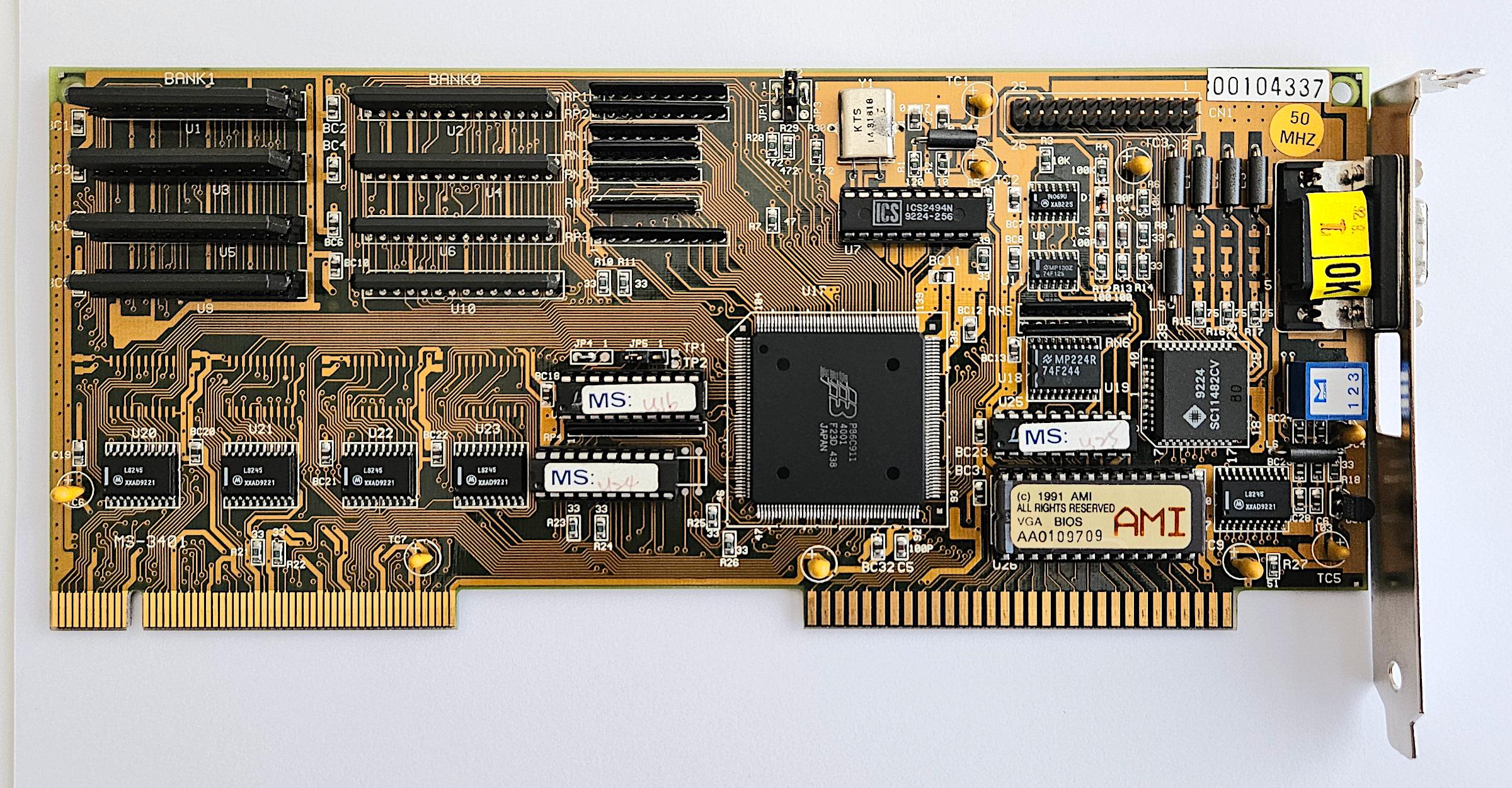

image1 Image 1 of 1 (pshipkov)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
