Miro PCTV
Logs
typeType
Video capture TV tuner
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
0350
dimDimensions
120mm (length) x 107mm (height)
chip Chips and specs
-> Video
Brooktree Bt848 (Video Capture for PCI)
tag Also known as
portintI/O ports

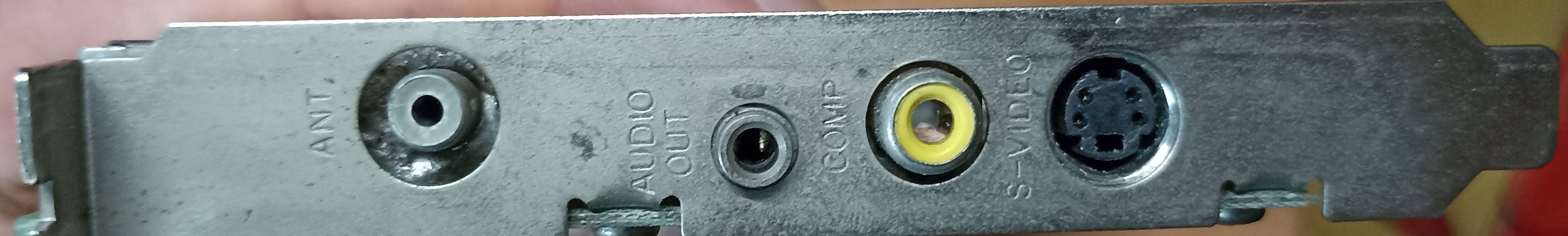

1x
  • 3.5mm TRS jack, Stereo audio in
1x
  • RCA Jack, Composite video
1x
  • 4-pin Mini-DIN, S-Video
1x
  • Belling-Lee female coaxial, RF Video
powerPower connectors
Empty
Last updated 2025-05-27T19:25:44Z
biosc No BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.4.0
OS support
Windows 9x
Arch
x86
Size
10.5KB
Filename
Name
Version
5.3.8
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
302.2KB
Filename
Name
Version
N/A
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
1.4MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 5 (Miro)
image2 Image 2 of 5 (scudo)

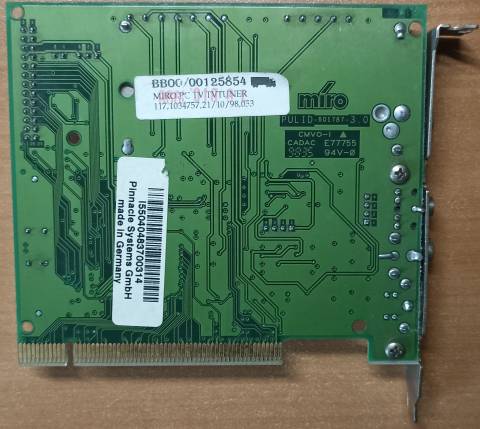

image3 Image 3 of 5 (scudo)
image4 Image 4 of 5 (scudo)
image5 Image 5 of 5 (scudo)
