Miro MOVIE Pro
Logs
typeType
Video capture Video
interfaceInterface
signalSignaling
16-bit ISA 8-bit ISA
dimSlot height
1
datePCI ID
Empty
ramRAM type
VRAM
ramRAM size
2MB
chip Chips and specs
-> Audio
Crystal CS4231A (Multimedia Audio Codec)
-> RAMDAC
Brooktree Bt121KPJ80 (RAMDAC) AT&T ATT20C491-80 (80MHz RAMDAC)
-> SCSI ctrl.
NCR NC53CF94
-> Video
Philips SAA7199B (Digital Video Encoder) CHIPS and Technologies F82C9001 (SVGA) Philips SAA7191 (Colour Decoder, Square Pixel) Philips SAA7192 (Digital Colour Space Converter) Fujitsu CG31553 (ProMotion PS) Fujitsu CG24692 (ProMotion PX) LSI L64735QC (DCT PROCESSR) LSI L64745QC (JPEG CODER) LSI L64765QC (CS RBC)
portintI/O ports
1x
  • 2x25 2.54mm pin header
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
notes Notes

This is a preliminary name, based on circumstantial evidence of the Miro MOVIE Pro VLB.

Last updated 2025-10-15T14:28:00Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1992-03
File
Logs
Chip
Release date
1992-09
File
Logs
Chip
Release date
1994-09
File
Logs
Chip
Release date
1992-04
File
Logs
Chip
Release date
1996-08
File
Logs
Chip
Release date
1996-09-25
File
Logs
Chip
Release date
File
Logs

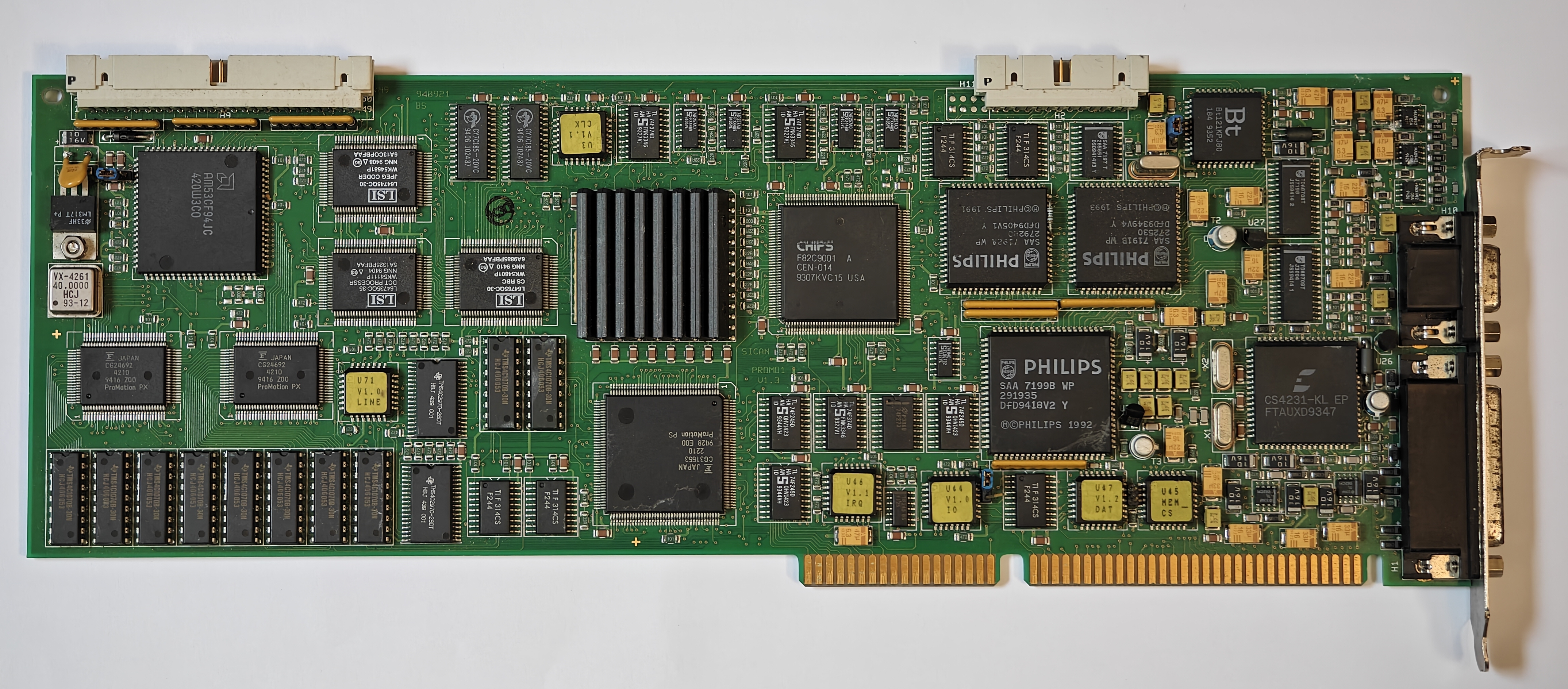

image1 Image 1 of 3 (Tiimo)

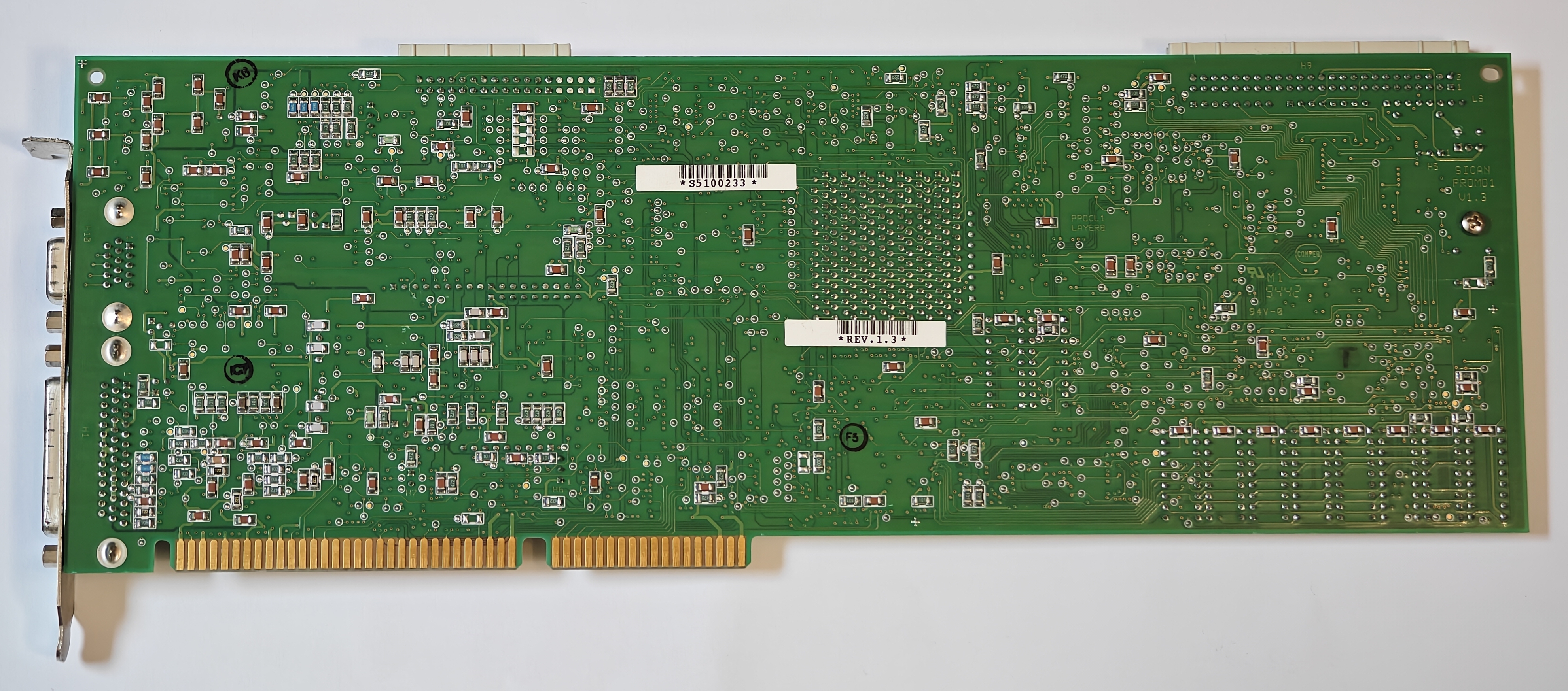

image2 Image 2 of 3 (Tiimo)

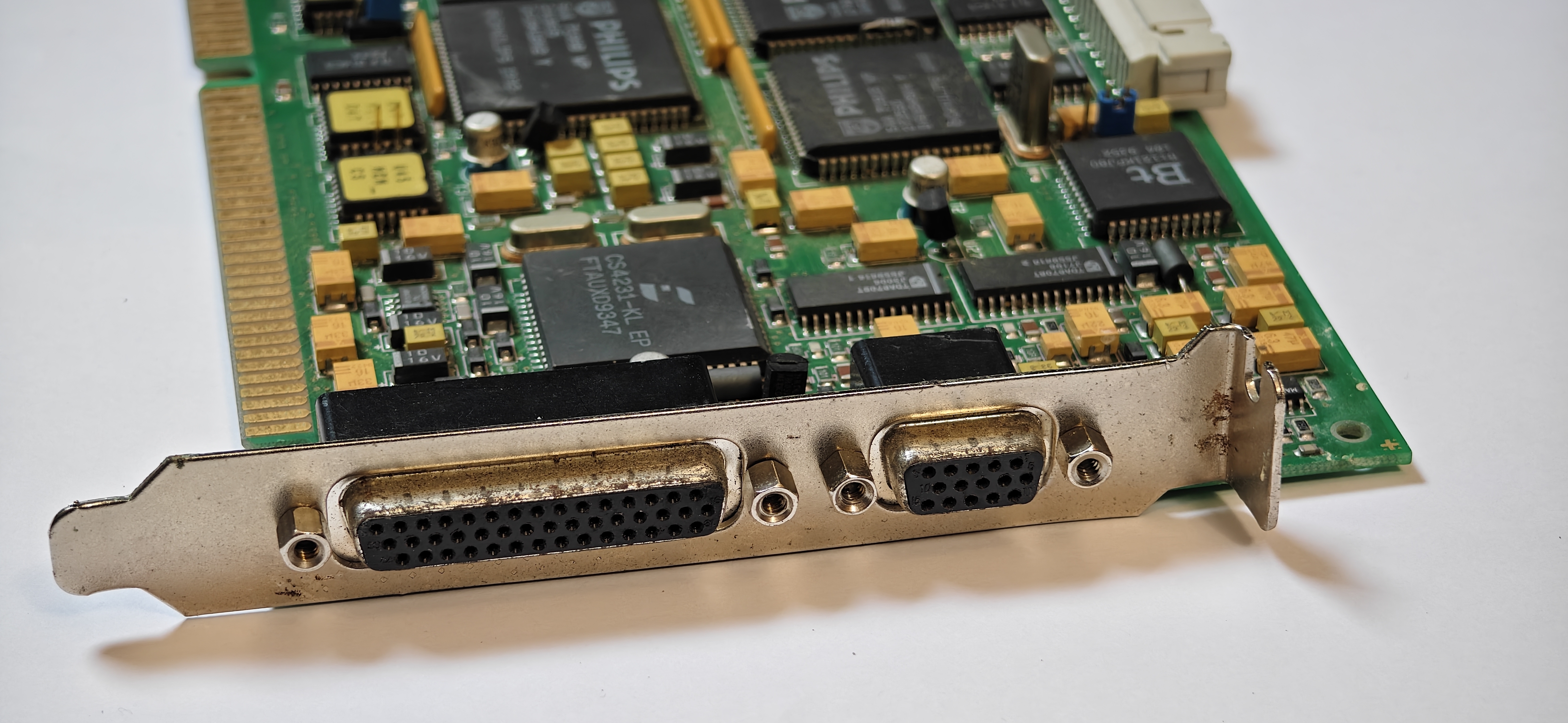

image3 Image 3 of 3 (Tiimo)
