Miro miroCRYSTAL 20SV PCI
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
88F0 88F1 88F2 88F3
fccFCC ID
LAHC20SV-PCI-1 / H85-20SVPCI
ramRAM size
2MB
chip Chips and specs
-> RAMDAC
Brooktree BT485
-> Video
S3 86C968 (Vision968)
MTL
Memory Type VRAM
Video Types Supported XVGA
Maximum Onboard Memory 2MB
Highest Resolution Supported 1600 x 1200
tag Also known as
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-11-02T10:42:48Z
biosc No BIOS files available
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS Windows 3.1x Windows 9x Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
895KB
Filename
Name
Version
2.01.09
OS support
Windows 9x
Arch
x86
Size
124.2KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
64.6KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996-02
File
Logs

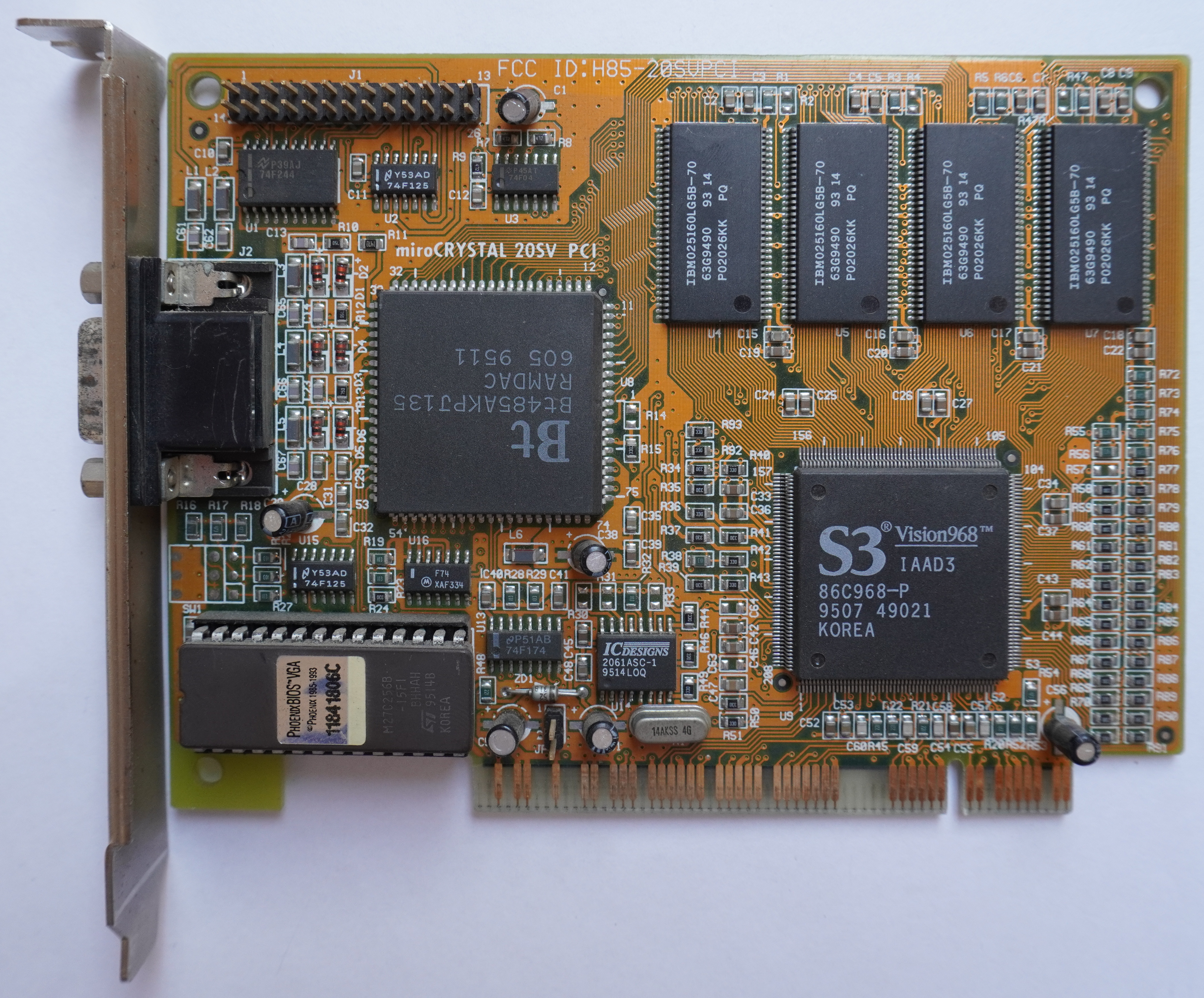

image1 Image 1 of 2 (Elke Wehmer)

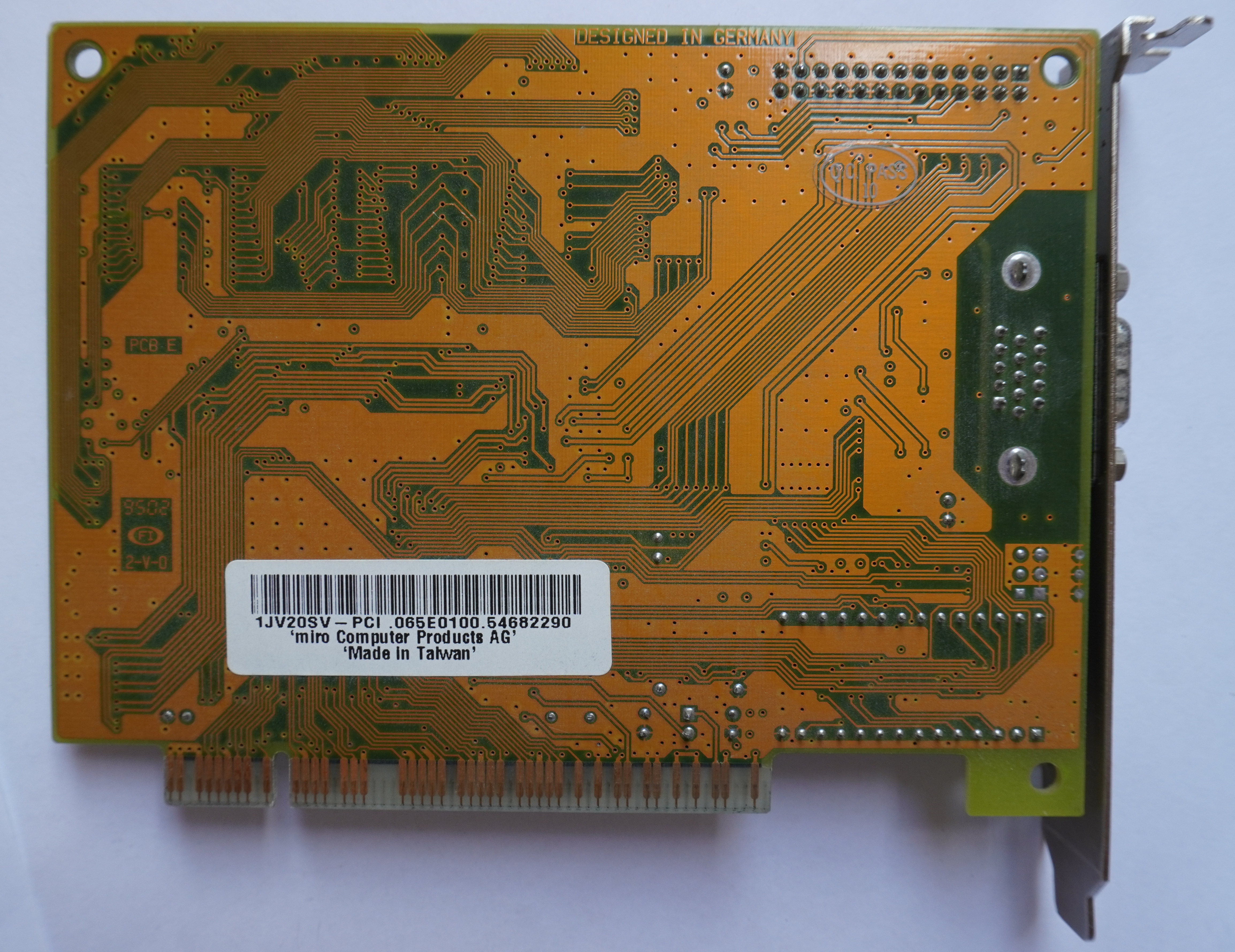

image2 Image 2 of 2 (Elke Wehmer)
