Miro miroMAGIC 40SV TWIN/PCI
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
8880 8881 8882 8883 88F0 88F1 88F2 88F3
fccFCC ID
LAHM40TW-PCI-1
ramRAM size
4MB
chip Chips and specs
-> RAMDAC
Texas Instruments TVP3026 (Video Interface Palette)
-> Video
S3 86C868 (Vision868) S3 86C968 (Vision968)
MTL
Category Video
Memory Type VRAM
Data Bus Type 32-bit PCI
Video Processor S3 Vision
Video Types Supported XVGA
Maximum Onboard Memory 4MB (6MB when daughter board is installed)
Highest Resolution Supported 1600 X 1280
portintI/O ports
1x
  • 2x13 2.54mm pin header
2x
  • DE-15
powerPower connectors
Empty
Last updated 2025-11-02T11:01:11Z
biosc No BIOS files available
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS Windows 3.1x Windows 9x Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
895KB
Filename
Name
Version
2.01.09
OS support
Windows 9x
Arch
x86
Size
124.2KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
64.6KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996-02
File
Logs

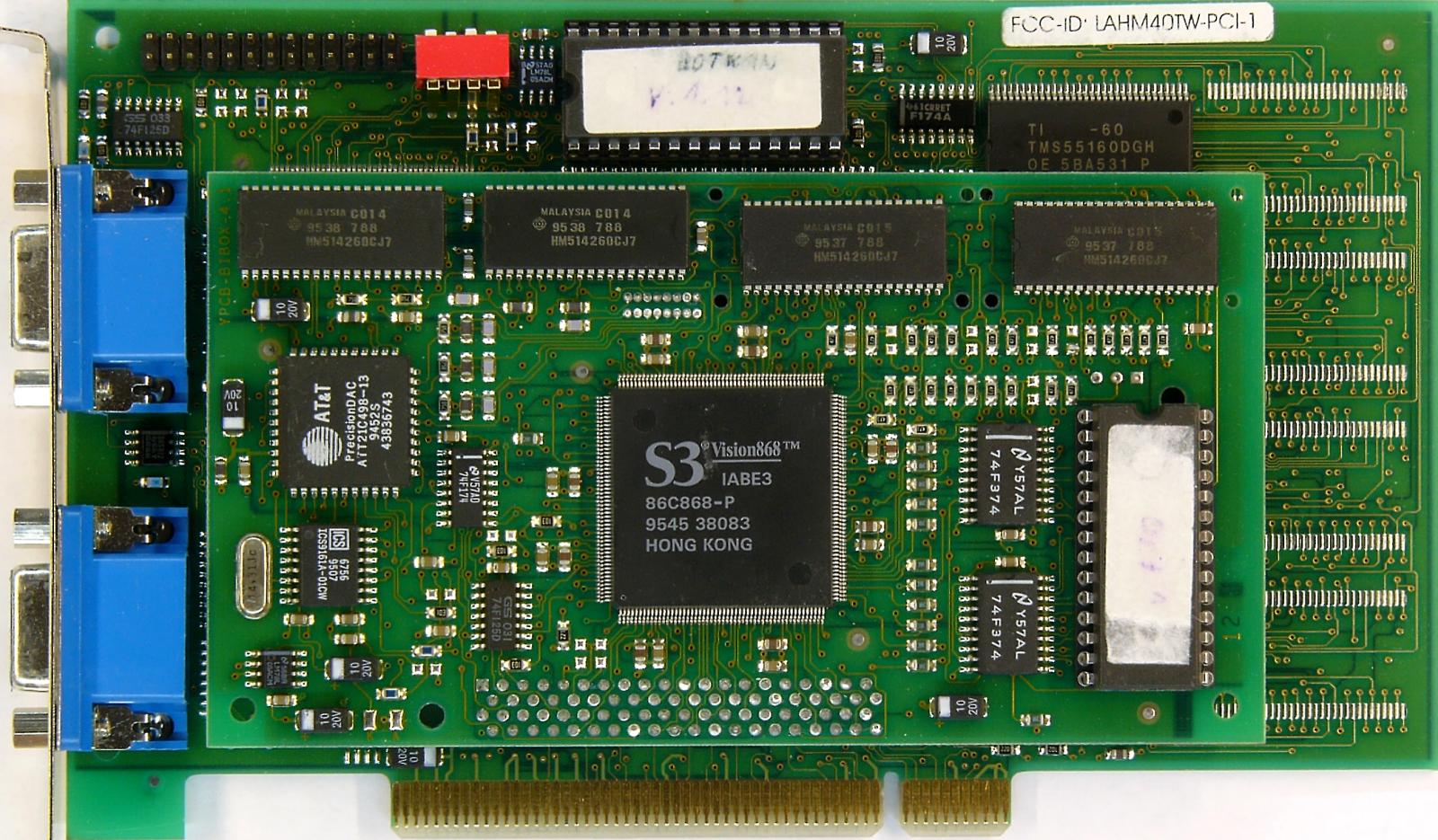

image1 Image 1 of 7 (Microhouse)

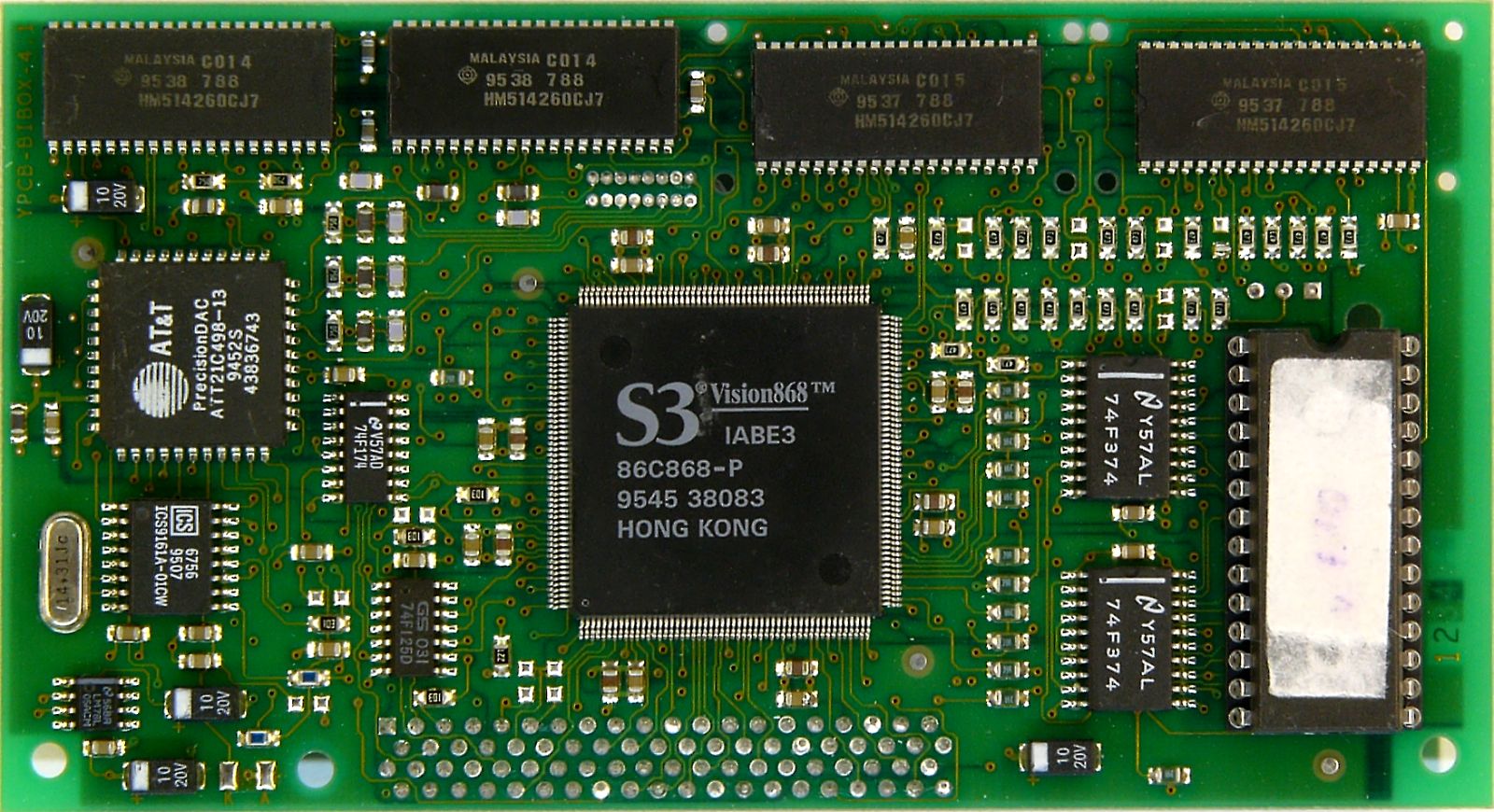

image2 Image 2 of 7 (Palcal)

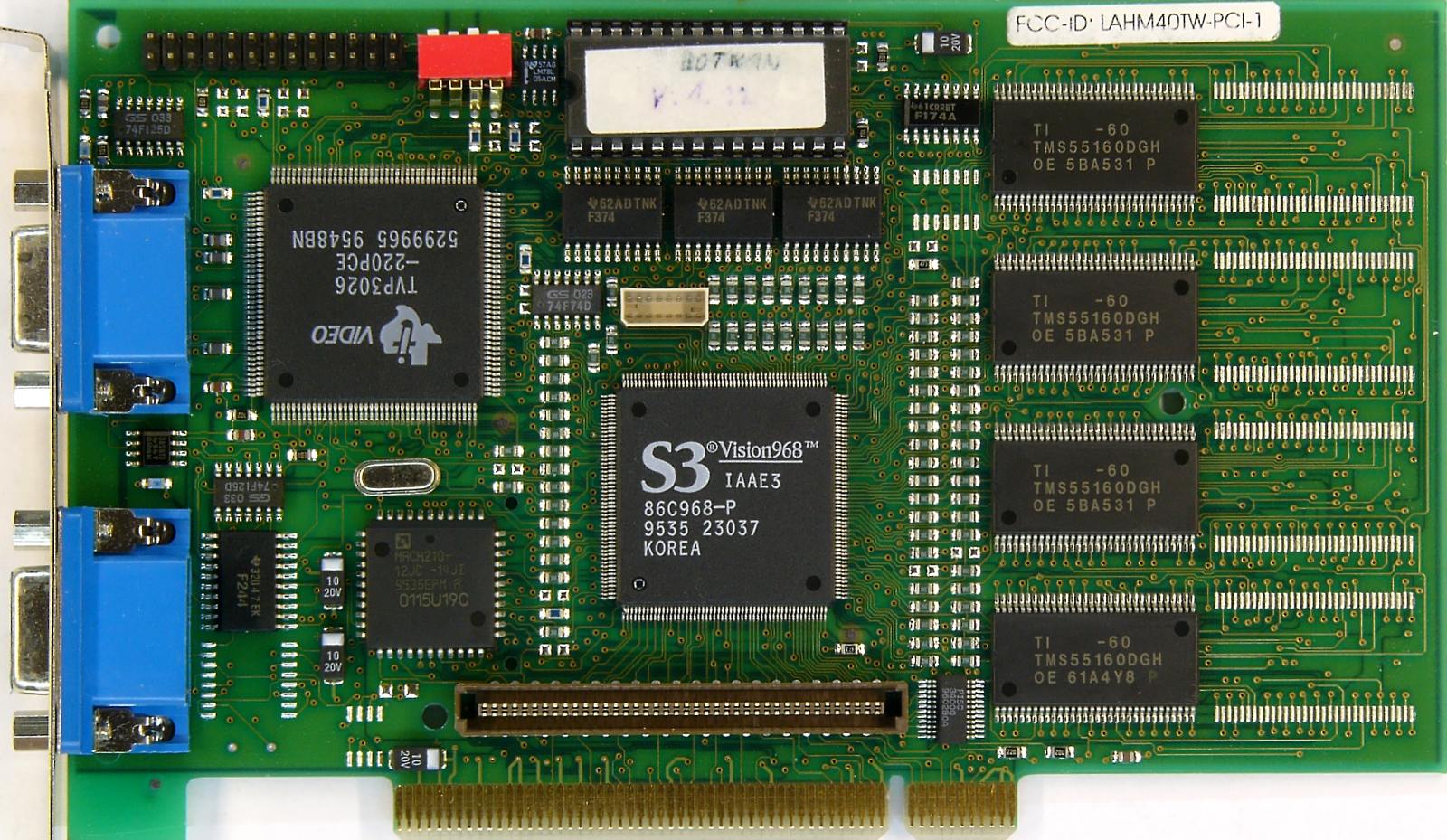

image3 Image 3 of 7 (Palcal)

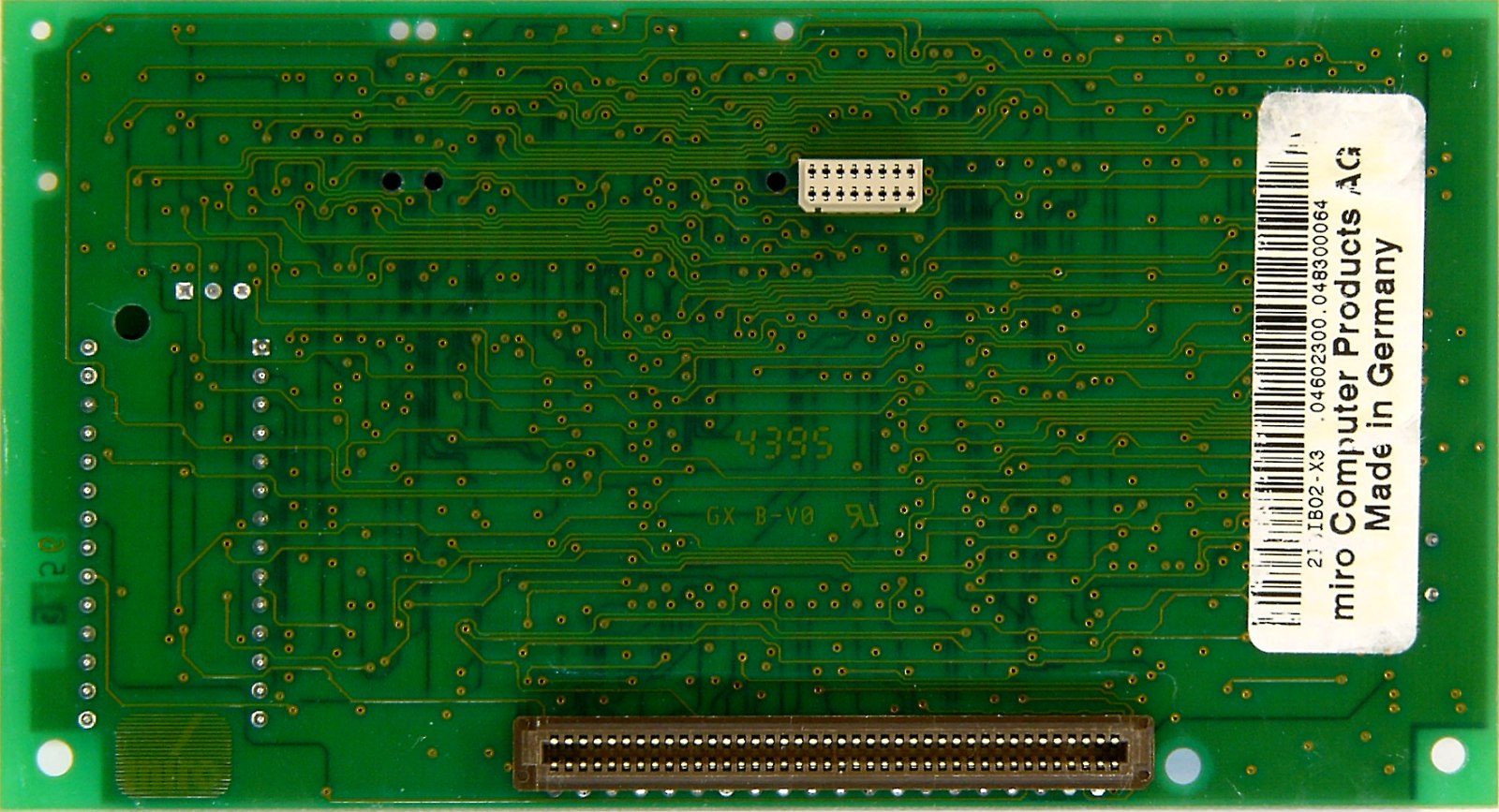

image4 Image 4 of 7 (Palcal)

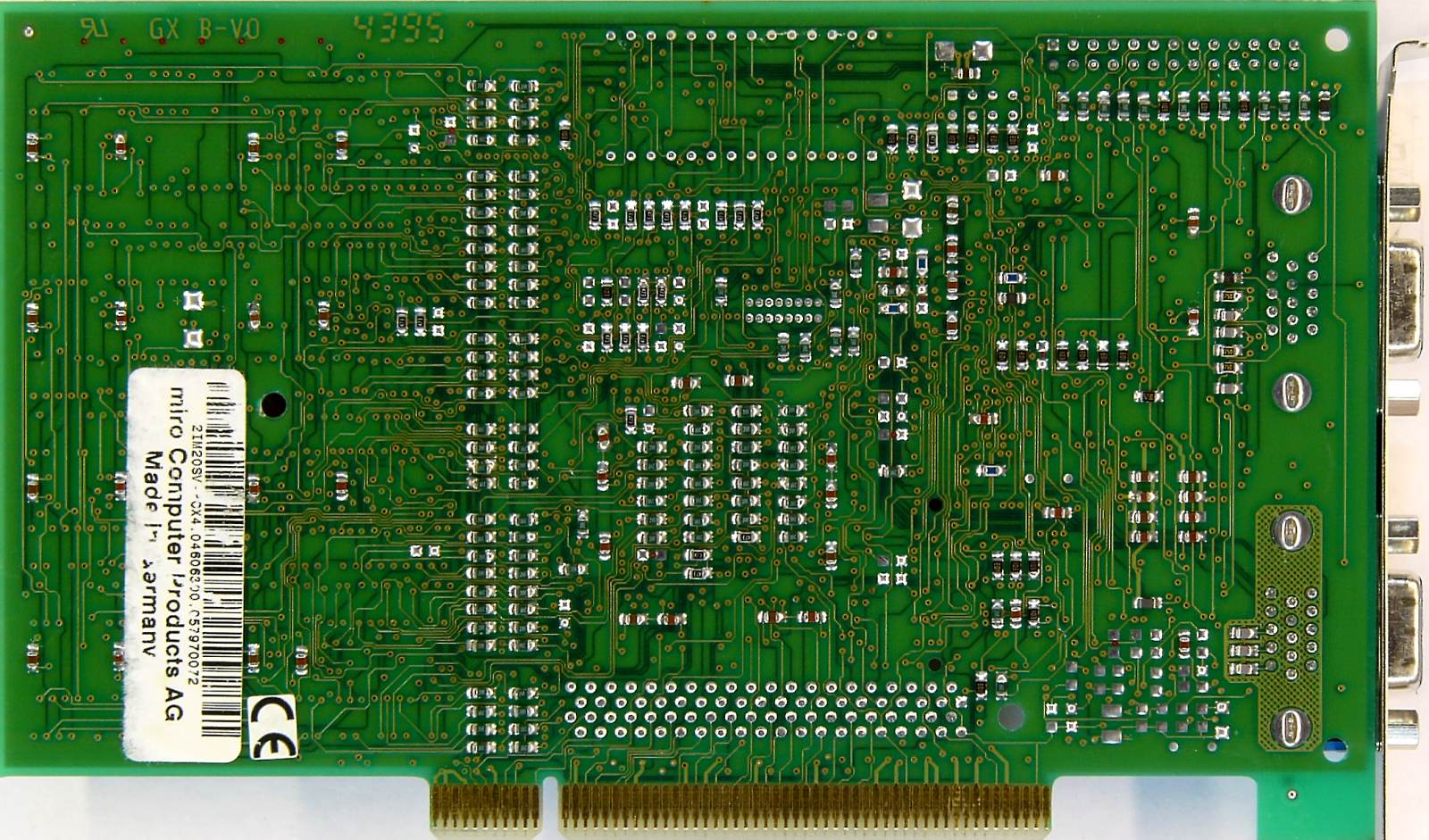

image5 Image 5 of 7 (Palcal)
image6 Image 6 of 7 (Palcal)
image7 Image 7 of 7 (Microhouse)
