Miro miroCRYSTAL 8S VESA
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit VLB
dimSlot height
1
datePCI ID
Empty
ramRAM size
2MB
dimDimensions
107 mm (width) x 241mm (length)
chip Chips and specs
-> Clock Synth / PLL
ICS ICS2494 / ICS2494A / N / M / AN / AM (All variants) (Video/Memory Clock Generator)
-> RAMDAC
AT&T 20C491-11 (110MHz RAMDAC)
-> Video
S3 86C805
MTL
Category Video
Memory Type DRAM
Data Bus Type 32-bit VESA local bus
Video Processor S3
Video Types Supported XVGA
Maximum Onboard Memory 2MB
Highest Resolution Supported 1280 x 1024
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-12-10T16:43:35Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
2.13.06
Note
File
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.41
OS support
Windows 3.1x
Arch
x86
Size
445.7KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1992-03
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 4 (Microhouse)

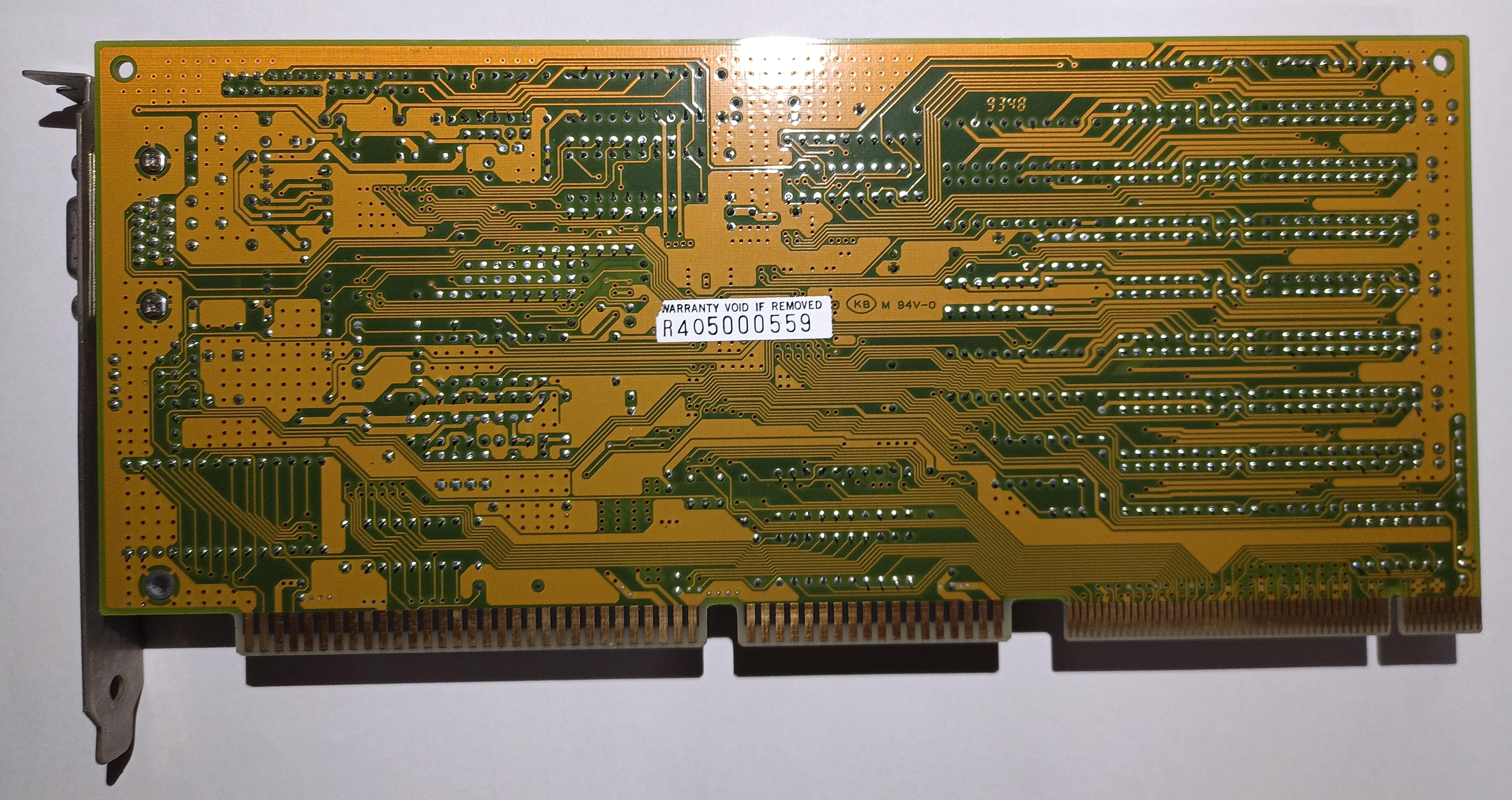

image2 Image 2 of 4 (Helen_Croft)

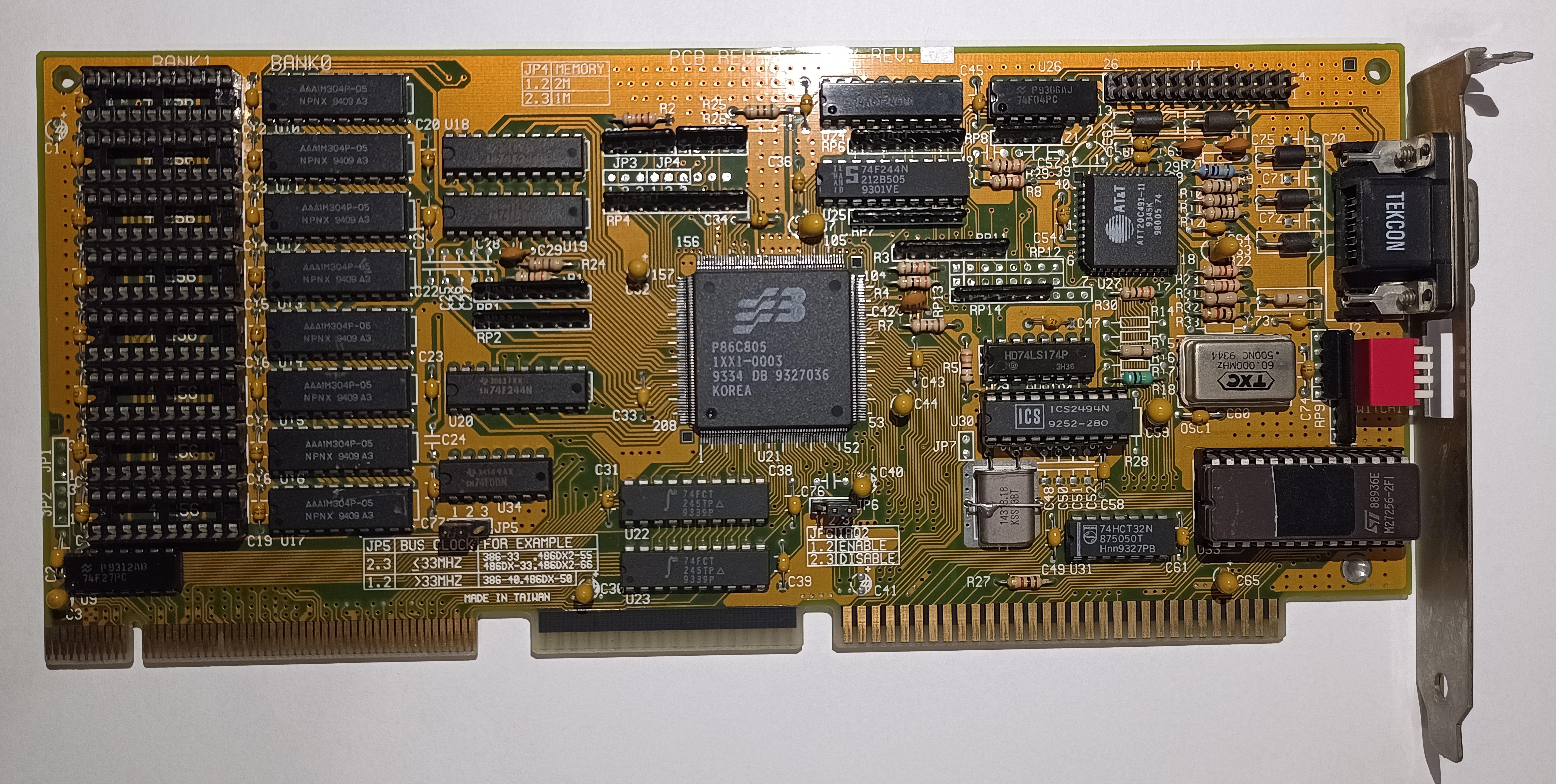

image3 Image 3 of 4 (Helen_Croft)

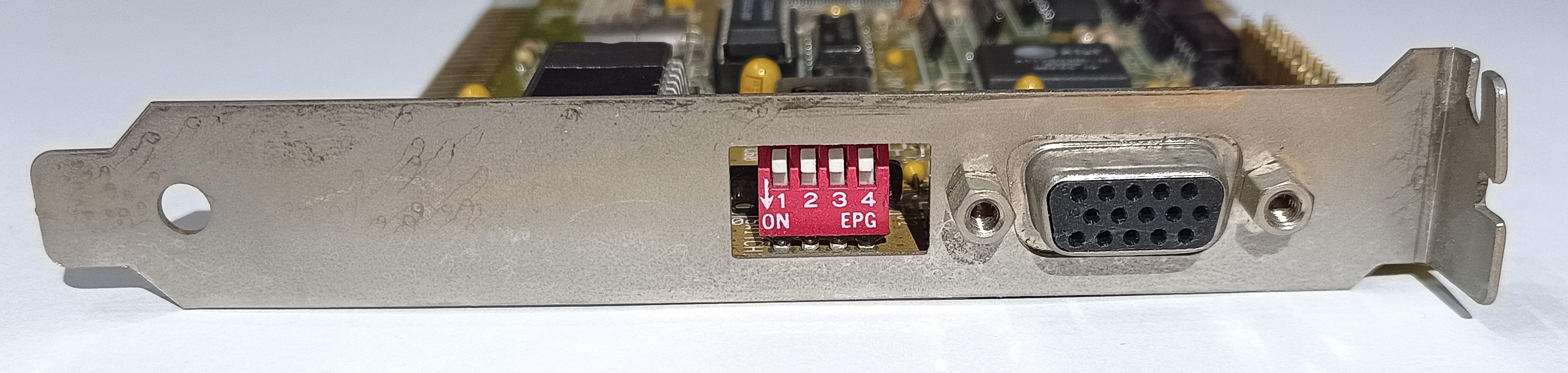

image4 Image 4 of 4 (Helen_Croft)
