Miro miroCRYSTAL 12SD PCI
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
8810 8811 8813
fccFCC ID
LAHC12SD-PCI-1
ramRAM type
EDO
ramRAM size
1MB2MB
chip Chips and specs
-> Video
S3 86C732 (Trio32)
MTL
Category Video
Memory Type DRAM
Data Bus Type 32-bit PCI
Video Processor S3, Inc.
Video Types Supported XVGA
Maximum Onboard Memory 2MB
Highest Resolution Supported 1280 X 1024
tag Also known as
  • Miro CRYSTAL 128DPCI (common typo)
  • Miro YPCB EL12D-3.0L
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-11-02T10:40:20Z
biosc No BIOS files available
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.3B8
OS support
Windows 3.1x
Arch
x86
Size
994.8KB
Filename
Name
Version
1.6
OS support
OS/2 1.x OS/2 2.x OS/2 Warp 3.x
Arch
x86
Size
1.2MB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
64.6KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-03
File
Logs

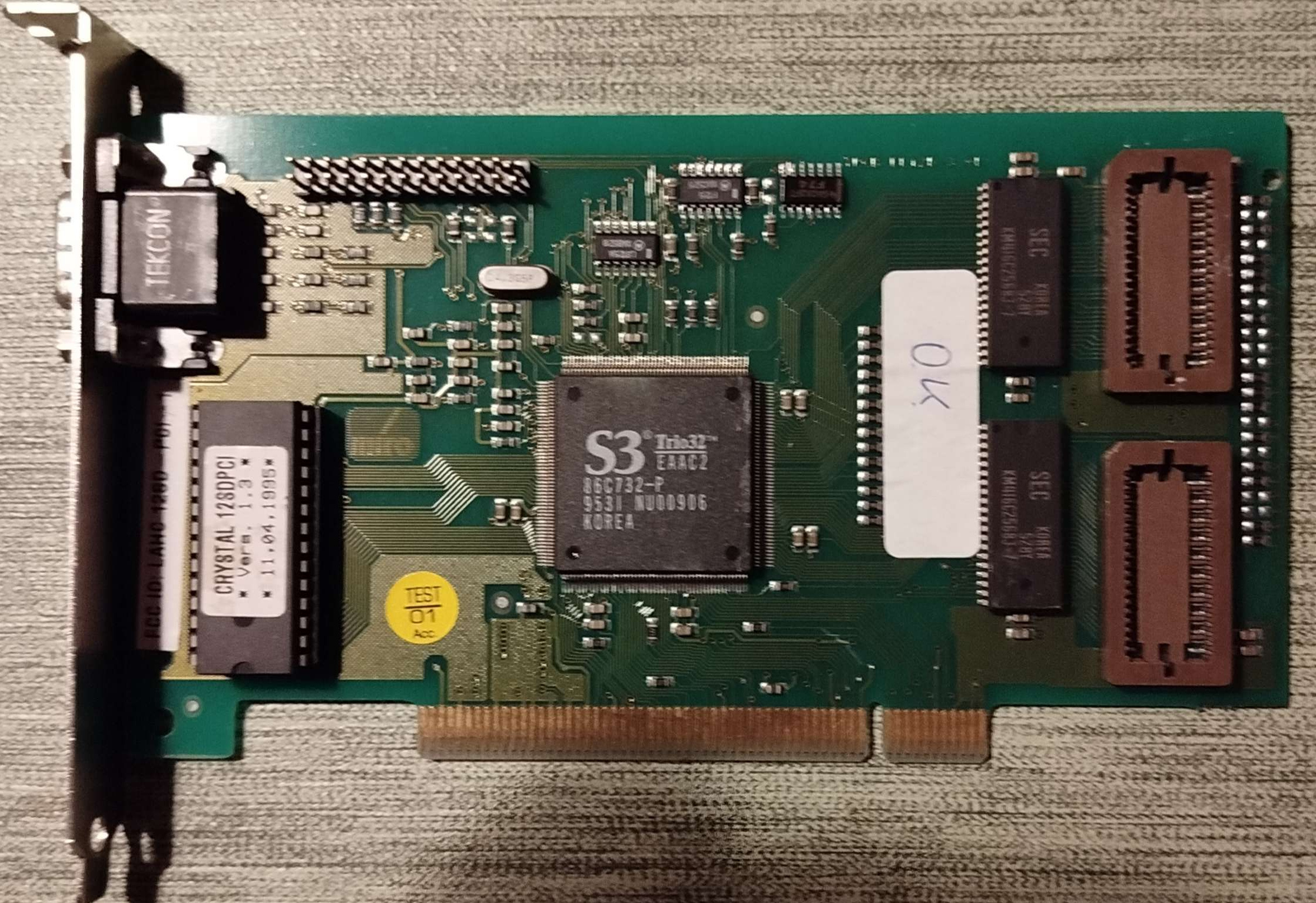

image1 Image 1 of 3 (Microhouse)

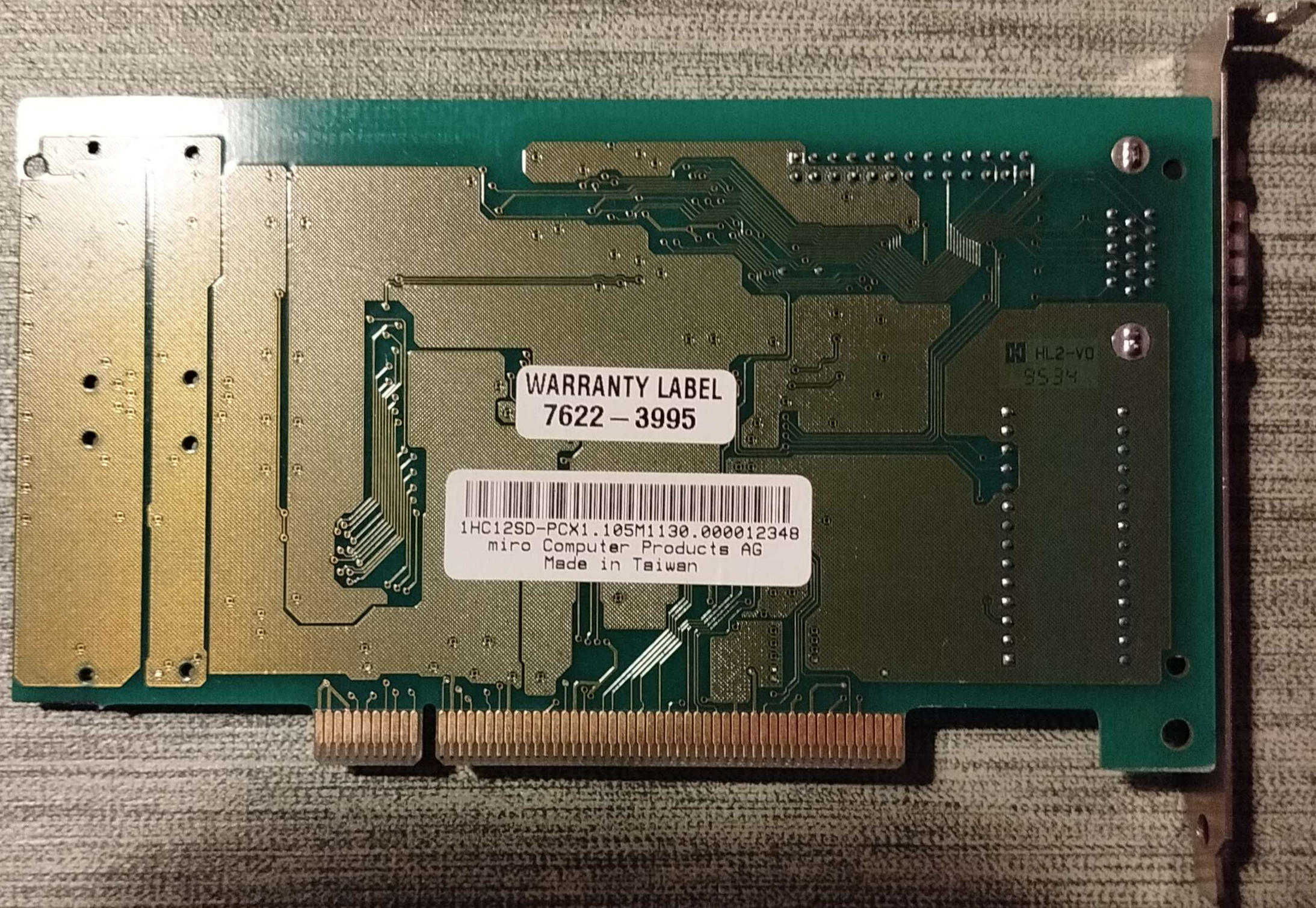

image2 Image 2 of 3 (CircusCat)
image3 Image 3 of 3 (CircusCat)
