Miro miroCONNECT 34 WAVE rev1.x
Logs
Interface
Signaling
PCI IDEmpty
FCC IDLAHCON34-ISA-1
Dimensions119 mm (width)
x 285mm (length)
Chips and specs
-> Audio
-> Programmable Logic
-> Signal transmitter/receiver
| MTL | |
|---|---|
| Chip Set | Unidentified |
| Data Bus | 16-bit ISA |
| Card Type | Modem/Communication Adapter card |
| Fax Class | Class I & II |
| I/O Options: | Analog telephone port (RJ-11), microphone in, audio in, audio out, game/MIDI port, TV/audio in, IDE interface, miromedia radio connector |
| Maximum Fax Rate | 14.4Kbps |
| Maximum Modem Rate | 33.6Kbps |
| Fax Modulation Protocol | ITU-T V.17, V.27ter, V.29 |
| Data Modulation Protocol | Bell 103/212ITU-T V.22, V.22bis, V.32, V.32bis, V.34 |
| Error Correction/Compression | MNP5, V.42, V.42bis |
Also known as
- Miro YPCB-BRAZA-1.2
- Miro BRAZIL 1.2
- Packard Bell YPCB-BRAZA-1.2
I/O ports
2x
- 3.5mm TRS jack
1x
- 3.5mm TRS jack
1x
- 1x4 2.54mm pin header
1x
- 1x4 2.50mm pin header
1x
- DA-15
1x
- 2x20 2.54mm pin header
1x
- RJ11
Power connectorsEmpty
Last updated 2025-11-02T11:29:03Z
No BIOS files available
No drivers available
1 card document available
Release date
File
Logs
Chip
Release date
File
Logs

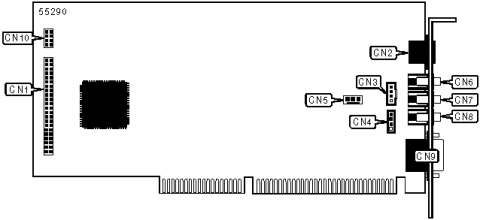

Image 1 of 4 (Microhouse)

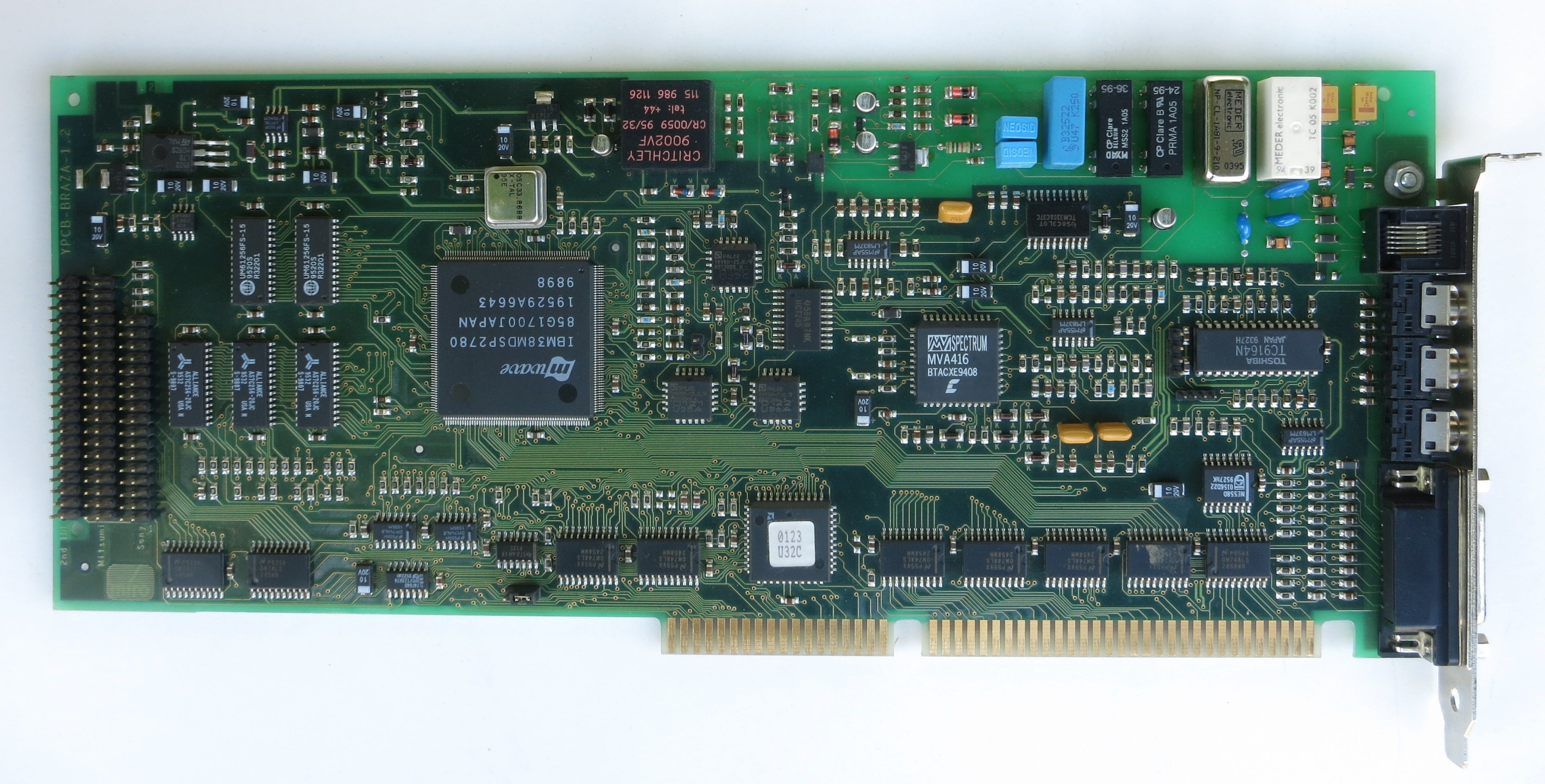

Image 2 of 4 (csimir)

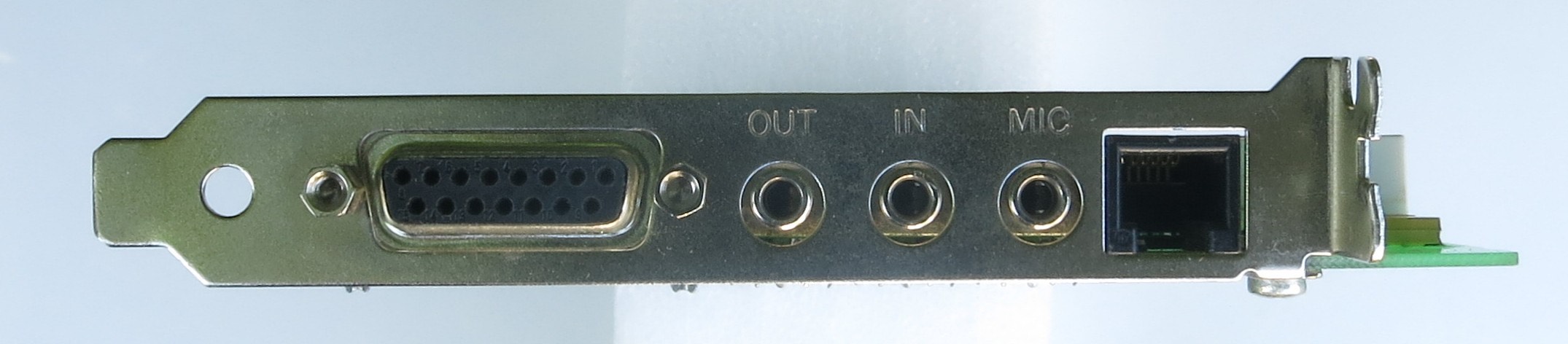

Image 3 of 4 (csimir)

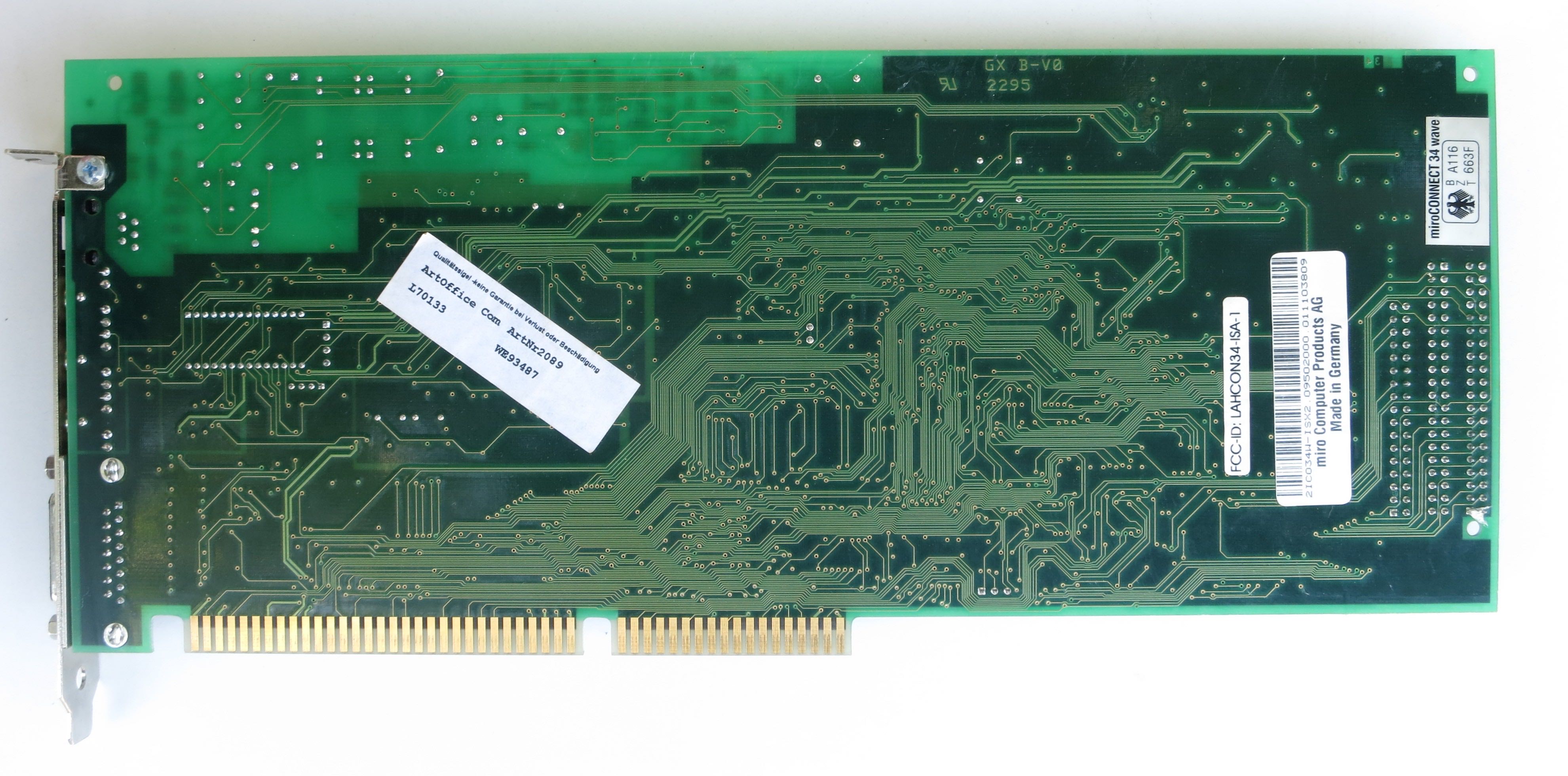

Image 4 of 4 (csimir)
