Medion TV-TUNER 7134 V92 Data/Fax Modem
Logs
typeType
TV tuner FM Radio Modem
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
7134 0620 0621 0622 0623
dimDimensions
133 mm (width) x 101mm (length)
chip Chips and specs
-> Modem
Agere 1034 (Line codec) Agere SV92PL (PCI V.92 Soft Modem)
-> Video
Philips SAA7134HL (PCI audio/video decoder) Philips TDA10046A (Single-chip DVB-T decoder)
  • Footprint: 68-pin MLCC
  • Max FAX Speed: V.17/T.31
  • Max Dialup Interface Speed: V.92 (56k with V.44 compression)
tag Also known as
portintI/O ports
3x
  • 1x4 2.54mm pin header
1x
  • RJ11
1x
  • Belling-Lee male coaxial
1x
  • Belling-Lee female coaxial
powerPower connectors
Empty
Last updated 2025-12-31T20:51:18Z
biosc No BIOS files available
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.3.0.4
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
4.7MB
Filename
Name
Version
2.3.0.4
OS support
Windows 9x
Arch
x86
Size
3.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
370.2KB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
298.3KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-12-17
File
Logs
Chip
Release date
2002-05
File
Logs

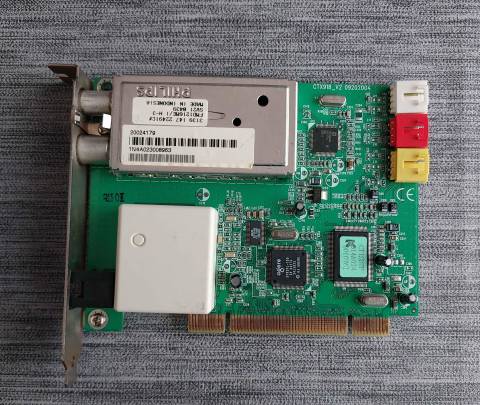

image1 Image 1 of 5 (CircusCat)

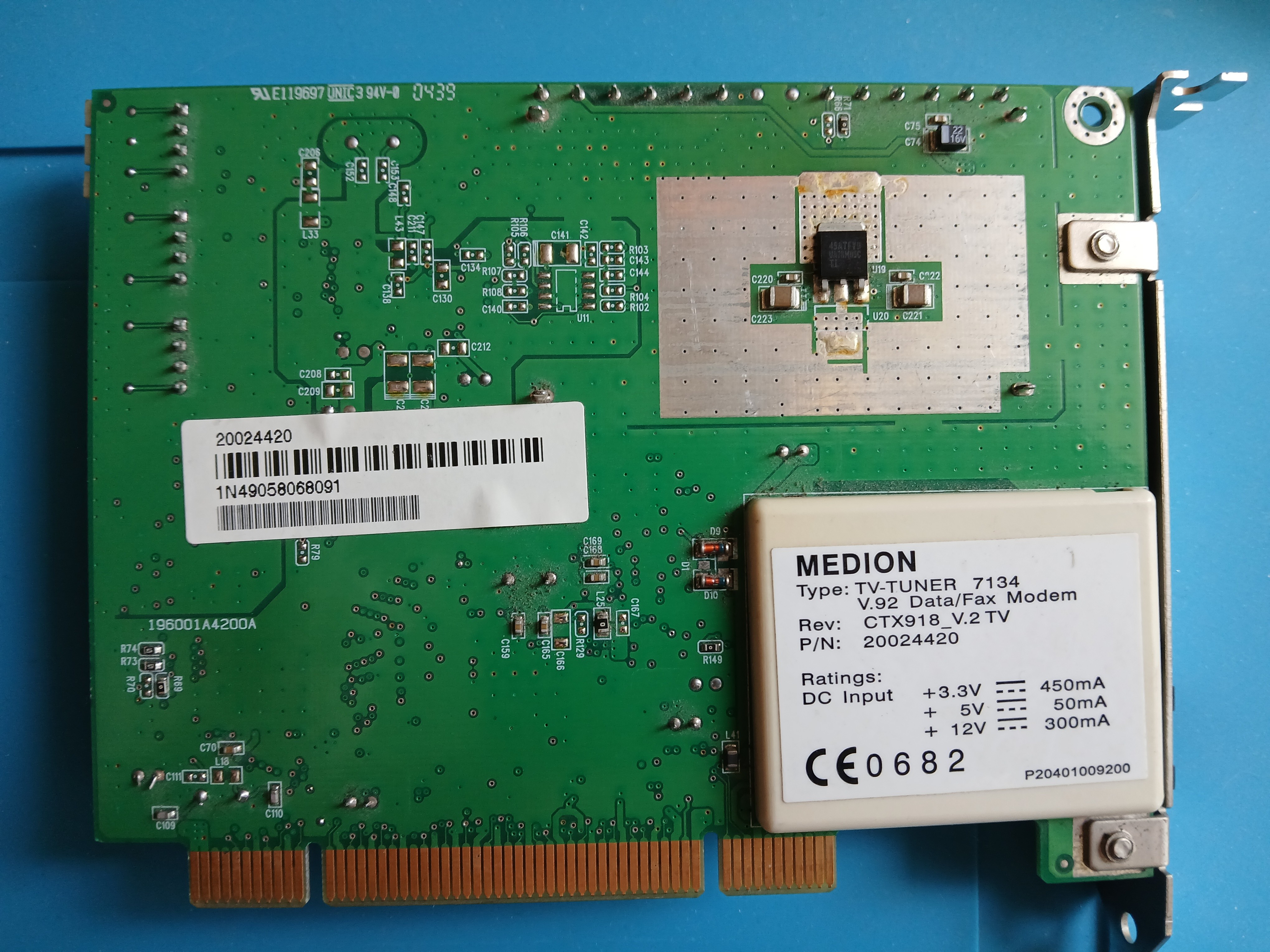

image2 Image 2 of 5 (Strider)

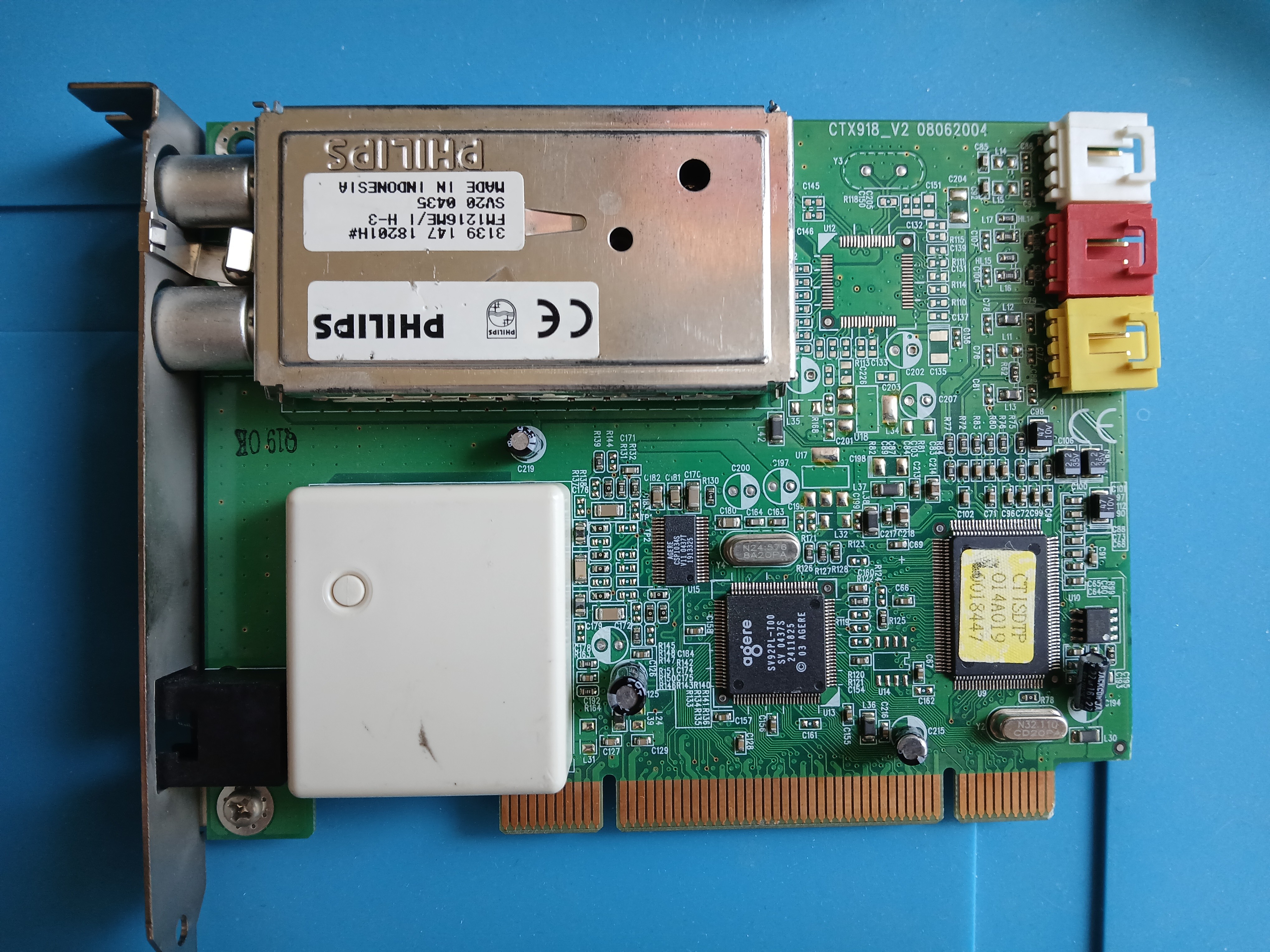

image3 Image 3 of 5 (CircusCat)

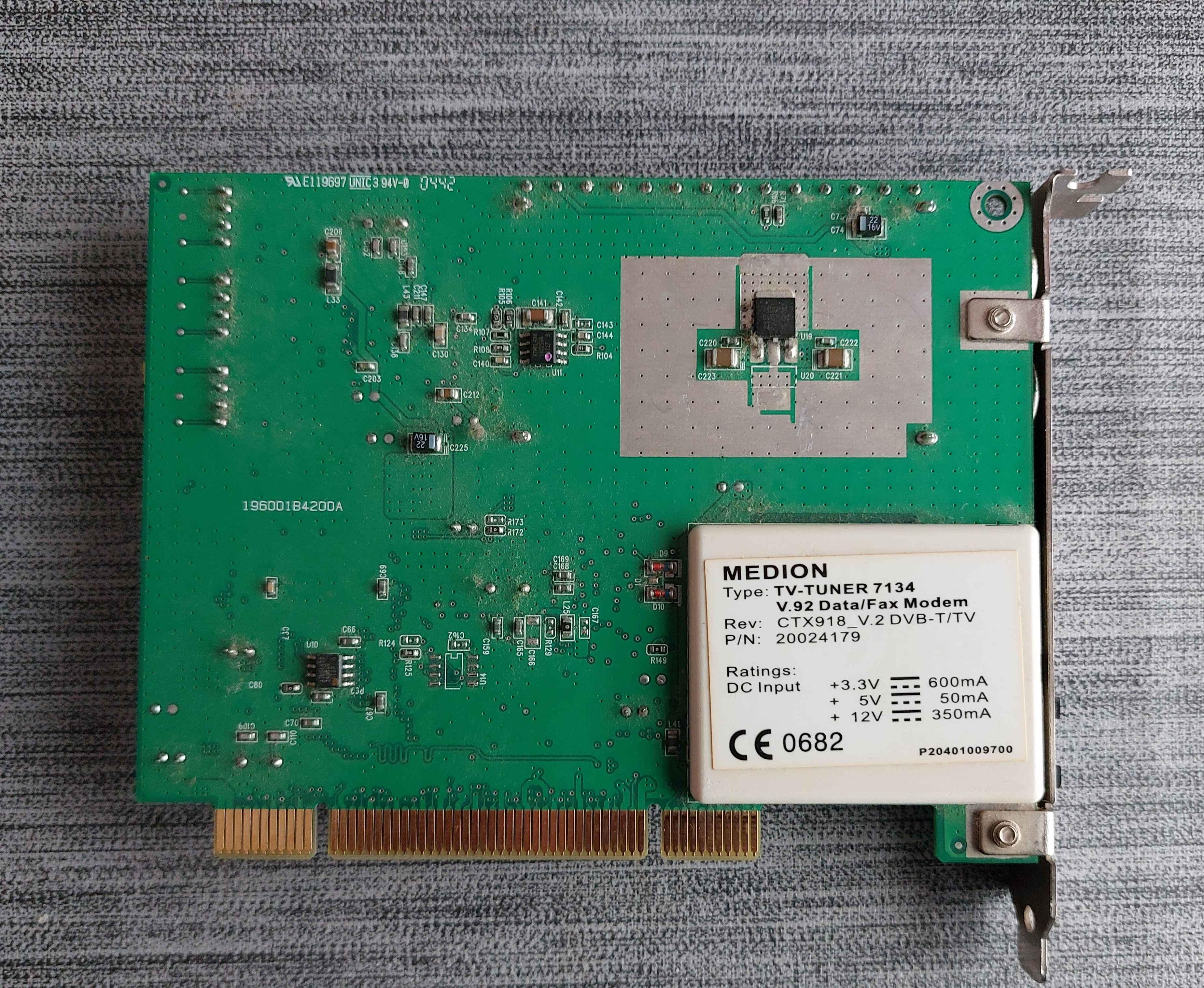

image4 Image 4 of 5 (Strider)

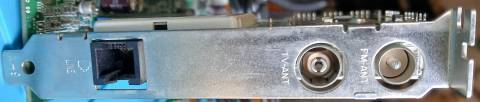

image5 Image 5 of 5 (Strider)
