MediaForte SF16FMP
Logs
typeType
Sound IDE controller FM Radio
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
LOY-SF16FMP
chip Chips and specs
-> Audio
Creative CT2504 (Vibra 16S) [unknown] DXP44Q (Illegal Exact OPL3 Clone w/ DAC) STMicroelectronics / Inmos TEA2025 (Audio Amplifier)
-> Clock Synth / PLL
Sanyo LM7000 (PLL Frequency Synthesizer)
-> Miscellaneous
Philips TEA5712 (AM/FM stereo radio tuner)
MTL
Chip Set Creative Tech
Data Bus 16-bit ISA
Card Size Three-quarter length
Card Type Sound card
I/O Options CD-ROM interface, game port, IDE interface
Maximum Onboard Memory Unidentified
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
2x
  • 1x4 2.54mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x1 2.54mm pin header
1x
  • 3.5mm TRS jack
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-11-02T12:52:09Z
biosc No BIOS files available
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
26KB
Filename
Name
Version
1.42
OS support
Windows 3.1x Windows 9x Windows NT 4.0
Arch
x86
Size
5MB
Filename
Name
Version
P16V-STD-01-ENG
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
1.7MB
Filename
Name
Version
1.12.000
OS support
Windows 9x
Arch
x86
Size
841.8KB
Filename
Name
Version
N/A
OS support
Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
14.6MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2012-10-01
File
Logs
Chip
Release date
1994-09
File
Logs
Chip
Release date
2014
File
Logs

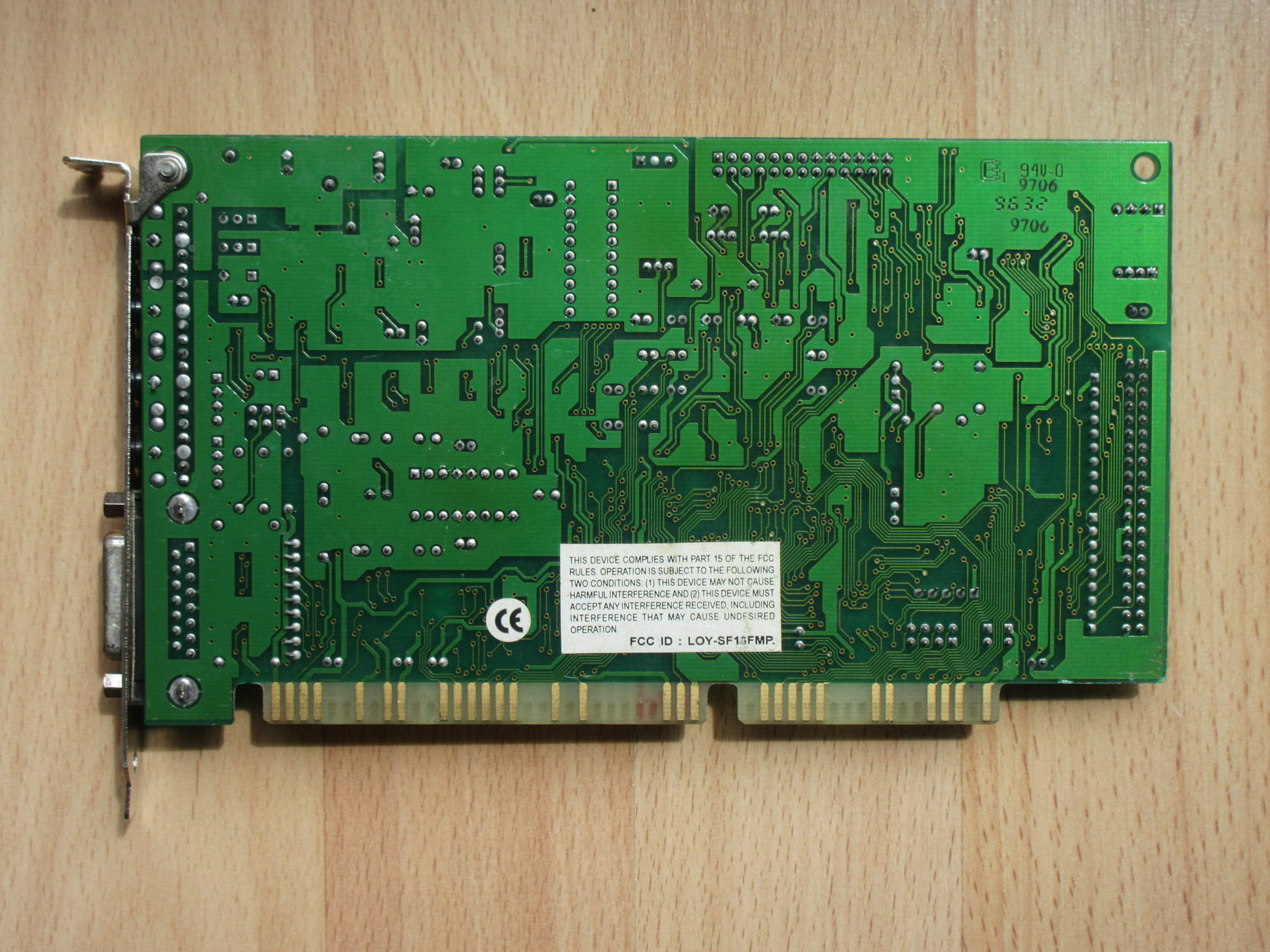

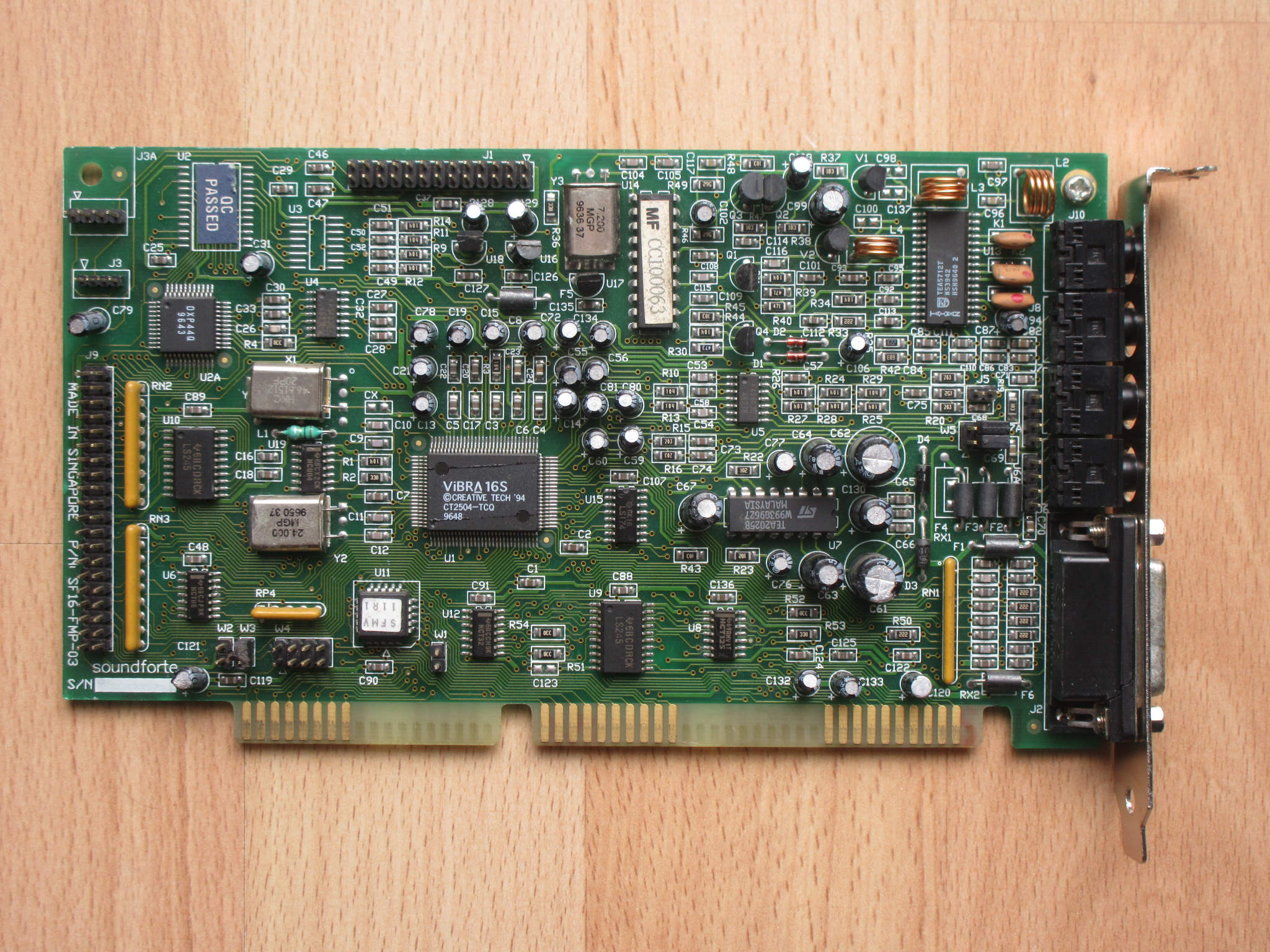

image1 Image 1 of 5 (Microhouse)

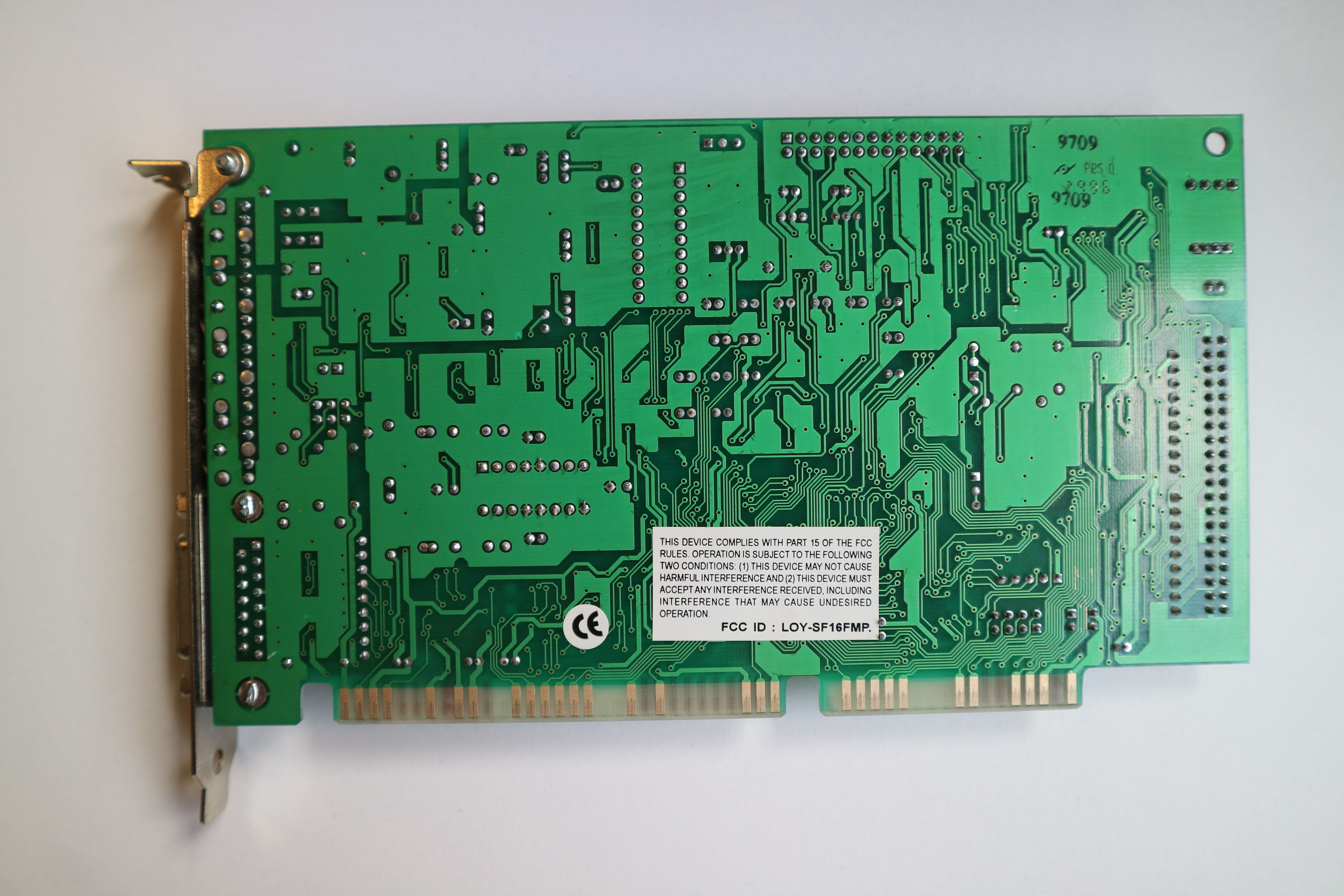

image2 Image 2 of 5 (sidi)

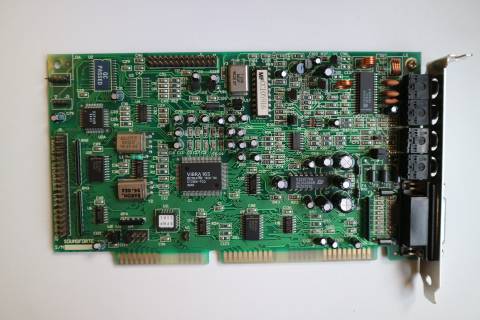

image3 Image 3 of 5 (Martes)
image4 Image 4 of 5 (sidi)
image5 Image 5 of 5 (Martes)
