Media Vision PRO SONIC 16 FD-SCSI (650-0087-03)
Logs
typeType
Sound SCSI controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
IXW-JAZZ16S
chip Chips and specs
-> Audio
Media Vision MVD1216B (Jazz16) Media Vision MVA416 (Mixer) Media Vision MVA514 Yamaha YAC512 (2-Channel Floating DAC) STMicroelectronics / Inmos TEA2025 (Audio Amplifier) STMicroelectronics / Inmos TDA7284 (Record/Playback circuit with ALC) Yamaha YMF262 (OPL3)
-> SCSI ctrl.
Future Domain 9C50
MTL
Chip Set Unidentified
Data Bus 16-bit ISA
Card Type Sound card
I/O Options Game/MIDI port, microphone in, speaker out, line in, audio in, SCSI connector
Maximum Onboard Memory Unidentified
portintI/O ports
1x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • DA-15
1x
  • 2x25 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-06-29T17:29:13Z
biosc No BIOS files available
drv 2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
622.3KB
Filename
Version
OS support
Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
66.8KB
Filename
doc 2 card documents available
Release date
File
Logs
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2012-10-01
File
Logs
Chip
Release date
1993-10
File
Logs
Chip
Release date
2014
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs
image1 Image 1 of 5 (Microhouse)
image2 Image 2 of 5 (Douglar)
image3 Image 3 of 5 (Yargoro)
image4 Image 4 of 5 (Douglar)

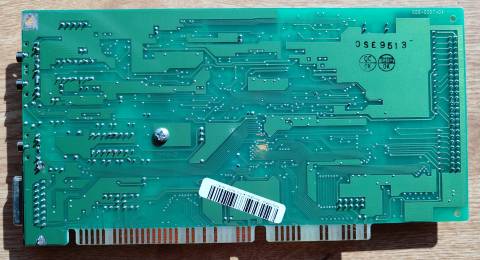

image5 Image 5 of 5 (Yargoro)
