Media Chips SOUND IMAGE SYMPHONIC (PRO 16)
Logs
typeType
Sound IDE controller CD-ROM interface
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
K2Y-PRO16
chip Chips and specs
-> Audio
Crystal CS4231A (Multimedia Audio Codec) Yamaha YAC512 (2-Channel Floating DAC) OPTi 82C924 STMicroelectronics / Inmos TEA2025 (Audio Amplifier) Yamaha YMF262 (OPL3)
MTL
Chip Set OPTI 82C924
Data Bus 16-bit ISA
Card Type Sound card
I/O Options CD-ROM audio (3), CD-ROM interface (3), game/MIDI port, IDE interface, line in (2), line out (2), microphone in (2), speaker (2), wavetable
Maximum Onboard Memory None
Floppy drives supported None
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • 2x17 2.54mm pin header
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-03-25T22:21:01Z
biosc No BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
840.1KB
Filename
Name
Version
1.0
OS support
MS-DOS
Arch
x86
Size
85.8KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-09
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2012-10-01
File
Logs
Chip
Release date
2014
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs

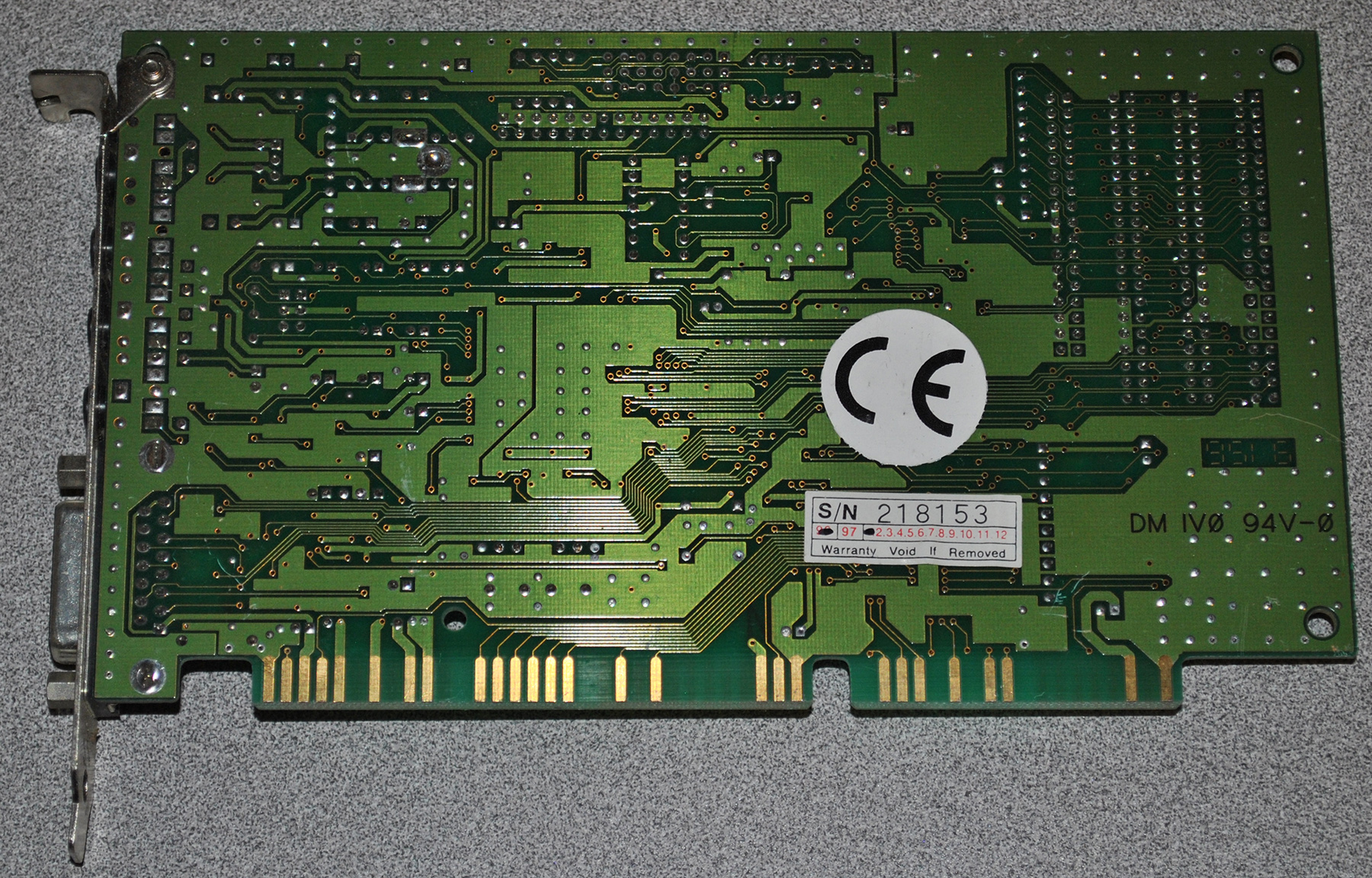

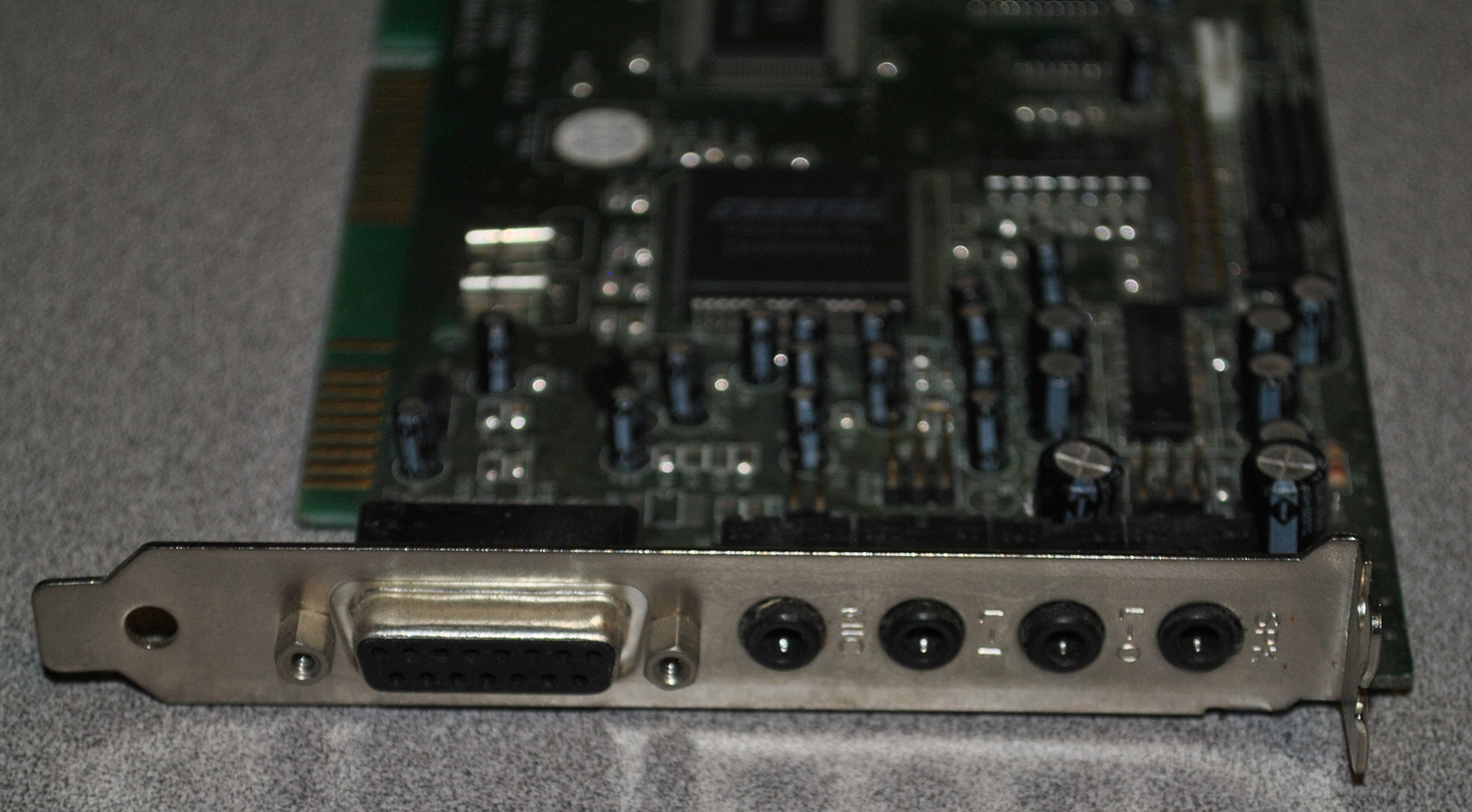

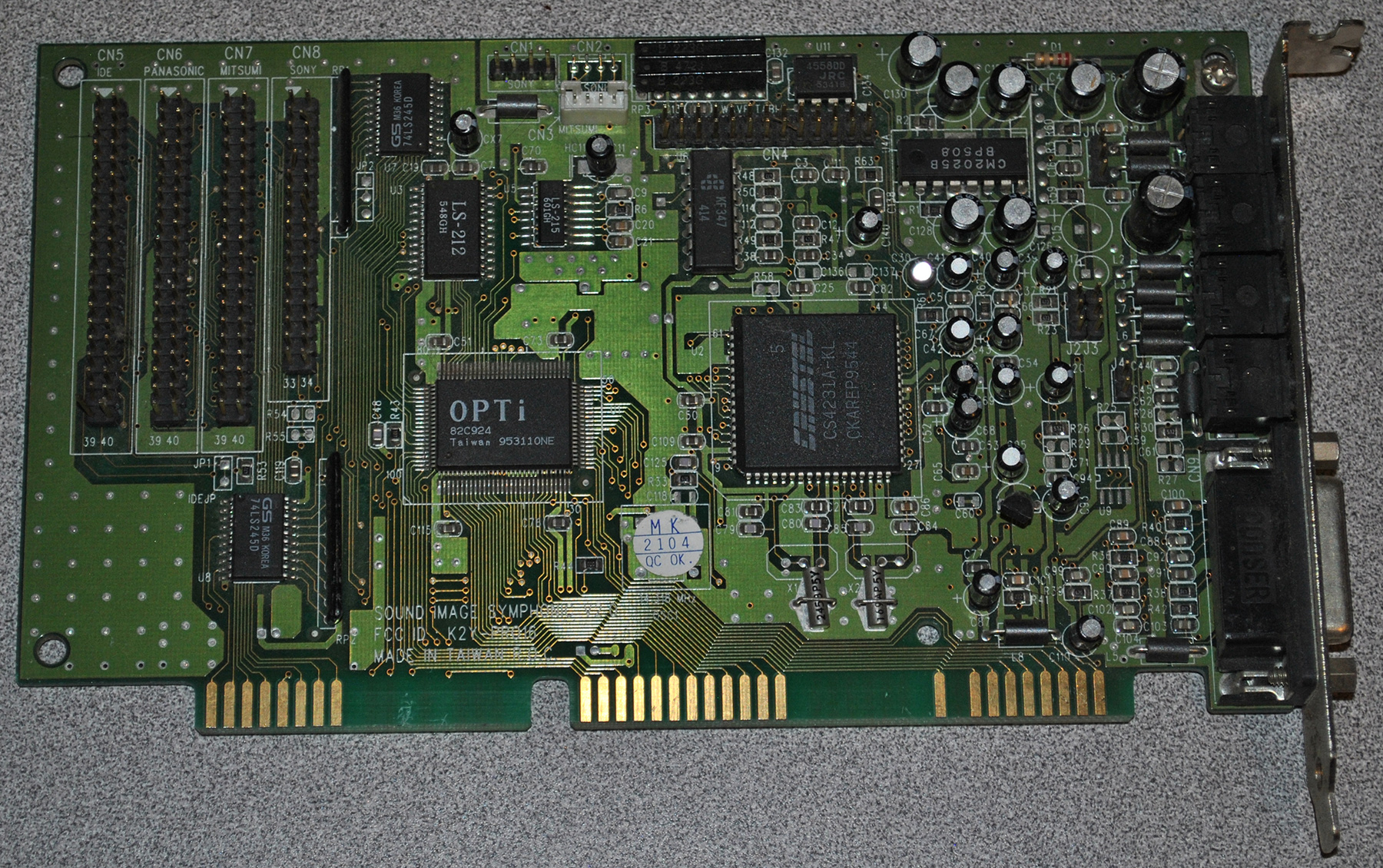

image1 Image 1 of 4 (Microhouse)
image2 Image 2 of 4 (Netfreak)

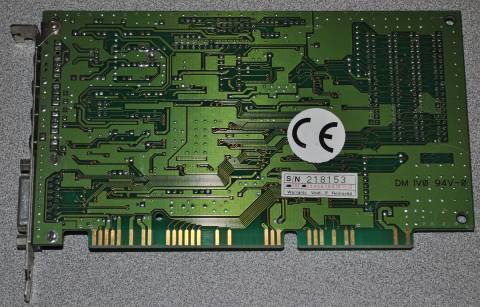

image3 Image 3 of 4 (Netfreak)
image4 Image 4 of 4 (Netfreak)
