Media Chips 928-0301 rev. 1.2
Logs
typeType
Sound IDE controller CD-ROM interface
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
K2Y-2AUDIO16
chip Chips and specs
-> Audio
OPTi 82C928 (MAD16) Philips TDA1517 (2x6W Audio Power Amplifier) Analog Devices AD1848 (SoundPort WSS) Yamaha YAC512 (2-Channel Floating DAC) Yamaha YMF262 (OPL3)
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
2x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • 2x17 2.54mm pin header
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-07-31T17:00:29Z
biosc No BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.01
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
1.4MB
Filename
Name
Version
2.02
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
67.8KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-02-18
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs

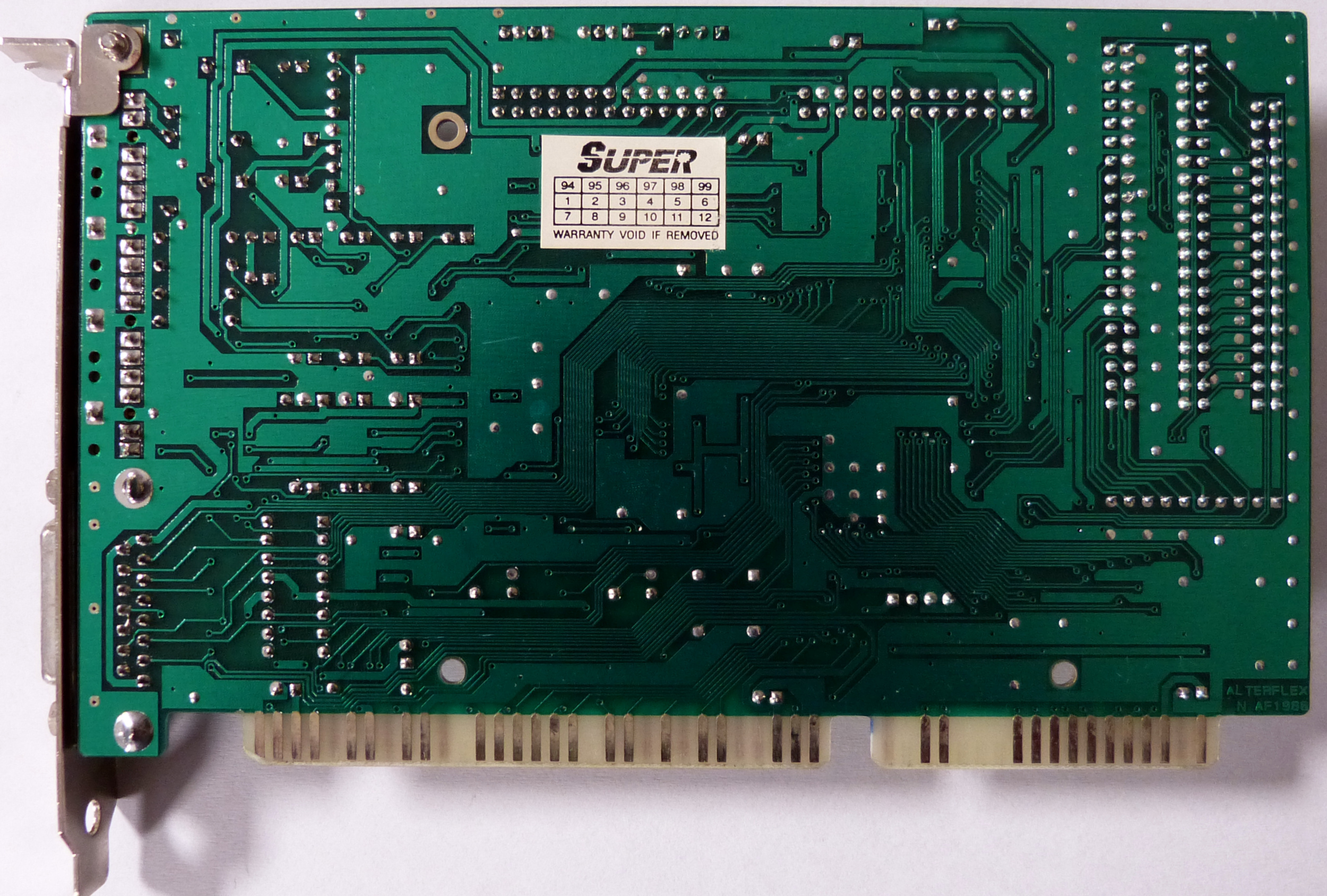

image1 Image 1 of 2 (Retronn aka Enigma)

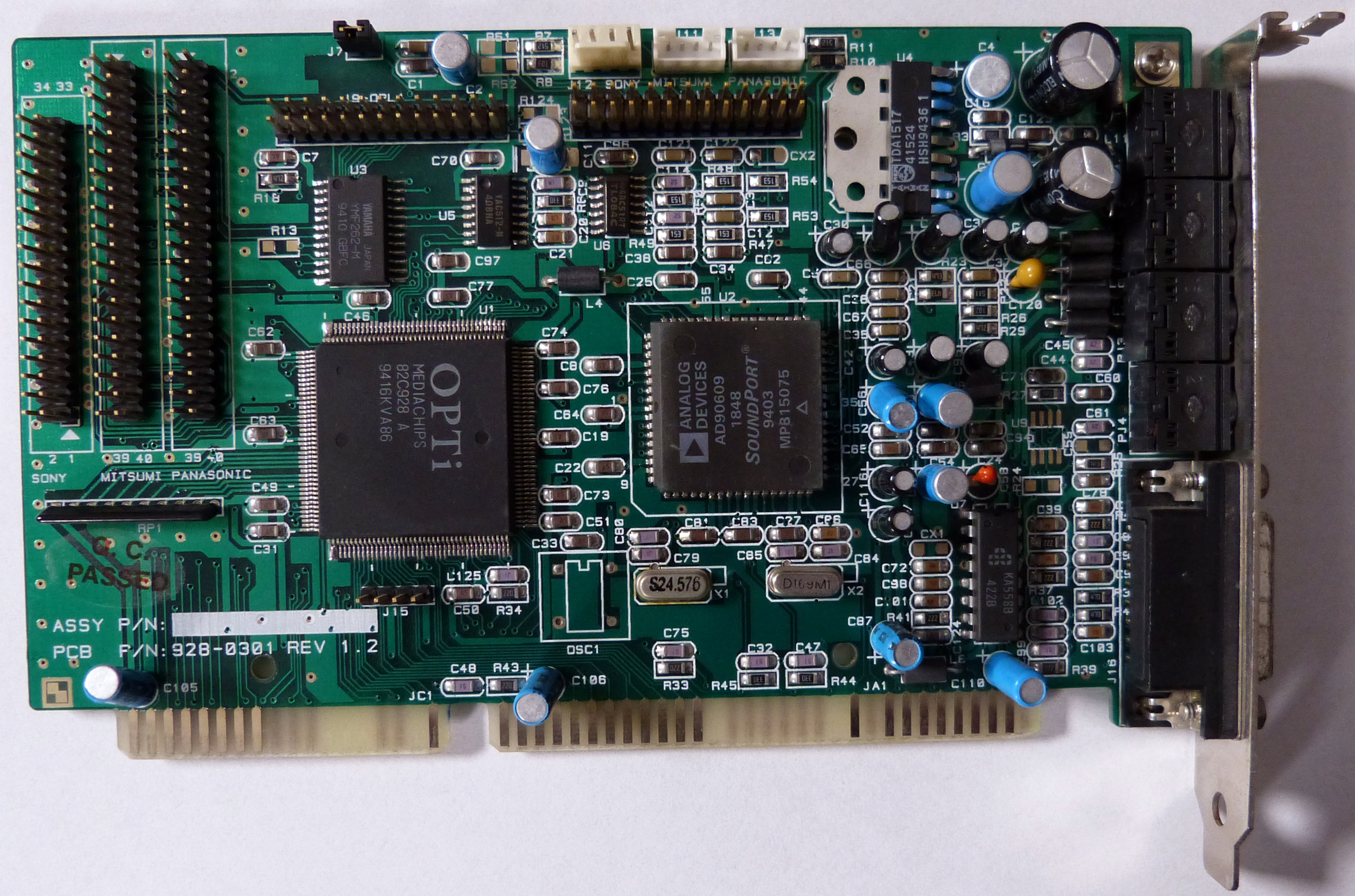

image2 Image 2 of 2 (Retronn aka Enigma)
