Matrox Millennium Rev: A (4MB)
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
0519
fccFCC ID
ID7059000
ramRAM type
WRAM
ramRAM size
8MB4MB
dimDimensions
19 mm (width) x 200mm (length) x 99mm (height)
chip Chips and specs
-> RAMDAC
Texas Instruments TVP3026 (Video Interface Palette)
-> Video
Matrox MGA-2064W (Millennium (IS-STORM))
MTL
Maximum Video Memory 4MB WRAM
Video Types Supported XVGA
Highest Resolution Supported 1600 x 1200
Main specs
Core clock 50MHz
Memory clock 50MHz
tag Also known as

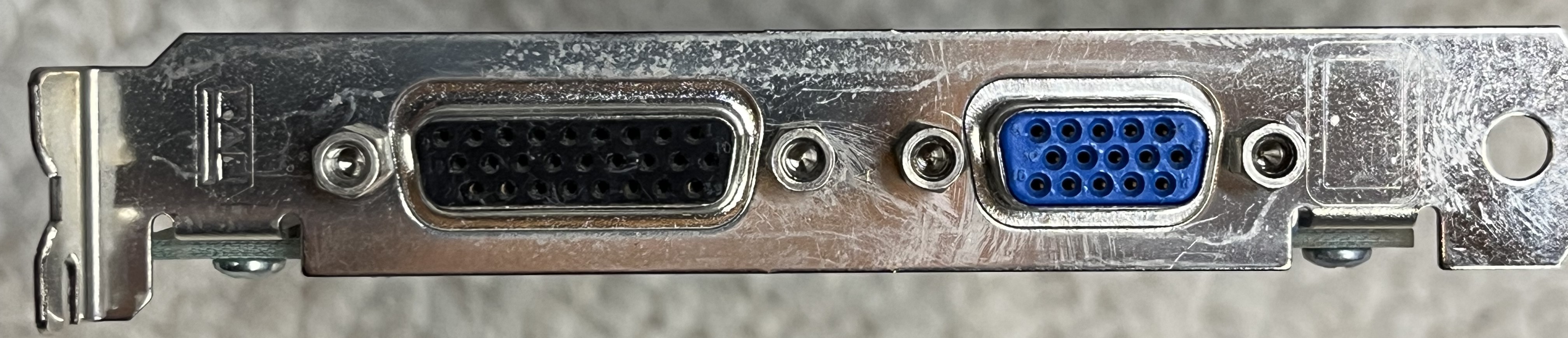

portintI/O ports
1x
DA-26
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-02-12T20:02:53Z
bios 2 card BIOS files available
Version
Note
File
Logs
Version
3.0
Note
BIN + PINS file
File
Logs
Version
1.5
Note
PINS file
File
Logs
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.51
OS support
Windows NT 3.5x
Arch
x86
Size
639.9KB
Filename
Name
Version
2.58
OS support
OS/2 1.x
Arch
x86
Size
1.3MB
Filename
Name
Version
2.51
OS support
Windows NT 3.5x
Arch
x86
Size
639.9KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
1.6MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
2.3MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996-02-29
File
Logs
Chip
Release date
1996-07
File
Logs
image1 Image 1 of 6 (Microhouse)

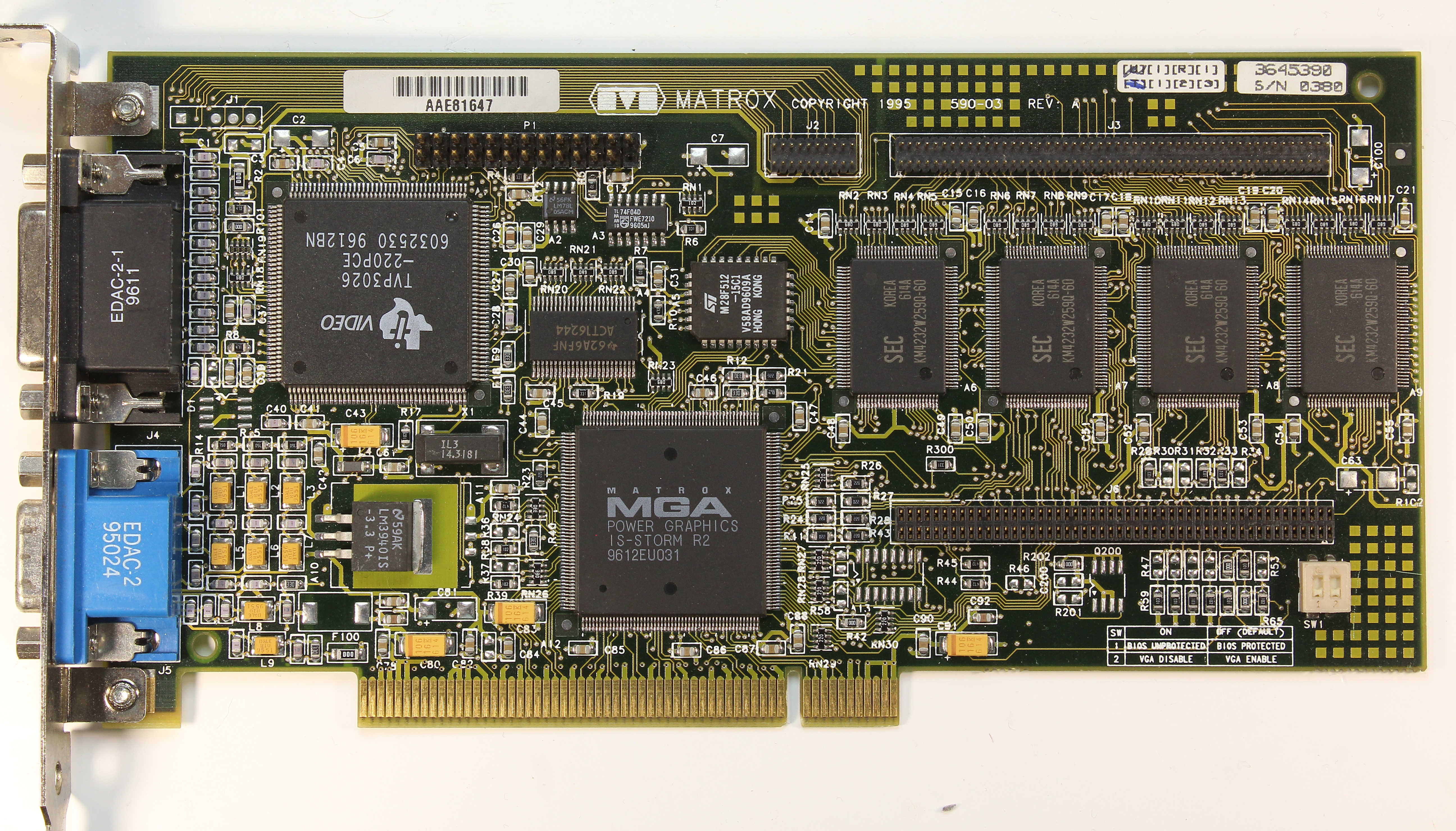

image2 Image 2 of 6 (computerguy096)

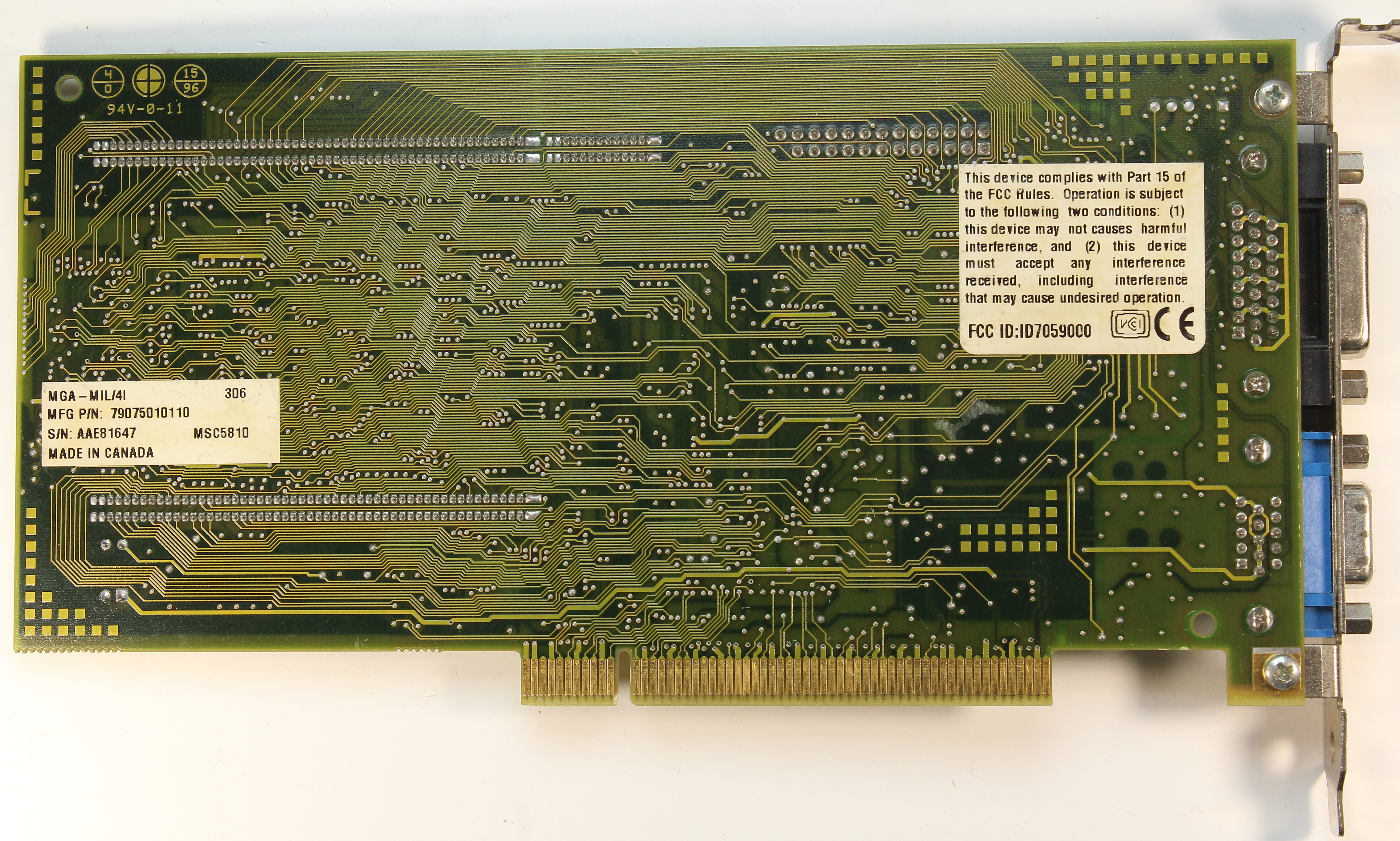

image3 Image 3 of 6 (computerguy096)
image4 Image 4 of 6 (Microhouse)
image5 Image 5 of 6 (Microhouse)
image6 Image 6 of 6 (Douglar)
