Macronix VGA4002D
Logs
typeType
Video
interfaceInterface
signalSignaling
16-bit ISA 8-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
JBAMXVGA4002D
ramRAM type
DRAM
ramRAM size
256KB
chip Chips and specs
-> RAMDAC
MUSIC Semiconductors TR9C1710 (Graphics Color Palette DAC)
-> Video
Macronix MX86000
MTL
Card Type Video Card
Video Chip Set Macronix
Video Types Supported VGA
tag Also known as
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-11-28T18:13:23Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

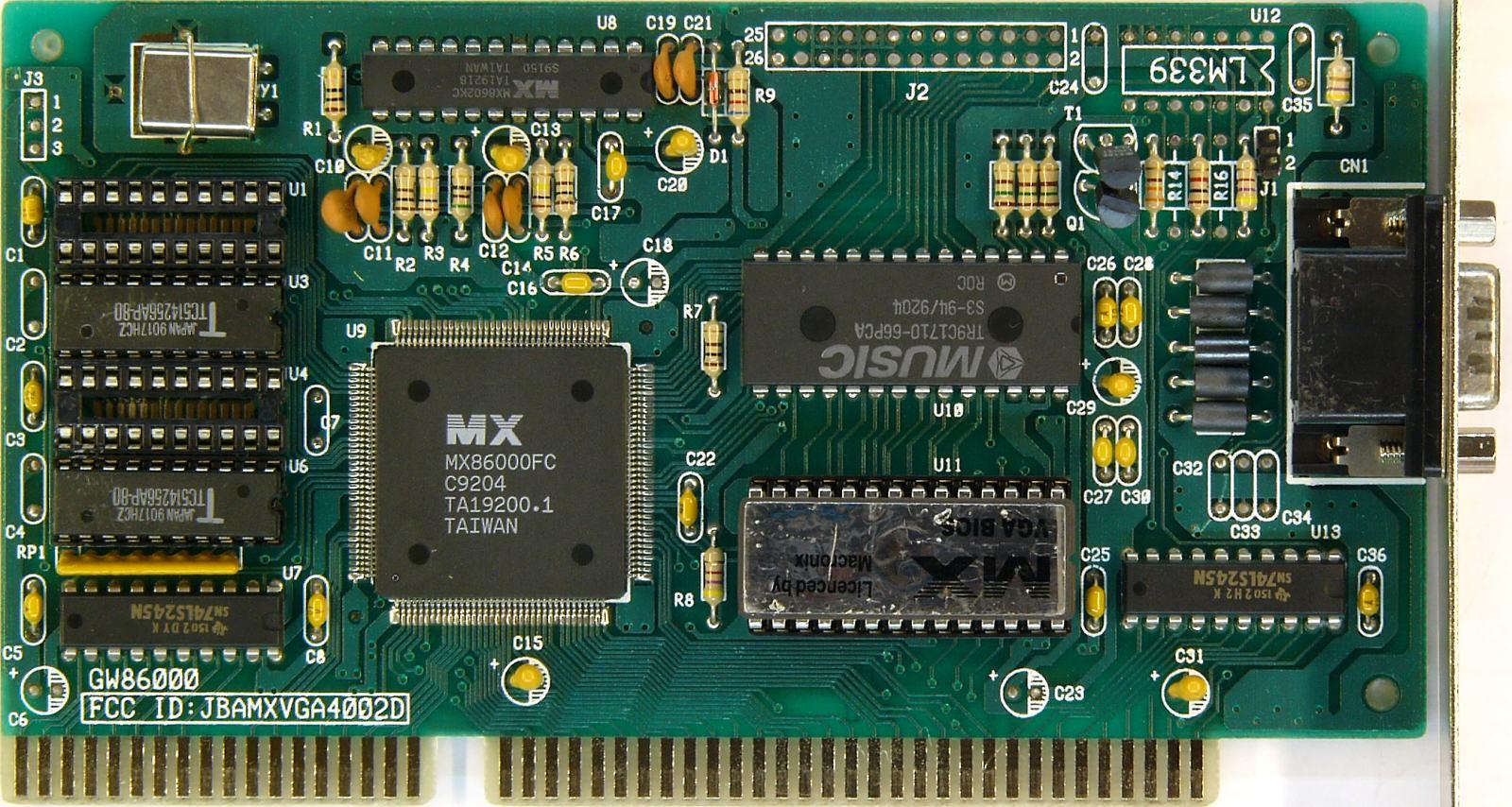

image1 Image 1 of 2 (Palcal)

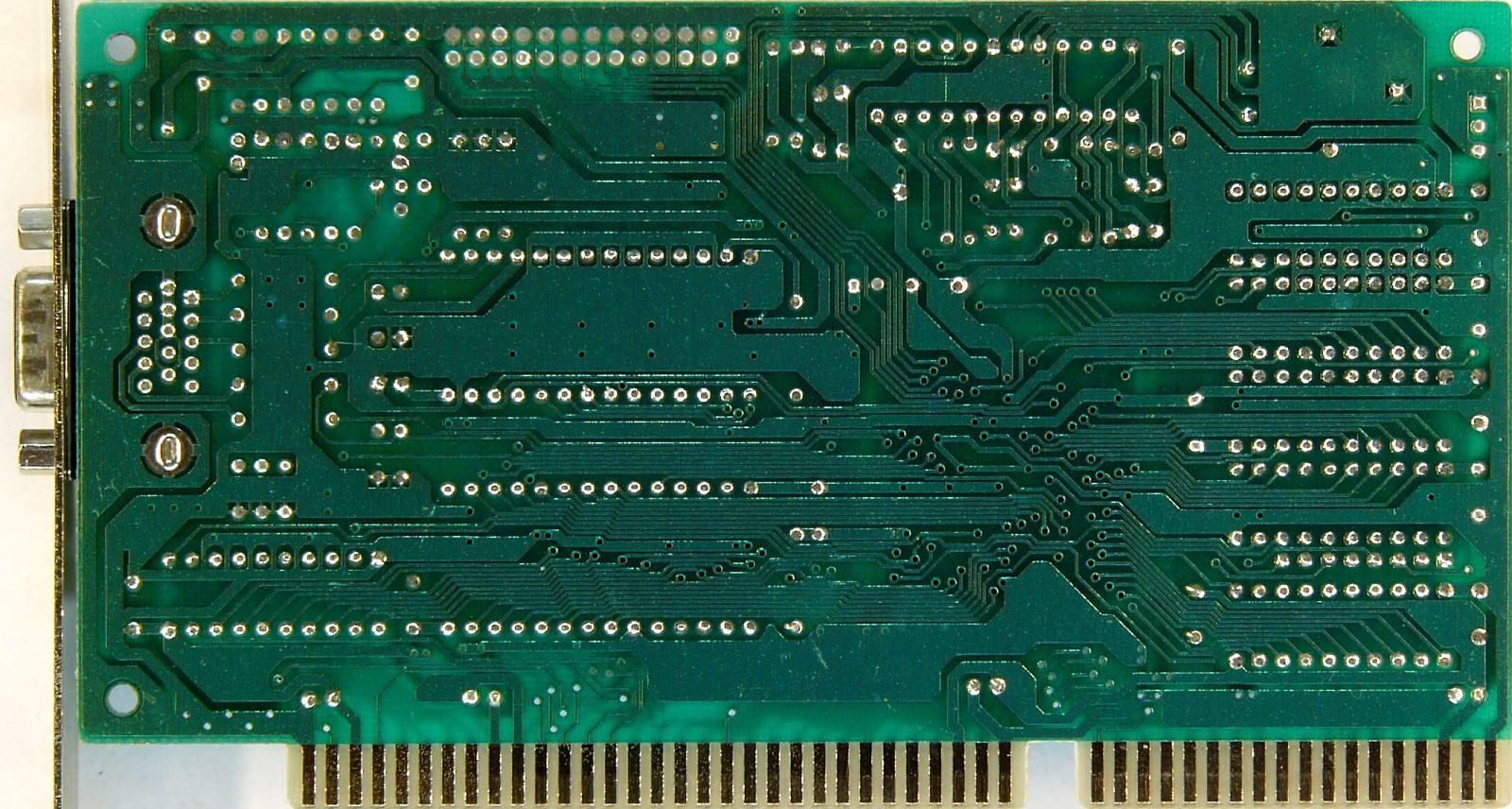

image2 Image 2 of 2 (Palcal)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
