LONGSHINE LCS-6812F
Logs
typeType
Floppy controller
interfaceInterface
signalSignaling
8-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Floppy ctrl.
National Semiconductor DP8473 (Floppy Controller)
MTL
Card Type Floppy drive controller
I/O Options Floppy drive interface (2)
Maximum Dram N/A
Chipset Controller Unidentified
portintI/O ports
1x
  • DB-37 (does not exist, DC-37 is the official name)
1x
  • 34-pin IDC female
powerPower connectors
Empty
Last updated 2025-06-04T14:57:03Z
biosc No BIOS files available
drv No drivers available
doc 2 card documents available
Release date
File
Logs
Release date
1999
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990-07
File
Logs

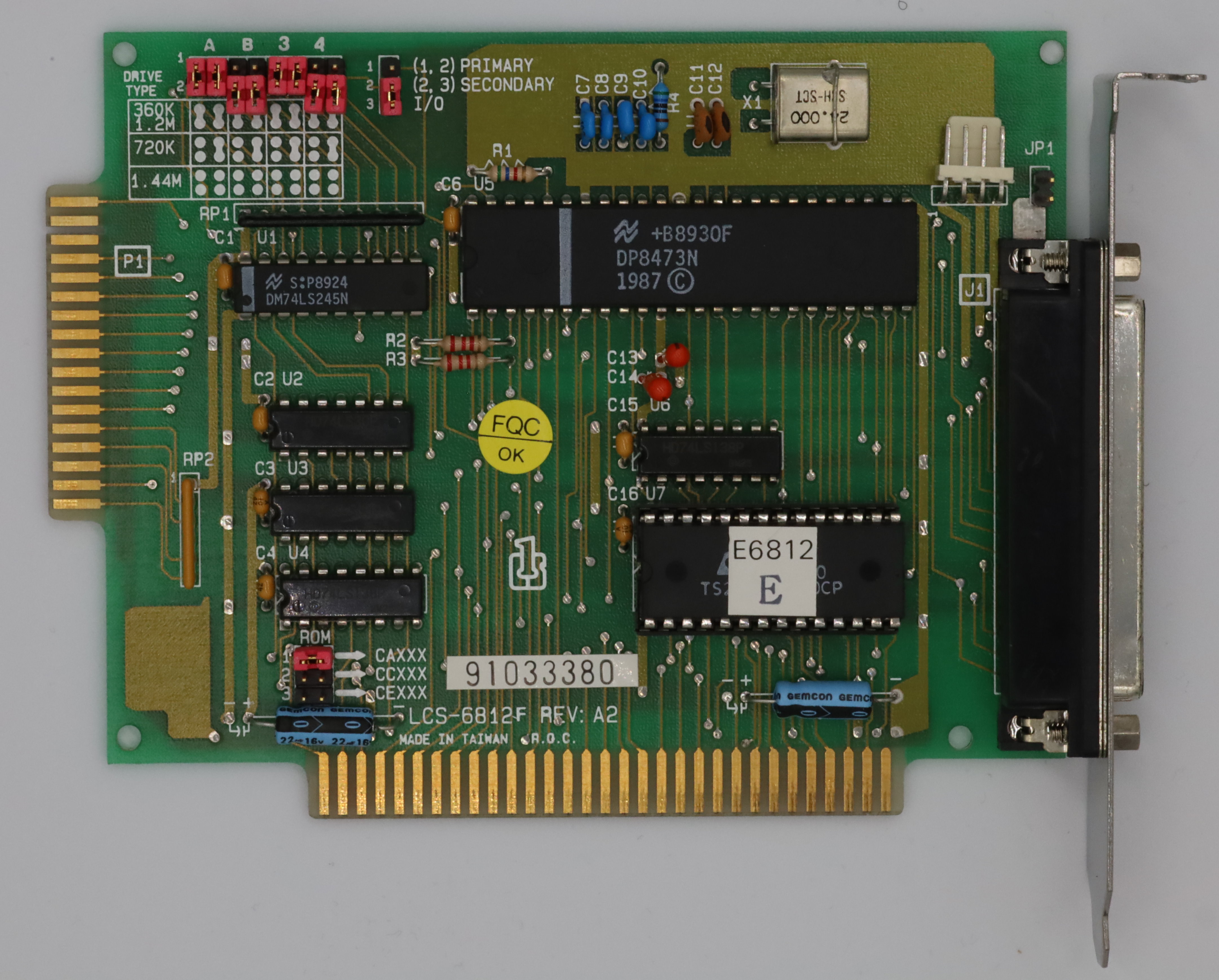

image1 Image 1 of 5 (Microhouse)

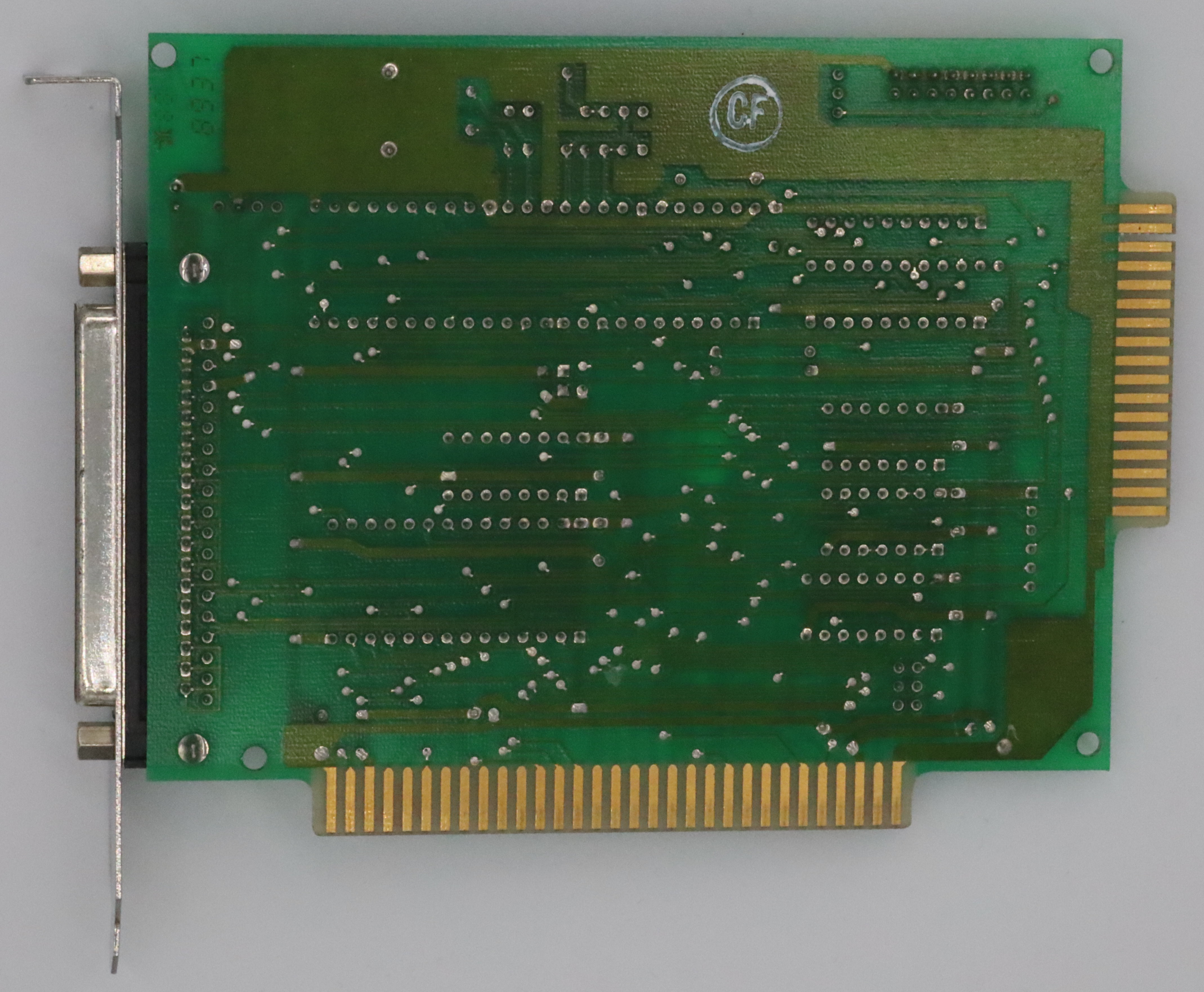

image2 Image 2 of 5 (Carsten Braeuer)

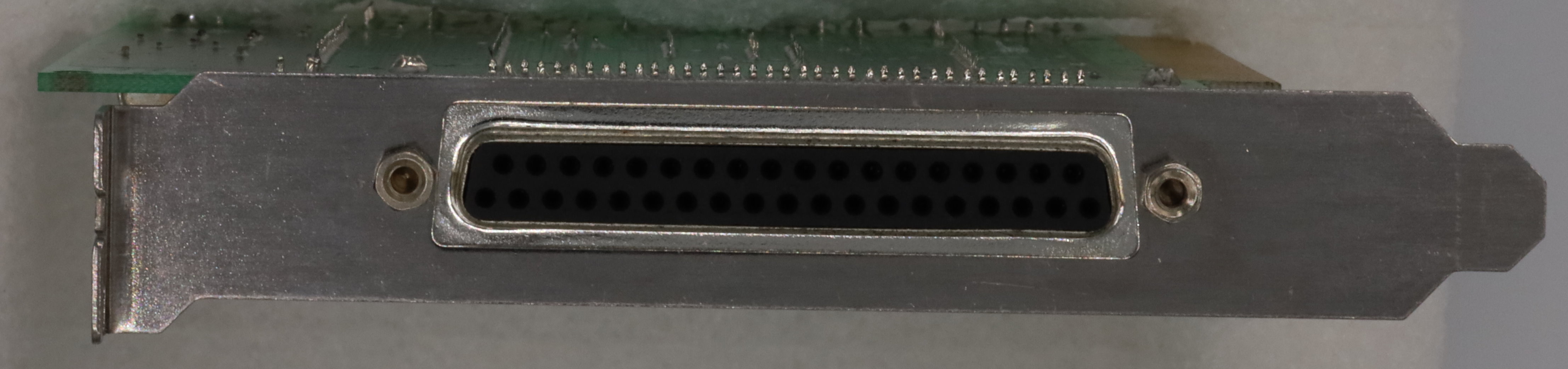

image3 Image 3 of 5 (Carsten Braeuer)
image4 Image 4 of 5 (Carsten Braeuer)
image5 Image 5 of 5 (Carsten Braeuer)
