LONGSHINE LCS-6641
Interface
Signaling
PCI IDEmpty
RAM type 30-pin SIMM
RAM size
16MB
Chips and specs
-> Floppy ctrl.
-> IDE ctrl.
-> Processor
| MTL | |
|---|---|
| Size: | Full-length, full-height card |
| Data bus: | 16-bit, ISA |
| HadProblem | |
| Hard drive supported: | Four IDE (AT) Interface drives |
| Floppy drives supported: | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
| Microarchitecture | |
|---|---|
| CPUID | |
| Process node | |
| Core | |
| Bus speed | 12MHz |
| Frequency | 12MHz |
| Multiplier | 1x |
| Power | |
|---|---|
| Voltage | 5V |
I/O ports
1x
- 2x17 2.54mm pin header
2x
- 2x20 2.54mm pin header
Power connectorsEmpty
Last updated 2025-10-15T06:19:33Z
No BIOS files available
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.00
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 1.x
Windows 3.1x
Arch
x86
Size
278.5KB
Filename
1 card document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990-07
File
Logs

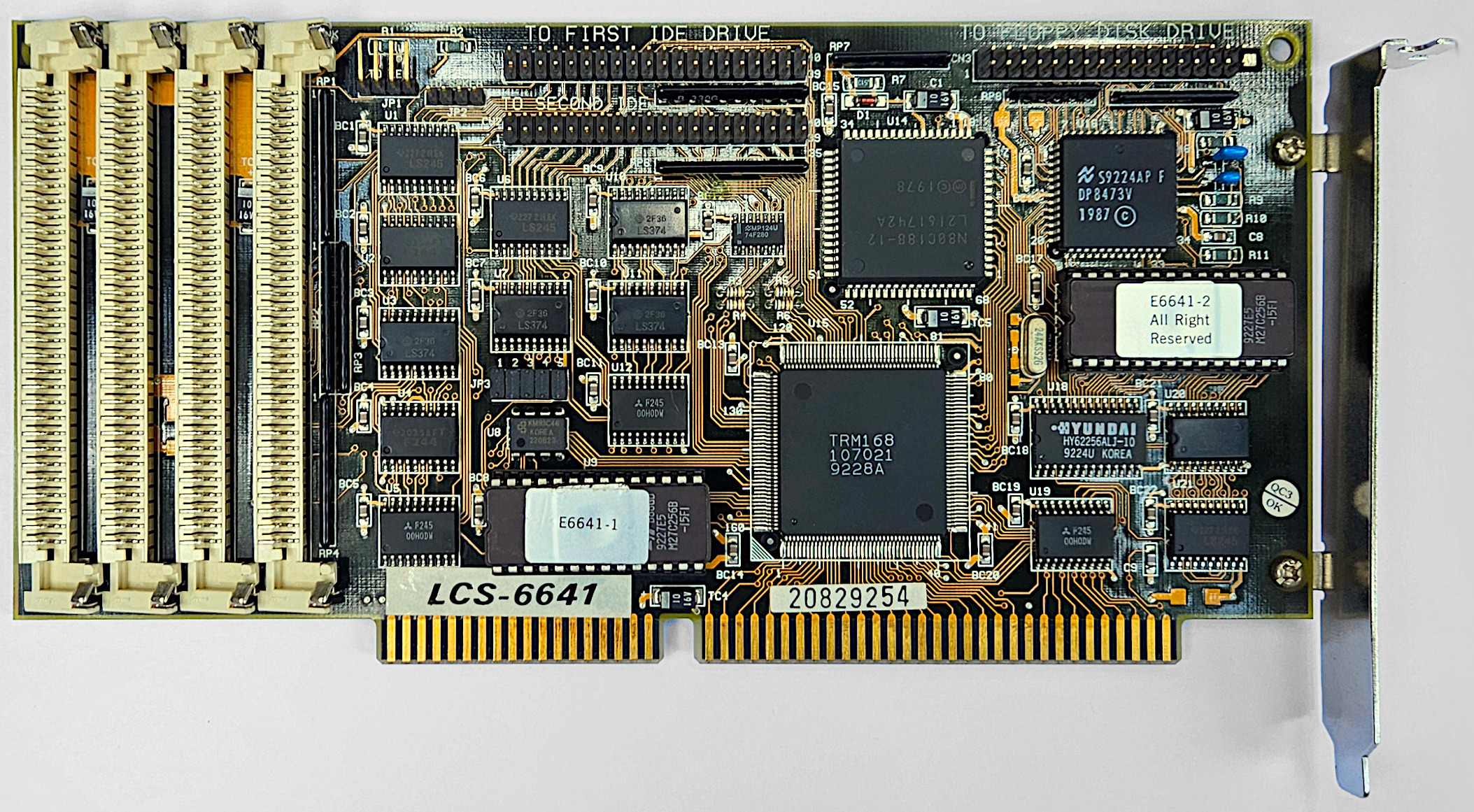

Image 1 of 2 (Microhouse)
Image 2 of 2 (pshipkov)
