Logitech Soundman Games
Logs
typeType
Sound CD-ROM interface
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
DZLSNDMNGM
chip Chips and specs
-> Audio
Philips TDA1517 (2x6W Audio Power Amplifier) Yamaha YAC512 (2-Channel Floating DAC) Media Vision MVD1208 (Jazz) Yamaha YMF262 (OPL3)
MTL
Chip Set Unidentified
Data Bus 16-bit ISA
Card Type Sound card
I/O Options Game/MIDI port, microphone in, speaker out, line in, audio in, CD-ROM interface connector
Maximum Onboard Memory Unidentified
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • DA-15
1x
  • 2x17 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-12-16T18:06:54Z
biosc No BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
Version 1.00
OS support
MS-DOS Windows 3.0
Arch
x86
Size
727.2KB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
1015KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-02-18
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs

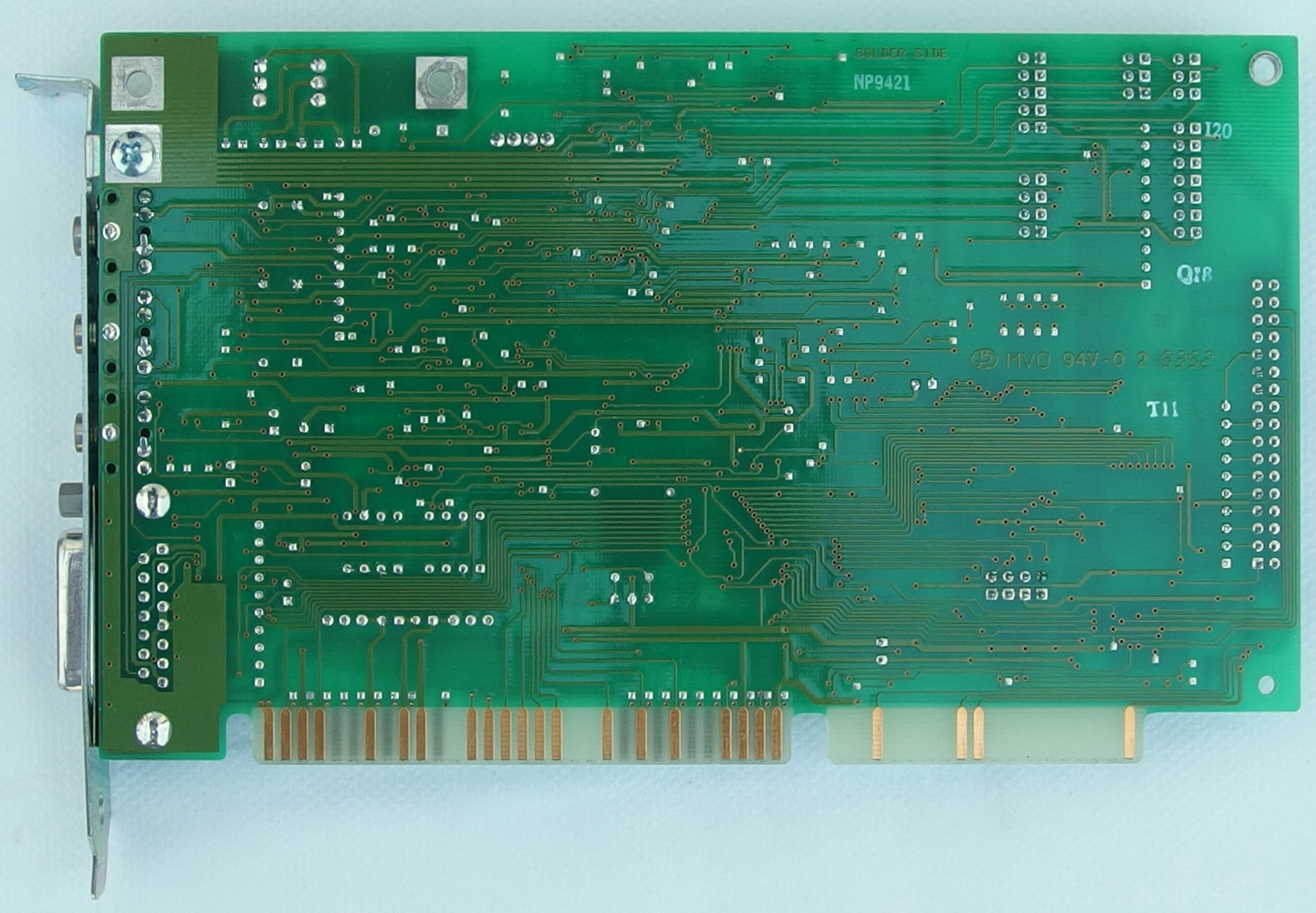

image1 Image 1 of 10 (Peter Anderson)
image2 Image 2 of 10 (targeted)

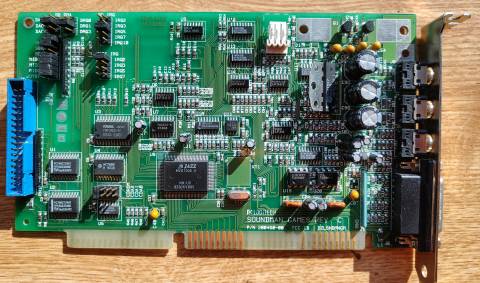

image3 Image 3 of 10 (Yargoro)
image4 Image 4 of 10 (targeted)
image5 Image 5 of 10 (Peter Anderson)
image6 Image 6 of 10 (Yargoro)
image7 Image 7 of 10 (Peter Anderson)
image8 Image 8 of 10 (Peter Anderson)
image9 Image 9 of 10 (Peter Anderson)
image10 Image 10 of 10 (Peter Anderson)
