LianTec TBM-1460
Logs
typeType
RAID controller SATA controller
interfaceInterface
signalSignaling
32-bit PCI PCIe
datePCI ID
3132
chip Chips and specs
-> SATA ctrl.
Silicon Image SiI3132 (PCIe to 2-Port SATA II) Silicon Image SiI4726 (SATA-II 5-port multiplier)
tag Also known as
portintI/O ports
5x
  • SATA
4x
  • eSATA
powerPower connectors
Empty
notes Notes
  • LianTec TBM-1460E4P (4 eSATA-II Ports and Mini-PCI, without internal 5-port SATA-II multiplier)
  • LianTec TBM-1460SRP (5-Port SATA-II Multiplier and Mini-PCI, without eSATA ports)
  • LianTec TBM-1460E3RP (3 eSATA-II Ports, 5-Port SATA-II Multiplier and Mini-PCI )
  • LianTec TBM-1460E2 (2 eSATA-II Ports)
  • LianTec TBM-1460SR (5-Port SATA-II 3Gbit/s Ports)

Compatible Boards:

  • LianTec ITX-6M45
  • LianTec ITX-6965
  • LianTec ITX-6910
  • LianTec ITX-6900
  • LianTec EMB-5950
  • LianTec EMB-5940
  • LianTec EMB-5930
  • LianTec EMB-3100

Onboard Mini-PCI type-IIIA/B socket

Last updated 2025-05-24T05:35:14Z
biosc No BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
26.8KB
Filename
Name
Version
N/A
OS support
Windows XP/2k3
Arch
Size
26.8KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
2007-02-23
File
Logs
Chip
Release date
2004-08-24
File
Logs
Chip
Release date
File
Logs

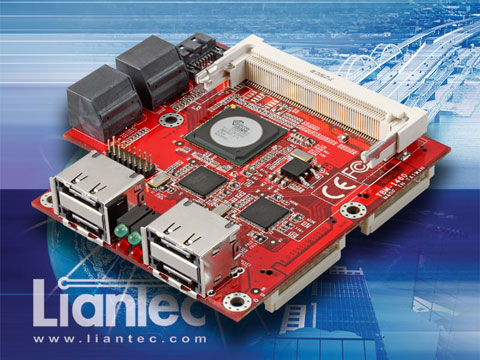

image1 Image 1 of 3 (LianTec)
image2 Image 2 of 3 (LianTec)

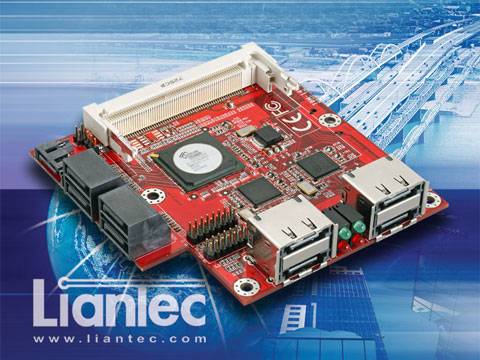

image3 Image 3 of 3 (LianTec)
