Lestina GD54M3X
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
Empty
fccFCC ID
J6QGD54M3XPCI
ramRAM type
DRAM
ramRAM size
1MB2MB
chip Chips and specs
-> Video
Cirrus Logic CL-GD54M30
MTL
Category Video
Memory Type DRAM
Data Bus Type PCI
Video Processor Cirrus Logic, Inc.
Video Types Supported XVGA
Maximum Onboard Memory 2MB
Highest Resolution Supported 1280 x 1024
tag Also known as
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-09-08T17:50:51Z
biosc No BIOS files available
drv No drivers available
doc No card documents available

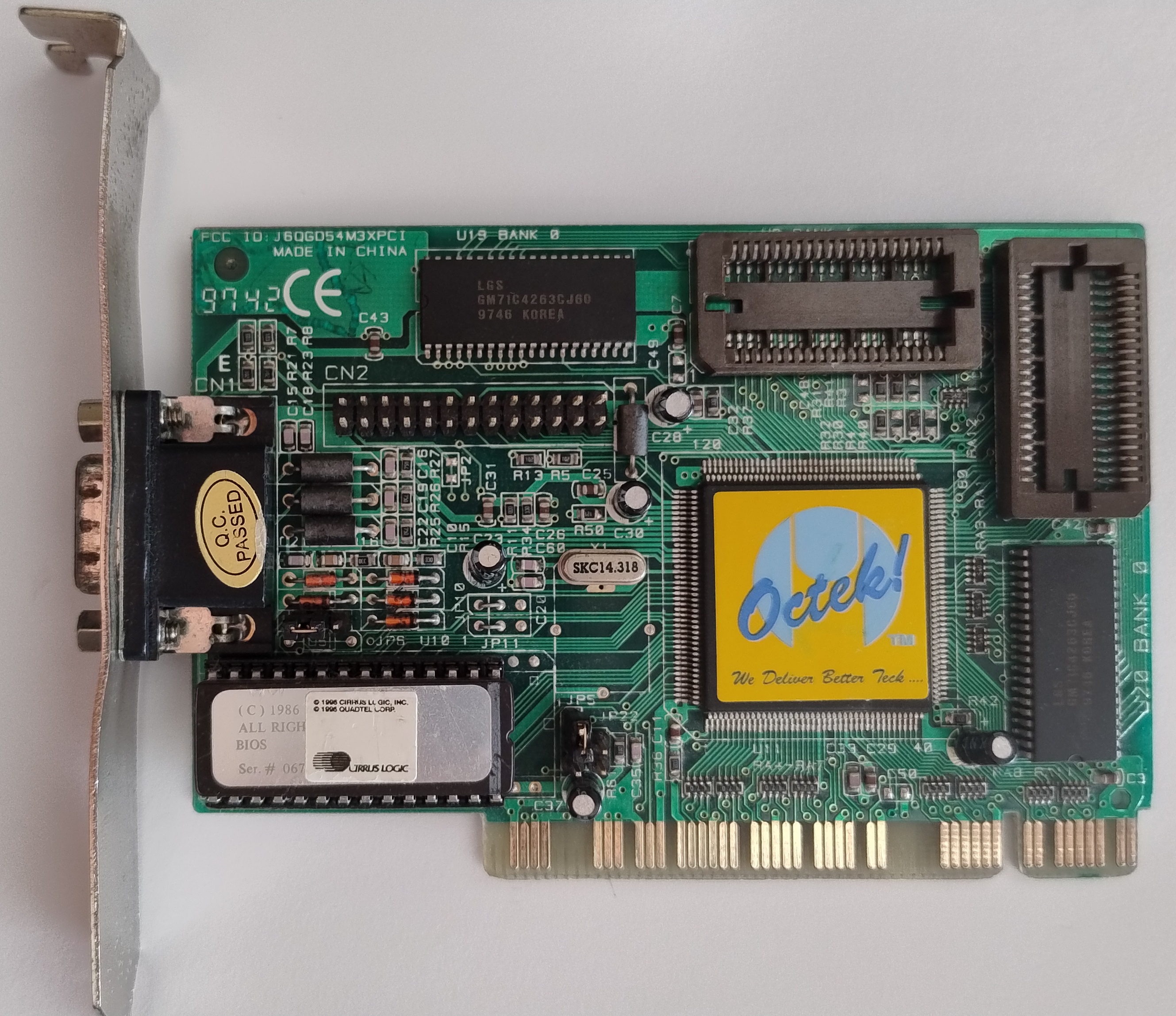

image1 Image 1 of 2 (Víctor Sánchez)

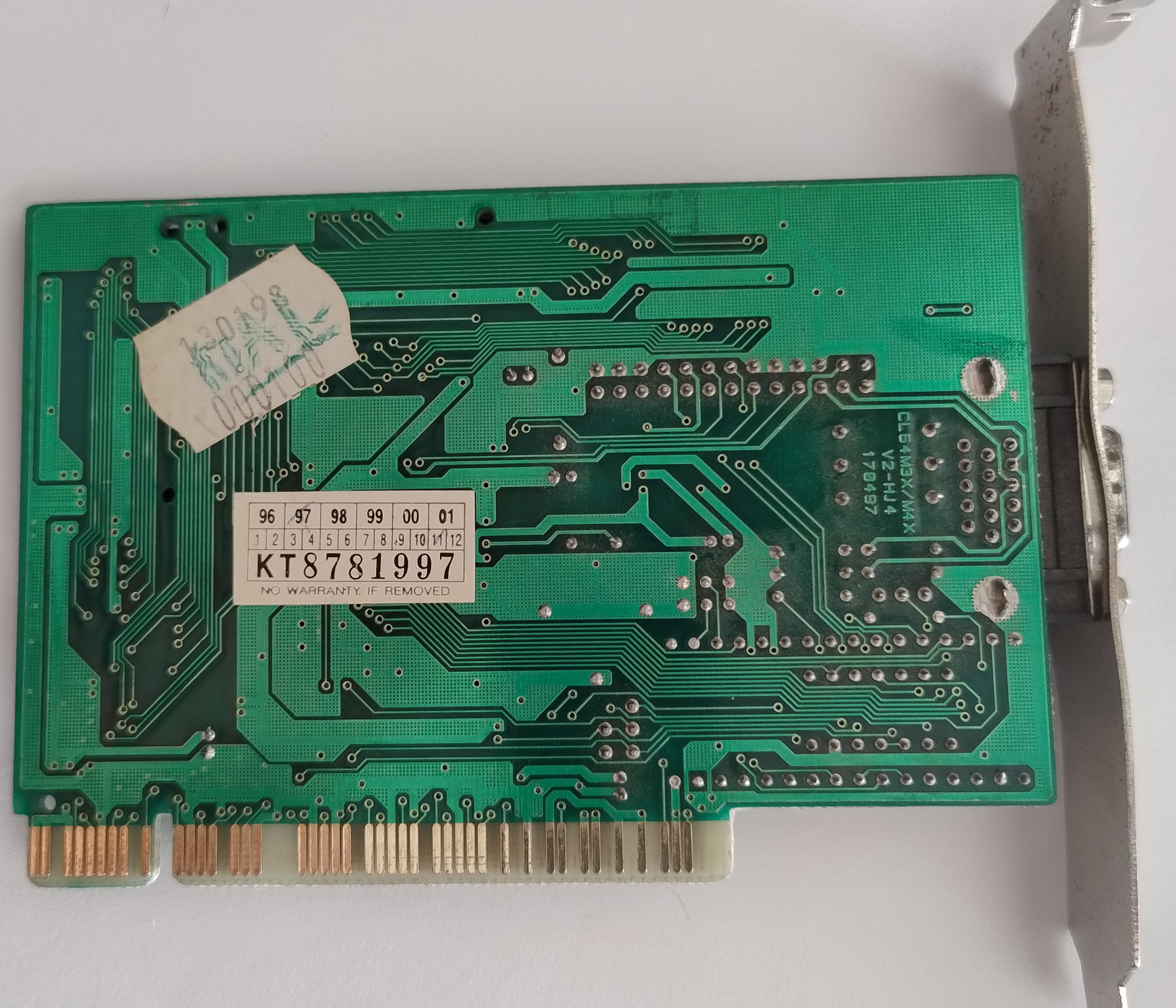

image2 Image 2 of 2 (Víctor Sánchez)
