Leadtek WinFast 3D S800 PCI
Logs
typeType
Sound Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
0004
ramRAM type
RDRAM
ramRAM size
8MB
chip Chips and specs
-> Audio
TriTech TR28023 (AC97 codec)
-> Video
Chromatic LGMP5600 (MPact 2) Analog Devices ADV7175A (YCrCb to PAL/NTSC Encoder)
MTL
Data Bus 32-bit PCI
Card Type Video card
Video Chip Set Mpact
Maximum Video Memory Unidentified
Video Types Supported VGA
Highest Resolution Supported 1600 x 1200
tag Also known as
portintI/O ports
1x
  • 1x4 2.54mm pin header
2x
  • 1x4 2.54mm pin header
1x
  • RCA Jack
1x
  • 4-pin Mini-DIN
1x
  • RCA Jack
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-06-27T15:21:52Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
1.4.3.3
Note
File
Logs
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.21.2.2.2.8
OS support
Windows 9x
Arch
Size
2.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
16.8MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
8.3MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997
File
Logs

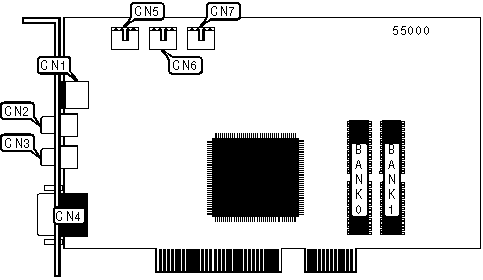

image1 Image 1 of 3 (Microhouse)

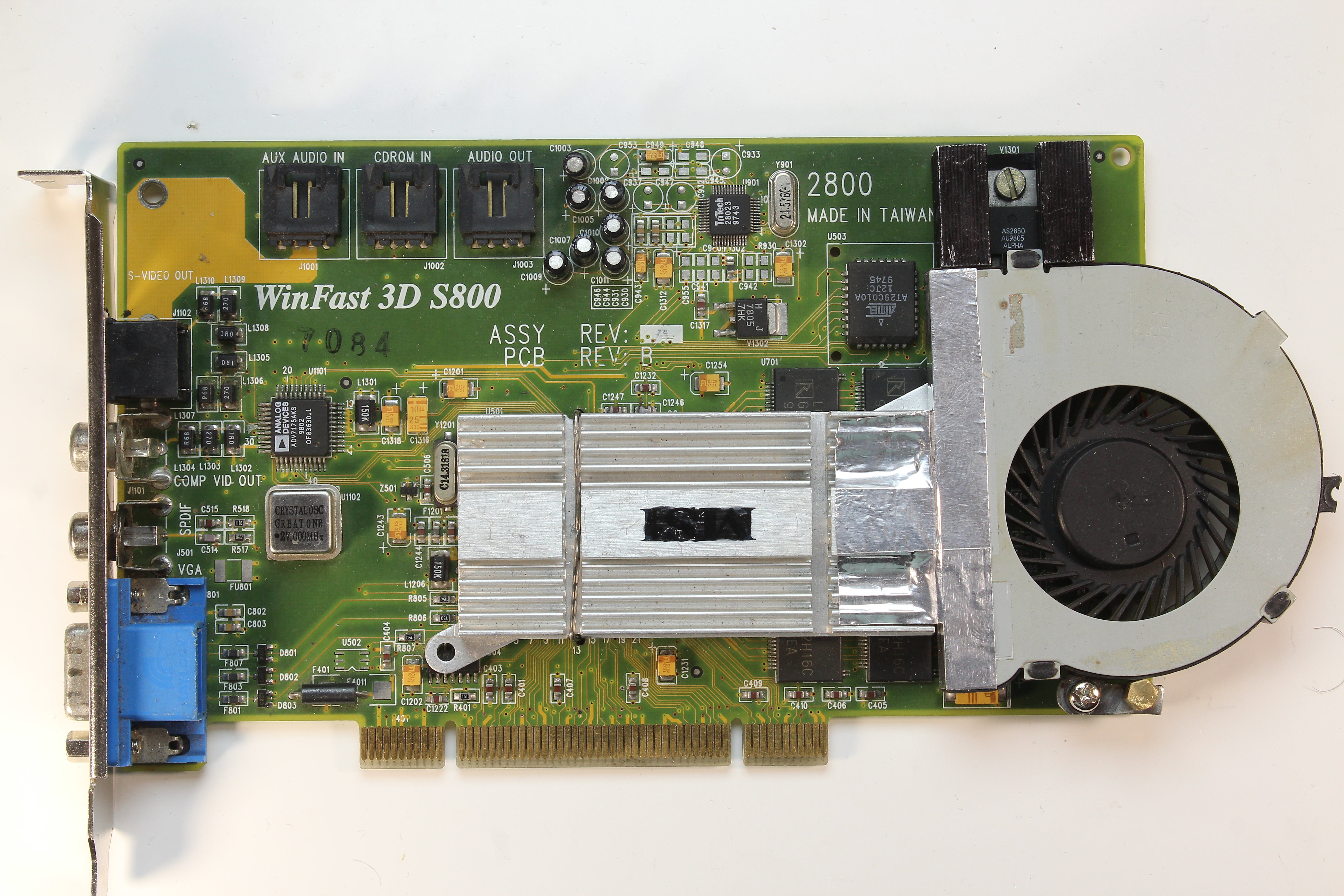

image2 Image 2 of 3 (computerguy096)

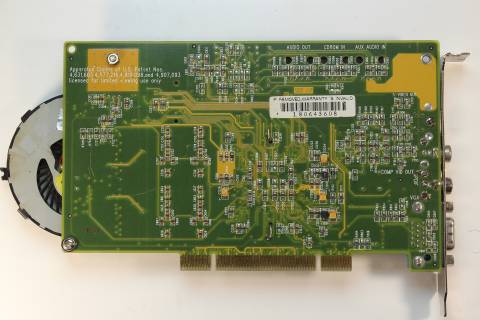

image3 Image 3 of 3 (computerguy096)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
