Lascar LCEC488
Logs
typeType
GPIB controller
interfaceInterface
signalSignaling
8-bit ISA
dimSlot height
1
datePCI ID
Empty
dimDimensions
135 mm (width) x 107mm (length)
chip Chips and specs
-> GPIB ctrl.
Texas Instruments TMS9914
-> Signal transmitter/receiver
Texas Instruments SN75160 (GPIB Data Bus Buffer) Texas Instruments SN75162 (GPIB Control Bus Buffer)
portintI/O ports
1x
  • 24-pin Micro Ribbon female, IEEE-488
powerPower connectors
Empty
Last updated 2025-11-08T19:07:45Z
biosc No BIOS files available
drv No drivers available

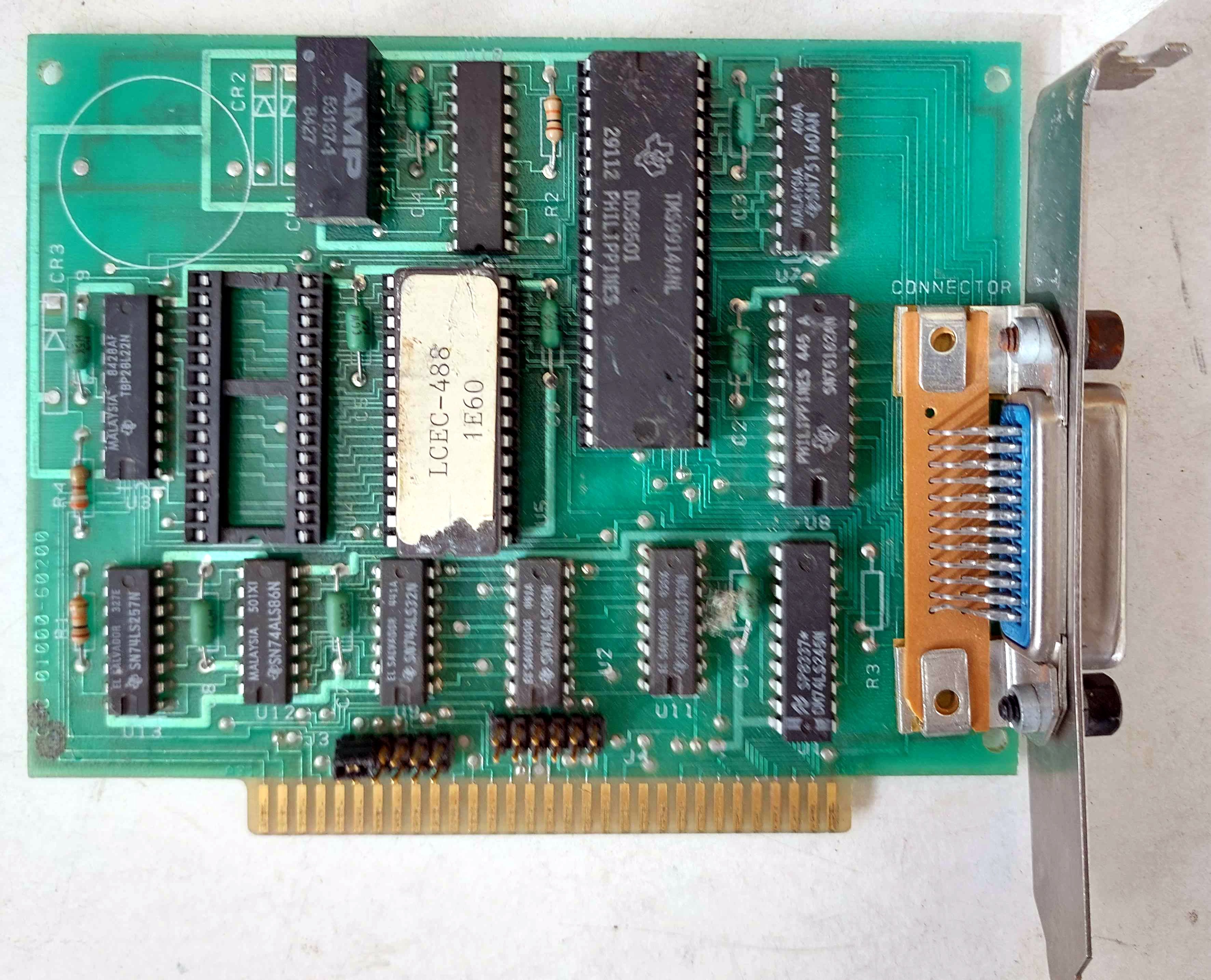

image1 Image 1 of 5 (CircusCat)

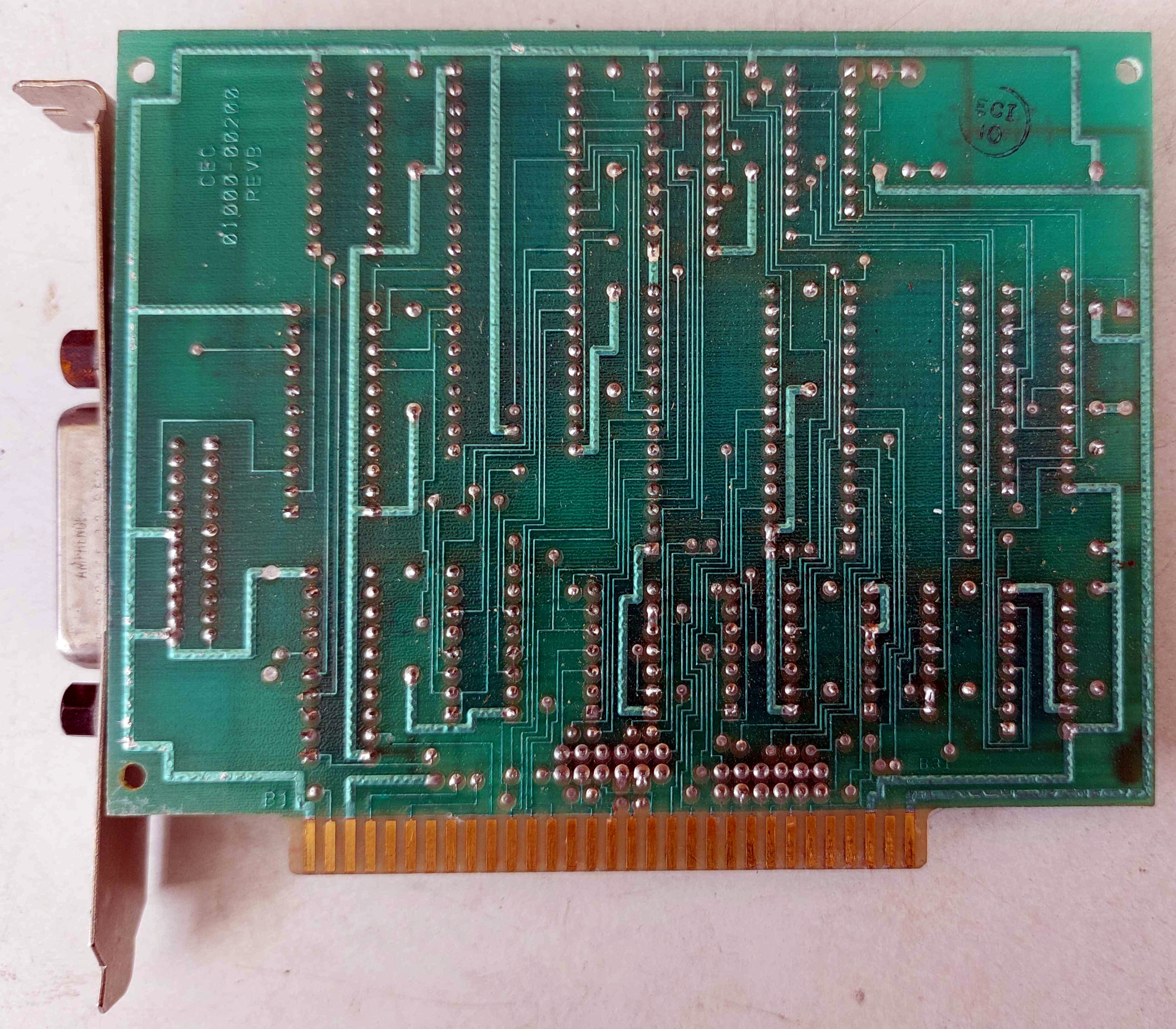

image2 Image 2 of 5 (CircusCat)

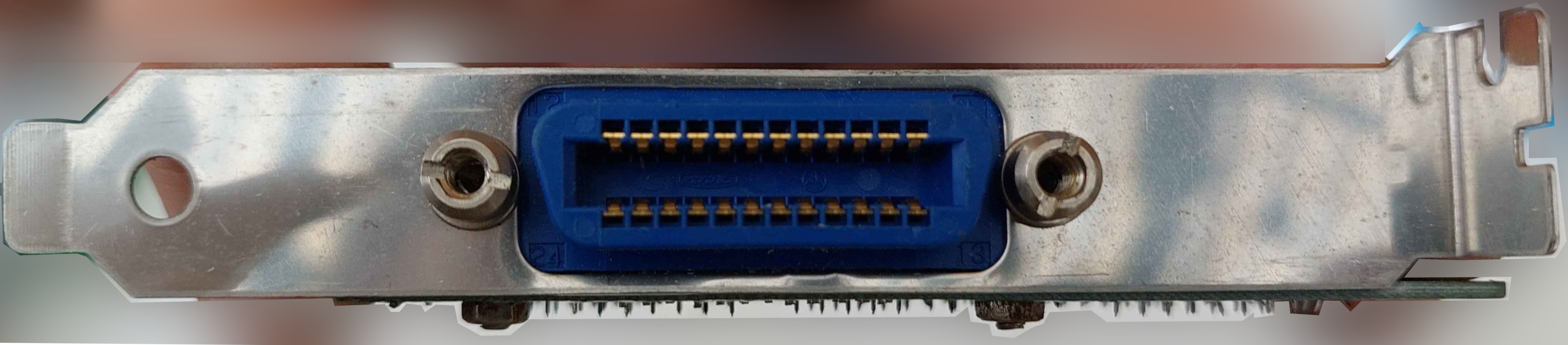

image3 Image 3 of 5 (CircusCat)

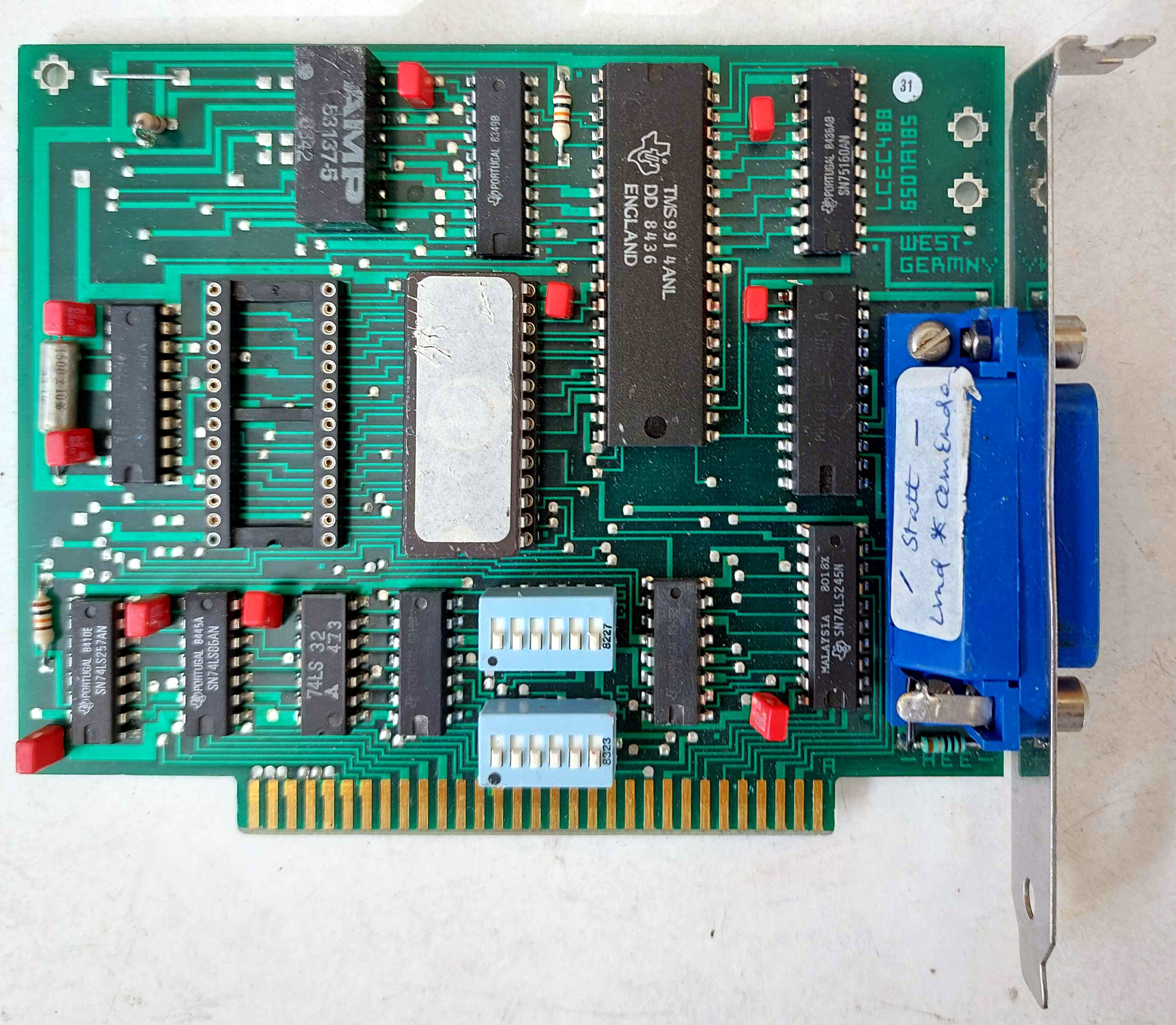

image4 Image 4 of 5 (CircusCat)

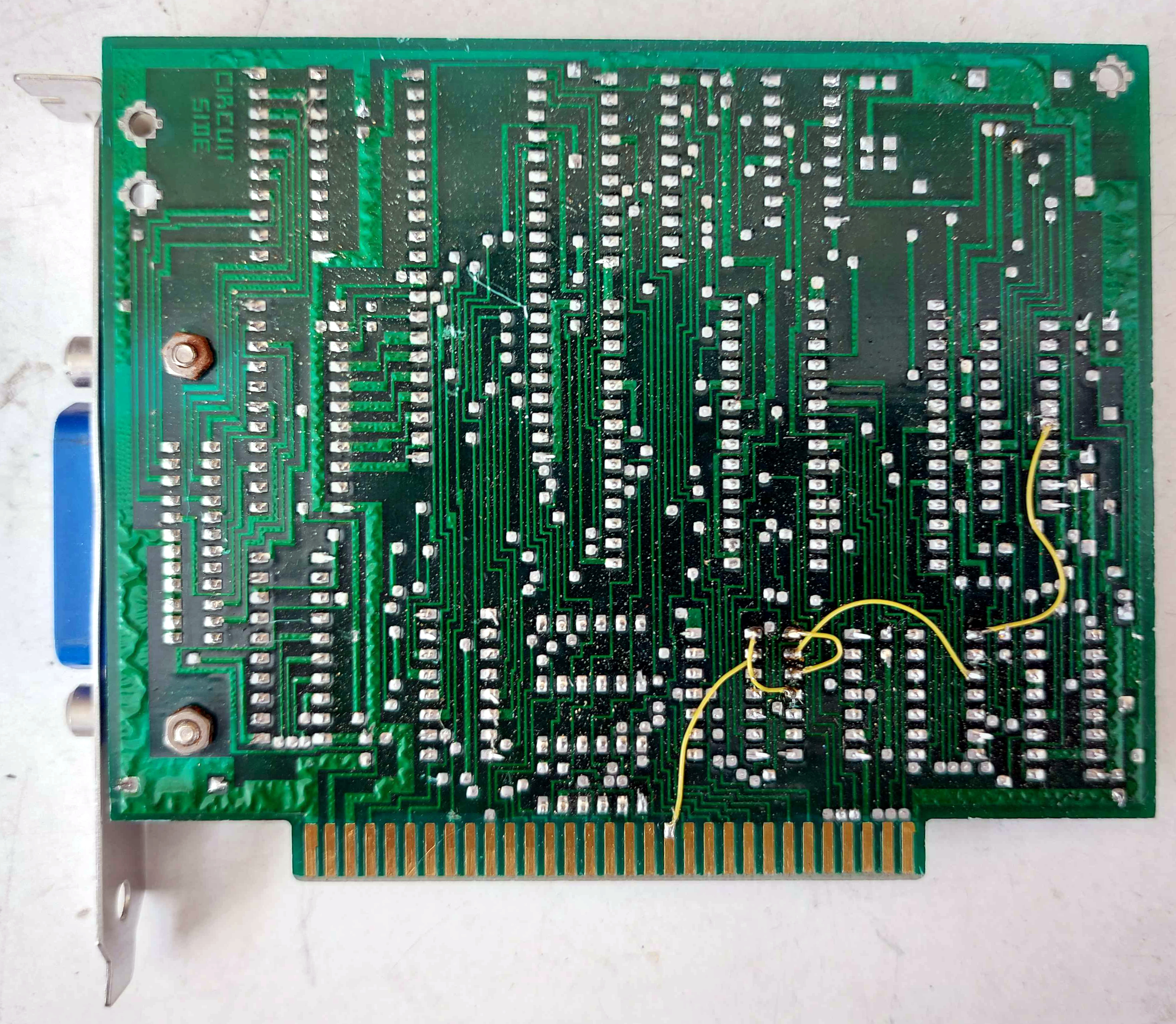

image5 Image 5 of 5 (CircusCat)
