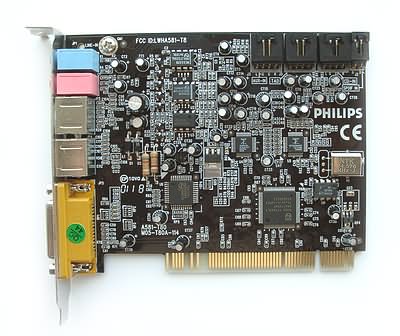

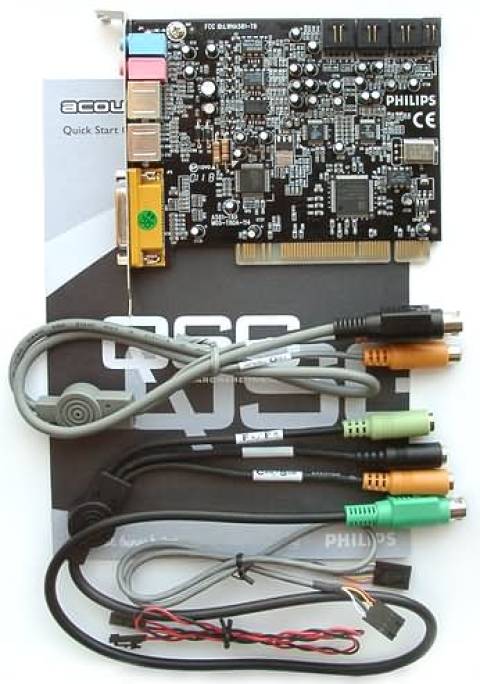

Labway PCI sound card T80 (OEM)
Logs
typeType
Sound
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
0304 0305 0306
fccFCC ID
LWHA581-T8
chip Chips and specs
-> Audio
SigmaTel STAC9721 (AC97) Philips SAA7785HT (Thunderbird PCI Audio) SigmaTel STAC9708T (AC97 codec)
tag Also known as
portintI/O ports
1x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
2x
  • 1x4 2.54mm pin header
1x
  • DA-15
1x
  • 1x4 2.54mm pin header
powerPower connectors
Empty
notes Notes

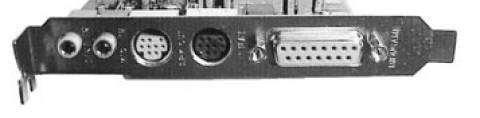

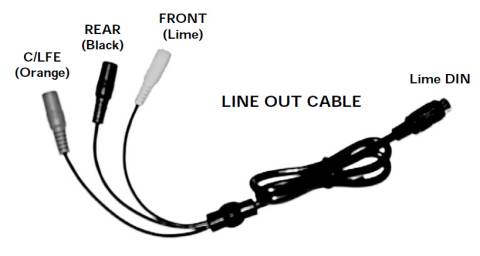

The card is using 2 mini-DIN connectors with breakout cables. Lime DIN: line out front, rear, center/lfe

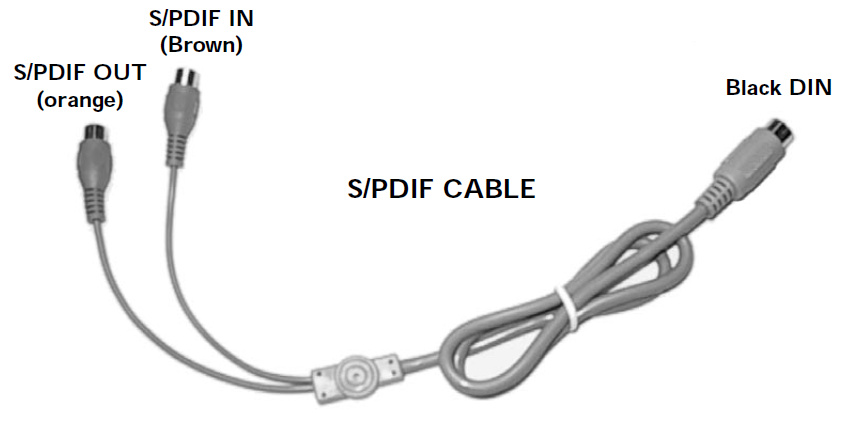

Black DIN: S/PDIF IN and OUT

Last updated 2025-05-25T19:16:29Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1999-11-12
File
Logs
image1 Image 1 of 5 (iXBT)
image2 Image 2 of 5 (LABWAY)
image3 Image 3 of 5 (iXBT)
image4 Image 4 of 5 (LABWAY)
image5 Image 5 of 5 (LABWAY)
