Labway LABSOUND #500
Logs
typeType
Sound IDE controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
LWHA02150
chip Chips and specs
-> Audio
ESS ES1688F (AudioDrive) Philips TDA1517 (2x6W Audio Power Amplifier)
MTL
Data Bus 16-bit ISA
Card Size Half-length, full-height card
Card Type Sound card
I/O Options Audio in - CD-ROM (2), wavetable, game/MIDI, IDE CD-ROM interface, PC speaker, microphone in, line in, speaker out, volume control
Maximum Onboard Memory Unidentified
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.50mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-03-25T22:15:14Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.05.02
OS support
Windows 9x
Arch
x86
Size
358.1KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-02-18
File
Logs

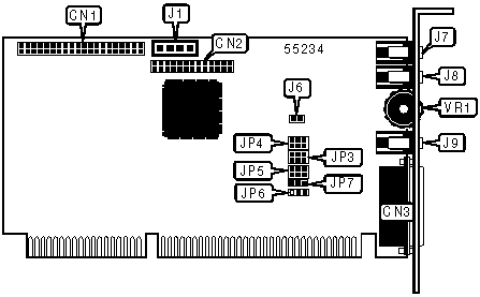

image1 Image 1 of 2 (Microhouse)

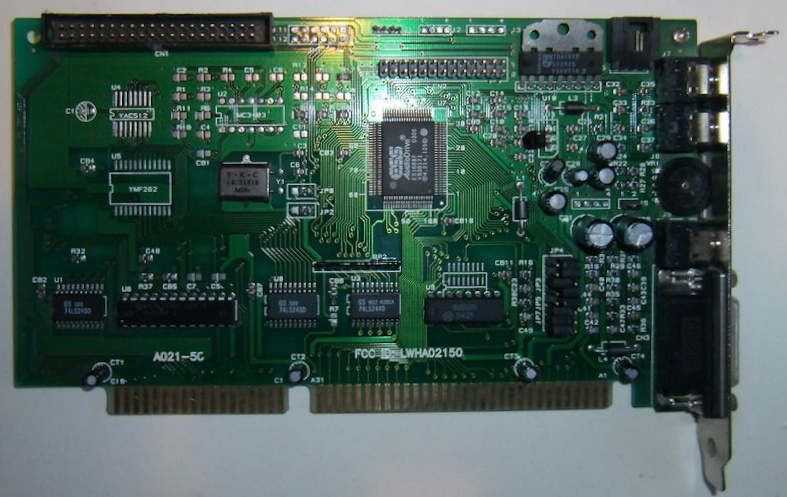

image2 Image 2 of 2 (MaiklsBlack)
