Labway LAB DVD Decoder D70
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
Empty
fccFCC ID
LWHB091D70
chip Chips and specs
-> Video
Chrontel CH8438 (Video Multiplexer) Analog Devices ADV7175 (YCrCb to PAL/NTSC Encoder) Crystal CS4963 LuxSonor LS220 (MPEG2/DVD decoder)
MTL
Chip Set SIS
Data Bus 32-bit PCI
Card Size Full-length, full-height card
Card Type DVD drive controller
Maximum Resolution 1024 x 1280
Maximum Onboard Memory 4MB
tag Also known as
portintI/O ports
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.54mm pin header
1x
  • 4-pin Mini-DIN
1x
  • 1x2 2.54mm pin header
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-05-24T06:30:22Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

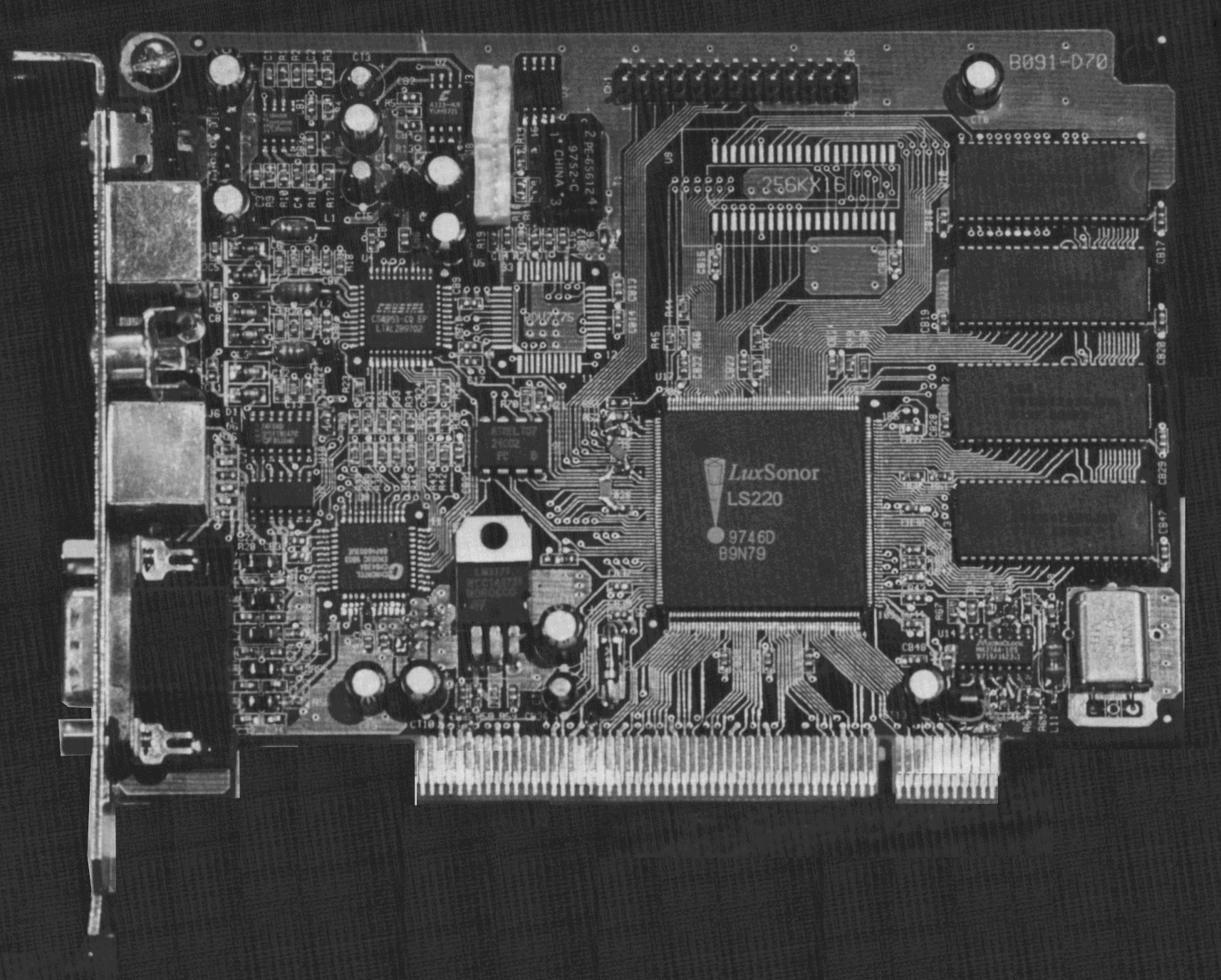

image1 Image 1 of 2 (LABWAY)

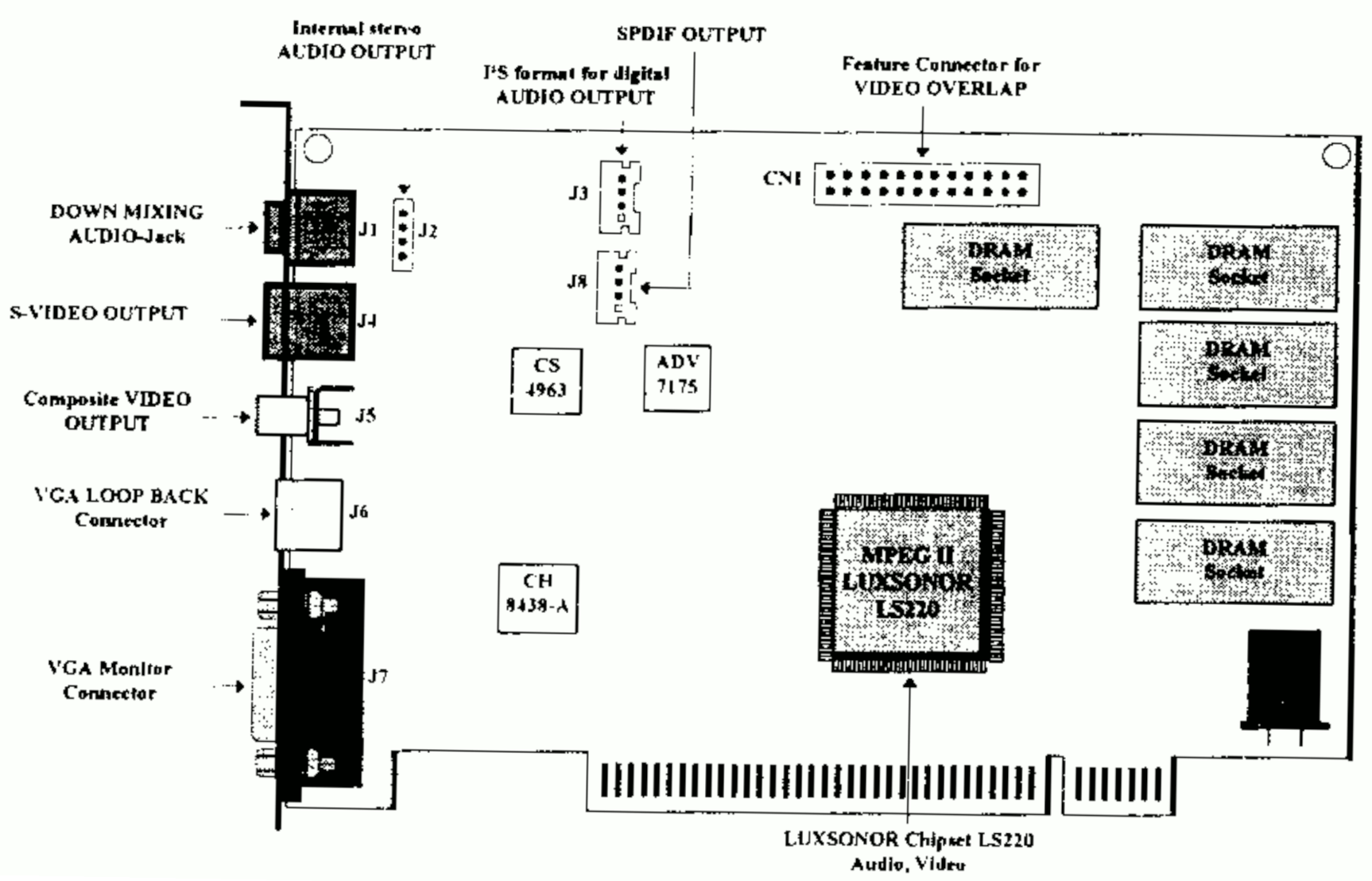

image2 Image 2 of 2 (LABWAY)
