Kuroutoshikou CHANPON2’TURBO-PCI
Logs
typeType
USB controller IDE controller Firewire controller
interfaceInterface
signalSignaling
32-bit PCI
datePCI ID
0035 00E0 3044 0680 0021
chip Chips and specs
-> Bridge Interface
PLX PCI6152-CC33BC (32bit 33MHz PCI to PCI Bridge)
-> FireWire ctrl.
VIA VT6306 (3 port FireWire 400 PCI ctrl.)
-> IDE ctrl.
Silicon Image SiI0680A (UDMA 6 (ATA-133) IDE controller)
-> USB ctrl.
NEC uPD720100A (5 port USB 2.0 Controller)
portintI/O ports
3x
  • IEEE-1394 (6-pin)
2x
  • 2x20 2.54mm pin header
4x
  • USB-A
powerPower connectors
Empty
Last updated 2025-05-28T18:10:14Z
biosc No card BIOS files available
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
3.4.00
Note
IDE BIOS
File
Logs
Version
3.3.08
Note
IDE / MB BIOS
File
Logs
Version
3.2.24
Note
IDE / MB BIOS
File
Logs
Version
3.2.20
Note
IDE / RAID / MB BIOS
File
Logs
Version
3.2.13
Note
IDE BIOS
File
Logs
Version
3.2.10
Note
RAID BIOS
File
Logs
Version
3.0.93
Note
IDE / RAID BIOS
File
Logs
drv 15 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.0
OS support
Windows 9x
Arch
x86
Size
121.9KB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
26.8KB
Filename
Name
Version
N/A
OS support
Empty
Arch
x86
Size
759.1KB
Filename
Name
Version
1.2.0.5
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86-64 , IA-64
Size
342.2KB
Filename
Version
OS support
Windows Vista Windows XP/2k3
Arch
x86-64 , IA-64
Size
338.2KB
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
120.1KB
Filename
Version
OS support
Windows 2000 Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
x86
Size
121.2KB
Filename
Version
OS support
Windows XP/2k3
Arch
x86-64
Size
284KB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
x86
Size
113.8KB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
x86
Size
104.2KB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
112.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows Vista Windows XP/2k3
Arch
x86-64 , IA-64
Size
302.7KB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
138.9KB
Filename
Version
OS support
Windows XP/2k3
Arch
x86-64 , IA-64
Size
620.6KB
Filename

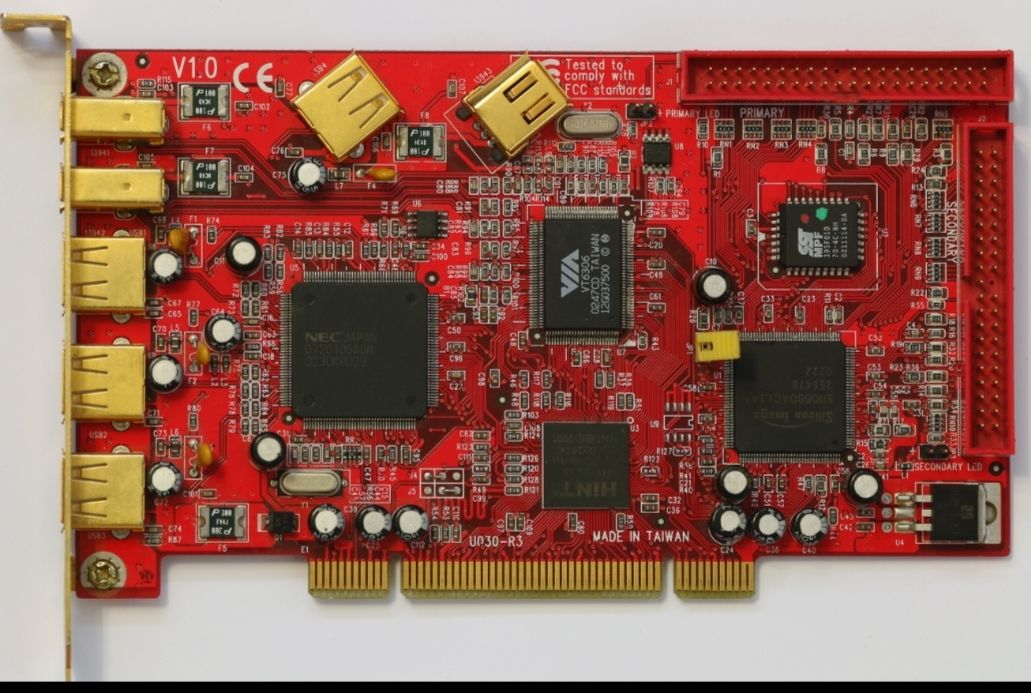

image1 Image 1 of 2 (Hias1000)

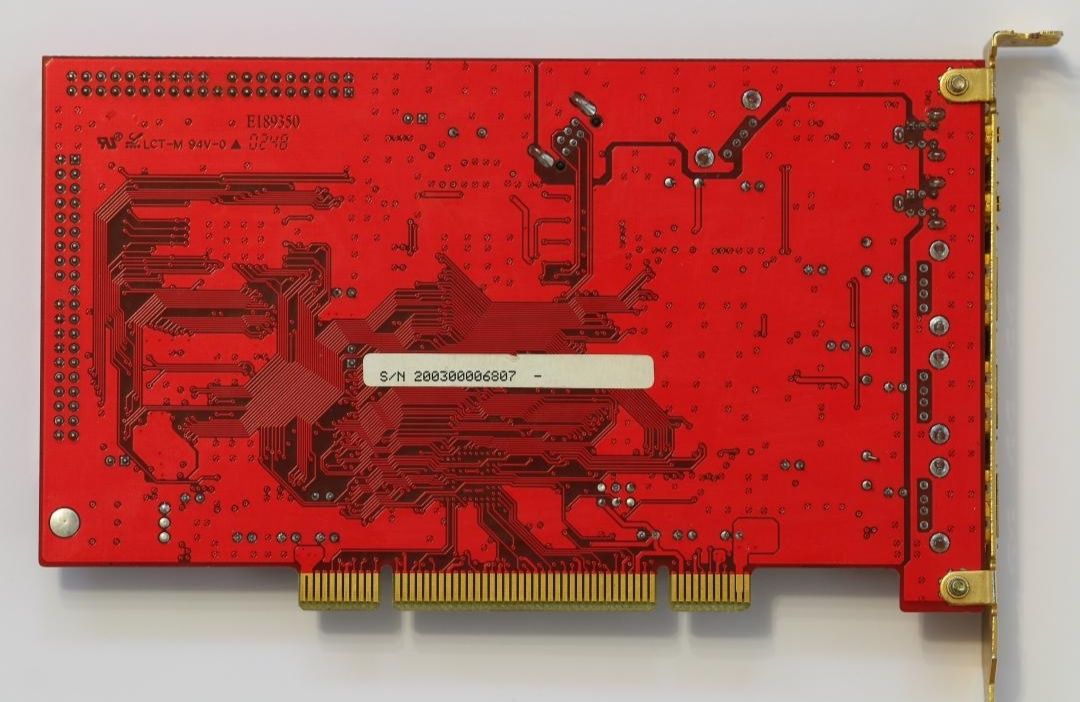

image2 Image 2 of 2 (Hias1000)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
