J.P.N. Corp / Co Time CA9277B-21
Logs
typeType
Multi I/O
interfaceInterface
signalSignaling
16-bit ISA 8-bit ISA
datePCI ID
Empty
chip Chips and specs
-> Floppy ctrl.
Intel 82077 (Floppy Disk Controller)
-> Signal transmitter/receiver
(multiple brand) MC1488 (RS-232 Driver) (multiple brand) MC1489 (RS-232 Receiver)
-> Super I/O
(multiple brand) 16C552 (Dual high-speed UART w/LPT)
portintI/O ports
2x
  • 2x17 2.54mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • DB-25
2x
  • 2x5 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-05-14T21:42:53Z
biosc No BIOS files available
drv No drivers available

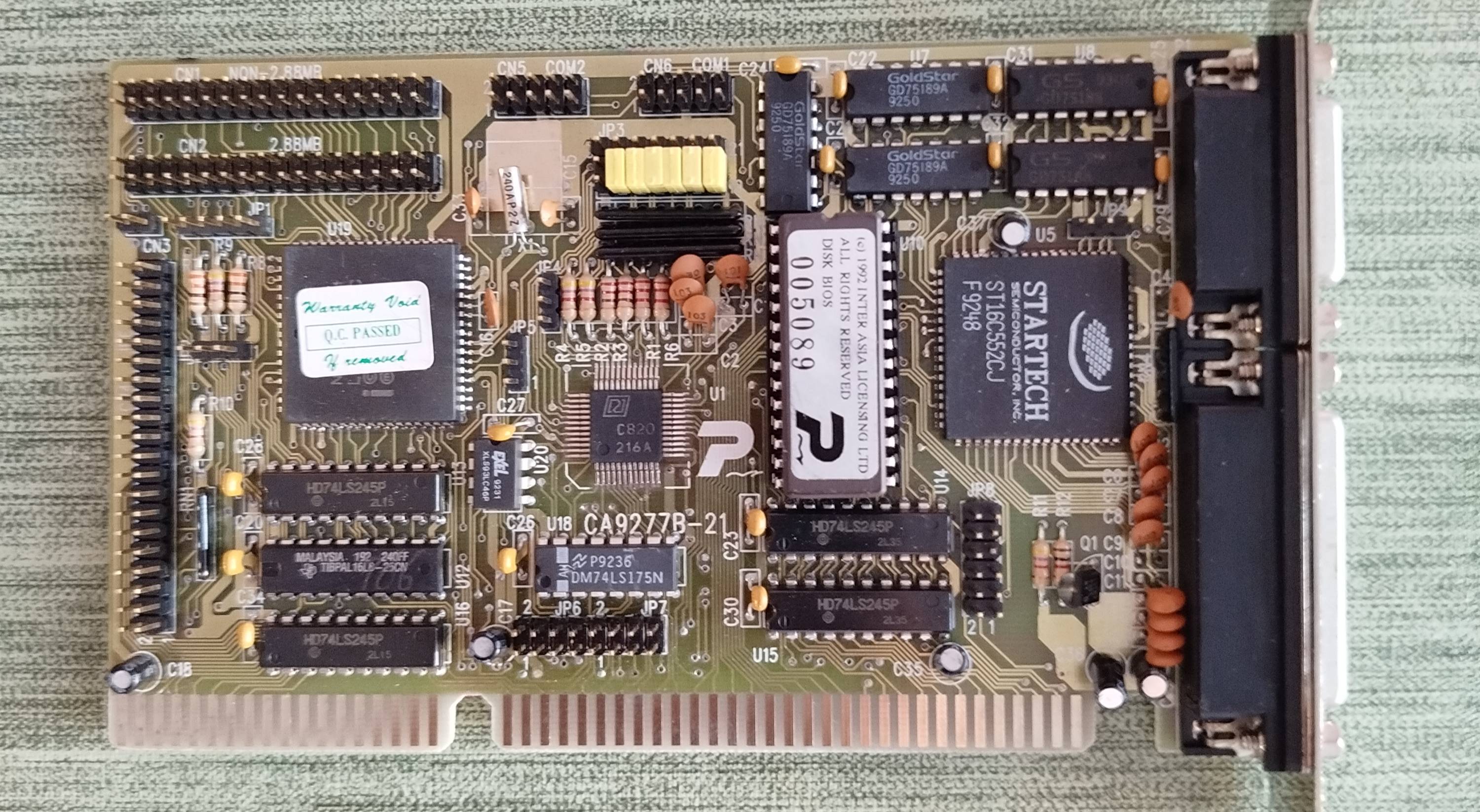

image1 Image 1 of 2 (CircusCat)

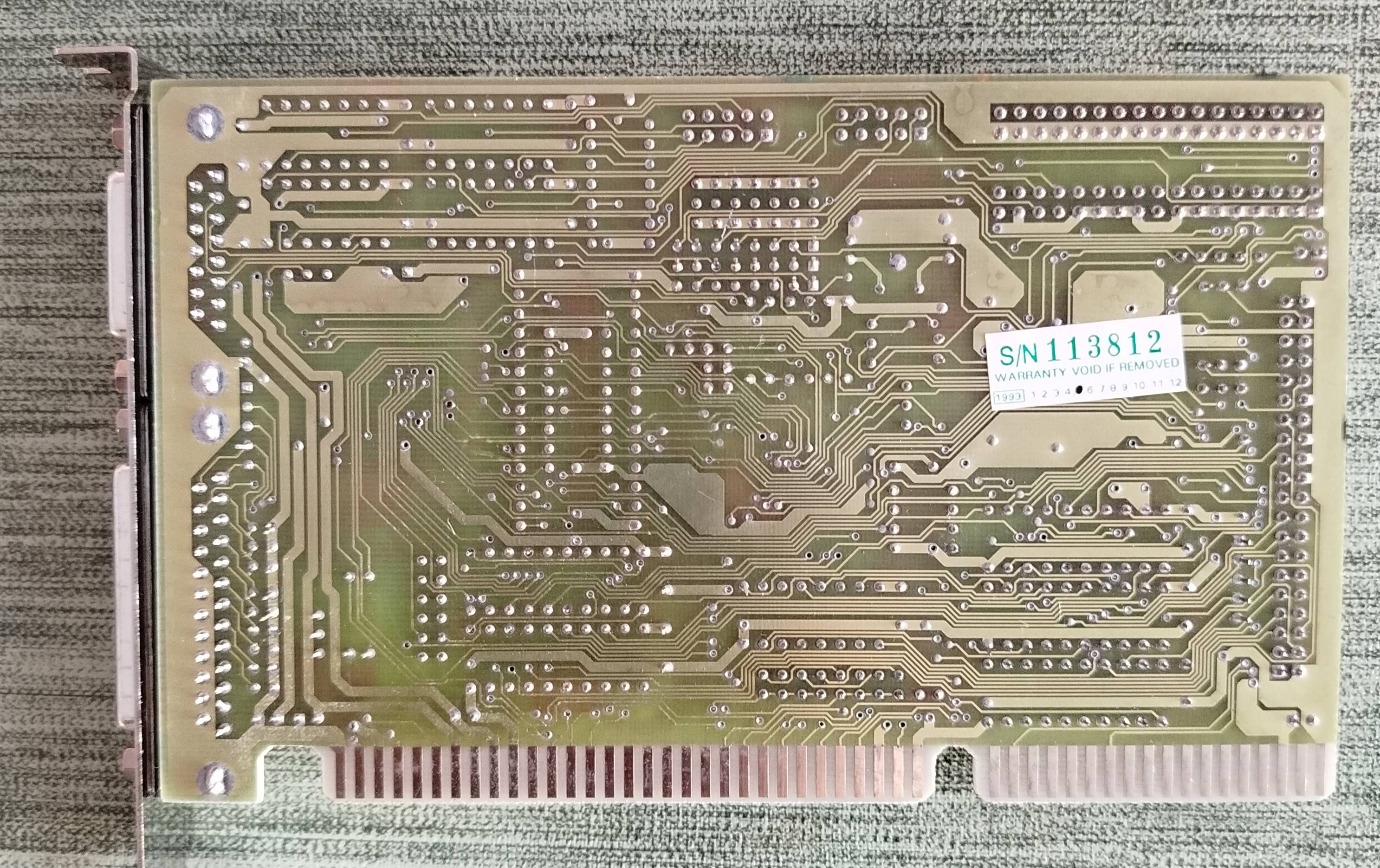

image2 Image 2 of 2 (CircusCat)
