JAZZ MULTIMEDIA, INC. ADRENALINE RUSH 3D
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
643D
ramRAM size
6MB
chip Chips and specs
-> Video
3Dfx 500-0004-02 (TREX - TMU) Alliance aT25 (ProMotion) 3Dfx 500-0005-04 (FJR (Voodoo/Rush))
MTL
Data Bus 32-bit PCI
Card Type Video card
Video Chip Set Alliance
Maximum Video Memory 6MB EDO DRAM
Video Types Supported VGA
Highest Resolution Supported 1600 x 1200
tag Also known as
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
notes Notes

AT25 and its RAM runs at 72MHz

3dfx chips and their RAM runs at 50MHz

Last updated 2025-05-29T12:01:14Z
biosc No BIOS files available
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.43
OS support
MS-DOS Windows 9x
Arch
x86
Size
10.6MB
Filename
Name
Version
3.01.00
OS support
Windows 9x
Arch
x86
Size
924.2KB
Filename
Name
Version
3.01.00
OS support
Windows 9x
Arch
x86
Size
925.7KB
Filename
Name
Version
1.00.01
OS support
Windows NT 4.0
Arch
x86
Size
487.7KB
Filename
Name
Version
N/A
OS support
Windows 2000
Arch
x86
Size
177.1KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1999-12-01
File
Logs
image1 Image 1 of 3 (Microhouse)

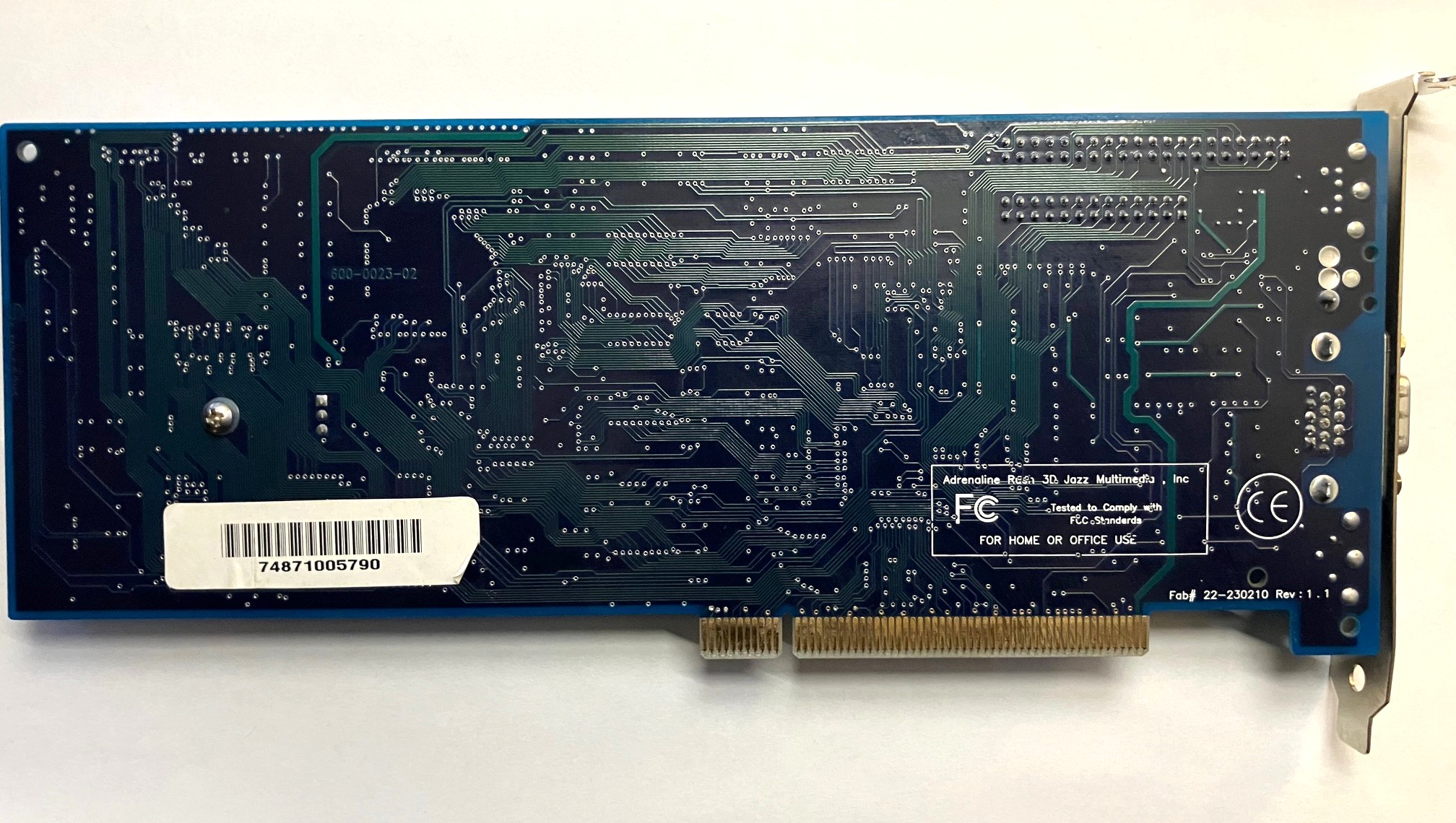

image2 Image 2 of 3 (cygnihurley)

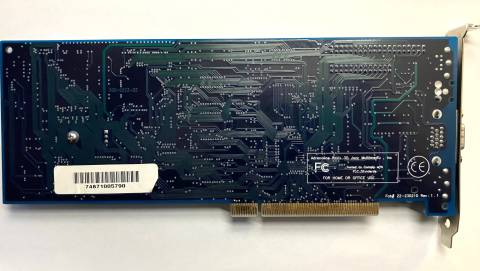

image3 Image 3 of 3 (cygnihurley)
