Jaton JA-8232D/V5
Logs
typeType
Video
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
KY2-JAX-TVGA8900
ramRAM type
FPM
ramRAM size
1MB
chip Chips and specs
-> Video
Trident TVGA8900D-R
  • Memory Supported: 1MB
tag Also known as
portintI/O ports
1x
  • 2x13 2.54mm pin header, VESA Feature Connector
1x
  • DE-15, VGA
powerPower connectors
Empty
Last updated 2025-08-05T11:57:30Z
bios 2 card BIOS files available
Version
Note
File
Logs
Version
07/12/93 C4.3
Note
File
Logs
Version
01/28/94 C4.5
Note
zip file with odd, even, odd/even@4000h, and merged ROMs
File
Logs
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
07/12/93 C4.3
Note
File
Logs
Version
01/28/94 C4.5
Note
zip file with odd, even, odd/even@4000h, and merged ROMs
File
Logs
drv No drivers available
doc No card documents available

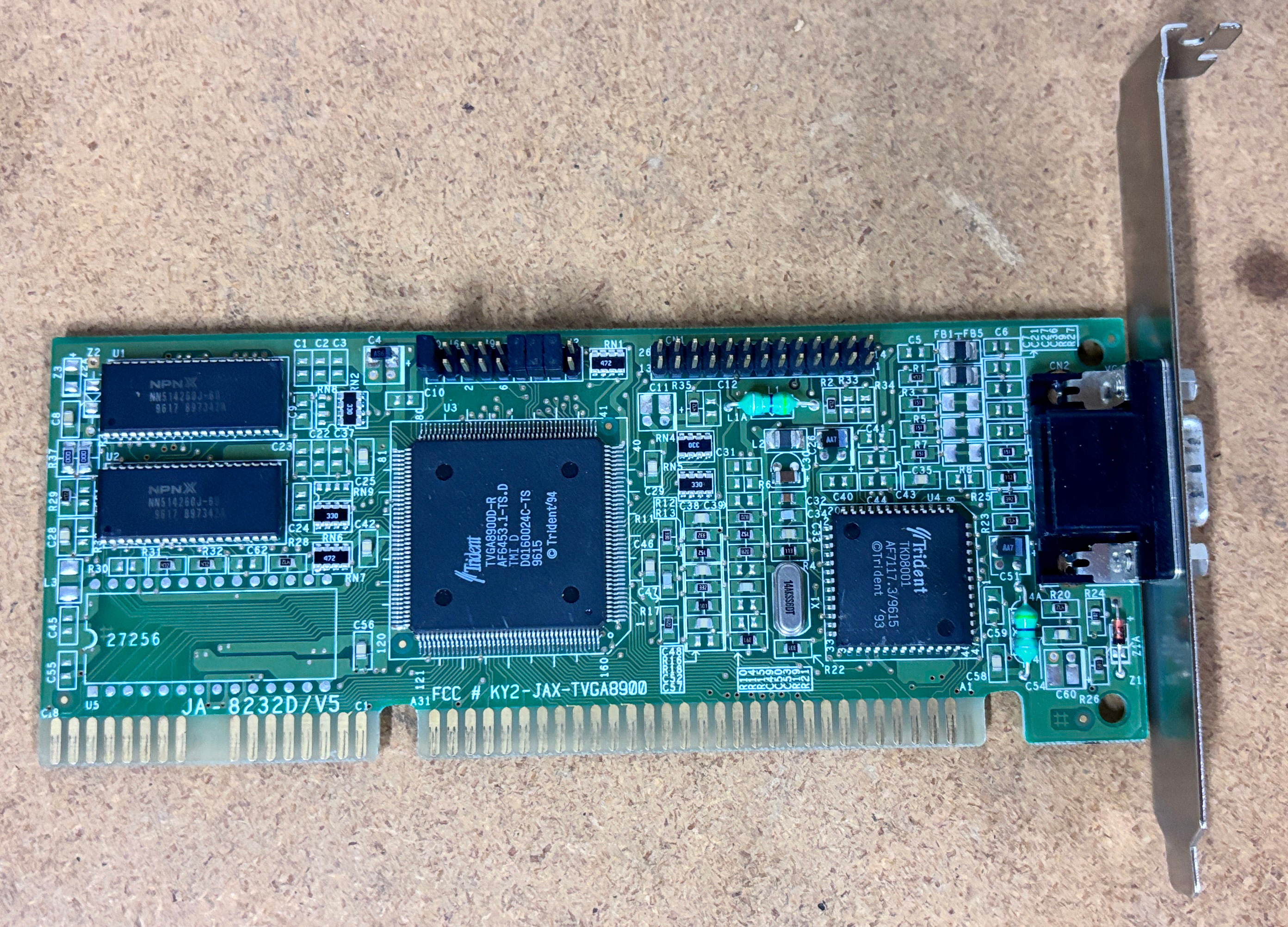

image1 Image 1 of 2 (FalconFour)

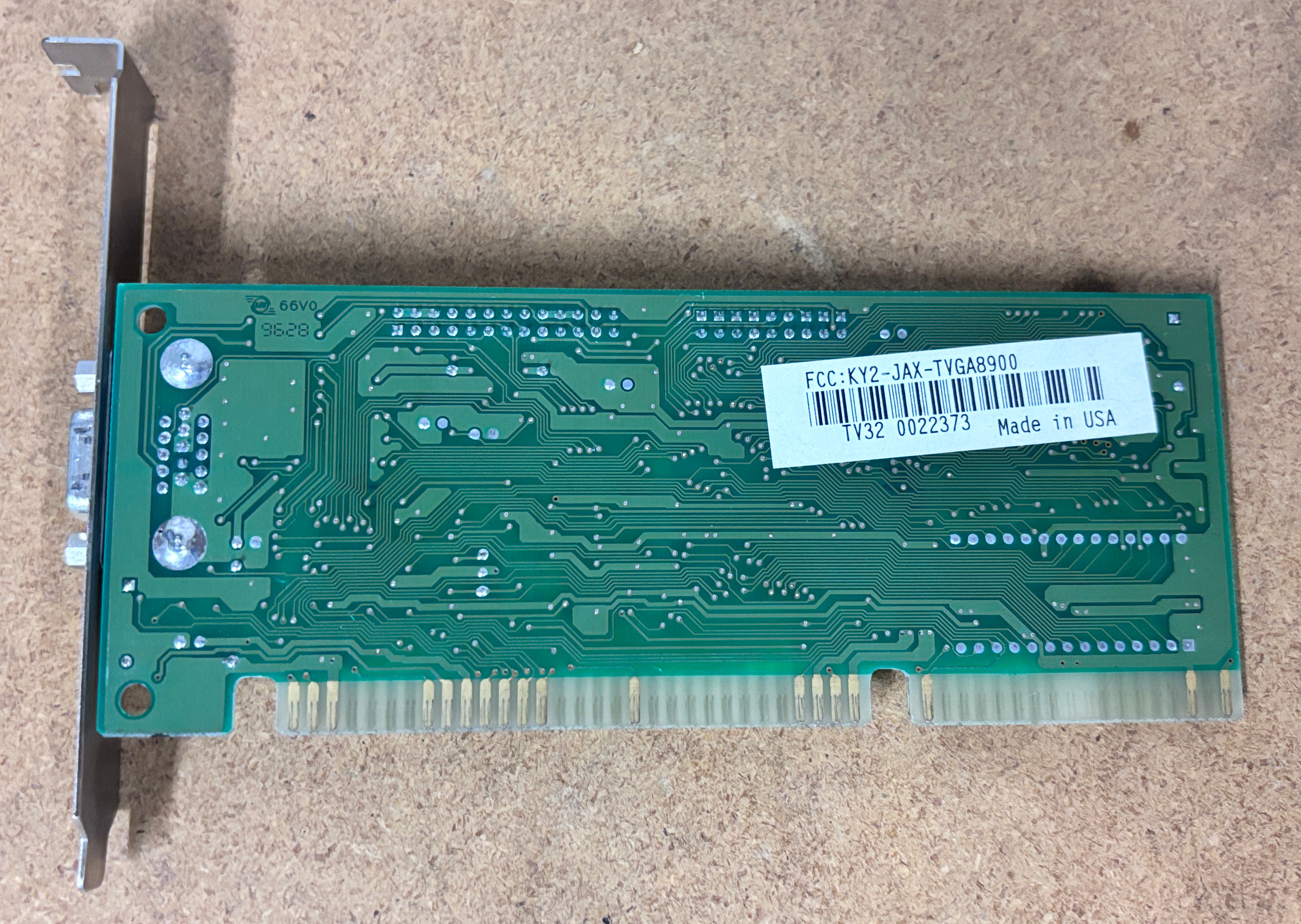

image2 Image 2 of 2 (FalconFour)
