Jaton 8267C/V3
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
9660
fccFCC ID
JTNMCTVGA9685PCI
ramRAM type
EDO
ramRAM size
4MB2MB
dimDimensions
120mm (length) x 79mm (height)
chip Chips and specs
-> Video
Trident ProVidia9685
tag Also known as
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
notes Notes

Driver CD: https://archive.org/details/video-67-ptv

Last updated 2025-11-07T19:33:59Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
File
Logs

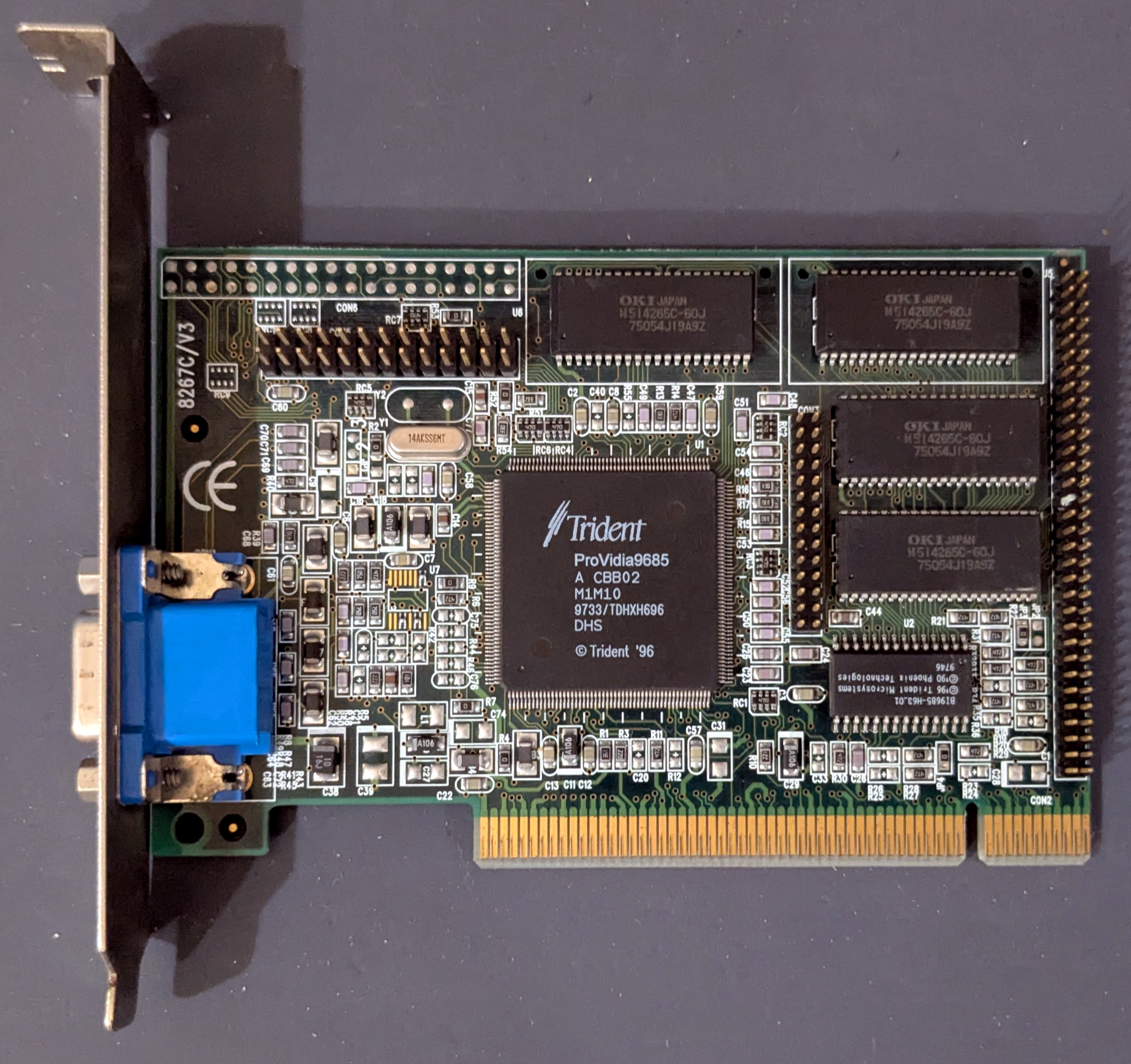

image1 Image 1 of 9 (Jaton)
image2 Image 2 of 9 (Helen_Croft)
image3 Image 3 of 9 (Jason Neuhaus)
image4 Image 4 of 9 (Helen_Croft)
image5 Image 5 of 9 (Helen_Croft)
image6 Image 6 of 9 (Jason Neuhaus)
image7 Image 7 of 9 (Helen_Croft)

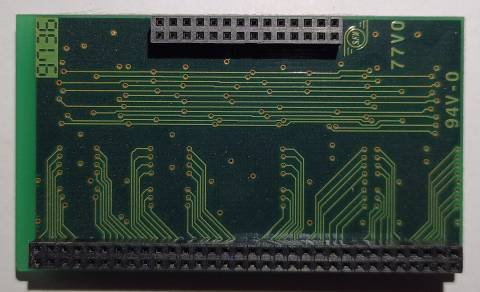

image8 Image 8 of 9 (Helen_Croft)
image9 Image 9 of 9 (Helen_Croft)
