IntreSource TeraSound A3D PCI
Logs
typeType
Sound
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
0001
chip Chips and specs
-> Audio
Aureal AU8820 (Vortex 1) SigmaTel STAC9704T (AC97)
-> Video
Texas Instruments TMXB320AV110 (A/V DSP (?))
tag Also known as
  • Unknown ISO1010
portintI/O ports
2x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
3x
  • 1x4 2.54mm pin header
1x
  • DA-15
powerPower connectors
Empty
Last updated 2025-09-06T18:52:38Z
biosc No BIOS files available
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.17.01
OS support
Windows NT 4.0
Arch
x86
Size
4.9MB
Filename
Name
Version
1.00
OS support
OS/2 Warp 3.x OS/2 Warp 4.x
Arch
x86
Size
4.4MB
Filename
Name
Version
3.10
OS support
Windows 3.1x
Arch
x86
Size
4.5MB
Filename
Name
Version
4.06.1189
OS support
Windows 9x
Arch
x86
Size
9.3MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

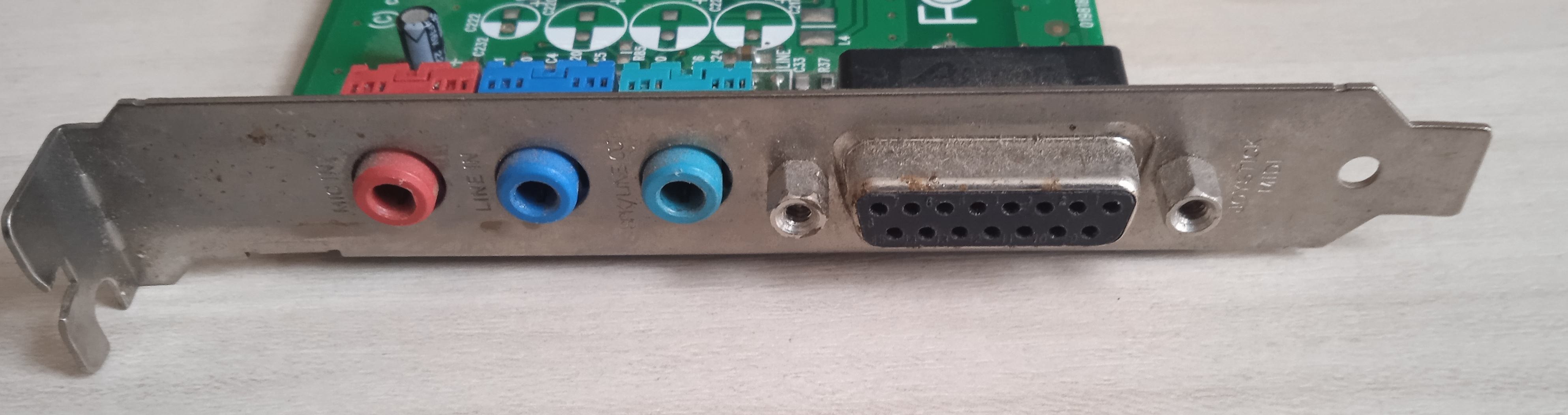

image1 Image 1 of 4 (Time00)

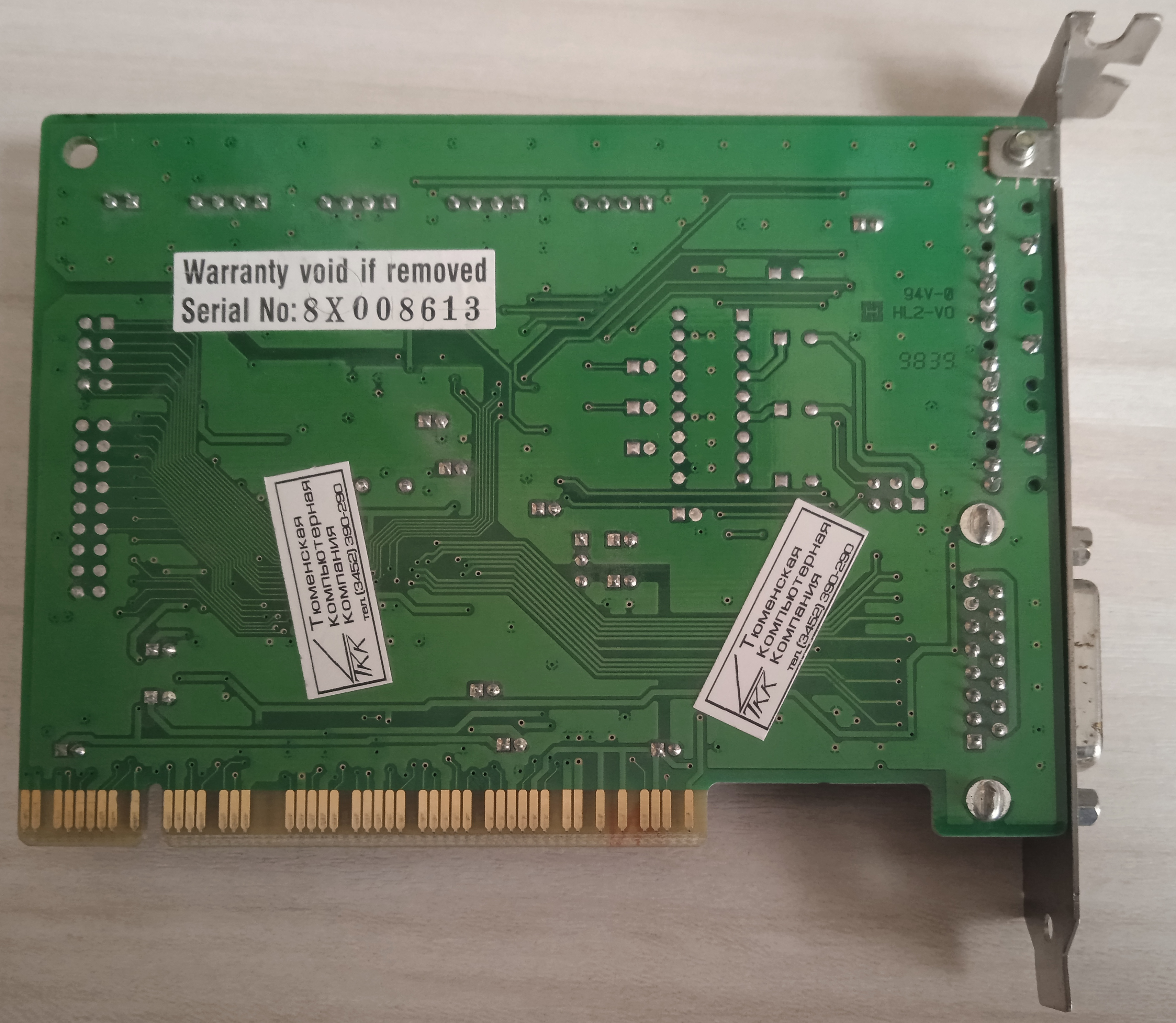

image2 Image 2 of 4 (Time00)

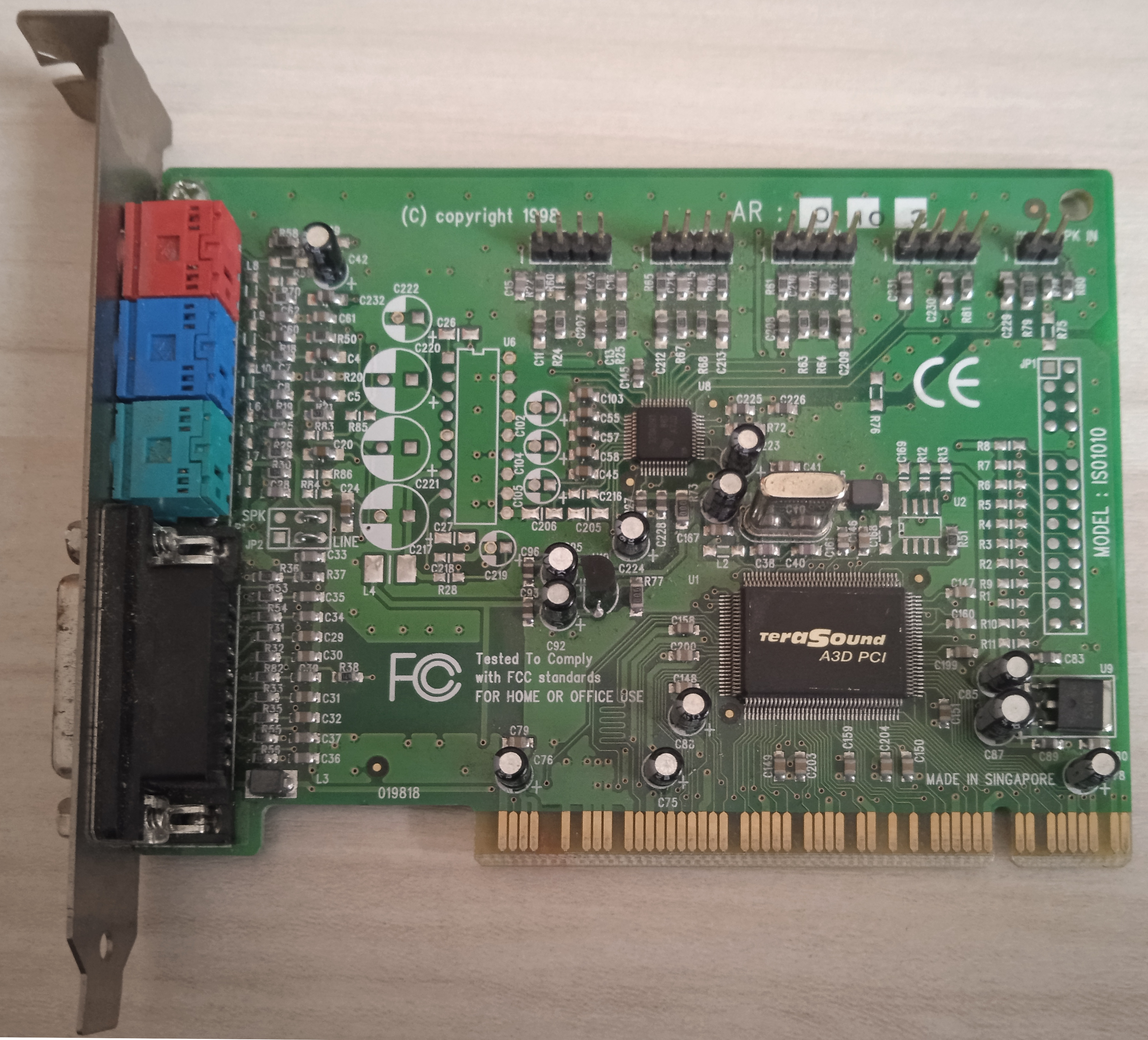

image3 Image 3 of 4 (Time00)

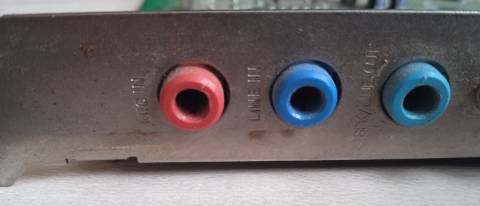

image4 Image 4 of 4 (Time00)
