INFORTREND TECHNOLOGY, INC. IFT-2101U
Logs
Interface
Signaling
PCI ID
000F
RAM type 72-pin FPM
RAM size
64MB
Chips and specs
-> Miscellaneous
-> Processor
-> Real-Time Clock
-> SCSI ctrl.
| MTL | |
|---|---|
| Data Bus | 32-bit PCI |
| Card Size | Full-length, full-height card |
| Card Type | Hard drive controller card |
| Processor | 80486 |
| Processor Speed | Unidentified |
| Hard Drives supported | Up to 15 SCSI devices |
| Maximum Onboard Memory | 64MB DRAM |
| Floppy drives supported | None |
| Microarchitecture | |
|---|---|
| L1 cache | 8KB |
| Core | P23 |
| Bus speed | 33MHz |
| Frequency | 33MHz |
| Multiplier | 1x |
| Power | |
|---|---|
| Voltage | 5V |
I/O ports
Power connectorsLast updated 2025-03-30T01:29:31Z
No card BIOS files available
1 chip with BIOS files available Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.0
OS support
MS-DOS
Arch
x86
Size
363.7KB
Filename
Name
Version
4.0
OS support
Windows 3.1x
Arch
x86
Size
402.3KB
Filename
Name
Version
4.13
OS support
Windows 9x
Arch
x86
Size
35.3KB
Filename
Name
Version
4.13
OS support
Windows NT 3.5x
Windows NT 4.0
Arch
x86
Size
100.8KB
Filename
Name
Version
4.13
OS support
Windows NT 3.5x
Windows NT 4.0
Arch
ALPHA
Size
46KB
Filename
1 card document available
Release date
File
Logs
Chip
Release date
File
Logs

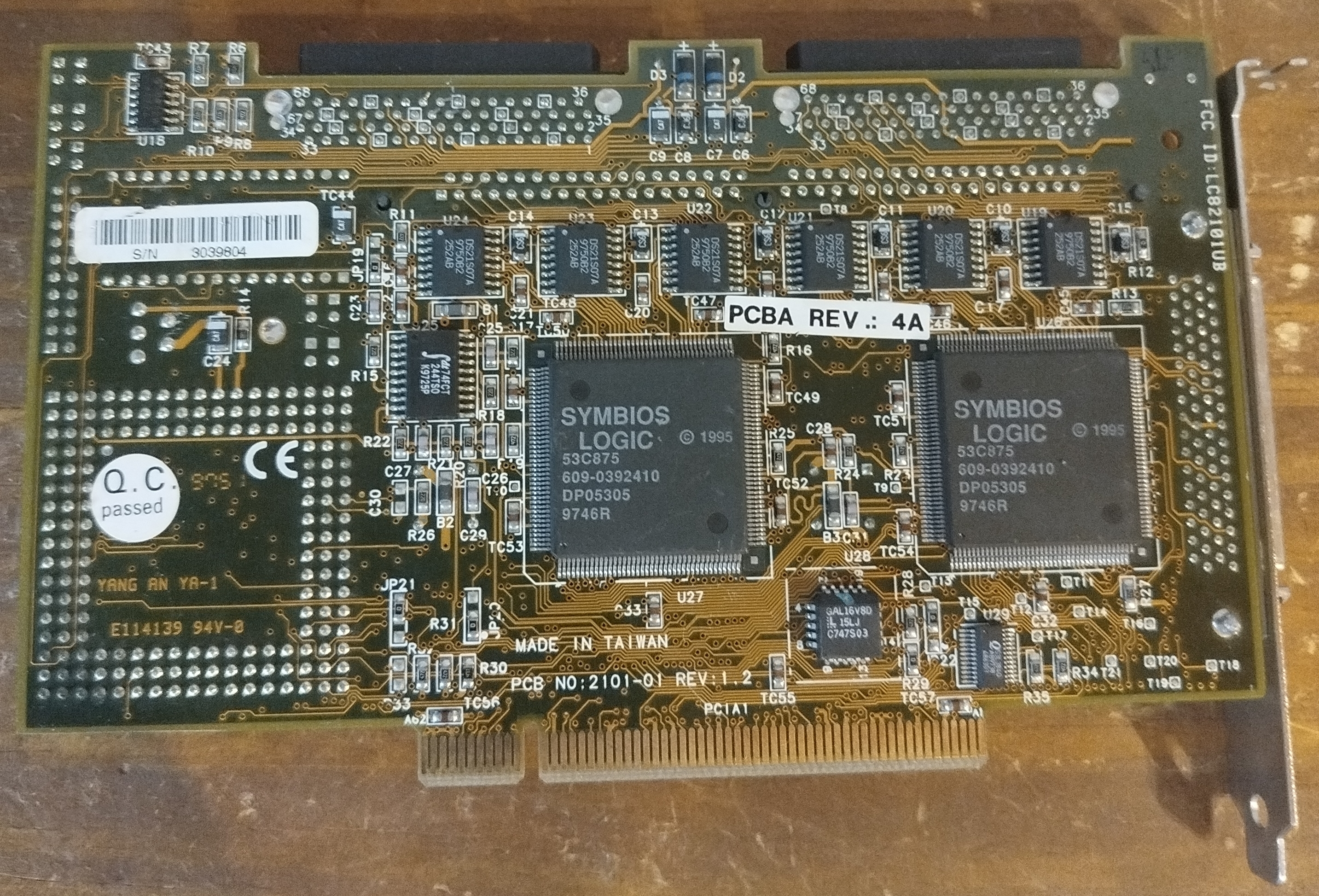

Image 1 of 3 (Microhouse)

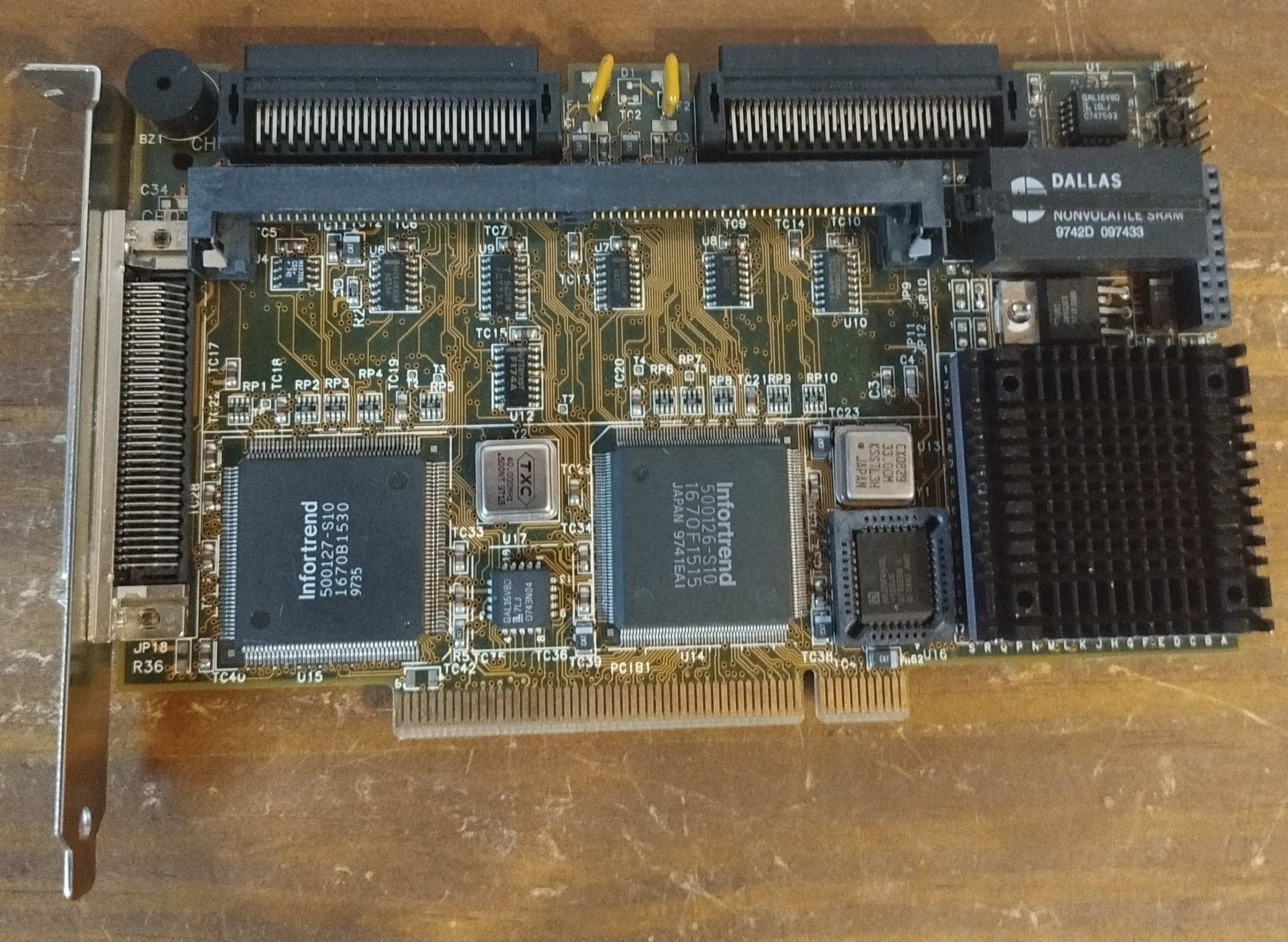

Image 2 of 3 (CircusCat)
Image 3 of 3 (CircusCat)
