Informtech UN-1072
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
ID2-W83757S
chip Chips and specs
-> Signal transmitter/receiver
(multiple brand) MC1488 (RS-232 Driver) (multiple brand) MC1489 (RS-232 Receiver)
-> Super I/O
Winbond W83757
MTL
Size: Half-length, half-height card
Data bus: 16-bit, ISA
HadProblem
Hard drive supported: Two IDE (AT) interface drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB drives
portintI/O ports
1x
  • 2x17 2.54mm pin header, FDD
1x
  • 2x8 2.54mm pin header, Game port
1x
  • 2x20 2.54mm pin header
1x
  • DB-25, ECP/EPP
1x
  • DE-9, RS-232
1x
  • 2x5 2.54mm pin header, RS-232
powerPower connectors
Empty
notes Notes

FCC ID is borrowed from the winbond chip.

Last updated 2025-07-11T21:10:38Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Empty
Arch
x86
Size
19.7KB
Filename
doc 2 card documents available
Release date
File
Logs
Release date
1999
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 3 (Microhouse)

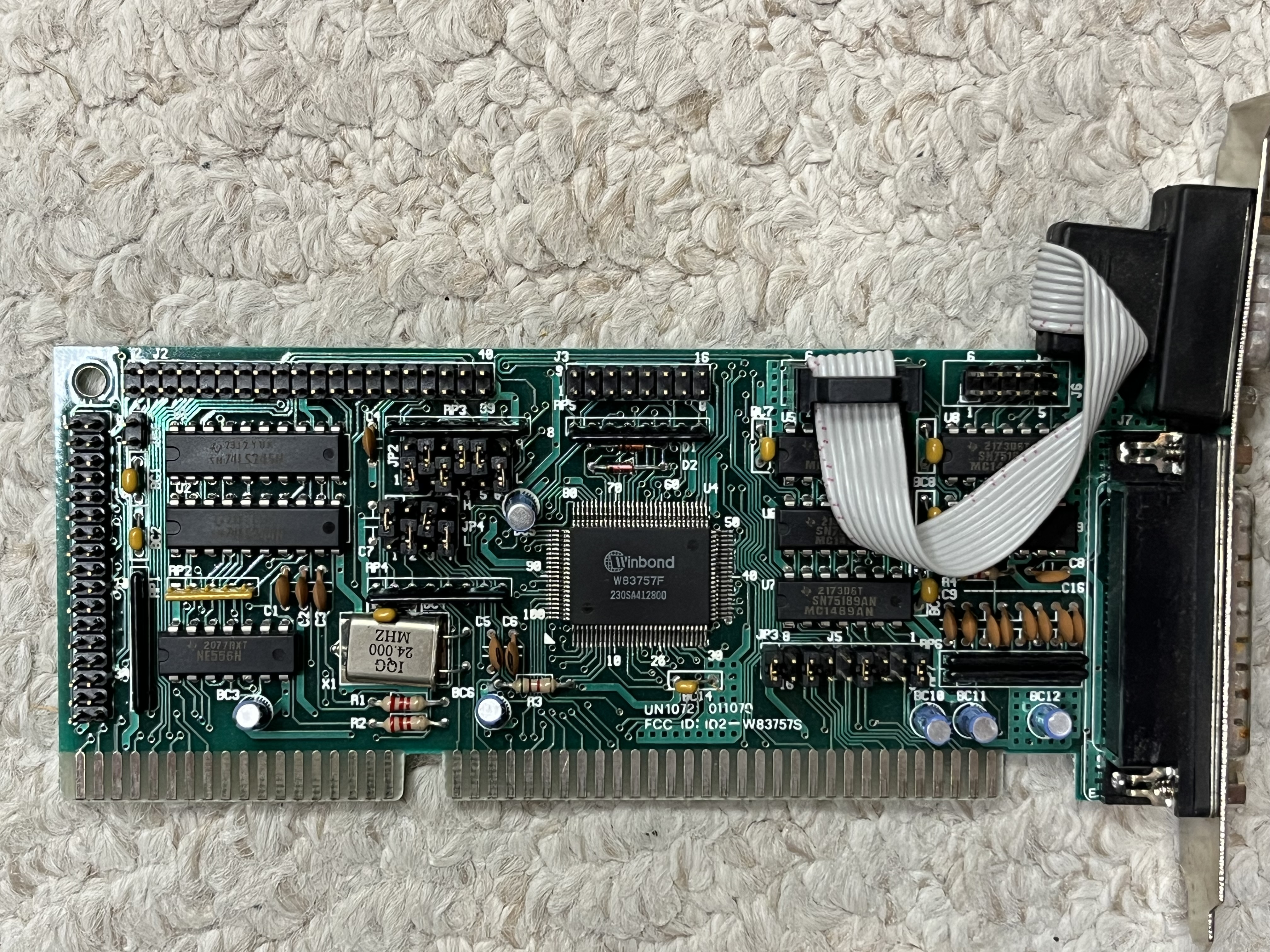

image2 Image 2 of 3 (Douglar)

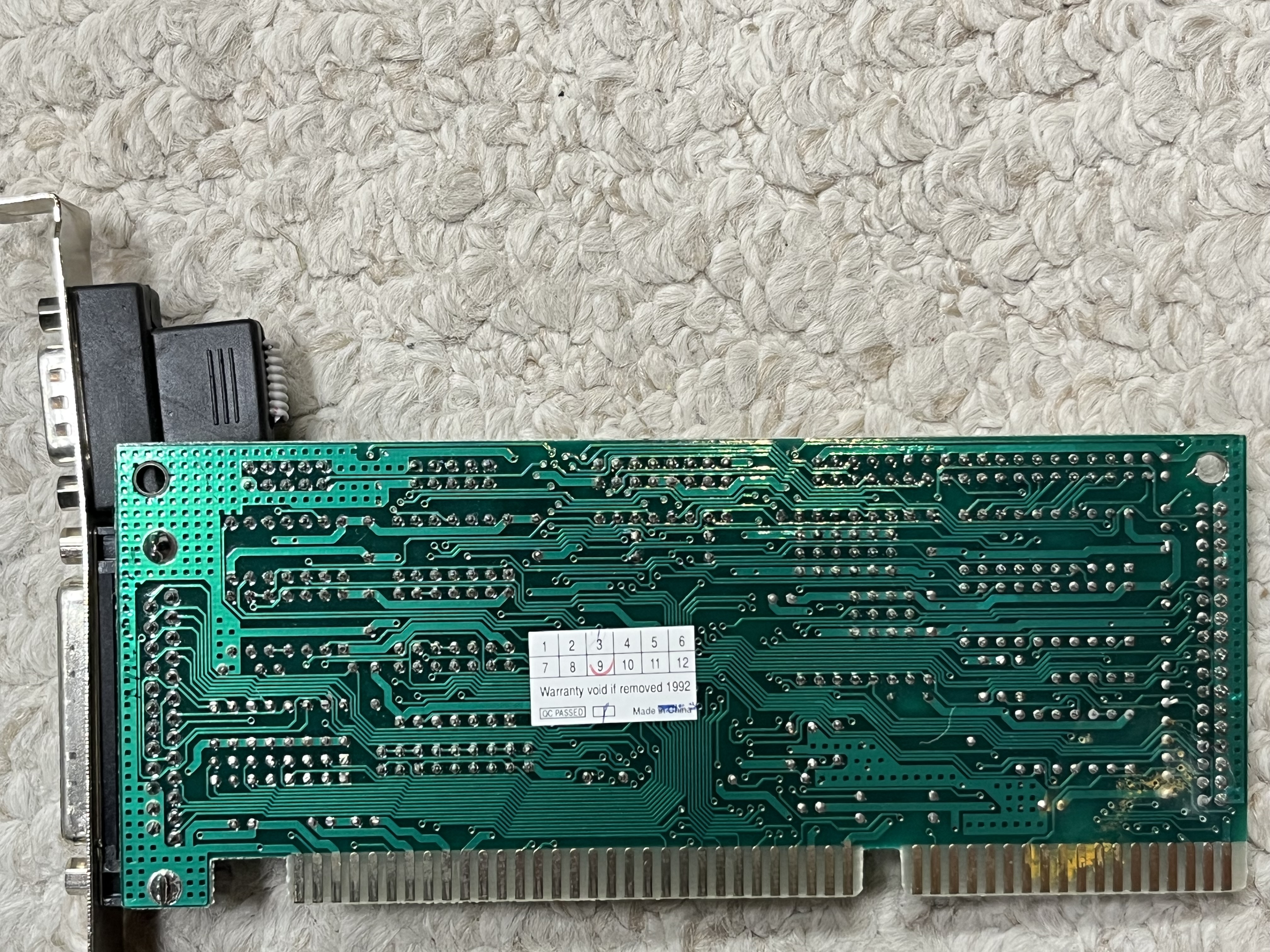

image3 Image 3 of 3 (Douglar)
