HP 27247B
Logs
typeType
Network
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
dimDimensions
175 mm (width) x 80mm (length)
chip Chips and specs
-> Network

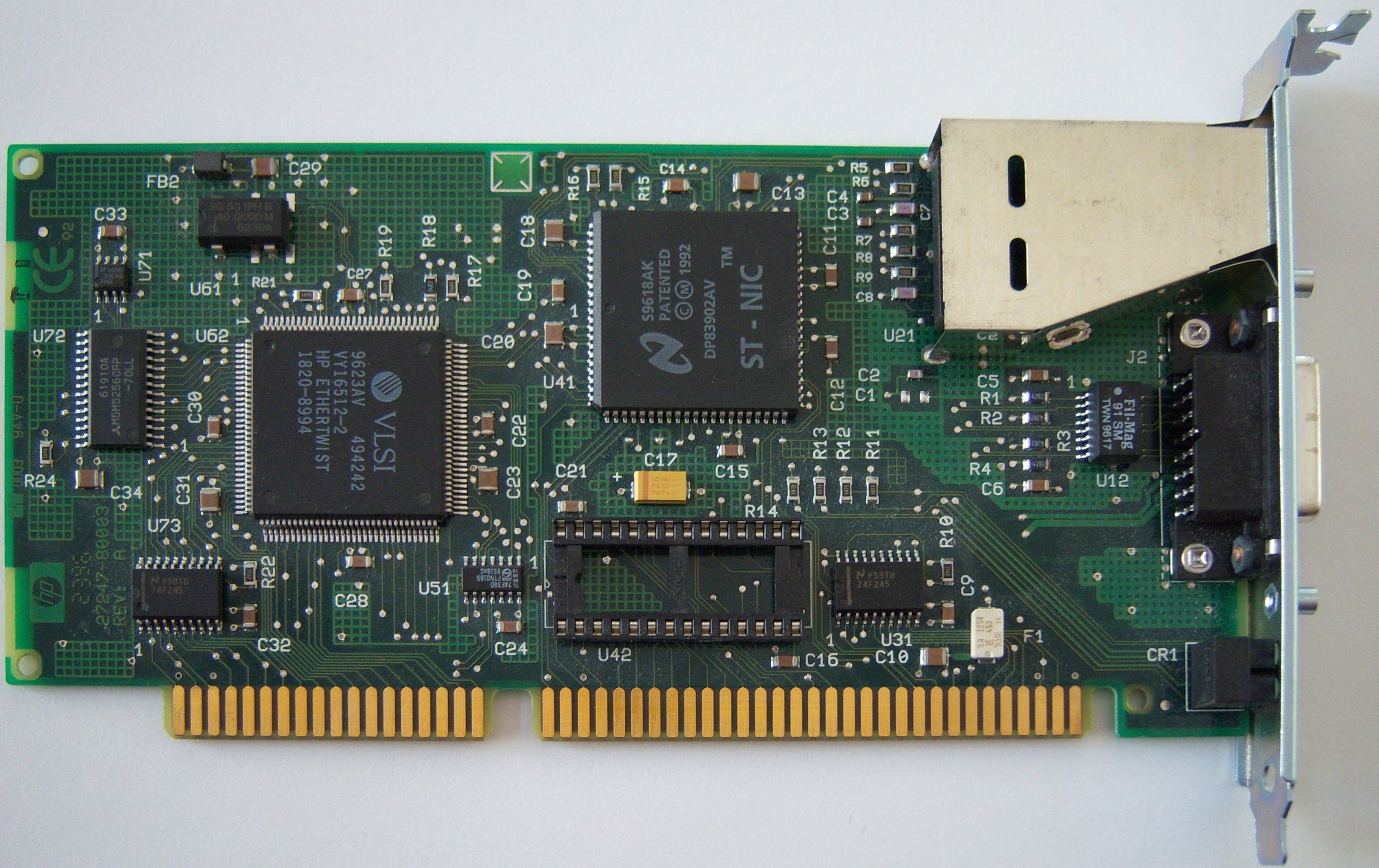

National Semiconductor DP83902A (ST-NIC) HP 1820-8994 (ETHERTWIST)
MTL
Boot ROM Available
Data Bus 16-bit ISA
NIC Type Ethernet
Topology Linear Bus, Star
Wiring Type Unshielded twisted pairAUI transceiver via DB-15 port
Network Transfer Rate 10Mbps
Network speed
10Mb/s
tag Also known as
  • HP 27247-60003
  • HP PC LAN Adapter/16 Plus TP
  • HP EtherTwist PC LAN Adapter/16 Plus

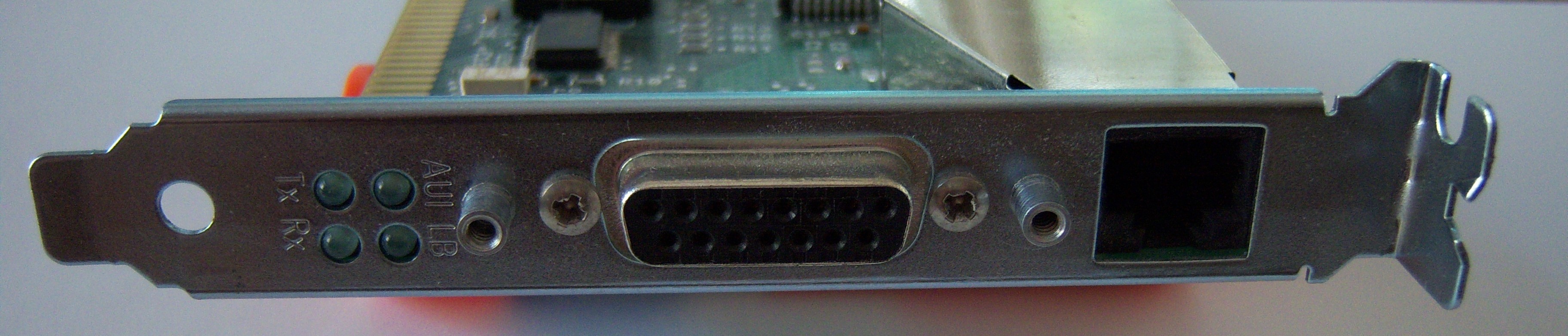

portintI/O ports
1x
  • DA-15
1x
  • RJ45
1x
  • 28-pin DIP socket
powerPower connectors
Empty
Last updated 2024-08-25T19:59:10Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
D.04.01
OS support
MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
321.2KB
Filename
image1 Image 1 of 4 (Microhouse)
image2 Image 2 of 4 (M.Jo)
image3 Image 3 of 4 (M.Jo)
image4 Image 4 of 4 (M.Jo)
