HP 27245A
Logs
typeType
Network
interfaceInterface
signalSignaling
8-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Network
National Semiconductor DP8390C (Network Interface Controller) VLSI 8201C6456 (ISA NIC Bus Controller)
MTL
Boot ROM Not available
Data Bus 8-bit ISA
NIC Type Ethernet
Topology Star
Wiring Type Shielded/Unshielded twisted pair
Transfer Rate 10Mbps
Network speed
10Mb/s
tag Also known as
  • HP 8-bit EtherTwist
  • HP PC LAN ADAPTER/8 TP
portintI/O ports
2x
  • RJ45
powerPower connectors
Empty
Last updated 2025-08-28T00:06:11Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
D.03.00
OS support
MS-DOS NetWare Server 3 OS/2 1.x SCO Unix - OpenServer Windows 3.0 Windows NT 3.1
Arch
x86
Size
607.5KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990
File
Logs

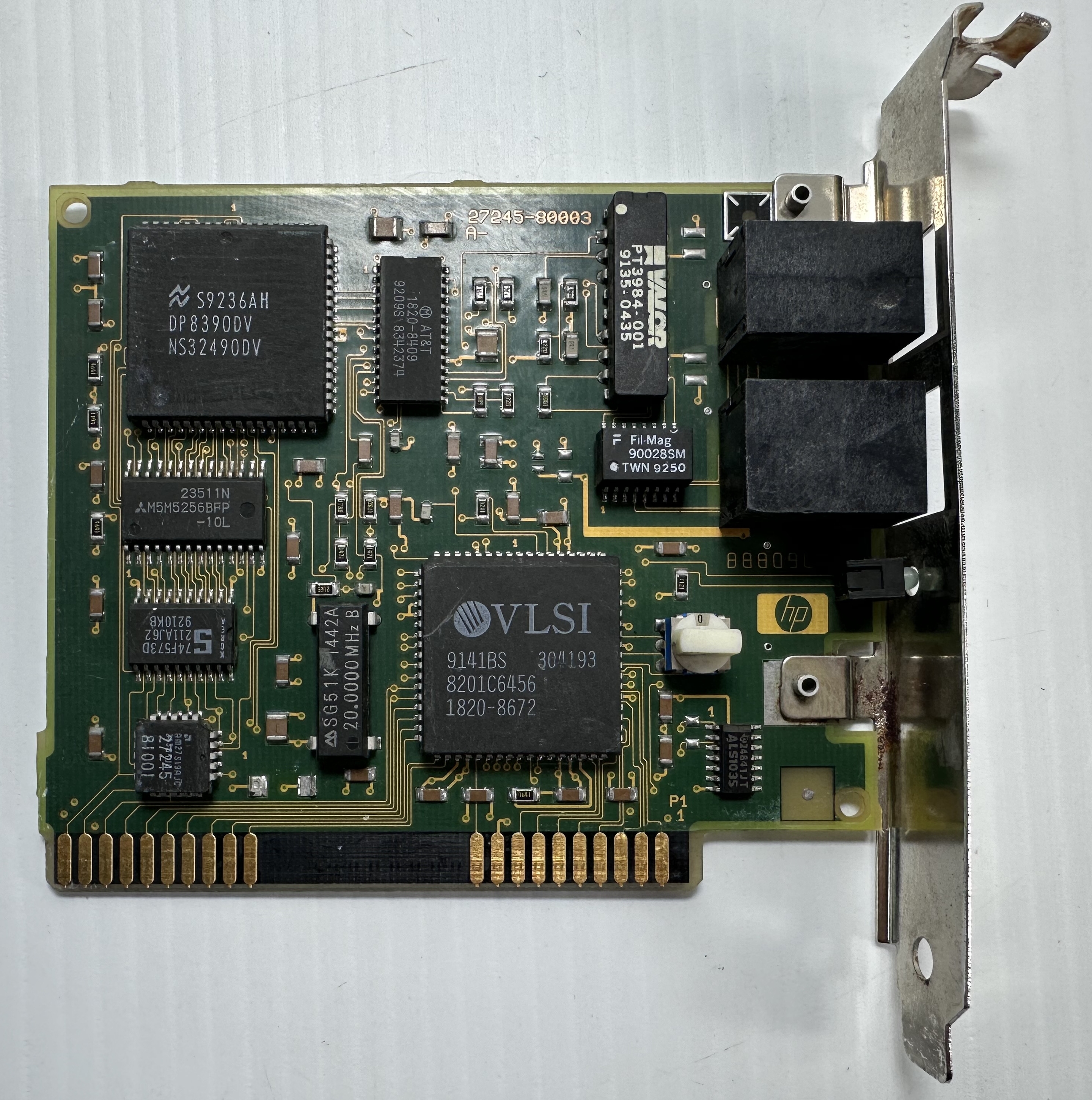

image1 Image 1 of 4 (Microhouse)

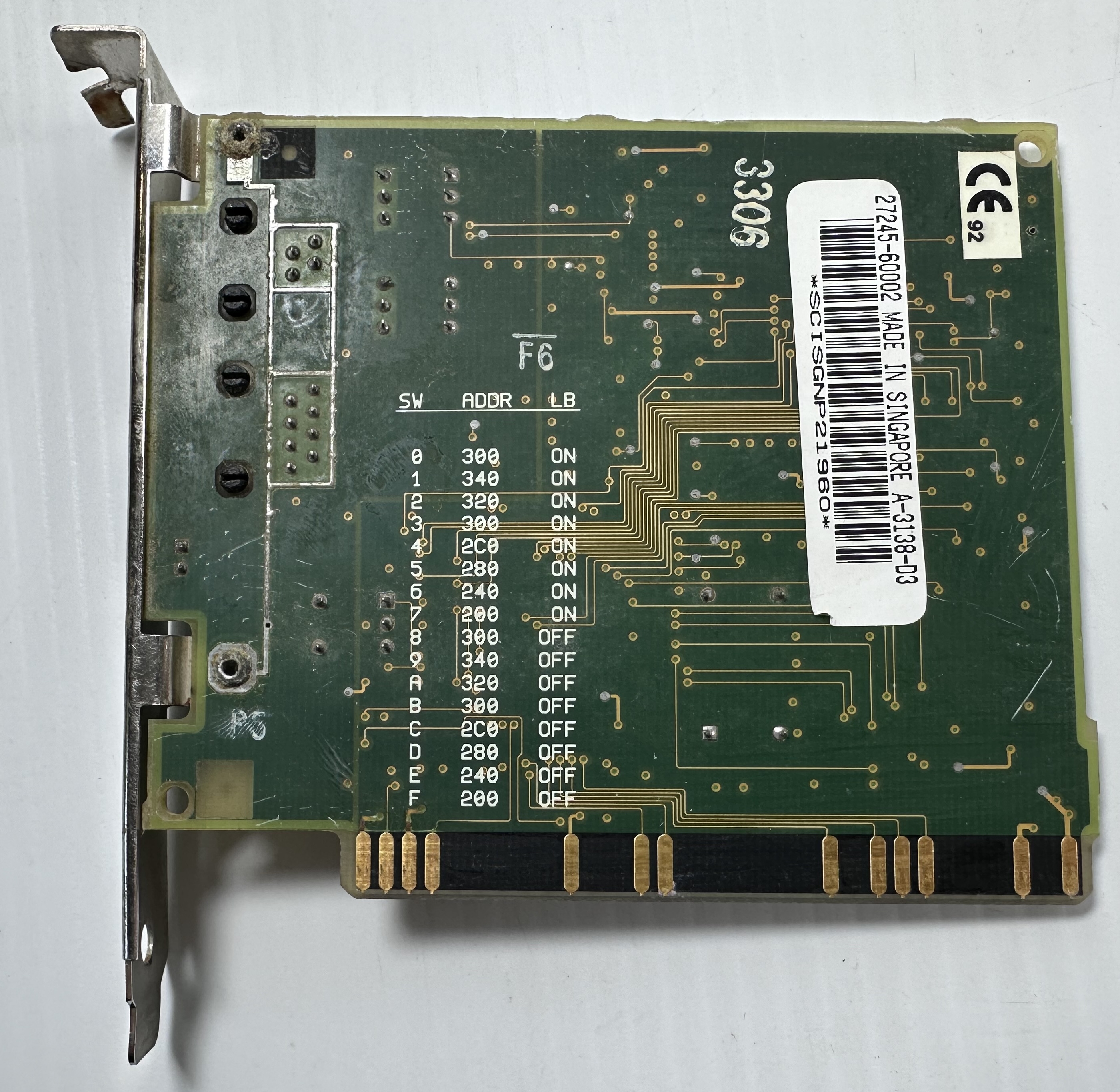

image2 Image 2 of 4 (ThisOldTech)

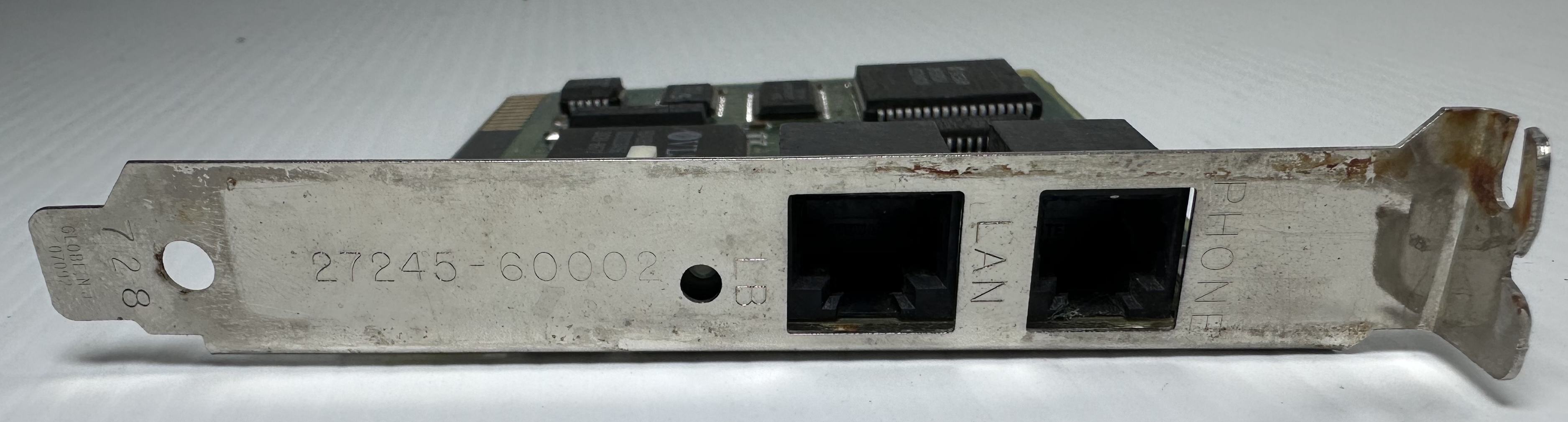

image3 Image 3 of 4 (ThisOldTech)
image4 Image 4 of 4 (ThisOldTech)
