HIS CL-542X-VLB (5426)
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit VLB
dimSlot height
1
datePCI ID
Empty
fccFCC ID
KBIA3V5426
ramRAM size
1MB
chip Chips and specs
-> Video
Cirrus Logic CL-GD5426
MTL
Category Video
Memory Type DRAM
Data Bus Type VESA local bus
Video Processor Cirrus Logic, Inc.
Video Types Supported XVGA
Maximum Onboard Memory 2MB
Highest Resolution Supported 1280 x 1024
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-01-02T21:51:38Z
biosc No BIOS files available
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.43
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
741.9KB
Filename
Name
Version
3.50
OS support
Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
140KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
1.4MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
600.3KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

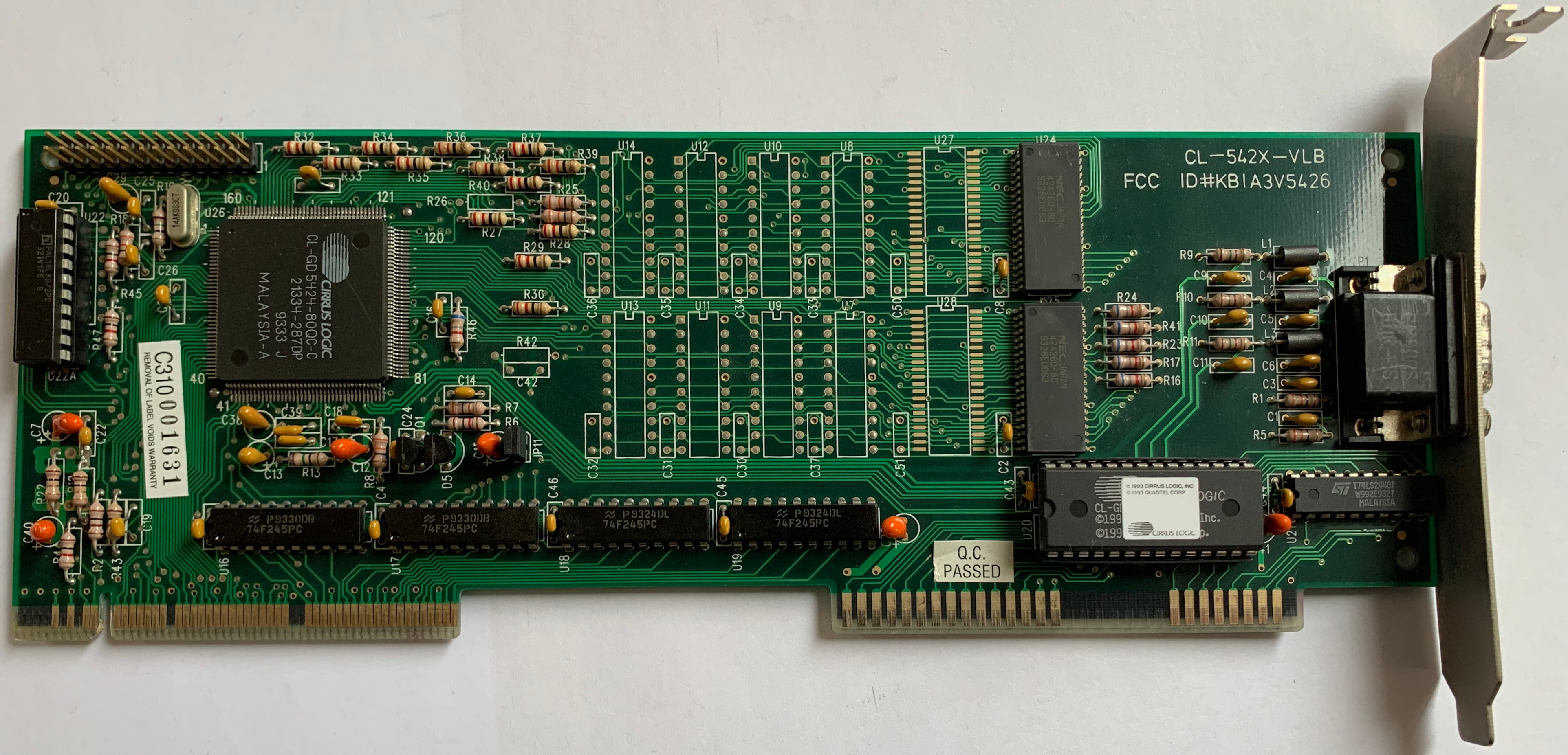

image1 Image 1 of 1 (Elke Wehmer)
