GSI, INC. MODEL 32
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Floppy ctrl.
Intel 82077 (Floppy Disk Controller)
-> Signal transmitter/receiver
(multiple brand) MC1488 (RS-232 Driver) (multiple brand) MC1489 (RS-232 Receiver)
-> Super I/O
(multiple brand) 16C452 (Dual high-speed UART w/LPT) (multiple brand) 16C552 (Dual high-speed UART w/LPT)
MTL
Size: Half-length, full-height card
Data bus: 16-bit, ISA
HadProblem
Hard drive supported: Two IDE (AT) Interface drives
Floppy drives supported: Four 360KB, 720KB, 1.2MB, 1.44MB, or 2.88MB drives
portintI/O ports
2x
  • 2x17 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • DB-25
1x
  • DE-9
1x
  • 2x5 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-11-24T08:09:37Z
biosc No BIOS files available
drv No drivers available
image1 Image 1 of 4 (Microhouse)
image2 Image 2 of 4 (Douglar)
image3 Image 3 of 4 (Douglar)

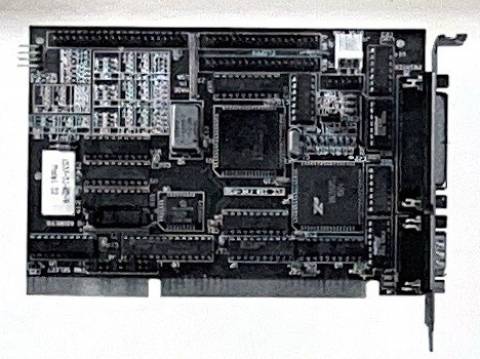

image4 Image 4 of 4 (Douglar)
